Daikin ARM09MV2S Service Manual page 7

Si011356EA

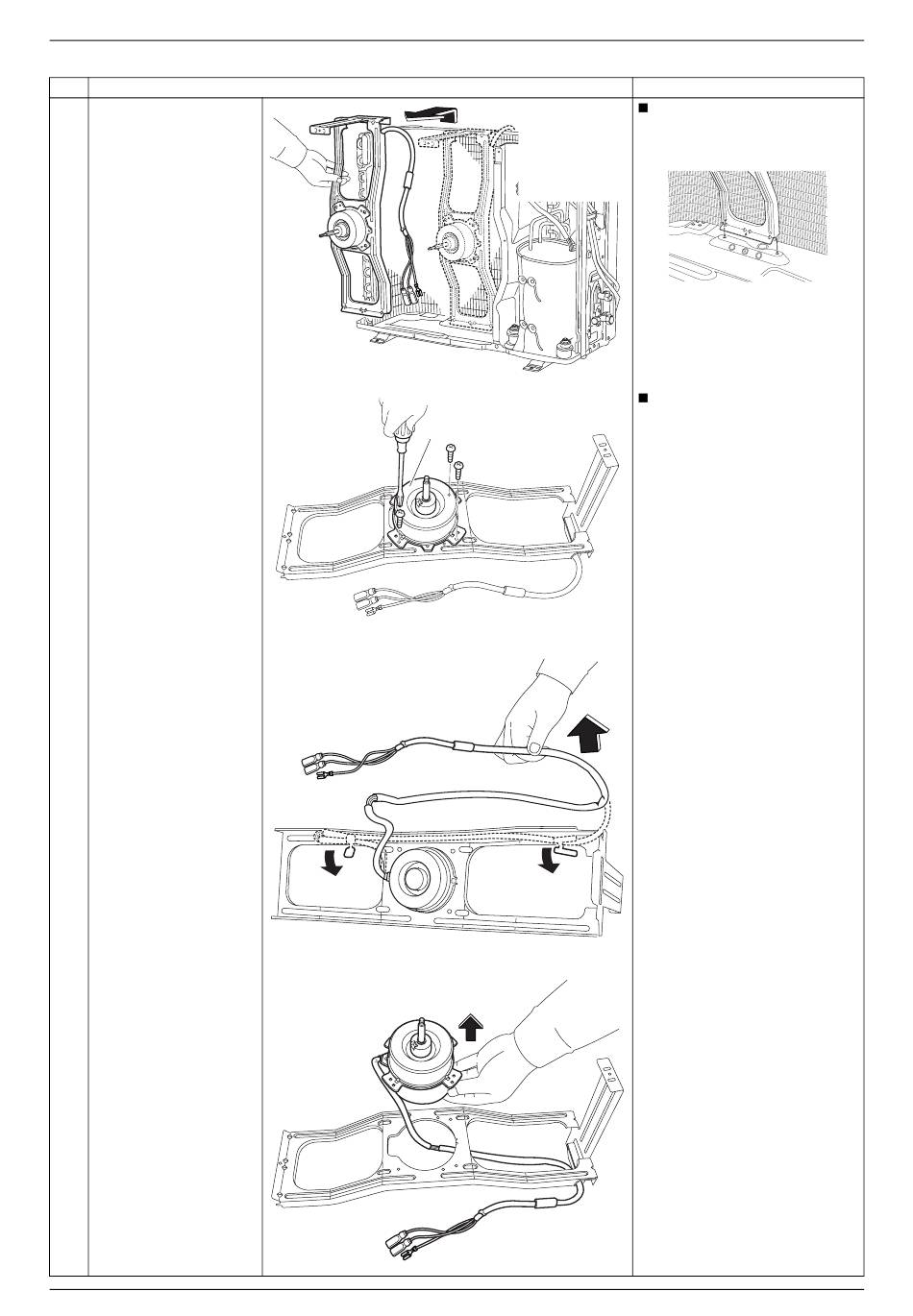

Step
Remove the fan motor
8
fixing frame.
9 Remove the 3 screws
and remove the fan
motor.
10 Release the harness
from the hooks.
11 Remove the fan motor.
Removal Procedure
Procedure
Fan motor
Outdoor Fan / Fan Motor
Points
When reassembling, fit the
lower hooks into the bottom
frame.
(R19245)
Screw size: M4 × 16
(R10461)
(R15207)
(R15208)
(R10460)
5
