Outer Panels

1. Outer Panels
Warning
Step
Remove the screw and
1
remove the stop valve
cover.
2 Remove the 3 screws
(left: 2 screws, right: 1
screw) and remove the
top panel.
3 Remove the 6 screws
of the front panel.
2
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

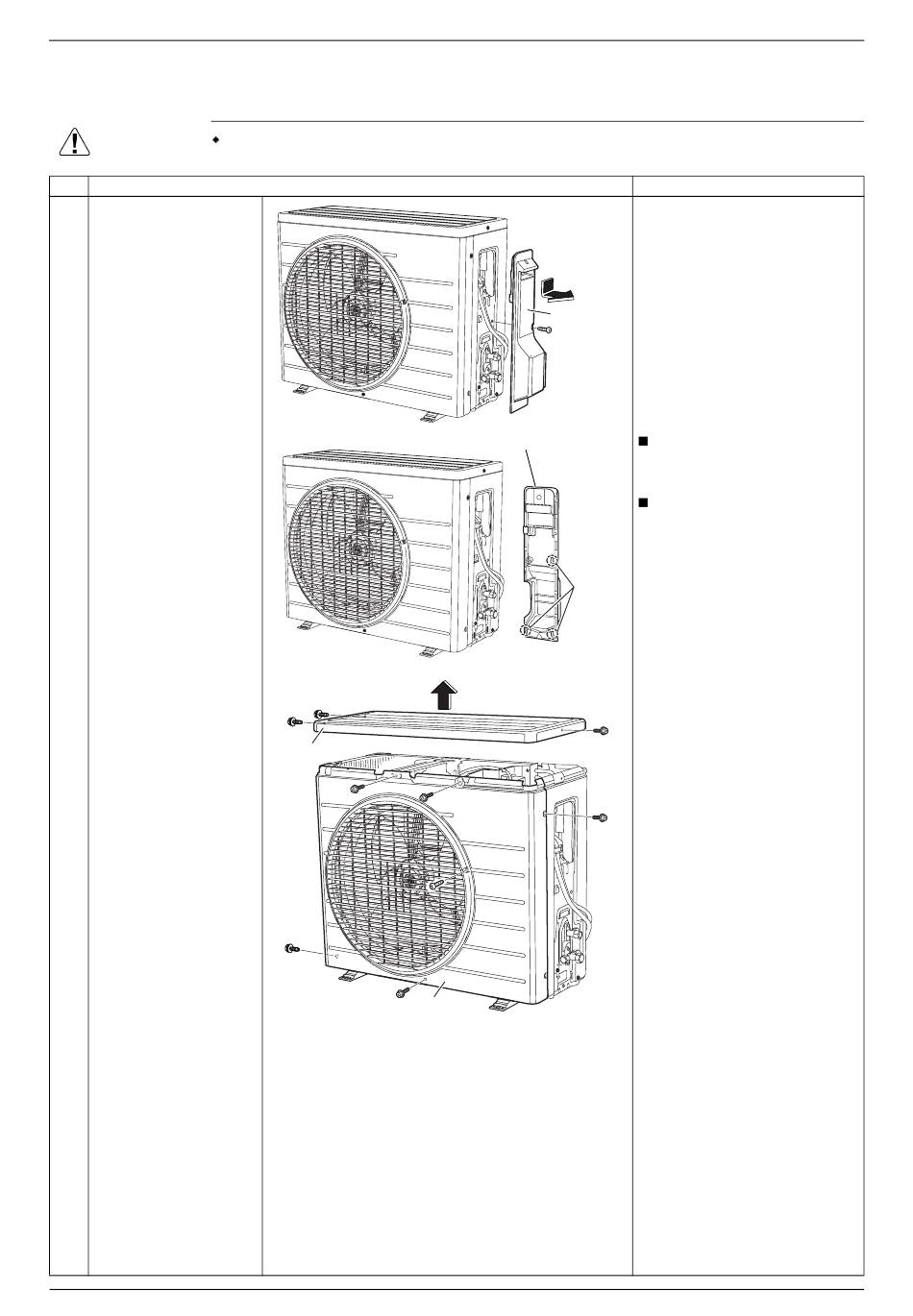

Procedure
Top panel
Stop valve
cover
(R16329)
Shield plate
Hook
(R16330)
Front panel (R16331)
Si011356EA
Points
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 3 hooks.
Removal Procedure
