BusinessLine G3

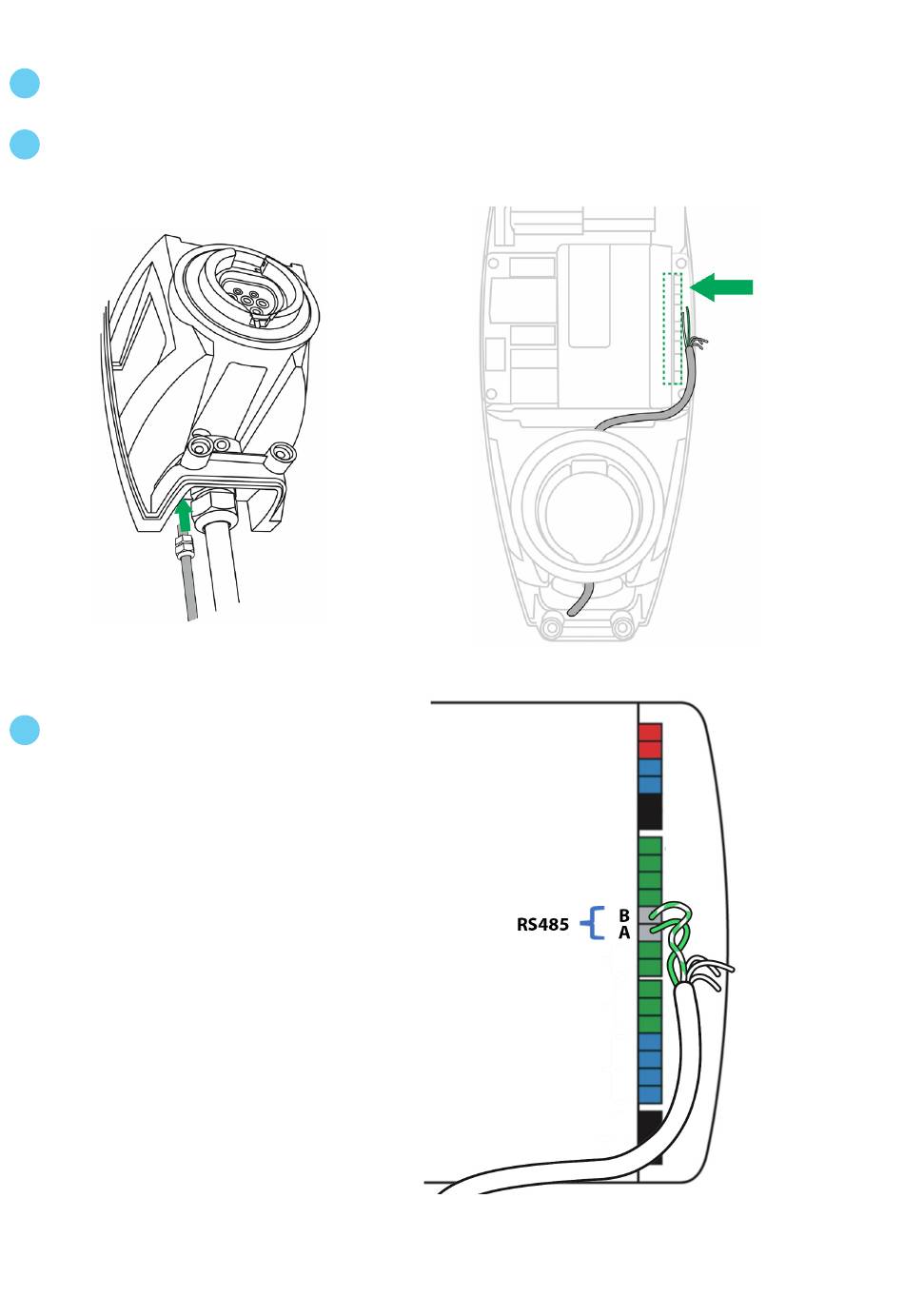

In the charging station, find the RS485 connection on the modem board PCB.
1
The figures below will help you find the connection.
2
Route the network cable into the charging station along the same route as the power cable.
When the cable enters the base of the station, drill a hole and use a cable gland.
Connect the network cable to the
3
controller gray RS485 connector using
the gray 2-pole Phoenix plug (supplied):
• Green > RS485 pin A
• Green/White > RS485 pin B
23
