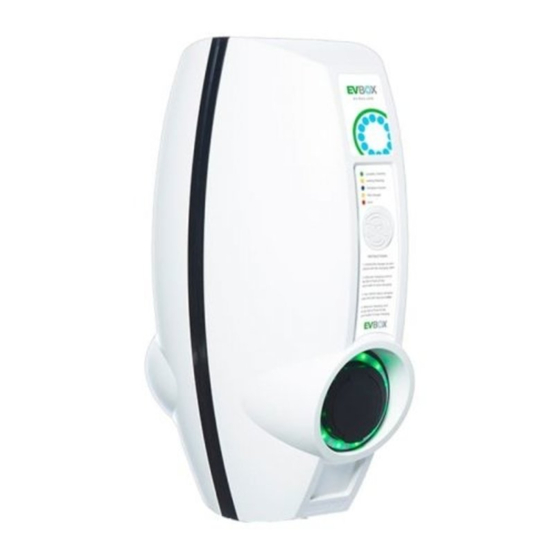

EVBox BusinessLine Installation Manual
Hide thumbs
Also See for BusinessLine:
- Manual (130 pages) ,
- Installation and user manual (46 pages) ,
- Installation and commissioning manual (46 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EVBox BusinessLine
Summary of Contents for EVBox BusinessLine
- Page 1 BusinessLine Installation manual...
- Page 2 I’m home! Let’s get started.
- Page 3 BusinessLine Installation manual...
-
Page 4: Table Of Contents
Safety warnings Transport and storage Maintenance 2. What’s inside 3. Product features About BusinessLine Online BusinessLine (model with communication module) 1. Mode 3 controller 2. RFID reader 3. LED status indicator 4. Technical specifications 4.1 Specifications overview 4.2 Charge box 5. -
Page 5: General
General Errors or inaccuracies For any inaccuracies or omissions, or to provide feedback and suggestions, send an email to support@evbox.com. Product and environmental characteristics The charging station has been CE-certified by the manufacturer and bears the CE logo. The relevant declaration of conformity may be obtained from the manufacturer. -
Page 6: Safety Regulations
• Do not operate the charging station if it is physically damaged or if the charging cable shows signs of cracks, excessive wear, or other visible damage. Contact EVBox or your distributor for more information. • Do not direct powerful jets of water toward or onto the charging station. Never operate it with wet hands. -
Page 7: Transport And Storage
1. Safety regulations Remarks • This product is designed and tested in accordance with international standards. • All components were correctly connected and operationally tested before dispatch of the charging station. • The use of this product is limited to those applications it is designed for. •... -
Page 8: What's Inside
2. What’s inside 1x EVBox BusinessLine unit (single or double socket) 1x Hex key to open the cover of the unit 1x Ground cable 1x User manual... -
Page 9: Product Features
3. Product features About BusinessLine The EVBox charging station is compatible with all Mode 3 electric vehicles. The charging station is designed for both indoor and outdoor use. Operation of the charging station is approved at an ambient temperature between -25°C and +60°C. Some models of the charging stations are connected to a central system for registration of the number of kilowatt-hours (kWh) charged. -
Page 10: Technical Specifications
4. Technical specifications 4.1 Specifications overview 4.1 Specifications overview Technical features Charging capacity per socket 3.7 kW, 7.4 kW, 11 kW, 22 kW Socket type Type 2 Number of sockets 1 or 2 Output power per socket 1-phase or 3-phase, 230V – 400V, 16A or 32A Connection capacity 1-phase or 3-phase, 50Hz, between 2.5 –... -
Page 11: Charge Box
4. Technical specifications 4.2 Charge box G3 Control Box 34 35 36 RS485 A=D Black Lock Motor kWh B=/D Blue Lock Motor TypeB 6mA RCD Input Red Lock Motor DC RCD Input RS485 B (/D) 12 VDC RS485 A (D) 0 VDC Blue LED Ring Detection ZEReady... -
Page 12: Product Type Guide
5. Product type guide... -
Page 13: Install Station
6. Install station 6.1 Safety requirements Connecting and installing this product must be done by a qualified electrician. The owner or facility manager is responsible for the installation, operation, and maintenance of the charging station, whereby both the law regarding the safety of persons, animals, and property must be observed, as well as the installation instructions enforced in the country of use. -
Page 14: Open Cover(S)
6. Install station 6.2 Open cover(s) 1. Locate the two screws at the bottom of the unit (four screws for the BusinessLine with double sockets). 2. Use the hex key provided to unscrew (as shown in the image). 3. Open the cover from the bottom as shown. -
Page 15: Connector Capacities
6. Install station 6.5 Connector capacities Power per con- Connection Input Output nector current current 3,7 kW Single phase 2x16A 2x16A 3,7 kW* Single phase 1x32A 2x16A 7,4 kW Single phase 2x32A 2x32A 11 kW Three phase 2x16A 2x16A 11 kW* Three phase 1x32A 2x16A... -
Page 16: Attach Power Supply Cable
6. Install station 6.6 Attach power supply cable Lead the supply cable through the slot in the bottom of the pole/ bracket and ensure that it protrudes at least 50 cm above the pole. Make sure that the power supply cable has a sufficient length to permit small movements during installation in order to avoid a break in the... - Page 17 (for Double BusinessLine). 8. Now tighten the tube clamps that have been pre-mounted using the two M10 socket spanners (for Double BusinessLine). 9. Check all plug connections on the charge box by firmly pressing the connectors.
-
Page 18: Mount Station
The pole is provided with anchor blades of 300 x 300 mm. Place the BusinessLine base unit on the adapter kit and tighten the nuts evenly with a hex key so that the base part is not deformed. -
Page 19: Finish Installation
For this, use a test box for charging stations (available as an option). Contact your supplier for more information about EVBox Test Box. 9. You can now tighten the cover bolts at the bottom using the hex key. -
Page 20: Install Communication Module Externally
7. Install communication module externally A cellular data link with the charging station is essential for the charging station to function properly. However, a good link cannot always be obtained in enclosed spaces; for instance, a closed or underground car park. In these cases, the communication module can be positioned outside of the charging station along with the GSM/GPS antenna and then connected to the charging station. -
Page 21: Configure Hub-Satellite
8. Configure Hub-Satellite 8.1 How does it work? In a Hub-Satellite system, the Hub contains a communication module. This Hub can be linked to up to 19 Satellite connectors. The advantages are that it is easier to manage the charging stations and that, for locations with poor data connection coverage, only a single communication module has to be installed externally. -
Page 22: Attach Data Cables
6 sockets (3 double charging stations) are installed. The terminator resistor is available as a separate set (part no. 470041). • In the case of a Star or T network, reflections can occur in the cable. This method of installation is not possible for this use. BusinessLine Single Terminal satellite Satellite... - Page 23 8. Configure Hub-Satellite BusinessLine Double Next Satellite station Satellite SFTP/ Category 5 Cable Comm. module Satellite antenna side non-antenna side RS485 RS485 RS485 RS485 RS485 Internally RS485 connected...
-
Page 24: Consult Phase Rotation Diagram
8. Configure Hub-Satellite 8.4 Consult phase rotation diagram To avoid overloading the 1st phase with one phase electric vehicles, we suggest rotating the phases as described in the diagram below. STRT 4P 16 A 4P 16 A 4P 16 A 4P 16 A 4P 16 A 4P 16 A... -
Page 25: Operate Station
9. Operate station 9.1 Charge with RFID card Start charging Ready 1. Use your charging cable to connect the EVBox station to your vehicle. 2. Present your charge card (RFID card) to the card reader. The charging station will react with a Waiting tone. -
Page 26: Led Status Indicator Chart
BusinessLine is experiencing Check the troubleshooting chapter in this man- an error. ual for solutions. If this does not solve the issue, contact your installer or supplier of BusinessLine, or message us at support@evbox.com. change LED ring RFID card is not authorized... -
Page 27: Troubleshooting
10. Troubleshooting EVBox highly recommends the installation work to be done by a qualified electrician or an EVBox installation partner. Problem Possible cause Solution Charging No power to charging • Are the residual current device and circuit station station breaker in the meter cabinet on? (Check by does not react user.) - Page 28 10. Troubleshooting Problem Possible cause Solution LED ring • Residual current • Switch on residual current device and/or lights up red device and/or circuit circuit breaker. constantly breaker are off One or more • Crossover in Hub- • Check RS485 cabling 1:1. •...
-
Page 29: Warranty
With respect to repair, EVBox is entitled to apply problem avoiding restrictions and/or Workarounds. 11.3 EVBox shall not be liable for the Products’ failure to comply with the warranty in clause 11.1 if: (a) Customer makes any further use of such Products after giving a notice in accordance with or failed to provide notification within fourteen (14) days as set out in clause 11.2;... -
Page 30: Declaration Of Conformity
NL registration KvK 32165082_000018683428 Fred. Roeskestraat 115, 1076 EE Amsterdam, The Netherlands declares under its’ sole responsibility that the following products: Article B116X-XXXX: EVBox Charging station 1-phase 16A Article B132X-XXXX: EVBox Charging station, 1-phase 32A Article B316X-XXXX: EVBox Charging station, 3-phase 16A... - Page 31 The present document is drawn up by way of information only and does not constitute an offer binding upon EVBox. EVBox has compiled the contents of this document to the best of its knowledge. No express or implied warranty is given for the completeness, accuracy, reliability or fitness for particular purpose of its content and the products and services presented therein.
- Page 32 I’m all set! Let’s charge.
- Page 33 EVBIM_052019 © EVBox.B.V.
