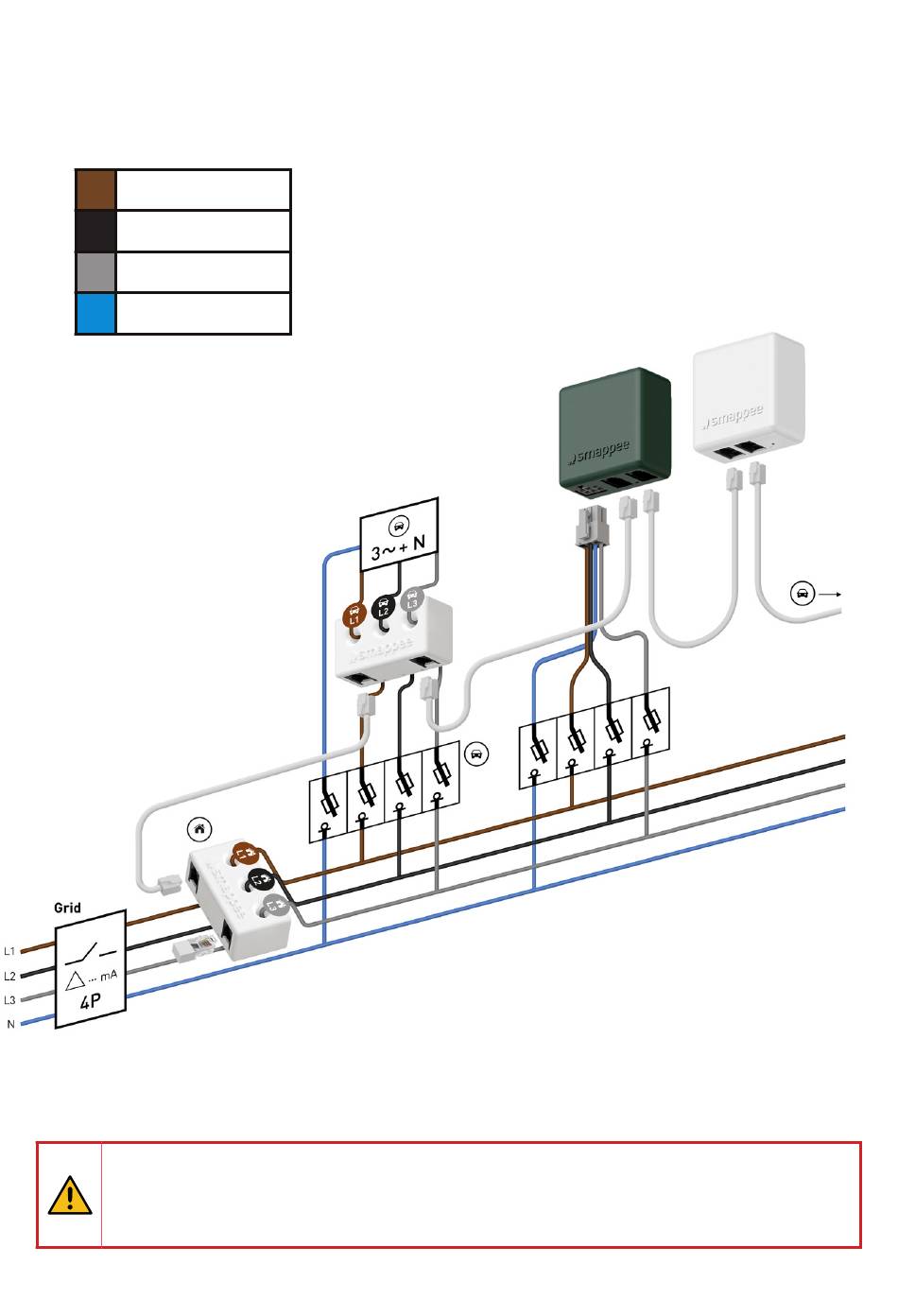

5.5 Connection diagram – Smart Charging 3-phase & Neutral
(3*400V)
Brown – L1
Black – L2
Grey – L3
Blue – Neutral
REMARK: The above wiring and colour scheme is indicative. National regulations
must be respected. Wiring for Europe must be at least 1mm
by a 6 A circuit breaker.
/ 600 V and protected
