BusinessLine G3
1

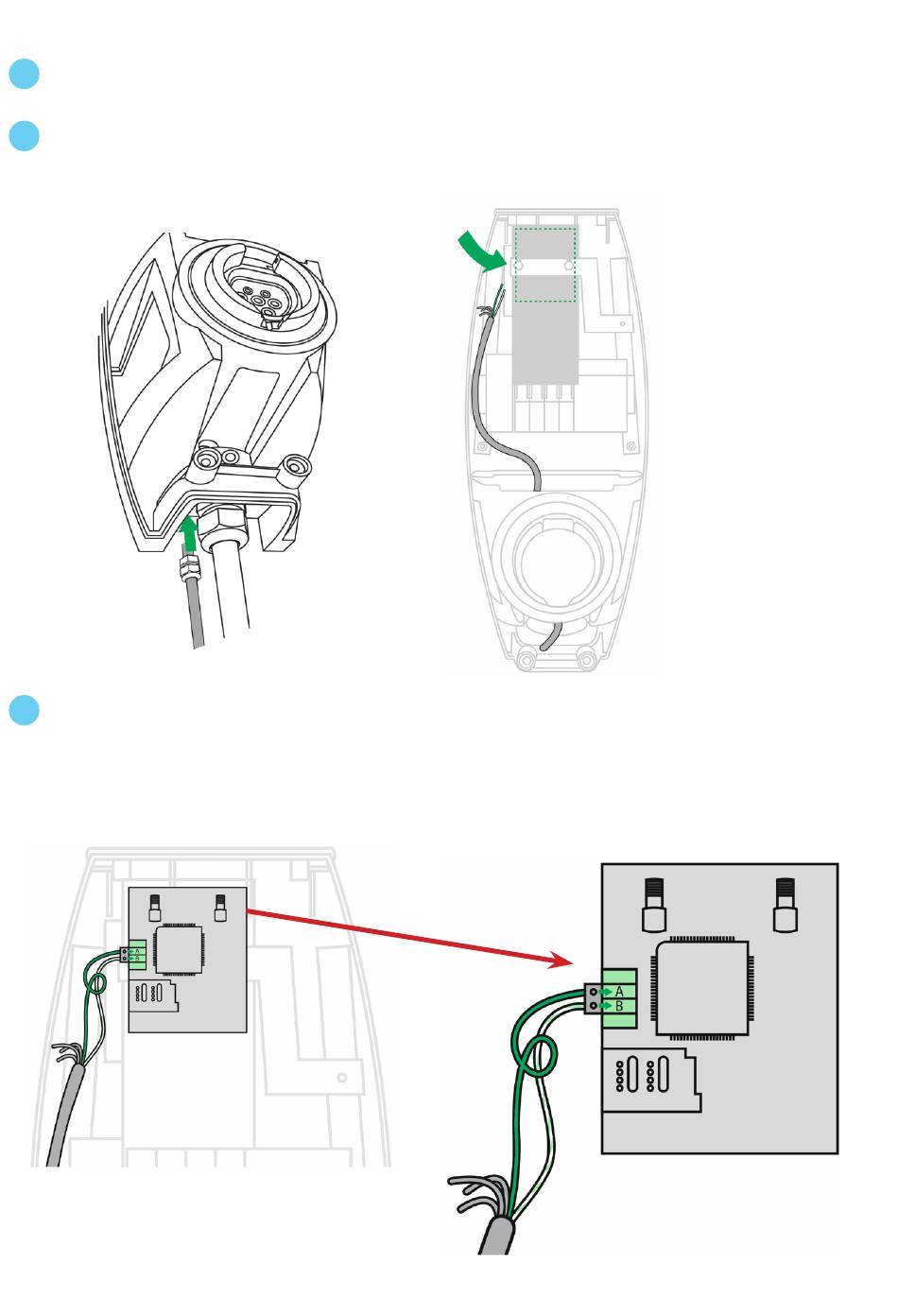

In the charging station, find the RS485 connection on the modem board PCB.
The figures below will help you find the connection.
Route the network cable into the charging station along the same route as the power cable.
2
When the cable enters the base of the station, drill a hole and use a cable gland.
3
Connect the network cable to the modem board PCB using the gray 2-pole Phoenix plug
(supplied):
• Green > RS485 pin A
• Green/White > RS485 pin B
20
