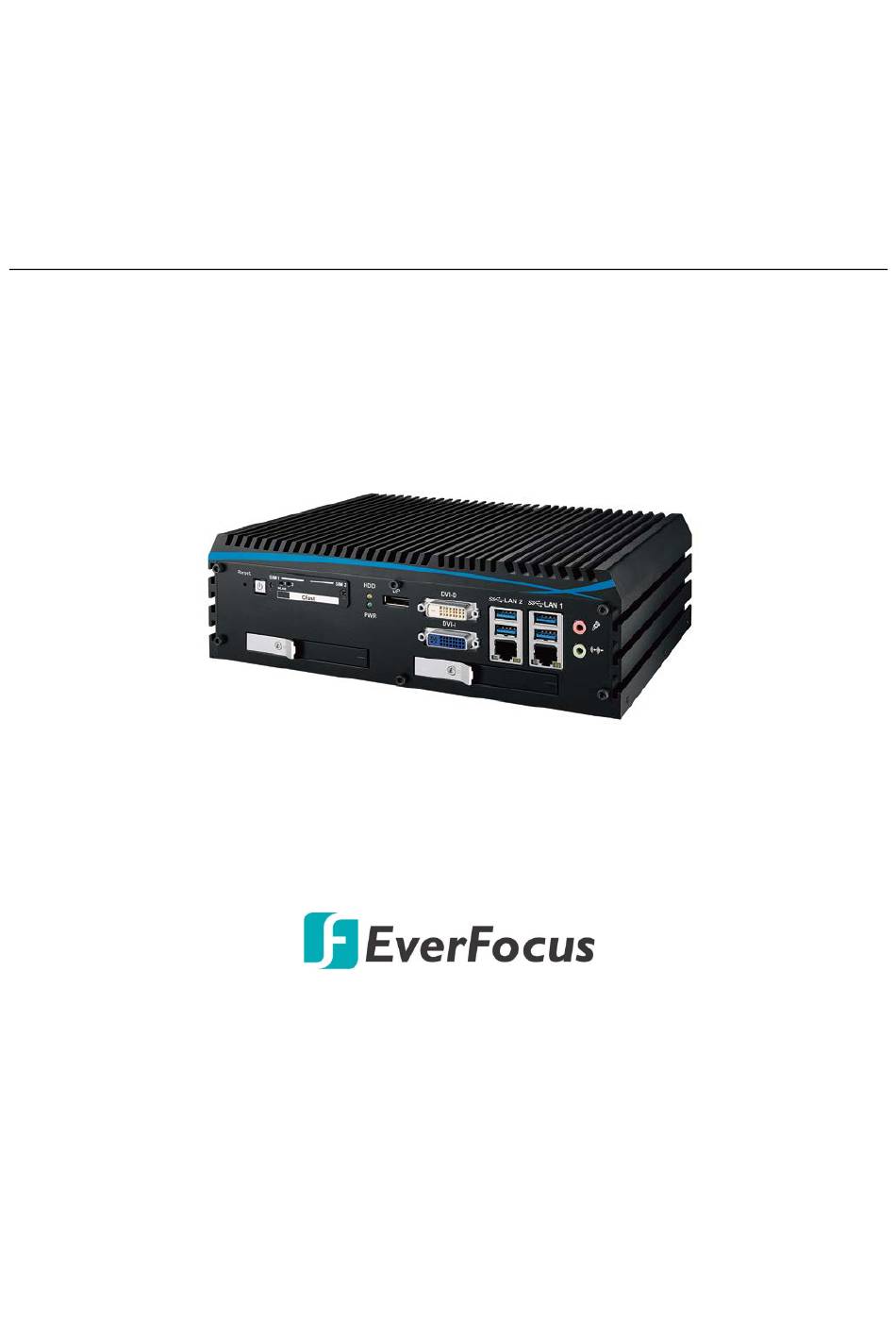

eIVP-CFS-IV-V0004
AI Mobile NVR
Intel® Core™ i7/i5 with 4 PoE Ports
User's Manual
Copyright © EverFocus Electronics Corp.
Release Date: August 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eIVP-CFS-IV-V0004 and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus eIVP-CFS-IV-V0004

Summary of Contents for EverFocus eIVP-CFS-IV-V0004

  • Page 1 AI Mobile NVR Intel® Core™ i7/i5 with 4 PoE Ports User’s Manual Copyright © EverFocus Electronics Corp. Release Date: August 2020...
  • Page 2 All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. Microsoft Windows is a registered trademark of Microsoft Corp.
  • Page 3  All cautions and warnings on the device should be noted.  All cables and adapters supplied by EverFocus are certified and in accordance with the material safety laws and regulations of the country of sale. Do not use any cables or adapters not supplied by EverFocus to prevent system malfunction or fires.
  • Page 4 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    Jumpers and Connectors on the Motherboard ............... 18 Main Board Expansion Connectors ................18 3.1.1 Top View (Component Side) of eIVP-CFS-IV-V0004 Main Board With ....18 3.1.2 Bottom View (Solder Side) of eIVP-CFS-IV-V0004 Main Board With Connector Location ..........................19 3.1.3 Miscellaneous Pin Header..................
  • Page 6 3.1.10 Mini PCIe : MPCIe_1 , MPCIe_2 ............... 25 3.1.11 BAT1 : RTC Battery ................... 27 3.1.12 FN1 : FAN Header ..................... 27 3.1.13 CN3 : LPC Port 80 Header ................28 3.1.14 J4, J5 : LAN3, LAN4, LAN5, LAN6 Speed LED Header ........28 3.1.15...
  • Page 7 4.4.2.3 Security Configuration ................. 55 Security ........................55 4.5.1 HDD Security Configuration ................. 56 4.5.2 Security Boot ......................56 Boot .......................... 57 Save & Exit ....................... 58 Appendix .......................... 59 Function Description ....................59 Isolated DIO Signal Circuit ..................60 RAID Functions ......................

  • Page 8: Introduction

    The eIVP-CFS-IV-V0004 is one of EverFocus’ IPC products with rugged design that uses Intel® Core™ i7/i5. By installing with EverFocus’ AiO NVR software, this model can be used as an AI NVR for transportation market or general and commercial markets.

  • Page 9: Dimensions

    Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.

  • Page 10: Power Button

    Press the button to turn on or turn off the system. For more details, Power Button please refer to 1.4.1 Power Button. The eIVP-CFS-IV-V0004 does not support the CFast hot swap. Be sure to disconnect the power source and unscrew the CFast socket cover CFast Card before installing a CFast card.

  • Page 11: Ethernet Port

    There is a CFast socket on the front panel supporting Type-I/II Compact Flash card. It is implemented by a SATA III Port from C246 PCH. Be sure to disconnect the power source and unscrew the CFast socket cover before installing a CFast card. The eIVP-CFS-IV-V0004 does not support the CFast hot...
  • Page 12 PnP (Plug and Play) functions. It is necessary to remove power source first before inserting or removing the CFast card. The pinouts of CFast port are listed as follows: Pin No. Description Pin No. Description SATA_TXP5 SATA_TXN5...
  • Page 13 1.4.4 PWR & HDD LED Indicator Power LED/Green: If the LED is solid green, it indicates that the system is powered on. LED Color Indication System Status • On/Off: Storage status, function or not. Yellow HDD/CFast • Twinkling: Data transferring.

  • Page 14: Rear Panel

    Pin 1: Ignition Pin2 : Pin3 : Block eIVP-CFS-IV-V0004 supports 6V to 36V DC power input by terminal block Power in the rear side. In normal power operation, power LED lightens in solid Terminal green. eIVP-CFS-IV-V0004 supports up to 80V surge protection.

  • Page 15: Poe Ports

    1.5.1 PoE Ports There are 4 RJ45 connectors in the rear side. It supports IEEE 802.3 at (PoE+) Power over Ethernet (PoE) connection delivering up to 37W/54V per port and 1000 BASE-T gigabit data signals over standard Ethernet Cat 5/Cat 6 cable.
  • Page 16 COM 2 RS-422 (9-wire) COM 3 RS-485 COM 4 RS-485 w/z auto-flow control The pin assignments are listed in the following table: Serial Pin No. RS-322 RS-422 RS-422 RS-485 Port (5-wire) (9-wire) (3-wire) TXD- TXD- DATA- TXD+ TXD+ DATA+...

  • Page 17: Isolated Dio

    1.5.3 Isolated DIO There is a 16-bit (8-bit DI, 8-bit DO) connectors in the rear side. DI/DIO support NPN (sink) and PNP (Source) mode, Each DI pin is equipped with a photocoupler for isolated protection. Each DO pin is equipped with isolator function, DO Safety-Related Certifications: •...
  • Page 18 DI reference circuit : Sink Mode (NPN) Source Mode (PNP) DO reference circuit : Sink Mode (NPN, Default) Source (PNP)

  • Page 19: Front Panel

    Chapter 2. Connection and Installation 2.1 How to Open Your eIVP-CFS-IV-V0004 Step 1 Turn eIVP-CFS-IV-V0004 bottom side up and remove 6pcs HEX#6-32 crews from the front panel. Step 2 Remove front panel. Step 3 Turn over eIVP-CFS-IV-V0004 to face the rear side.
  • Page 20 Step 4 Remove 5pcs HEX#6-32 screws (circled in red) from the rear side and 4pcs PHILLIPS#6- 32 screws (circled in yellow) from the bottom side. Step 5 Remove rear panel. Step 6 Remove the SATA cable and SATA power cables.

  • Page 21: Installing Ddr4 So-Dimm Modules

    Step 7 Finished. 2.2 Installing DDR4 SO-DIMM Modules Step 1 DDR4 SO-DIMM socket.
  • Page 22 Step 2 Install DDR4 RAM module into SO-DIMM socket. Step 3 Install DDR4 RAM module into SO-DIMM socket.

  • Page 23: Installing Mini Pcie Card

    2.3 Installing Mini PCIe Card Step 1 Mini PCIe socket. Step 2 Install Mini PCIe card into socket.

  • Page 24: Installing Antenna Cable

    Step 3 Install Mini PCIe card into socket. 2.4 Installing Antenna Cable Step 1 Check antenna cable and washer. Step 2 Rear panel antenna hole.
  • Page 25 Step 3 Install antenna cable. Step 4 Fasten washer 1 and 2.

  • Page 26: Installing Cfast Card

    Step 5 Finished. 2.5 Installing CFast Card Step 1 Remove 2pcs PHILLIPS M3 screws on CFast & SIM cover at front panel. Step 2 Before installing CFast, make sure the system power is not working.

  • Page 27: Installing Sim Card

    Step 3 Insert CFast card and push to lock. 2.6 Installing SIM Card Step 1 Remove 2pcs PHILLIPS M3 screws on CFast & SIM cover at front panel. Step 2 Before install CFast, make sure the system power is not working.

  • Page 28: Installing Ssd/Hdd

    Step 3 Insert SIM card and push to lock. 2.7 Installing SSD/HDD Step 1 Unlock SSD/HDD tray.
  • Page 29 Step 2 Pull the trigger and open SSD/HDD tray. Step 3 Install 2.5" SSD/HDD into the tray and then push back to close the tray.

  • Page 30: Installing M.2

    Step 4 Lock the SSD/HDD tray with the SSD/HDD tray key. 2.8 Installing M.2 Step 1 M.2 socket.

  • Page 31: Mounting Your Eivp-Cfs-Iv-V0004

    Step 2 Install M.2 into socket and fasten 1pcs PHILLIPS M3 screw. 2.9 Mounting Your eIVP-CFS-IV-V0004 EverFocus provides wall mount brackets in the package. If you need other brackets for VESA mount, Din Rail Kit and 2U rack mount kit as described in the content below, please consult...

  • Page 32: Wall Mount

    2.9.1 Wall mount Fasten 6pcs PHILLIPS#10-32 screws. 2.9.2 VESA mount Fasten 6pcs PHILLIPS#10-32 screws. VESA 75 x 75/100 x 100 mm...

  • Page 33: Din Rail Kit

    2.9.3 Din Rail Kit Fasten 6pcs PHILLIPS#10-32 screws. 2.9.4 2U rack mount kit...

  • Page 34: Jumpers And Connectors On The Motherboard

    Chapter 3. Jumpers and Connectors on the Motherboard 3.1 Main Board Expansion Connectors 3.1.1 Top View (Component Side) of eIVP-CFS-IV-V0004 Main Board With Connector Location...

  • Page 35: Bottom View (Solder Side) Of Eivp-Cfs-Iv-V0004 Main Board With Connector Location

    3.1.2 Bottom View (Solder Side) of eIVP-CFS-IV-V0004 Main Board With Connector Location 3.1.3 Miscellaneous Pin Header This pin header can be used as a backup for following functions, such as hard drive LED indicator, reset button, power LED indicator, and power-on/off button, which already can be accessed by front panel and top panel.

  • Page 36: Sata1, Sata2 : Sata Iii Connector

    3.1.5 J2 : SATA Power Connector The eIVP-CFS-IV-V0004 also equips with a SATA power connector. The one port supports 5V (Up to 2A) and 12V (Up to 2A) to the hard drive or SSD. The pin assignments of J2 are listed in...

  • Page 37: Cn13 : Internal Usb

    Pin No. Definition Pin No. Definition +12V 3.1.6 CN13 : Internal USB The USB 2.0 connections supports up to 480Mbps. It is also compliant with the requirements of high speed (HS), full speed (FS) and low speed (LS). The pin assignments of CN13 are listed in the following table: Pin No.

  • Page 38: Cn1 : Bios Socket

    Slot Description SODIMM_1 DDR4 Channel A SODIMM_2 DDR4 Channel B 3.1.8 CN1 : BIOS Socket If the BIOS needs to be changed, please contact the EverFocus Technical Support team : ts@everfocus.com.tw...

  • Page 39: Sumit A, Sumit B

    3.1.9 SUMIT A, SUMIT B This system have standard SUMIT A and SUMIT B for SUMIT type add-on cards. SUMIT A Pin Out : Pin No. Function Pin No. Function +5V_AUX +12V +3.3V SMB_DATA +3.3V XMB_CLK Reserved Reserved Reserved...
  • Page 40 USB_1- LPC_FRAME# SERIRQ# USB_0+ Reserved USB_0- CLK_33MHz A_PET_P0 A_PER_P0 A_PET_N0 A_PER_N0 APRSNT#/A_PE_C LKREQ# PERST# A_CLKP WAKE# A_CLKN SUMIT B Pin Out : Pin No. Function Pin No. Function B_PET_P0 B_PER_P0 B_PET_N0 B_PER_N0 C_CLKP B_CLKP C_CLKN B_CLKN CPRSNT#/C_PE_CLKPEQ# 14 C_PET_P0...

  • Page 41: Mini Pcie : Mpcie_1 , Mpcie_2

    C_PET_P1 C_PER_P1 C_PET_N1 C_PER_N1 C_PET_P2 C_PER_P2 C_PET_N2 C_PER_N2 C_PET_P3 C_PER_P3 C_PET_N3 C_PER_N3 PERST# WAKE# Reserved Reserved Reserved +3.3V +3.3V +3.3V +5V_AUX 3.1.10 Mini PCIe : MPCIe_1 , MPCIe_2 Standard full length mini PCIe slot The pin assignments of MPCIe 1, MPCIe 2 ted in the following table: Pin No.
  • Page 42 Reserved +3.3 Vaux Reserved Reserved +1.5V Reserved Reserved Reserved +3.3 Vaux Reserved +3.3 Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PETp0 PETn0 +3.3 Vaux PERST# Reserved Reserved Reserved Mechanical Key UIM_VPP REFCLK+ UIM_RESET REFCLK- UIM_CLK UIM_DATA CLKREQ# UIM_PWR Reserved 1.5V...

  • Page 43: Bat1 : Rtc Battery

    The system's real-time clock is powered by a lithium battery. It is equipped with lithium battery. It is recommended that you shouldn't replace the lithium battery on your own. If the battery needs to be changed, please contact the EverFocus Technical Support team ts@everfocus.com.tw.zk 3.1.12 FN1 : FAN Header...

  • Page 44: Cn3 : Lpc Port 80 Header

    3.1.13 CN3 : LPC Port 80 Header eIVP-CFS-IV-V0004 provides a LPC Port 80 Header for Debug Card. Pin No. Definition Pin No. Definition SERIRQ LFRAME# +3.3V LAD0 RESET# Ground LAD1 CLOCK LAD2 Ground 3.1.14 J4, J5 : LAN3, LAN4, LAN5, LAN6 Speed LED Header...

  • Page 45: Key E : Usb, Pciex2 Support

    LAN4/ACT# LAN6/ACT# 3.1.15 M.2 KEY E : USB, PCIex2 support M.2 key E connector is suitable for applications that use wireless connectivity including Wi-Fi, Bluetooth, NFC of GNSS. Module card types include 1630, 2230. Pin No. Definition Pin No.

  • Page 46: Key M : Pcie X4/Sata Support

    Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key LED1# (O)(od) 3.3V USB_D- 3.3V USB_D+ 3.1.16 M.2 KEY M : PCIe x4/SATA Support M.2 key M connector is suitable for applications that use Host I/Fs supported by either PCIe or SATA, or Solid State Storage Devices (SSD).
  • Page 47 Connector Key Connector Key Connector Key Connector Key Connector Key Connector Key Connector Key PEWAKE# (I/O)(O) (0/3.3V) REFCLKp or N/C CLKREQ# (I/O)(O)(0/3.3V) REFCLKn or N/C PERST#(I/O)(O) (0/3.3V) or N/C PETp0/SATA-A+ PETn0/SATA-A- PERp0/SATA-B- PERp0/SATA-B+ DEVSLP (O) PETp1 PETn1 PERp1 PERn1...

  • Page 48: Main Board Jumper Settings

    3.2 Main Board Jumper Settings 3.2.1 Board top view of the system main board with jumper and deep switch The figure above is the top view of the system main board. It shows the location of the jumpers and the switches.

  • Page 49: Jp6 : Usb Wake Up

    3.2.2 JP6 : USB Wake Up Jumper Setting Function Non Wake Up support Supported Wake Up (Default) 3.2.3 JP2, JP3, JP4, JP5 : COM Port RI pin Select Pin Header Pin Description Pin Header Pin Description 1 - 2 +5V (1A max.)

  • Page 50: Jp7 : Poe Power On Select

    3.2.4 JP7 : PoE Power ON Select Jumper Setting Function PoE power on at standby power ready PoE power on after system power on (Default) No Jumper Disable PoE power 3.2.5 JCMOS1, JP1 : CMOS & ME Flash Jumper...

  • Page 51: Ignition Control

    3.3.1 Adjust Ignition Control Modes eIVP-CFS-IV-V0004 provide 16 modes of different power on/off delay periods adjustable via SW5 switch. The default dip switch is set to 0 in ATX/AT power mode. The modes are listed in below table :...

  • Page 52: Ignition Control Wiring

    No delay 20 seconds 5 seconds 30 seconds 5 seconds 0 seconds 5 seconds 90 seconds 5 seconds 30 minutes 5 seconds 1 hour 10 seconds 2 hours 0 seconds 4 hours 10 seconds 6 hours 10 seconds 8 hours...
  • Page 53 2. eIVP-CFS-IV-V0004 supports 6V to 36V wide range DC power input in ATX/AT mode. In Ignition mode, the input voltage is fixed to 12V/24V for car battery scenario. 3. For proper ignition control, the power button setting should be in "Power Down" mode.

  • Page 54: Bios Setup

    Chapter 4. BIOS Setup 4.1 Entering BIOS Setup Figure 4-1: Entering Setup Screen BIOS provides an interface for users to check and change system configuration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is...

  • Page 55: Main

    4.2 Main Figure 4-2: BIOS Main Menu The main menu displays BIOS version and system information. There are two options on Main menu. System Date Set the date. Use <Tab> to switch between date elements. System Time Set the time. Use <Tab> to switch between time elements 4.3 Advanced...

  • Page 56: Cpu Configuration

    4.3.1 CPU Configuration Figure 4-3-1: CPU Configuration Hardware Prefetcher To turn on/off the MLC streamer prefetcher. Adjacent Cache Line Prefetch To turn on/off prefetching of adjacent cache lines. Intel (VMX) Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

  • Page 57: Power & Performance

    4.3.2 Power & Performance Figure 4-3-2: Power & Performance 4.3.2.1 CPU – Power Management Control Figure 4-3-2-1: CPU – Power Management Control Boot performance mode Select the performance state that the BIOS will set before OS handoff. Intel(R) SpeedStep(tm) Allows more than two frequency ranges to be supported.

  • Page 58: Gt - Power Management Control

    4.3.2.2 GT – Power Management Control Figure 4-3-2-2: GT-Power Management Control RC6 (Render Standby) Check to enable render standby support. Maximum GT frequency Maximum GT frequency is limited by the user. Choose between 350MHz (RPN) and 1150MHz (RP0). Value beyond the range will be clopped to min/max supported by SKU Disable Turbo GT frequency Check to enable render standby support.

  • Page 59: Trusted Computing

    4.3.4 Trusted Computing Figure 4-3-4: Trusted Computing Control the TPM device status and display related information if TPM chip is present. 4.3.5 ACPI Settings Figure 4-3-5: ACPI Settings Enable Hibernation Enables or disables system's ability to hibernate (OS/S4 sleep state). This option may not be effective with some OS.

  • Page 60: It8786 Super Io Configuration

    4.3.7 IT8786 Super IO Configuration Figure 4-3-7: IT8786 Super IO Settings 4.3.7.1 Serial Port X Configuration Figure 4-3-7-1: Serial Port X Configuration Serial Port 1 to port 4 Configuration Options for Serial Port 1 to Serial Port 4. Entering the corresponding Port option then end user can change the settings such as I/O resource and UART mode (High Speed Serial Port is Port 1 only).

  • Page 61: Serial Port Console Redirection

    Smart Fan Mode Default: Using the default smart fan table. User: Setting parameters by user. Start Temperature Temperature Limit value of Fan Start (Degree C). (Range: 10~80) PWM Start Value (%) Default PWM Value of Fan. (Range: 15%~100%) Full Speed Temperature Temperature Limit value of Fan Full Speed (Degree C).

  • Page 62: Intel Txt Information

    4.3.10 Intel TXT Information Figure 4-3-10: Intel TXT Information Display Intel TXT information 4.3.11 Acoustic Management Configuration Figure 4-3-11: Acoustic Management Settings Acoustic Management Configuration Option to enable or disable automatic acoustic management 4.3.12 PCI Subsystem Setting Figure 4-3-12: PCI Subsystem Settings...

  • Page 63: Network Stack Configuration

    Above 4G Decoding Globally Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports bot PCI Decoding) Hot-Plug Support Globally Enables or Disables Hot-Plug support for the entire System. If system has Hot-Plug Capable Slots and this option set to Enabled, it provides a Setup screen for selecting PCI resource padding for Hot-Plug.

  • Page 64: Csm Configuration

    Wait time to press ESC key to abort the PXE boot. Media detect count Number of times presence of media will be checked. 4.3.14 CSM Configuration Figure 4-3-14: CSM Configuration CSM Support Enable/disable CSM support GateA20 Active UPON REQUEST - GA20 can be disabled using BIOS services.

  • Page 65: Nvme Configuration

    Controls the execution of UEFI and Legacy Storage OpROM. Video Allows more than two frequency ranges to be supported. Other PCI devices Determines OpROM execution policy for devices other than network, storage, or video. 4.3.15 NVMe Configuration Figure 4-3-15: NVMe Settings Display NVMe controller and Drive information.

  • Page 66: Chipset

    Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. USB transfer time-out The time-out value for control, bulk, and interrupt transfers. Device reset time-out USB mass storage device start unit command time-out.

  • Page 67: Memory Configuration

    Enable/disable above 4GB MemoryMappedIO BIOS assignment. This is disabled automatically when aperture size is set to 2048MB. 4.4.1.1 Memory Configuration Figure 4-4-1-1: Memory Information Displays memory information. 4.4.1.2 Graphics Configuration Figure 4-4-1-2: Graphics Settings Skip Scaning of External Gfx Card If Enable, it will not scan for External Gfx Card on PEG and PCH PCIE Ports.

  • Page 68: Peg Port Configuration

    Keep IGFX enabled based on the setup options. GTT Size Select the GTT Size. Aperture Size Select the Aperture Size. Note: Above 4GB MMIO BIOS assignment is automatically enabled when selecting 2048MB aperture. To use this feature, please disable CSM Support.

  • Page 69: Pci Express Configuration Of Pch-Io

    Wake on LAN Enable or disable integrated LAN to wake the system. (The wake On LAN cannot be disabled if ME is on at Sx state.) Serial IRQ Mode Configure serial IRQ mode. State After G3 Specify what state to go to when power is re-applied after a power failure (G3 state).

  • Page 70: Sata And Rst Configuration

    4.4.2.2 SATA and RST Configuration Figure 4-4-2-2: SATA and RST Settings SATA Controller(s) Enable or disable SATA Device. SATA Mode Selection Determines how SATA controller(s) operate. Software Feature Mask Configuration RAID OROM/RST driver will refer to the SWFM configuration to enable or disable the storage features.

  • Page 71: Security Configuration

    4.4.2.3 Security Configuration Figure 4-4-2-3: Security Settings BIOS Lock Enable/disable the PCH BIOS Lock Enable (BLE bit) feature. 4.5 Security Figure 4-5: BIOS Security Menu Administrator Password Set administrator password. User Password Set user password. Secure Boot Customizable Secure Boot Settings.

  • Page 72: Hdd Security Configuration

    4.5.1 HDD Security Configuration Figure 4-5-1: HDD Security Settings Set User Password Set HDD user password. *** Advisable to power cycle system after setting hard disk passwords *** Discard or save changes option in setup does not have any impact on HDD when password is set or removed.

  • Page 73: Boot

    Key Management Enables expert users to modify Secure boot policy variables without full authentication. 4.6 Boot Figure 4-6: BIOS Boot Menu Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state.

  • Page 74: Save & Exit

    4.7 Save & Exit Figure 4-7: BIOS Save and Exit Menu Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes.

  • Page 75: Appendix

    Chapter 5. Appendix 5.1 Function Description The eIVP-CFS-IV-V0004 offers a 16-bit DIO (Isolated/Non-Isolated) 20-pin terminal block connector, a watchdog timer, and a 4-port POE. Isolated DIO pins are fixed by Hardware design that cannot change in/out direction in runtime process.

  • Page 76: Isolated Dio Signal Circuit

    POE definition is shown below : Port No. Definition Port No. Definition POE 0 POE 2 POE 1 POE 3 Do NOT use these functions in below : 1. PE-2000 : DIO1 (ID = 0), POE 2. PE-3000 : POE (ID = 0) 3.

  • Page 77: Raid Functions

    Source Mode (PNP) 5.3 RAID Functions 5.3.1 SATA Mode for RAID Please select SATA Device to RAID mode on BIOS menu. Advanced → SATA Configuration → SATA Mode Selection → RAID/Intel RST Premium 5.3.2 UEFI Mode for RAID 1. Please select SATA device to RAID mode on BIOS menu.
  • Page 78 3. Use RST Legacy OROM → Disabled → Save Changes and Reset. 4. Into BIOS menu again, select Intel(R) Rapid Storage Technology on BIOS menu. 5. Select Create RAID Volume on BIOS menu. 6. Select disks to create RAID Volume then Save Changes and Reset to install OS with EFI mode.
  • Page 79 FAX: +81 3 5625 8189 www.everfocus.com www.everfocus.co.jp sales@everfocus.com info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
