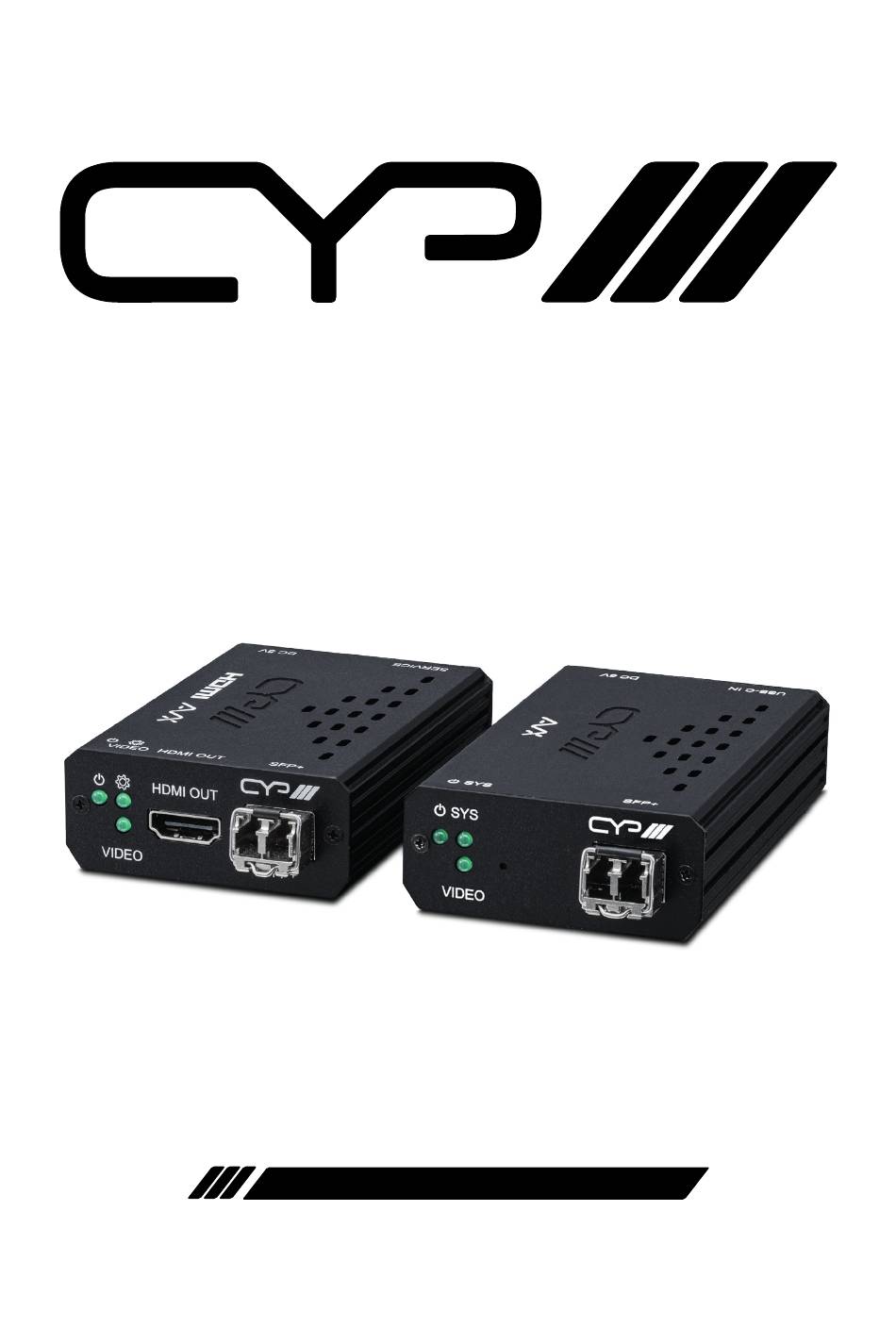

- Page 1 AVX-105F-TX USB-C over Fiber Transmitter OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel .............3 6.2 Rear Panel ...............4 7. Connection Diagram ........5 8. Specifications ..........6 8.1 Technical Specifications ........6 8.2 Video Specifications..........7 8.3 Audio Specifications ...........9 8.3.1 Digital Audio ..........9... -
Page 6: Introduction
1. INTRODUCTION This 4K UHD USB-C over Fiber Transmitter is designed for high-quality AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K@60Hz (4:4:4) audio/video streams. Advanced video content such as HDR (High Dynamic Range), 10-bit colour and multi-channel HD Bitstream audio can be easily transmitted. -
Page 7: Features
5. FEATURES HDMI 2.0 (via USB-C) compatible HDCP 2.2 and HDCP 1.x compliant 1 USB-C input 1 fiber (SFP+) output Ultra-light compression, lossless for most content Extension up to 30km (maximum distance depends on the SFP+ module and type of fiber used) Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel SFP+ SFP+ VIDEO Power LED: This LED will illuminate to indicate the unit is on and receiving power. Note: This LED will blink during the firmware update process. SYS LED: This LED will illuminate to indicate that the system is stable and ready to process audio/video streams. -
Page 9: Rear Panel
6.2 Rear Panel USB-C IN DC 5V USB-C IN DC 5V USB-C IN Port: Connect to USB-C source equipment such as a laptop, PC, set-top box, or media player. Note: The unit can optionally be powered directly via this port. DC 5V Port: Plug the 5V DC power adapter into this port and connect it to an AC wall outlet for power. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop Power Supply USB-C IN DC 5V VIDEO SFP+ USB-C Fiber Cable HDMI Output HDMI IN SFP+ HDMI TV / Display Power VIDEO Supply SERVICE DC 5V... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications USB-C Bandwidth 21.6Gbps Fiber Bandwidth 10Gbps Input Port 1×USB (Type-C) Output Port 1×10GbE (SFP+) SFP+ Module 1×Single/Multi-mode (LC) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 60mm×24.75mm×95mm [Case Only] 60mm×26mm×103mm [All Inclusive]... -
Page 12: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) USB-C 10GbE 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 ... - Page 13 Input Output Supported Resolutions (Hz) USB-C 10GbE 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), ...
-
Page 14: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio USB-C Input / 10GbE Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32~192 Bitstream Supported Formats Standard & High-Definition 8.4 Cable Specifications Cable Length USB-C Cable USB-C Input Fiber Cable Multi-mode Fiber (OM3) 300m ... - Page 15 • 4K UHD Video - 4K@24/25/30Hz (8-bit colour) & 4K@50/60Hz (4:2:0, 8-bit colour) - HDMI transmission rates between 5.3Gbps and 10.2Gbps - 6G-SDI (SMPTE ST 2081, 6Gbps) • 4K UHD Video - 1080p@120Hz (10/12-bit HDR) - 4K@50/60Hz (4:4:4, 8-bit) & 4K@50/60Hz (4:2:0, 10/12-bit HDR) - HDMI transmission rates between 10.2Gbps and 18Gbps - 12G-SDI (SMPTE ST 2082, 12Gbps) •...
-
Page 16: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) 8K UHD 8K Ultra-High-Definition (48Gbps max, without DSC) 8K UHD 8K Ultra-High-Definition (48Gbps max, with DSC) AVoIP Audio/Video over IP Cat.5e Enhanced Category 5 cable Cat.6... - Page 17 ACRONYM COMPLETE TERM Universal Serial Bus VoIP Video over IP...
- Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
