Summary of Contents for CYP AVX-101F-TX

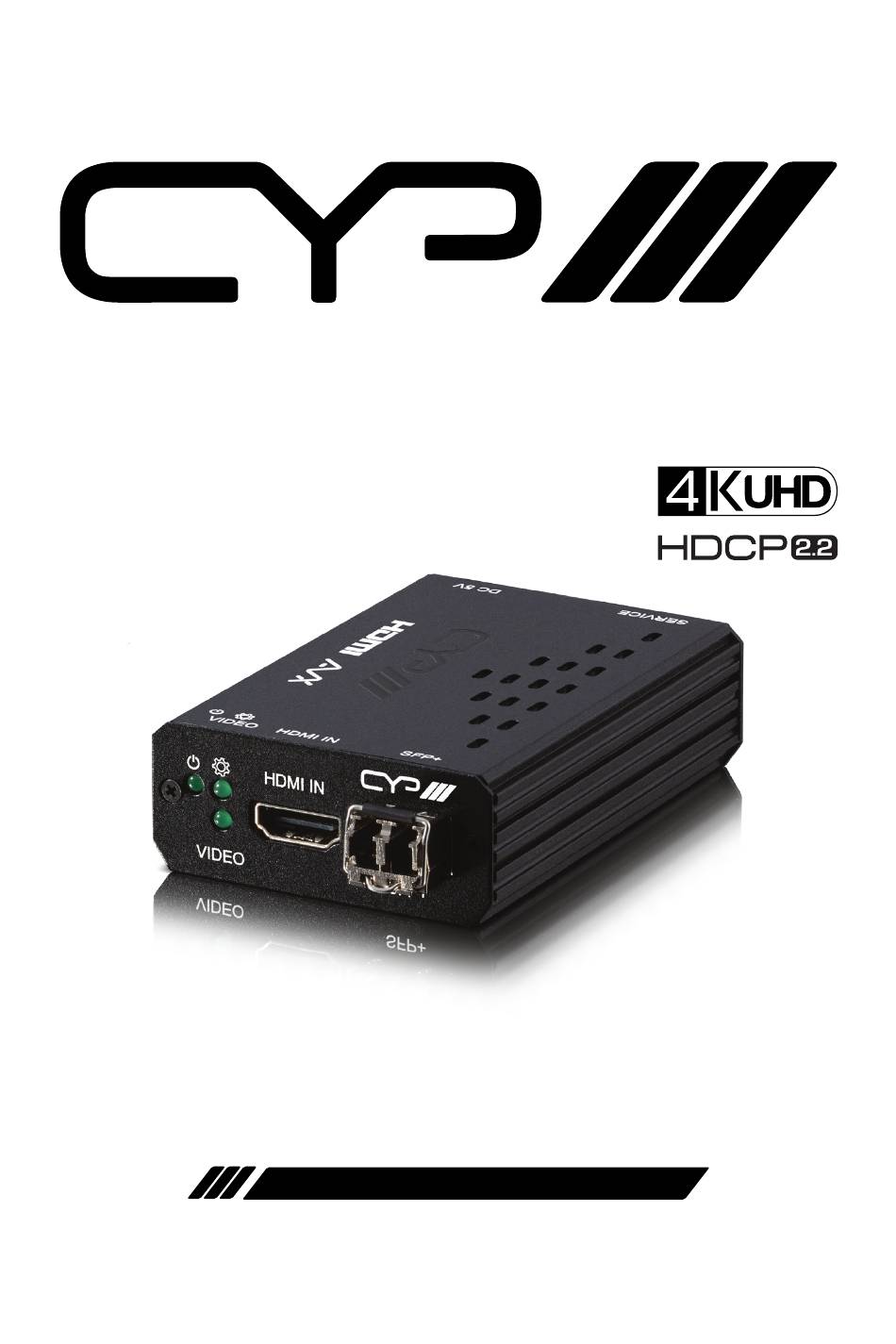

- Page 1 AVX-101F-TX HDMI over Fiber Transmitter OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel .............3 6.2 Rear Panel ...............4 7. Connection Diagram ........5 8. Specifications ..........6 8.1 Technical Specifications ........6 8.2 Video Specifications..........7 8.3 Audio Specifications ...........8 8.3.1 Digital Audio ..........8... -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI over Fiber Transmitter is designed for high-quality AV extension with minimum latency. By using a sophisticated ultra- light compression scheme (lossless for most content) it’s a great solution for extending 4K@60Hz (4:4:4) HDMI audio/video streams. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit colour and multi-channel HD Bitstream audio can be easily transmitted. -
Page 7: Features
5. FEATURES HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant 1 HDMI input 1 fiber (SFP+) output Ultra-light compression, lossless for most content Extension up to 30km (maximum distance depends on the SFP+ module and type of fiber used) Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel VIDEO HDMI IN SFP+ HDMI IN VIDEO SFP+ Power ( ) LED: This LED will illuminate to indicate the unit is on and receiving power. Note: This LED will blink during the firmware update process. System ( ) LED: This LED will illuminate to indicate that the system is stable and ready to process audio/video streams. -
Page 9: Rear Panel
6.2 Rear Panel SERVICE DC 5V SERVICE DC 5V SERVICE (USB Mini-B) Port: This port is for firmware update only. DC 5V Port: Plug the 5V DC power adapter into this port and connect it to an AC wall outlet for power. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Power Supply SERVICE DC 5V HDMI IN SFP+ VIDEO Media Player HDMI Input HDMI Output HDMI IN SFP+ Smart TV Power VIDEO Supply SERVICE DC 5V... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps Fiber Bandwidth 10Gbps Input Ports 1×HDMI (Type-A) Output Ports 1×10GbE (SFP+) SFP+ Module 1×Single/Multi-mode (LC) Service Port 1×USB 2.0 (Mini-B) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 57mm×20.6mm×87mm [Case Only]... -
Page 12: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI Fiber 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 ... -
Page 13: Audio Specifications
Input Output Supported Resolutions (Hz) HDMI Fiber 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 3840×2160p@50/60 4096×2160p@24/25/30 4096×2160p@50/60 (4:2:0) ... -
Page 14: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input Fiber Cable Multi-mode Fiber (OM3) 300m Multi-mode Fiber (OM4) 550m Single-mode Fiber 30km Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (4K UHD Video) -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Audio/Video AVoIP Audio/Video over IP Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
