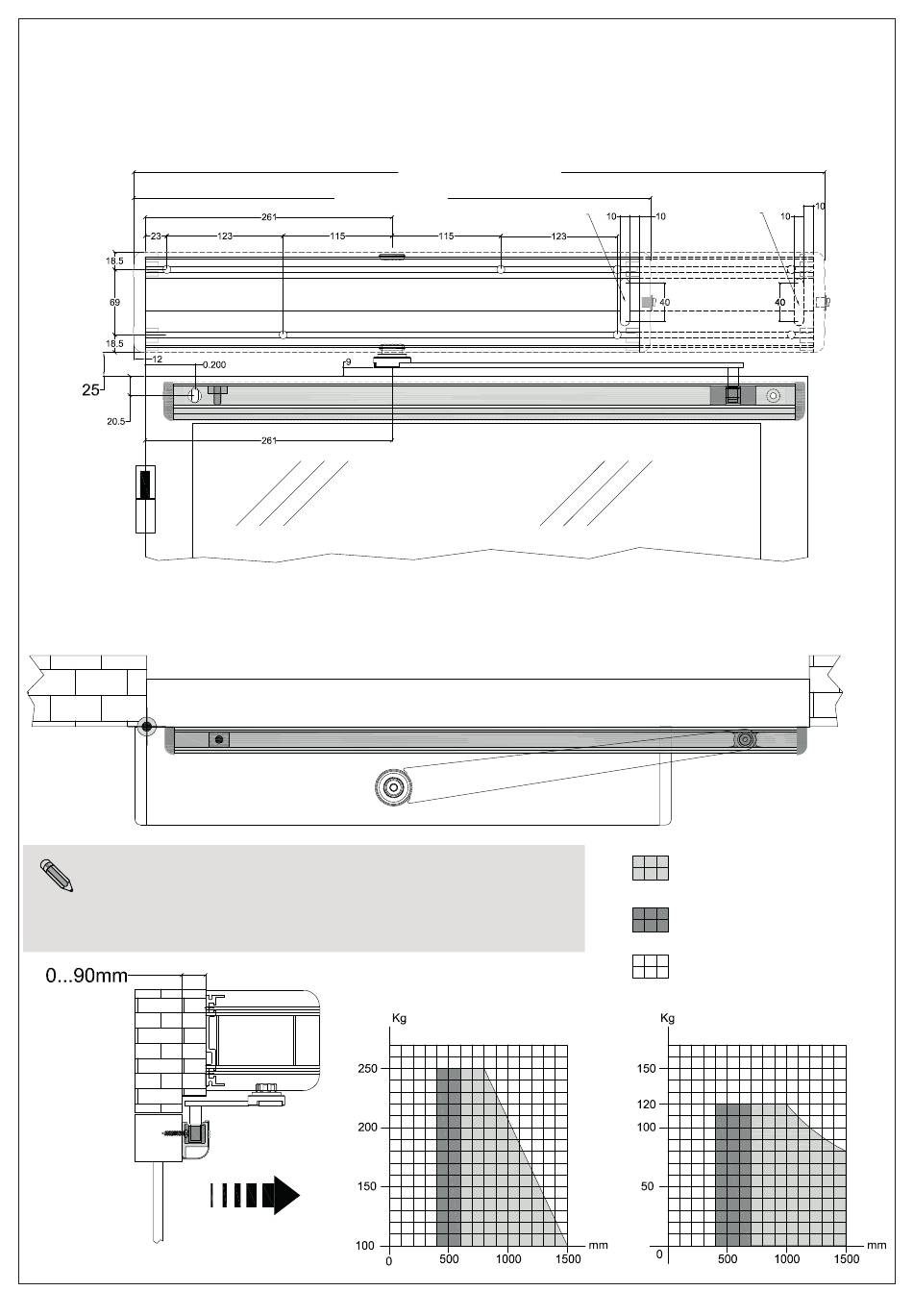

5.2) ASSEMBLY OF THE AUTOMATION ON THE TRANSOM FROM THE HINGE SIDE
SLIDE PULL ARM BDT2R55
For doors opening inward (as seen from the automation side)
ONLY FOR SPRING MODELS NB-LET / LETB / SLT / SLTB
For this application, please consider that the gearmotor must be on the hinged
side of the door for a correct opening movement direction.
Standard Automation
546
OPENING
DIRECTION
730
Automation with battery module
CABLE
PASSAGE
SLOT
NB-SLT/SLTB/SMT/SMTB CHART
9
CABLE
PASSAGE
SLOT
Usable leaf length and weight
Usable leaf length and weight with different
fastening dimensions
Installation drawings available upon request
Unusable leaf length and weight
NB-LET/LETB CHART
