5) TECHNICAL DRAWINGS

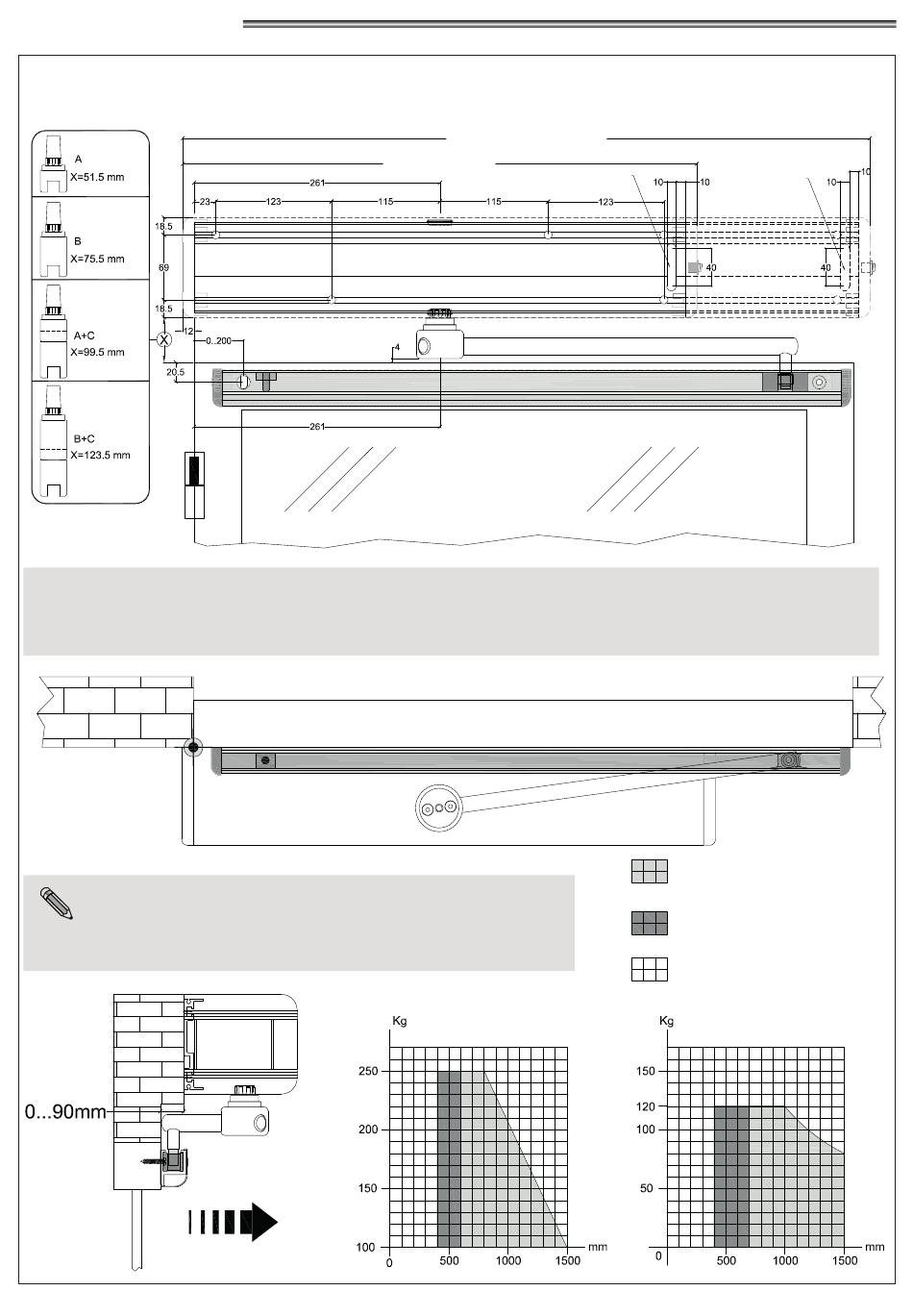

5.1) ASSEMBLY OF THE AUTOMATION ON THE TRANSOM FROM THE HINGE SIDE

SLIDE PULL ARM BDT2
For doors opening inward (as seen from the automation side)
(standard)
A = STANDARD TAPERED PIN
Should it be necessary to increase the distance between the automation and the arm (dimension X), replace the standard tapered pin
with the following optional extensions:
B = EXTB-Z TAPERED PIN (optional) for mm. 24 shaft extension
C = EXTC-Z EXTENSION (optional) for TAPERED PIN for mm. 48 shaft extension
ONLY FOR SPRING MODELS NB-LET / LETB / SLT / SLTB
For this application, please consider that the gearmotor must be on the hinged
side of the door for a correct opening movement direction.
OPENING
DIRECTION
730
Automation with battery module
546
Standard Automation
PASSAGE SLOT
NB-SLT/SLTB/SMT/SMTB CHART
8
CABLE
PASSAGE SLOT
Usable leaf length and weight
Usable leaf length and weight with different
fastening dimensions
Installation drawings available upon request
Unusable leaf length and weight
NB-LET/LETB CHART
CABLE
