6.6) EXTB-Z TAPERED PIN

Use the tapered pin EXTB-Z if the required arm-automation distance is greater than the one ensured by the standard tapered pin.
For the installation dimensions, refer to the technical drawings contained in para. 5.

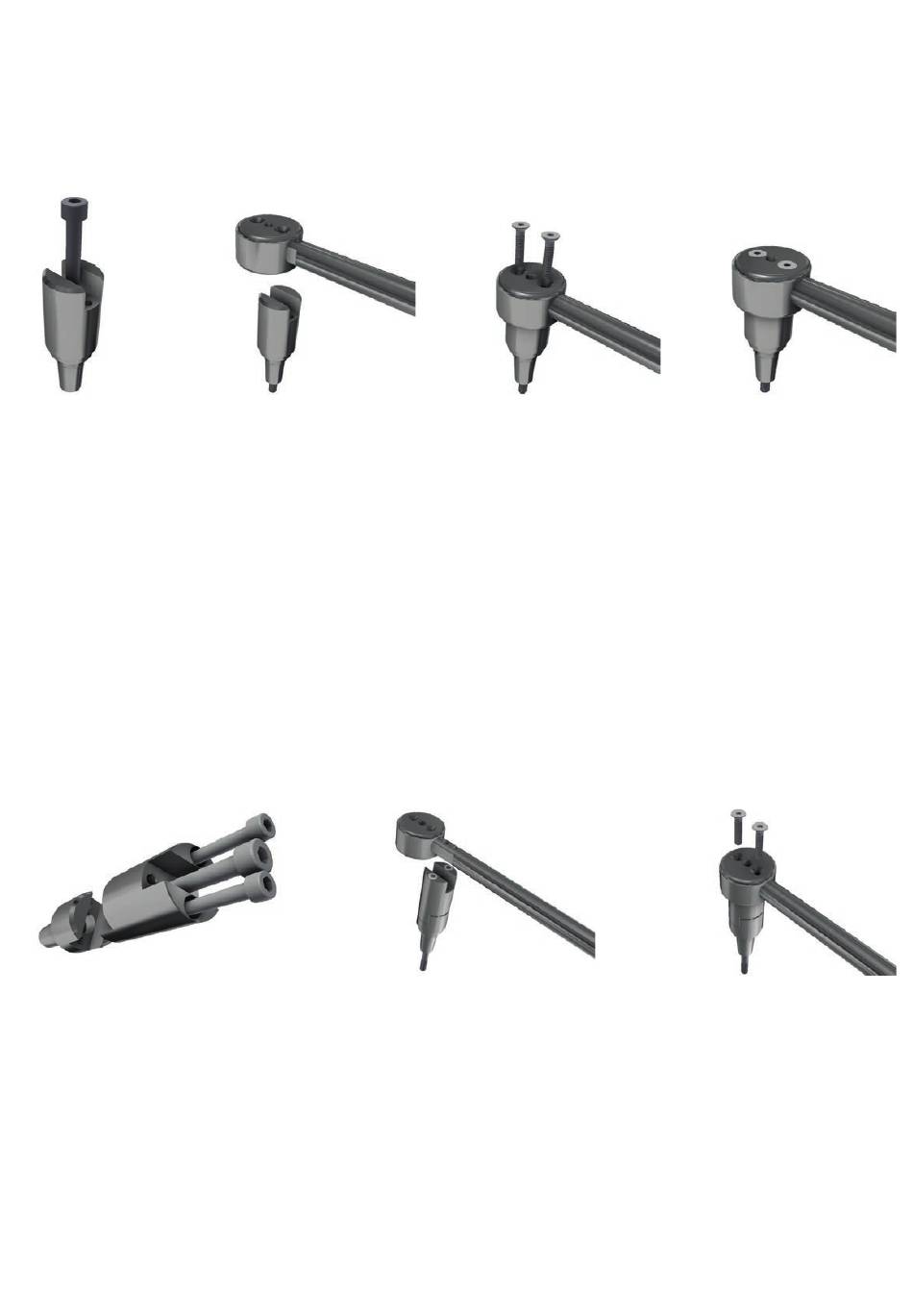

For the assembly, follow the steps shown in the figures below:
insert the M8 X 90 screw into the tapered pin (A), insert the arm into the closed shell(B), insert the tapered pin into the arm (C) and tighten
the two M6 X 20 screws (D).
A B C D

6.7) EXTENSION FOR EXTB-Z TAPERED PIN

Use the EXTC-Z extension if the required automation-arm distance is greater than the one you can achieve using the standard and
EXTB-Z tapered pins.
Couple the EXTC-Z extension with the standard or EXTB-Z tapered pin (depending on the distance you have to achieve, specified in the
technical drawings contained in para. 5).
For the assembly, follow the steps shown in the figures below:
couple the EXTC-Z extension with the tapered pin and insert the central screw (E), tighten the two M6 X 65 side screws (F), insert the
extension into the arm and tighten the two M6 X 20 screws (G).
E F G
