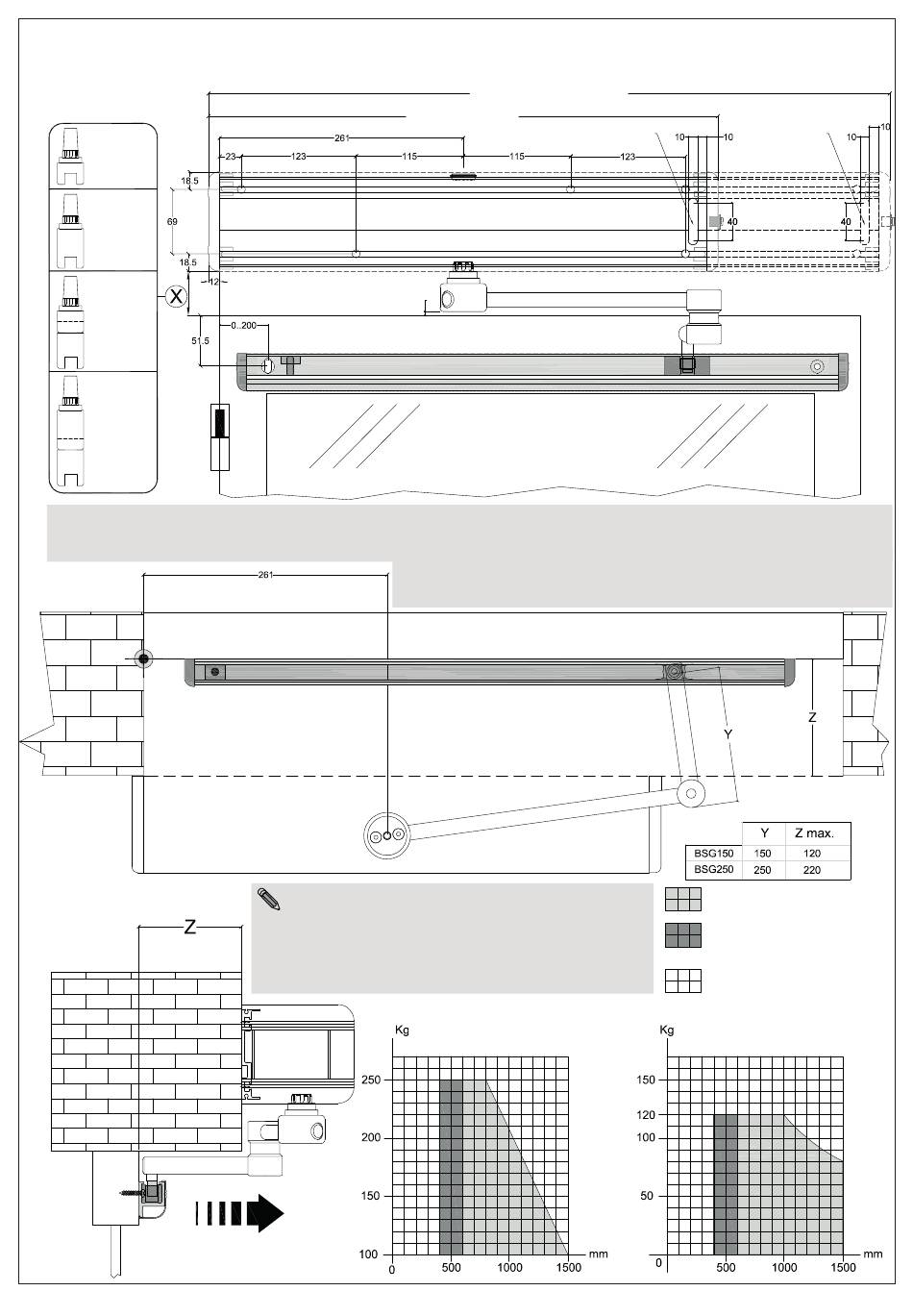

5.3) ASSEMBLY OF THE AUTOMATION ON THE TRANSOM FROM THE HINGE SIDE

ELBOW ARM BSG 150/250
For doors opening inward (as seen from the automation side)
(standard)
A
X=51.5 mm
B
X=75.5 mm
A+C
X=99.5 mm
B+C
X=123.5 mm
A = STANDARD TAPERED PIN
Should it be necessary to increase the distance between the automation and the arm (dimension X), replace the standard tapered
pin with the following optional extensions:
OPENING
DIRECTION
546 Standard Automation
4
B = EXTB-Z TAPERED PIN (optional) for mm. 24 shaft extension
C = EXTC-Z EXTENSION (optional) for TAPERED PIN for mm. 48 shaft
extension
ONLY FOR SPRING MODELS
NB-LET / LETB / SLT / SLTB
For this application, please consider that the gearmotor
must be on the hinged side of the door for a correct
opening movement direction.
NB-SLT/SLTB/SMT/SMTB CHART
10
730 Automation with battery module
CABLE
PASSAGE
SLOT
CABLE
PASSAGE
SLOT
Usable leaf length and weight
Usable leaf length and weight with different
fastening dimensions
Installation drawings available upon request
Unusable leaf length and weight
NB-LET/LETB CHART
