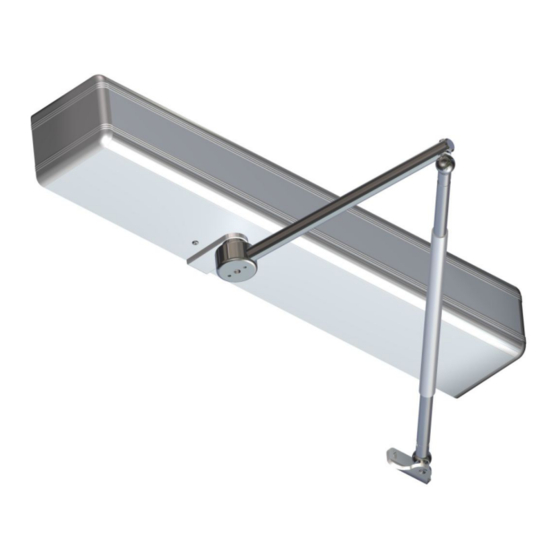

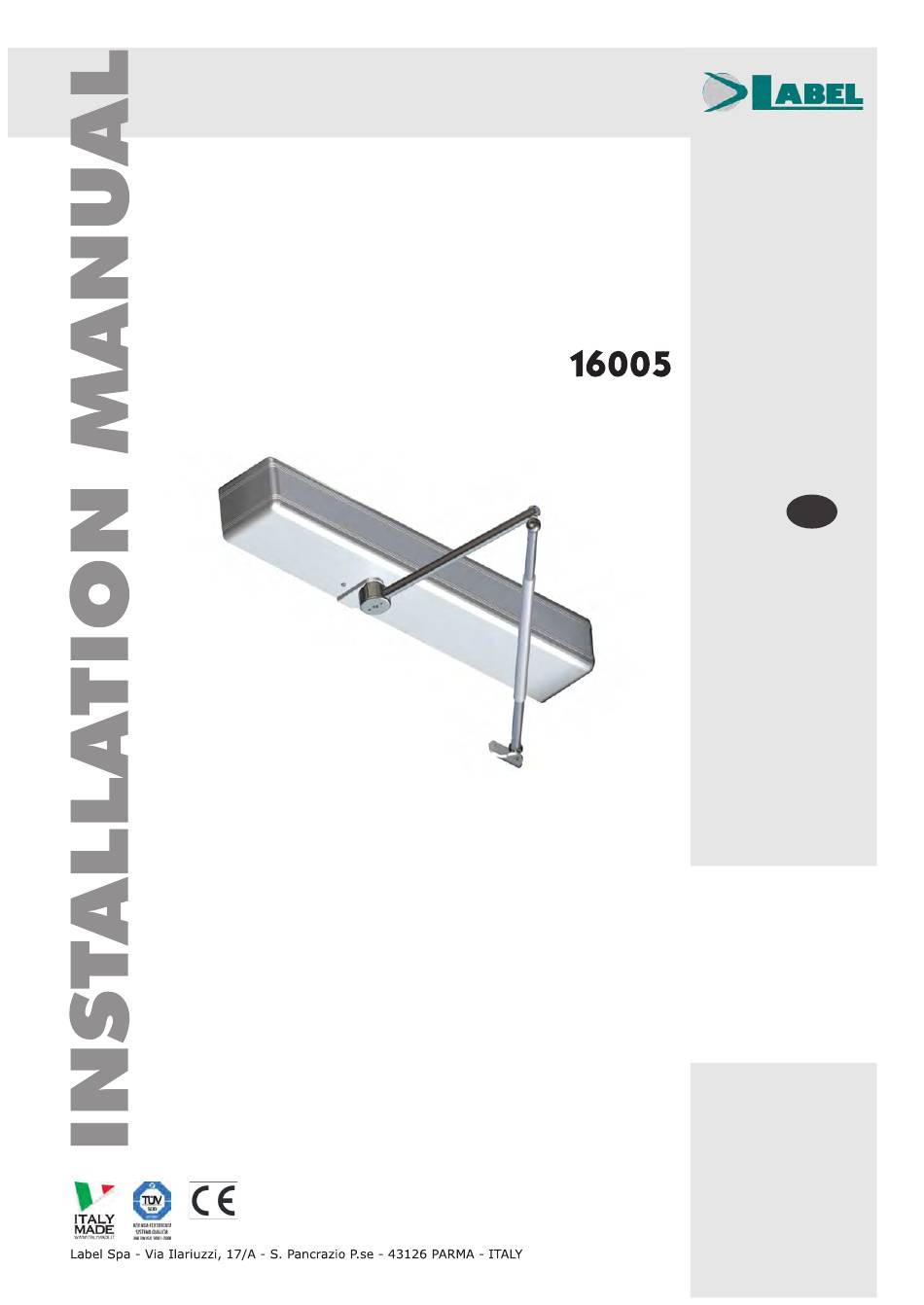

- Page 1 NEPTIS Operator for automatic swing doors English Translation of the ORIGINAL INSTRUCTIONS NEPTIS-SMP-16005_GB_Rel.2.2_09/2016 - CD0420GB...
- Page 2 GENERAL SAFETY OBLIGATIONS 1) MODEL DESCRIPTION 2) TECHNICAL SPECIFICATIONS MECHANICAL SECTION 3) COMPONENTS OF THE NEPTIS SMP OPERATOR 4) PRELIMINARY CHECKS 5) TECHNICAL DRAWINGS 5.1) ASSEMBLY OF THE OPERATOR ON THE LINTEL FROM THE HINGE SIDE BDT2 SLIDE PULL ARM 5.2) ASSEMBLY OF THE OPERATOR ON THE LINTEL FROM THE HINGE SIDE BSG 150/250 ELBOW ARM...
-
Page 3: Table Of Contents
ELECTRONIC SECTION 9) ELECTRIC ARRANGEMENTS 10) ELECTRIC CONNECTIONS 11) PWN-T POWER SUPPLY MODULE AND ELECTRIC WIRING 12) L-NEP LOGIC BOARD 13) N-DSEL DIGITAL PROGRAMMER – SCOPE AND CONNECTIONS 14) COMMISSIONING OF AUTOMATED DEVICE (INITIAL SET-UP) 14.1) FIRST START OF N-DSEL DIGITAL PROGRAMMER 14.2) USE OF N-DSEL DIGITAL PROGRAMMER 14.3) SERIAL COMMUNICATION SET-UP 14.4) INITIAL SET-UP... - Page 4 This product was designed and built exclusively for the purpose described in this documentation. Any other use that is not specifically indicated could adversely impact the condition of the product and the safety of people. Label accepts no responsibility for incorrect product installation and usage, as well as for any damages caused by changes made without its prior consent.
- Page 5 A list of the operator models for Neptis SMP swinging doors produced by Label is provided below: The Neptis SMP operator can be used with a slide pull arm or with an articulated push arm. The operator must be installed in indoor environments.
- Page 6 MECHANICAL SECTION 3) COMPONENTS OF THE NEPTIS SMP OPERATOR LEGEND: L-NEP LOGIC CARD PWN-T ELECTRICAL WIRING AND POWER SUPPLY CARD GEARMOTOR WITH ENCODER SPRING PRELOAD REFERENCE LINE INNER WIRING BETWEEN THE L-NEP and PWN-T CARDS PLASTIC PLATE TRANSFORMER...
- Page 7 The mechanical stop in the open position is not supplied with the operator. If the wall to which the operator will be fastened is not suitably resistant and reliable, a predrilled metal plate is available, upon request, to which the Neptis SMP can be fixed. Base Operator NEPTIS SMP...
- Page 8 TECHNICAL DRAWINGS...
- Page 10 At door open a mechanical end-stop has to be installed.
- Page 11 At door open a mechanical end-stop has to be installed.
- Page 12 MOVEMENT TRANSMISSION ARMS 6.1) BDT2 SLIDE PULL ARM Insert the M8 x 70 screw (2) in the tapered pin (1) Insert the sliding arm (3) in the closed shell (4) Insert the tapered pin (1) above the sliding arm (3), through the closed shell (4) Strongly tighten the M6 x 30 screws (5) to block the sliding arm (3) on the tapered pin (1) For the assembly of the sliding guide, see paragraph 6.3 The pin (6) must be inserted in the sliding guide runner...
- Page 13 6.3) SLIDING GUIDE FOR PULL ARM a) Fix the sliding guide (1) on the leaf through the holes (6-7), following the dimensions indicated in the technical drawings in paragraphs 5.1, 5.2. b) Insert the runner (3) for the pull arm tapered pin inside the sliding guide.
- Page 14 6.5) EXTB-Z TAPERED PIN Use the EXTB-Z tapered pin if a larger distance is required between the operator and the arm in comparison to the standard tapered pin. For the assembly dimensions follow the technical drawings in par. 5. For the assembly, follow the steps shown in the following figures: insert the M8 X 90 screw in the tapered pin (A), insert the arm in the closed shell (B), insert the tapered pin in the arm (C) and tighten the two M6 X 20 screws (D).
- Page 15 Remove the aluminium cover from its seat, pulling it firmly upwards and without applying pressure on the sides, if possible. The Neptis SMP operator foresees the possibility of connecting the arm on both sides of the mechanical body and therefore makes it possible to select the opening movement direction.
- Page 16 To fix the devices use the screws and anchors suitable for the type of support. After fixing the operator and arm, follow the next steps for connecting the arm pin to the shaft output of the Neptis SMP operator. 7.4) Inserting the arm's tapered pin...
- Page 17 8) SELECTING THE OPENING DIRECTION IN FUNCTION OF ARM...
-
Page 18: Electronic Section
Separate the mains power supply line from the very-low voltage line relative to control and safety accessories. On the plastic side panels of the Neptis SMP operator there are the holes that must be broken open, through which the electric cables must be inserted. -
Page 19: Electric Connections
10) ELECTRIC CONNECTIONS PWN-T MAINS POWER SUPPLY DISCONNECTOR 230Vac MANUAL PROGRAM SELECTOR NEUTRAL PHASE SAFETY SENSOR FOR CLOSING +24V- TEST AUX1 SAFETY SENSOR FOR OPENING SEN./CL. +24V- TEST COMMON AUX2 SEN./OP. 25 TEST OPEN 26 GND COMMON 27 AUX3 RAD.EX 28 24V RAD.IN 29 O.C. -
Page 20: Pwn-T Power Supply Module And Electric Wiring
11) PWN-T POWER SUPPLY MODULE AND ELECTRIC WIRING VOLTAGE CHANGE 115V 230V GROUND 115/230V OPEN In case of 230Vac mains voltage, put the 4-pole connector of the transformer primary in the J3 connector (230V) of PWN-T board (factory setting). In case of 115Vac mains power supply, put the 4-pole connector of the transformer primary in the J2 (115V) connector of PWN-T board. TERMINAL BOARD M1 230 Vac power supply: phase to terminal F, neutral to terminal N, ground connection with terminal ground symbol. - Page 21 TERMINAL BOARD M3 Terminals 8-11 EXTERNAL RADAR input, N.O. contact. It controls the door opening. It is not active when the program selector is on “Exit only” and “Night lock”. Terminals 9-11 INTERNAL RADAR input, N.O. contact. It controls the door opening. It is not active when the program selector is on “Entrance only”...
-
Page 22: L-Nep Logic Board
Connect N-DSEL digital programmer to PWN-T module of Neptis SMP operator by 0.5mm 4-conductor cable. Terminal +13V = connect to terminal 15 of PWN-T board (+13V);... -
Page 23: Commissioning Of Automated Device (Initial Set-Up)
It is important that you adjust the safety sensor detection field before starting the operator set-up cycle. If Neptis SMP operator controls a single-leaf automatic door, dip 1 and 2 on SW1 dip-switch of L-NEP logic board must be set on OFF. -
Page 24: Initial Set-Up
“Initial setup” section. Type the 10-character technical password for access to set-up configuration. The default technical password supplied by Label to N-DSEL digital programmer is “A-A-A-A-A-A-A-A-A-A” Press the button in correspondence with letter A, asterisk appears on the first letter case on the display;... - Page 25 Select ON only if a safety sensor has been installed on opening. We recommend that you adjust the safety sensor detection field before starting the set-up, to allow the operator to precisely store the position of any side wall. Only if S05 function has been set to ON Select ON if a safety sensor has been installed on closing and monitored (as required by standard EN 16005) to activate sensor test at the beginning of each cycle, select OFF only if the safety sensor on closing has not been set up to be monitored.
-
Page 26: Functional Testing
Set-up operation must be repeated if one of the following conditions varies: door weight, leaf opening angle, spring loading, replacement of L-NEP logic board or of mechanical unit inside Neptis SMP operator. To repeat set-up, follow the steps described in the previous paragraph, “Initial set-up”. -
Page 27: Program Selectors
PROGRAM SELECTORS The program selector allows the door user to select the operating mode. The following can be used, according to the choice: manual selector integrated in Neptis SMP operator side, EV-MSEL key mechanical selector or N-DSEL digital programmer. Each program selector is described in details below. -
Page 28: N-Dsel Digital Programmer Used Like Program Selector
15.3) N-DSEL DIGITAL PROGRAMMER – USED LIKE PROGRAM SELECTOR N-DSEL digital programmer can be installed in the system and used by the user like a program selector, as an alternative to manual and mechanical selector if you need a more complete tools in terms of functions and graphs. To enable N-DSEL operation like a program selector, set up F01 function ON (see “Functions setup”... - Page 29 Operation of other buttons located on N-DSEL program selector panel Pedestrian opening, used in double-leaf door automated device only To activate pedestrian opening, press the button. the symbol on the display indicates that the function is on. In a double leaf door, the first leaf (Master) only opens if the opening command is given by internal or external radar inputs.
-
Page 30: General Programming Menu
16) GENERAL PROGRAMMING MENU To enter the general programming menu while the automatic door operating program is shown on display, keep button pressed for about 5 seconds. The programming menu consists of different sub-menus divided by subject (Diagram 1). Select the section you want to have access to by using F1 button >> . The menu icon selected is highlighted and the section title is shown on display top side. -
Page 31: Functions And Regulations
17) FUNCTIONS AND REGULATIONS To enter please digit the 10-digits technical password (for detailed information please check paragraph “Password management” In this submenu the push buttons have the following scope: Push Button F2 = entering the setting for functions F (see paragraph “Functions Setting”); Push Button = entering the setting for Parameters P (see paragraph “Parameters Setting”);... - Page 32 Active function if F15=ON. Partial opening on Master leaf active with key switch selector EV-MSEL in program "Night Lock" This feauture is not applicable for the NEPTIS SMP operator Closure safety sensor input deactivated; if a closure safety sensor is not installed...
- Page 33 FUNCTION STATUS DESCRIPTION *' SLAVE Opening safety sensor input deactivated; if a opening safety sensor is not installed Opening safety sensor input activated; if a opening safety sensor is installed Test on closure safety sensor deactivated. For sensors without monitoring function carried out by the automation control unit Active function if F18=ON.
- Page 34 FUNCTION STATUS DESCRIPTION *' SLAVE Internal and external radars are deactivated during closing phase in "Night Lock" program Internal and external radars are activated during closing phase in "Night Lock" program, causing the door reopening Push button F1 of digital selector N-DSEL enables door opening only during automatic program modes Push button F1 of digital selector N-DSEL enables door opening both during automatic program modes and during "Night Lock"...
-
Page 35: Parameters Setting
17.2) PARAMETERS SETTING In this section the display describes the type of selected parameter; push button F1 decreases the setting value in percentage; push button F3 increases the setting value in percentage; push button allows proceeding to the following parameter; push button F2 allows returning to the previous parameter;... - Page 36 Increase this value to adjust door leaf slowing distance. This parameter is not applicable for the NEPTIS SMP operator Motor thrust power in closing. (active if F17=OFF for spring closing units). At 0% (default value) the function is disabled.
- Page 37 Fig.5 direction in order to keep door open. This parameter is not applicable for the NEPTIS SMP operator Safety sensor test time (adjustment enabled if F20 and/or F21=ON). This parameter can be used only if safety sensors with test monitoring option checked by the control unit are installed and in case the default value 0% caues safety test failure.
- Page 38 The following drawings show the regulation areas of some parameters described in the spreadsheet in order to better understand its purpose. In the spreadsheet the column “Ref. Drawing” is indicating the drawing number to be checked for any parameter for which a relative drawing has been added.
-
Page 39: Language
LANGUAGE Use F2 and buttons to move arrow to the language desired. Ÿ Press EXIT (SET) button to return to general programming menu. Ÿ 19) PASSWORD MANAGEMENT This section shows three types of password. a) TECHNICAL PASSWORD (for technical personnel in charge of installation and maintenance) It is a 10-character password of installer who starts the system. -
Page 40: How To Change The Technical Password
19.1) HOW TO CHANGE THE TECHNICAL PASSWORD Select “TECHNICAL PASSWORD” Ÿ Press OK (F1) button. Ÿ Type the default preset technical password “A-A-A-A-A-A-A-A-A-A” by pressing 10 Ÿ times on A button. Type the new technical password, selecting a combination of 10 characters from Ÿ... -
Page 41: How To Change The Service Password
It is required to repeat the new password, so type the previous combination again. Ÿ If the password typed is correct, “PASSWORD OK” is shown on display for one Ÿ second, thus reverting to the PASSWORD MANAGEMENT section; through the EXIT button the general programming menu is restored. -
Page 42: Enabling User (Primary And Service) Password Usage
19.4) ENABLING USER (primary and service) PASSWORD USAGE Select “PASSWORD ON / OFF” Ÿ Press OK (F1) button. Ÿ Type the primary password Ÿ Press ON button to enable the user password usage and return to PASSWORD MANAGEMENT menu. Ÿ To return to work program view, press EXIT button twice. -
Page 43: Information And Events Memory
INFORMATION AND EVENTS MEMORY N-DSEL digital programmer allows displaying information on automation and accessing to events memory, where fault errors are stored. After displaying the automatic door work program, press button for 5” to enter the information area (Diagram 2). The buttons inside the information area are used as follows: ν... - Page 44 Refer to the following tables for a list of information and error messages. INFORMATION AREA NUMBER MEANING INFORMATION Display serial code of logic board L-NEP Serial number Display opening/closing door cycles since last maintenance. This counter must be reset Partial cycles every maintenance by authorized personnel (See "Maintenance"...
- Page 45 MEMORY EVENTS Message of warnings or errors that can be read by digital programmer N-DSEL ( E1-E2-E3-E4-E5) WARNINGS SIMBOL SOLUTION SCREEN MESSAGE MEANING Generic malfunction that caused a reset of There is an automatic recovery system in case of RESET SOFTWARE the microcontroller.
-
Page 46: Maintenance
In case of single-leaf automation, letter M is shown on the top right side of display. ELECTRIC LOCK APPLICATION To block the door in closing position, Neptis SMP operator is ready to drive an electric strike, an electric lock or an magnetic lock. 22.1) ELECTRIC LOCK / ELECTRIC STRIKE Functions settings to activate electric lock: F04 = ON to activate electric lock output. -
Page 47: Safety Sensor Devices
PL = c, Category 2 as required by the standard EN16005. 23.1) SENSOR OA-EDGE T WIRING CONNECTION SENSOR OA-EDGE T WIRING CONNECTION NEPTIS SMP OPERATOR Wiring between the sensor and the terminal block of the PWN-T board on Neptis SMP operator 1. WHITE Supply power TERMINAL 17 (+) 2. BROWN... -
Page 48: Sensor 4Safe On Sw
23.2) SENSOR 4SAFE ON SW WIRING CONNECTION SENSOR 4SAFE ON SW WIRING CONNECTION NEPTIS SMP OPERATOR Wiring between the sensor and the terminal block of the PWN-T board on Neptis SMP operator 1. GREEN Supply power TERMINAL 17 (+) 2. BROWN... -
Page 49: Rf1 Radio Receiver
24) EN/RF1 RADIO RECEIVER 1 - GENERAL INFORMATION The EN/RF1 single-channel receiver is a 433.92 MHz radio receiver designed to open the Neptis SMP automatic door using the SPYCO transmitters manufactured by Label. 2 - USE The EN/RF1 receiver must be coupled to the J12 connector of the L-NEP electronic control unit and it is prearranged to operate the opening of the automatic door in all the automation work programs. -
Page 50: Disabled People Courtesy Function
LED MEANING FIG. 1 FIG. 3 LED OFF LED ON LED BLINKING SLOW full memory or transmitter already saved LED BLINKING FAS transmitter saving SPYC SPYC LED BLINKING VERY FAS memory cancellation FIG. 2 DISABLED PEOPLE COURTESY FUNCTION Enable this function by setting function F12=ON on the digital programmer N-DSEL. The inputs suitable for use by disabled people must be connected to the START or OPEN input terminals. -
Page 51: Double Leaf Door Set
DOUBLE LEAF DOOR SET To manage the operation of a swing door with two leaf two operators is needed, one must be configured as Master and the other must be configured as a Slave. In the case of overlapping leaf, the operator applied to the door leaf that overlap the other (the one that opens first) must be configured as Master. - Page 52 Follow now the next steps to complete the operator set up. Turn on main power supply on both operators. If the digital programmer N-DSEL has been used before, the display will show "No Communication” because the new serial numbers of the operator's board L-NEP are not stored in the programmer N-DSEL. Press and hold for about 5 seconds the SET push button to enter the general programming menu, and from there select the submenu "Serial communication setting"...
- Page 53 The function S05 must be selected ON if a safety sensor in closing is installed. Selecting this functionis valid for both Master and Slave operators. The function S06 must be selected ON if a safety sensor in opening is installed. Selecting this functionis valid for both Master and Slave operators.
-
Page 54: Functional Testing
The operation of set-up must be repeated in the case of variation of one of the following conditions:weight of the door, opening angle of the leaf, spring loading, replacement of the logic board L-NEP or the mechanical unit inside the operator Neptis SMP. -
Page 55: Consideration On The Use Of N-Dsel Programmer In A Double Door System
26.5) CONSIDERATION ON THE USE OF N-DSEL PROGRAMMER IN A DOUBLE DOOR SYSTEM. With the digital programmer N-DSEL is possible to operate separately on operators Master and Slave as regards the following sections of the programming menu and general area information. a) FUNCTIONS AND PARAMETERS pressing the F3 button you switch from Master to Slave and vice versa Master operator... -
Page 56: Interlock System
INTERLOCK SYSTEM The interlock system is used when two automatic doors must open one at a time, so they must not open together. 27.1) INTERLOCK ELECTRIC CONNECTION AUX1 D i s c o n n e c t m a n u a l COMUNE selector from the terminals AUX2... -
Page 57: Interlock Application With Only One Internal Radar
Choose whether you want to store, or not, the opening control on the radar in a door when the other door still in movement. · F28 = OFF: disable storage opening command. To open a door is necessary to activate again the radar when the other door is closed. F28 = ON: enable storage opening command. -
Page 58: Meaning Of The Acoustic Signal
At the end of the maintenance reset the counter of partial cycles and reset the memory events (see paragraph 21 "MAINTENANCE") Warning! Any part that appear damaged or worn must be changed. Make use only of original spare parts; for this purpose check LABEL price list. -
Page 59: Declaration Of Incorporation Of Partly Assembled Machinery
! Low Voltage Directive LVD 2014/35/UE ! Electromagnetic Compatibility Directive EMC 2014/30/UE Label declares that the operator NEPTIS SMP has been realized to be incorporated in a machine or to be assembled with other devices to constitute a machine covered by Machine Directive 2006/42/EC. - Page 60 NEPTIS Made in Italy S.p.A. Via Ilariuzzi, 17/A - S. Pancrazio P .se - 43126 PARMA - ITALIA Tel. (+39) 05 21/ 67 52 - Fax (+39) 05 21/ 67 52 22 infocom@labelspa.it - www.labelspa.com...
