  • Page 1 O P E R A T I N G I N S T R U C T I O N S SIM2000 Sensor Integration Machine...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Connecting peripheral devices..............Connecting voltage supply............... Commissioning.................. 29 Preparatory commissioning..............8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 4 11.4 Ambient data..................... Annex....................42 12.1 Dimensional drawings................12.2 Licenses....................O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...

  • Page 5: About This Document

    … highlights useful tips and recommendations as well as information for efficient and trouble-free operation. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 6: Further Information

    Before calling, make a note of all type label data such as type code, serial number, etc., to ensure faster processing. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK...

  • Page 7: Safety Information

    Any use of accessories not specifically approved by SICK AG is at your own risk. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 8: Cybersecurity

    NOTICE Modifications and conversions to the device may result in unforeseeable dangers. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...

  • Page 9: Requirements For Skilled Persons And Operating Personnel

    8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 10 The product is fitted with LEDs in risk group 0. The accessible radiation from these LEDs does not pose a danger to the eyes or skin. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK...

  • Page 11: Product Description

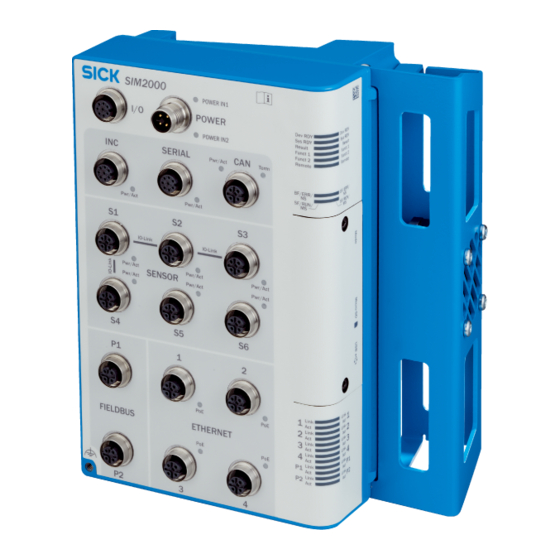

    The SIM enables SICK picoCam and midiCam as well as any GigE Vision/GenICAM compliant cameras to be used. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 12: Sick Appspace

    ETHERNET 2: 192.168.1.1 • ETHERNET 3: 192.168.2.1 • ETHERNET 4: 192.168.3.1 O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...
  • Page 13 The individual IP addresses can be changed using the SICK “SOPAS-ET” PC tool. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 14: Transport And Storage

    For storage periods of longer than 3 months, check the general condition of all components and packaging on a regular basis. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK...

  • Page 15: Mounting

    Mark the mounting holes. Proceed to drill the mounting holes. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 16: Mounting The Device

    Use the mounting plates and two hexagon socket heat cap screws (A/F 3) to screw the device securely into the two clamping plates. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK...
  • Page 17 Use self-locking or lock nuts on mounting sites that are exposed to vibrations to prevent the holding plates from loosening. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 18 Proceed to drill the mounting holes. Mount the device with adapter plates using at least two screws. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK...

  • Page 19: Electrical Installation

    8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 20: Overview Of Connections

    "Important notes", page 19 ß Servicing panel à O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...

  • Page 21: Functional Earth Connection

    Screw connection of the alternative functional earth connection • Screw: M4 x 15 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 22: Pin Allocation Of The Connections

    SensGND 1 Isolated GND input 3 – BN (brown) O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...
  • Page 23 Z- (not supported) Z+ (not sup‐ ported) GND (ground) 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 24 FBUS Figure 6: Fieldbus pin assignment, M12 – 4-pin D-coded, female O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...
  • Page 25 Figure 8: SENSOR 1-4 pin assignment, M12 - 5-pin A-coded, female 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 26 Supply voltage for Deactivated peripherals, configura‐ Input 3 Digital input O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...
  • Page 27 D1- (PoE supply voltage) D2+ (PoE ground) D2- (PoE ground) 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 28: Connecting Peripheral Devices

    Have the user connect the voltage supply. Have the user activate the voltage. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...

  • Page 29: Commissioning

    SensorApp using the APIs provided for that purpose. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 30: Operation

    LED goes out briefly LED lights up briefly LED flashes bicolored O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...
  • Page 31 Internet access or app not func‐ tional 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 32 General configuration error (1 x flashing) Not an error O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...
  • Page 33 Voltage not applied to the connection. POWER IN2 Voltage applied. Under/overvoltage detected. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 34 No signal activity. Overvoltage or short-circuit detected. Signal activity. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...
  • Page 35 No signal activity. Overvoltage or short-circuit detected. Signal activity. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 36 ETH1-ETH4: Fault in the supply line (overload, short-cir‐ cuit). O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...

  • Page 37: Maintenance

    Recommended: At least every 6 months. 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 38: Decommissioning

    Separate the recyclable materials by type and place them in recycling containers. ■ O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...

  • Page 39: Technical Data

    Maximum frequency 2 MHz FIELDBUS (fieldbus) Quantity 2 Function Ethernet-based fieldbus 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 40: Mechanics And Electronics

    Typ. 45 W, without connected sensors Power output Max. 140 W total (all connections) O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK Subject to change without notice...

  • Page 41: Ambient Data

    -20 °C ... +70 °C Permissible relative humid‐ 90%, non-condensing 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...

  • Page 42: Annex

    URL: <device ip>/license/COPYING Printed copies of the license texts are also available on request. O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK...
  • Page 43 ANNEX 8023297//2021-06-22 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM2000 Subject to change without notice...
  • Page 44 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
