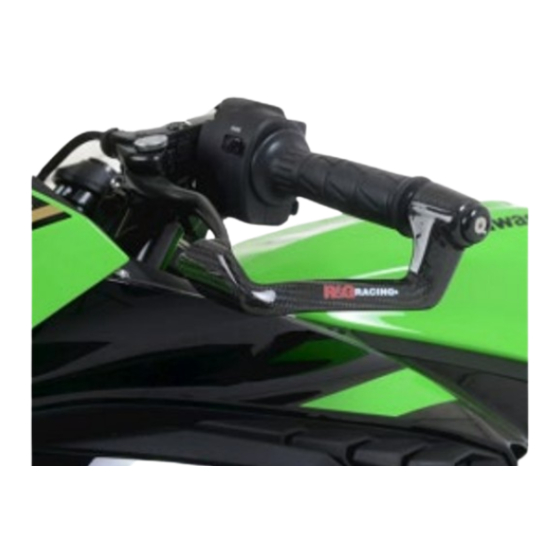

FITTING INSTRUCTIONS FOR CLG0023CG/LH FACTORY CARBON LEVER DEFENDER
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
P
LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
P
LEASE NOTE THAT IN CASES WHERE KITS ARE PACKED WITH RUBBER WASHERS HOLDING THE COMPONENTS
ONTO THE BOLT
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
D
IGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE TO DOWNLOAD FROM
GENERAL TORQUE SETTINGS
M4 BOLT = 8Nm
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
THIS KIT CONTAINS:
Item
= 1x
CARBON LEVER GUARD (LG0006COMP).
1
Item 2 = 1x
MOUNTING SLEEVE (M0586)
Item 3 = 1x
MOUNTING BLOCK (M0585)
Item 4 = 1x
CONE SPACER (S0781)
Item 5 = 1x
CLAMP SPACER (S0928)
Item 6 = 1x
M6 x 1.00 x 50mm LONG STAINLESS-STEEL COUNTERSINK BOLT
Unit
Tel: +44 (0)
420 89007 Fax: +44 (0)
1
BMW S1000RR 19-
MOUNTING TO THE BIKE
–
THE RUBBER WASHERS SHOULD BE THROWN AWAY
, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
1
420 87301
1
CLG0023CG/LH
(
FOR CLARITY OF INSTRUCTIONS ONLY
TOOLS REQUIRED
T40 Torx Key/Socket
24mm A/F Hex Spanner
4mm A/F Allen Key
R&G
www.rg-racing.com
!
.
-
.
WWW
RG
RACING
COM
Email:
info@rg-racing.com
)
