R&G AERO CP0409 Fitting Instructions Manual

No-cut crash protectors triumph tiger sport 1050 2016 and up

Advertisement

Quick Links

FITTING INSTRUCTIONS FOR CP0409BL/WH NO-CUT AERO CRASH
Page | 1
REAR OF BIKE
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt – the rubber washers should be
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Digital copies of these instructions are available to download from
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
PROTECTORS
TRIUMPH TIGER SPORT 1050 2016-
PICTURE 'A'
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
GENERAL TORQUE SETTINGS
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
Unit 1 Shelleys Lane, East Worldham, Alton, Hants GU34 3AQ
PICTURE 'C'
thrown away!
(
FOR CLARITY OF INSTRUCTIONS ONLY
M4 BOLT = 8Nm
R&G Racing
www.rg-racing.com
Email:
CP0409
PICTURE 'B'
FRONT OF BIKE
www.rg-racing.com
info@rg-racing.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AERO CP0409 and is the answer not in the manual?

Questions and answers

Summary of Contents for R&G AERO CP0409

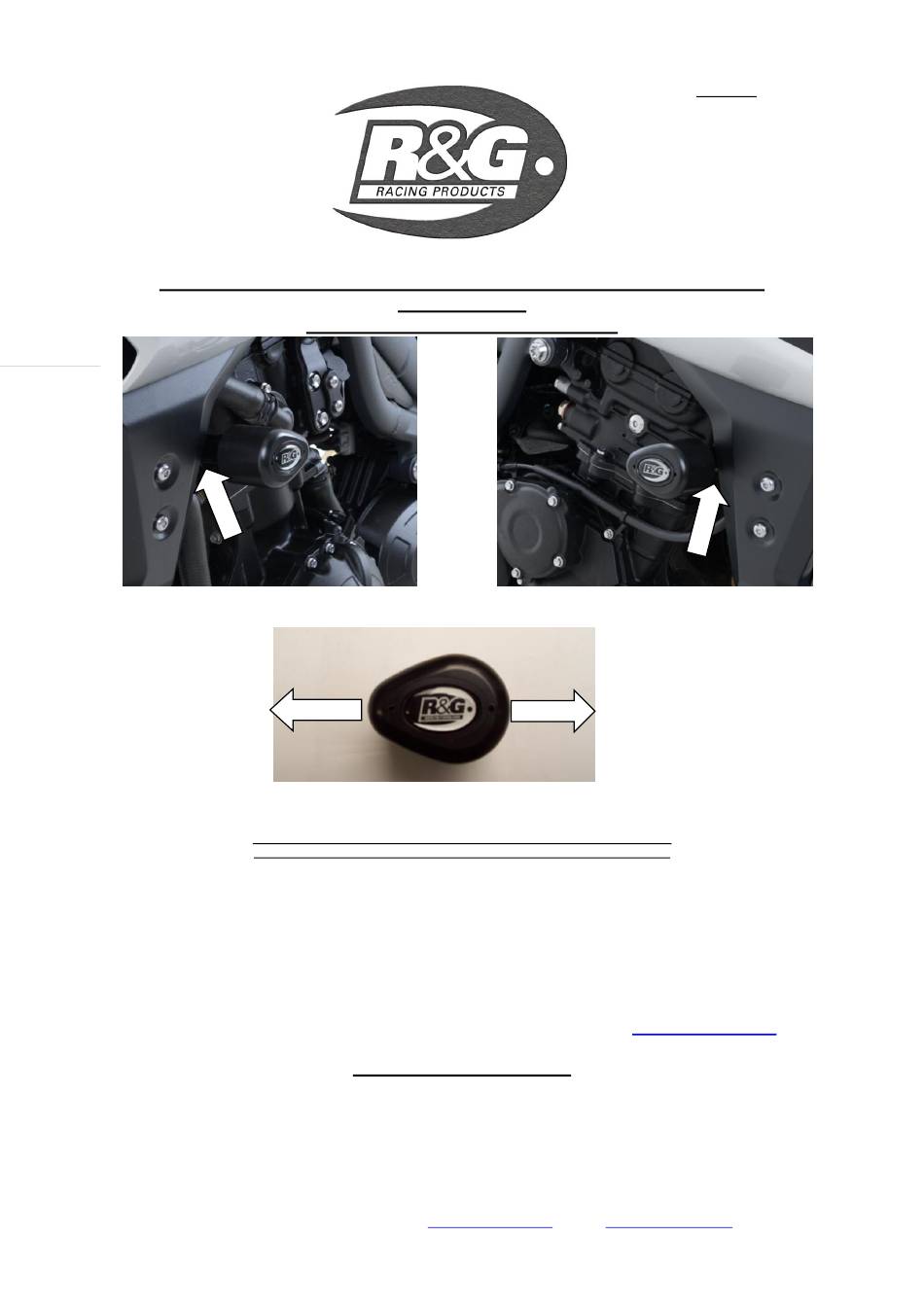

  • Page 1 CP0409 FITTING INSTRUCTIONS FOR CP0409BL/WH NO-CUT AERO CRASH PROTECTORS TRIUMPH TIGER SPORT 1050 2016- Page | 1 PICTURE ‘A’ PICTURE ‘B’ REAR OF BIKE FRONT OF BIKE PICTURE ‘C’ THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –...
  • Page 2: Tools Required

    CP0409 Page | 2 LEFT HAND SIDE ASSEMBLY RIGHT HAND SIDE ASSEMBLY TOOLS REQUIRED  Socket set to include T55 Torx Bit and 17mm A/F socket and wrench.  17mm Spanner.  Torque wrench (up to 40Nm). R&G Racing Unit 1 Shelleys Lane, East Worldham, Alton, Hants GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email:...
  • Page 3 CP0409 LEGEND ITEM 1 = CRASH PROTECTOR CAPS, L&RHS (BC0002) (x2). ITEM 2 = CRASH PROTECTOR BOLTS, M12x1.25x180mm LONG HEX HEAD BOLTS, L&RHS (x2). ITEM 3 = M12 PLAIN WASHERS, L&RHS (x2). ITEM 4 = LOCKING WASHERS, L&RHS (LW0001) (x2). ITEM 5 = CRASH PROTECTORS, L&RHS (B0431 with CS340, 12mm) (x2).
  • Page 4 CP0409  If not already fitted, fit bubble sticker into recess of crash protector cap (item 1).  Fit crash protector cap (item 1) into the crash protector. ISSUE 1 13/07/2016 (NSY) CONSUMER NOTICE Page | 4 The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order.
  • Page 5 CP0409 NOTICE DE MONTAGE CP0409BL/WH PROTECTIONS CRASH LATERALES (SANS OUVERTURE TRIUMPH TIGER SPORT 1050 2016- Page | 5 PHOTO ‘A’ PHOTO ‘B’ REAR OF BIKE FRONT OF BIKE PHOTO ‘C’ E KIT CONTIENT LES ARTICLES EXPOSES CI DESSOUS VERIFIER QUE TOUTES LES PIECES SOIENT PRESENTES AVANT DE PROCEDER AU MONTAGE A FAÇON DONT LE KIT EST EMBALLE NE CORRESPOND PAS FORCEMENT A LA FAÇON DE MONTER LES PIECES SUR LA MOTO...
  • Page 6 CP0409 OUPLES DE SERRAGE RECOMMANDES M4 BOULON = 8Nm M5 BOULON = 12Nm M6 BOULON = 15Nm M8 BOULON = 20Nm M10 BOULON = 40Nm Page | 6 M12 BOULON = 40Nm ASSEMBLAGE COTE GAUCHE ASSEMBLAGE COTE DROIT R&G Racing Unit 1 Shelleys Lane, East Worldham, Alton, Hants GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com...
  • Page 7: Outils Requis

    CP0409 OUTILS REQUIS  Clé Torx T55 et Clé à douille 17mm.  Clé à molette 17mm.  Clé dynamométrique (à 40Nm). Page | 7 LEGENDE ARTICLE 1 = CAPUCHONS DE PROTECTION CRASH, GAUCHE ET DROITE (BC0002) (x2). ARTICLE 2 = BOULONS M12x1.25x180mm GAUCHE ET DROITE (x2). ARTICLE 3 = RONDELLES M12 GAUCHE ET DROITE (x2).
  • Page 8 CP0409  Placer une des entretoises (article 6=54mm de long) sur l’extrémité du boulon puis contre la protection crash, voir assemblage du coté droit.  Monter l’ensemble en position, voir photo ‘B’, sur la page 1. Enfin, serrer les boulons de protection crash jusqu’à...
