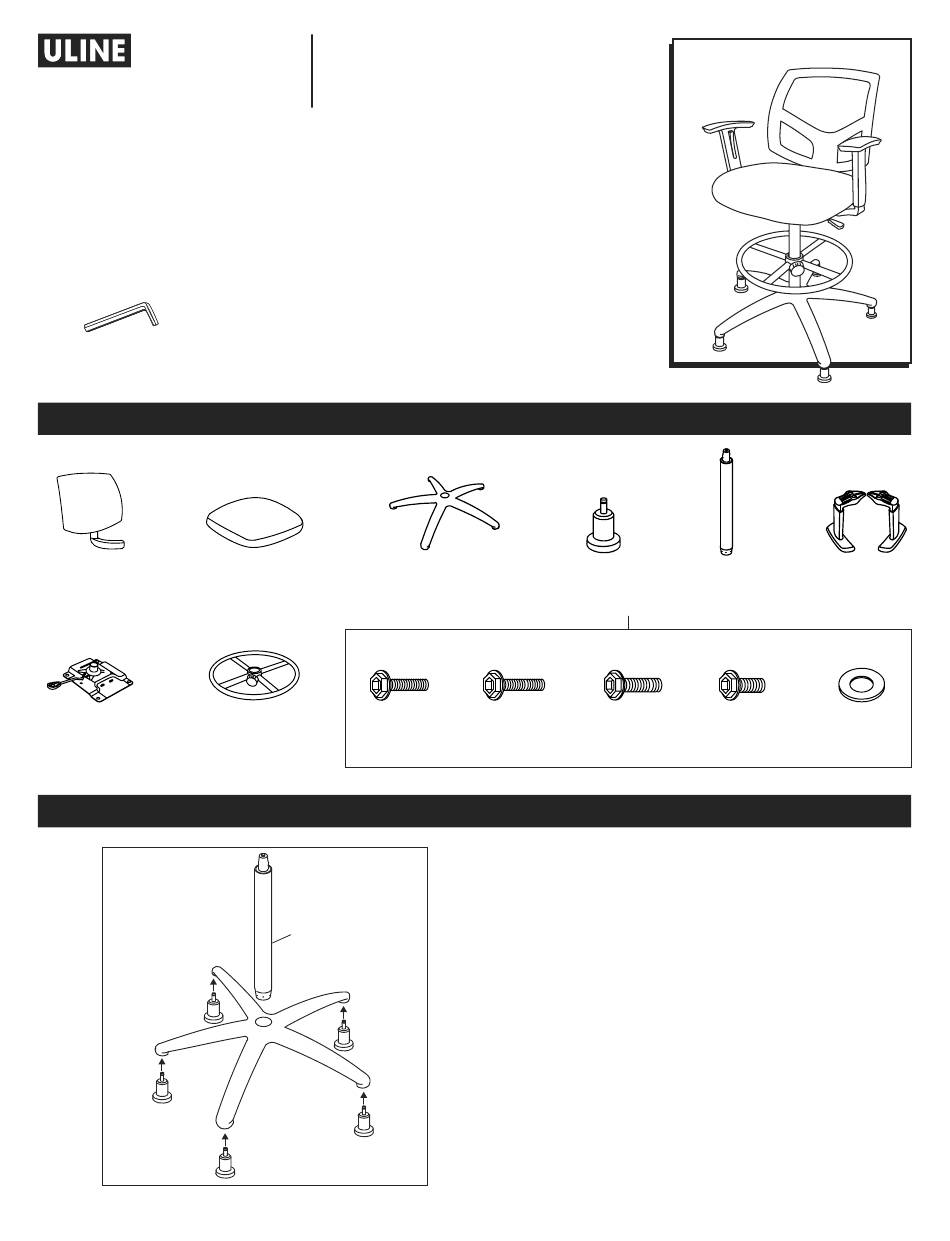

Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-5498 1-800-295-5510 uline.com MESH WORK STOOL TOOL INCLUDED Allen Wrench PARTS Back Support x 1 Seat Cushion x 1 5-Star Base x 1 Glide x 5 Gas Lift x 1...
Page 2
ASSEMBLY CONTINUED 2. Align armrest with holes on bottom of seat cushion. Use Figure 2 one 1/4 x 1½" screw (1) and two 1/4 x 1¾" screws (2) with three washers (5) to attach. Repeat on opposite side. (See Figure 2) NOTE: Use Allen wrench to tighten all screws.
ASSEMBLY CONTINUED 5. Slide footring onto gas lift and tighten knob to secure. Figure 5 (See Figure 5) 6. Slowly lower stool assembly onto the gas lift. Press down on seat cushion to secure. (See Figure 5) STOOL ADJUSTMENTS Seat Height Adjustment – To raise seat height, lift lever up with little to no weight on the seat.
Page 4
H-5498 800-295-5510 uline.mx SILLA DE MALLA PARA TRABAJO HERRAMIENTA INCLUIDA Llave Allen PARTES 1 Respaldo 1 Asiento 1 Base Estrella 5 Niveladores 1 Pistón de Gas 2 Descansabrazos Kit de Tornillería 1 Mecanismo 1 Reposapiés 2 Tornillos 4 Tornillos 4 Tornillos...
Page 5
CONTINUACIÓN DEL ENSAMBLE 2. Alinee el descansabrazos con los orificios en la parte Diagrama 2 inferior del asiento. Use un tornillo de 1/4 x 1½" (1) y dos tornillos de 1/4 x 1¾" (2) con tres rondanas (5) para fijarlo. Repita la operación con el lado opuesto. (Vea Diagrama 2) NOTA: Utilice la llave Allen para apretar todos los tornillos.
Page 6
CONTINUACIÓN DEL ENSAMBLE 5. Inserte el reposapiés en el pistón de gas y apriete la Diagrama 5 perilla para asegurarlo. (Vea Diagrama 5) 6. Baje lentamente el ensamble de la silla sobre el pistón de gas. Presione el asiento para asegurarlo. (Vea Diagrama 5) AJUSTES DE LA SILLA DE TRABAJO 1.
Page 7
H-5498 1-800-295-5510 uline.ca TABOURET DE TRAVAIL EN MAILLE OUTIL INCLUS Clé Allen PIÈCES Dossier x 1 Siège x 1 Base à 5 branches x 1 Patin x 5 Vérin pneumatique x 1 Accoudoir x 2 Matériel de fixation Mécanisme x 1...
Page 8
ASSEMBLAGE SUITE 2. Alignez l'accoudoir sur les trous situés sous le siège. Figure 2 Fixez à l’aide d’une vis de 1/4 x 1 ½ po (1), de deux vis de 1/4 x 1 ¾ po (2) et de trois rondelles (5). Répétez la procédure sur le côté...
Page 9
ASSEMBLAGE SUITE 5. Faites glisser le repose-pied sur le vérin pneumatique Figure 5 et serrez la molette pour le fixer. (Voir Figure 5) 6. Abaissez lentement le tabouret sur le vérin pneumatique. Appuyez sur le siège pour le fixer. (Voir Figure 5) RÉGLAGES DU TABOURET Réglage de la hauteur du siège –...
