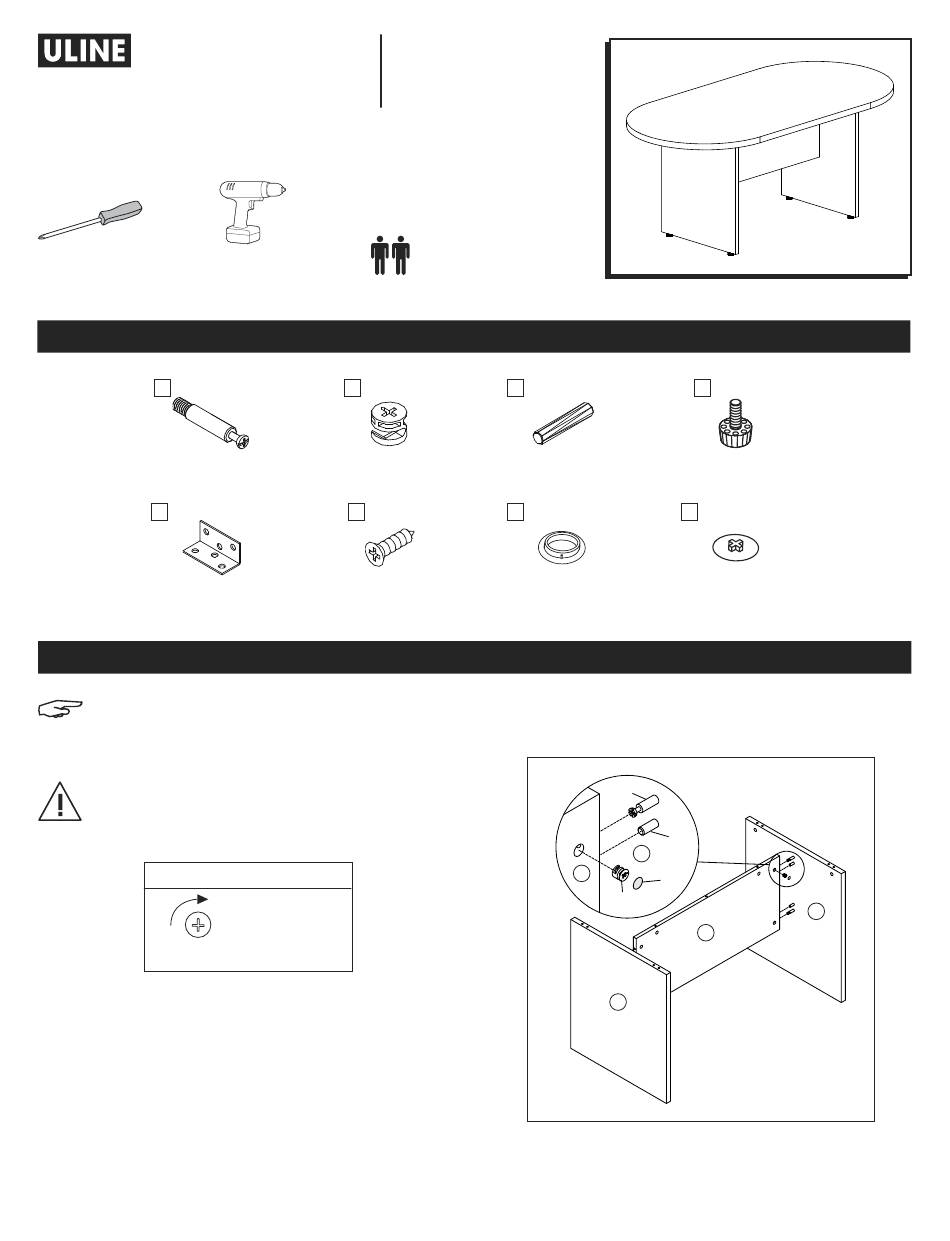

U-Line H-5055 Manual

H-5054, H-5055
CLASSIC CONFERENCE
TABLE
TOOLS NEEDED
Phillips
Screwdriver
A
Camlock Pin x 12
E
L-Bracket x 5
NOTE: Assemble on a smooth, non-marring
surface to avoid scratching the table.
• Check that all parts are included.
IMPORTANT: The arrow on the camlock (B) must
point toward the camlock pin (A) for proper
alignment. Turn camlock (B) clockwise until it
locks with pin (A).
IMPORTANT: Function of Cam
Ensure the arrow is pointing toward edge of
panel before inserting into the panel's hole.
1. Insert four camlocks (B) into corresponding holes on
modesty panel (1). Insert four camlock pins (A) and
four dowels (C) in legs (2). Fit leg (2) and modesty
panel (1) together and turn each camlock (B)
clockwise until it locks. Cover each camlock (B) with
a camlock cap (H). (See Figure 1)
PAGE 1 OF 6
Drill
(Optional)
B
Camlock x 12
F
Screw x 35
#4 5/8"
1/4 Right Turn
for Locking
1-800-295-5510
uline.com
Two Person Assembly
Required
PARTS
C
Dowel x 11
G
Deep Camlock
Cap x 5
ASSEMBLY
2. Repeat to attach second leg and modesty panel
together. (See Figure 1)
1
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
D
Floor Glide x 4
H
Camlock Cap x 7
A
C
2
H
B
1
2
2
Figure 1
1223 IH-5054
