H-5679

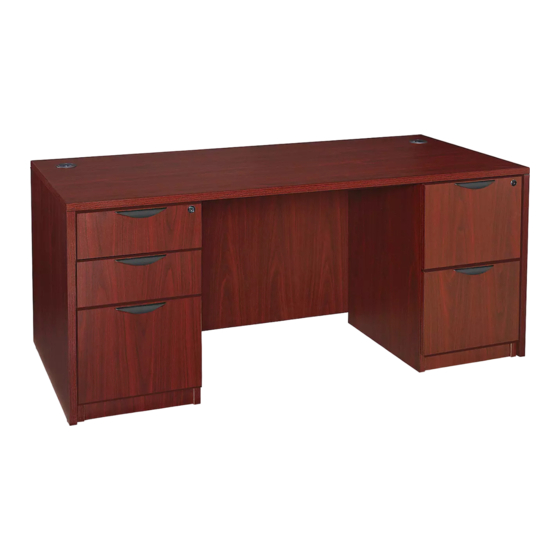

LAMINATE DESK

TOOLS NEEDED

Screwdriver

DESK PARTS LIST

A B
Cam Lock Pin x 16
C Dowel x 11 D Glide x 4
Grommet
Screw x 35
F G H
Cap x 2
#4 5/8"
NOTE: Assemble unit on a smooth, non-marring
surface to prevent scratching.
• Check that you have all parts listed.
• 2-person assembly is recommended.
• Use L-Brackets to connect 1 to 4. For additional
stability, L-Brackets can be installed to connect
2 to 4 and 3 to 4, but they must be positioned
against the back corner to allow clearance for
pedestal installation.
NOTE: The clearance between the
pedestal and back of desk will be 2¾"
when fully assembled.
• L-Bracket holes can be started with drill (optional).
PAGE 1 OF 6
1-800-295-5510
uline.com
Drill
Phillips
(Optional)
Cam Lock x 16
E
L-Bracket x 5
Deep Camlock Camlock
I
Cap x 7 Cap x 9

DESK ASSEMBLY INSTRUCTIONS

Step 1
A
C
2
1
I
B
1
IMPORTANT: Function of Cam
3
1/4 Right Turn
For Locking
Make sure the arrow is pointing upwards
before inserting into the panel's hole.
Step 3
Pour le français, consulter les pages 5-6.
Step 2
Tighten
B
C
H
2
4
Tighten
F
1
4
E
G
2
Para Español, vea páginas 3-4.
3
A
Tighten
D
3
1
4
