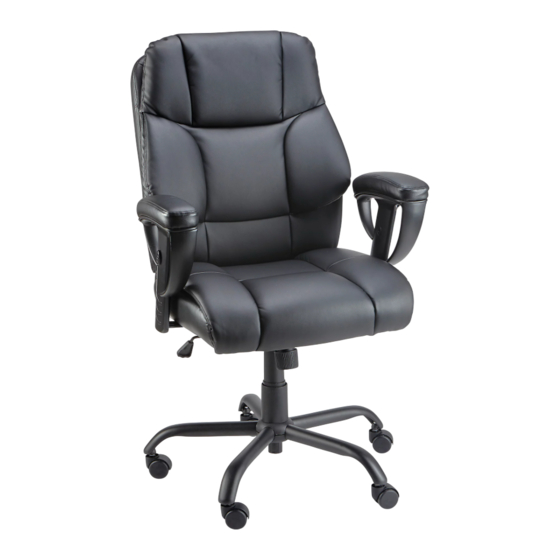

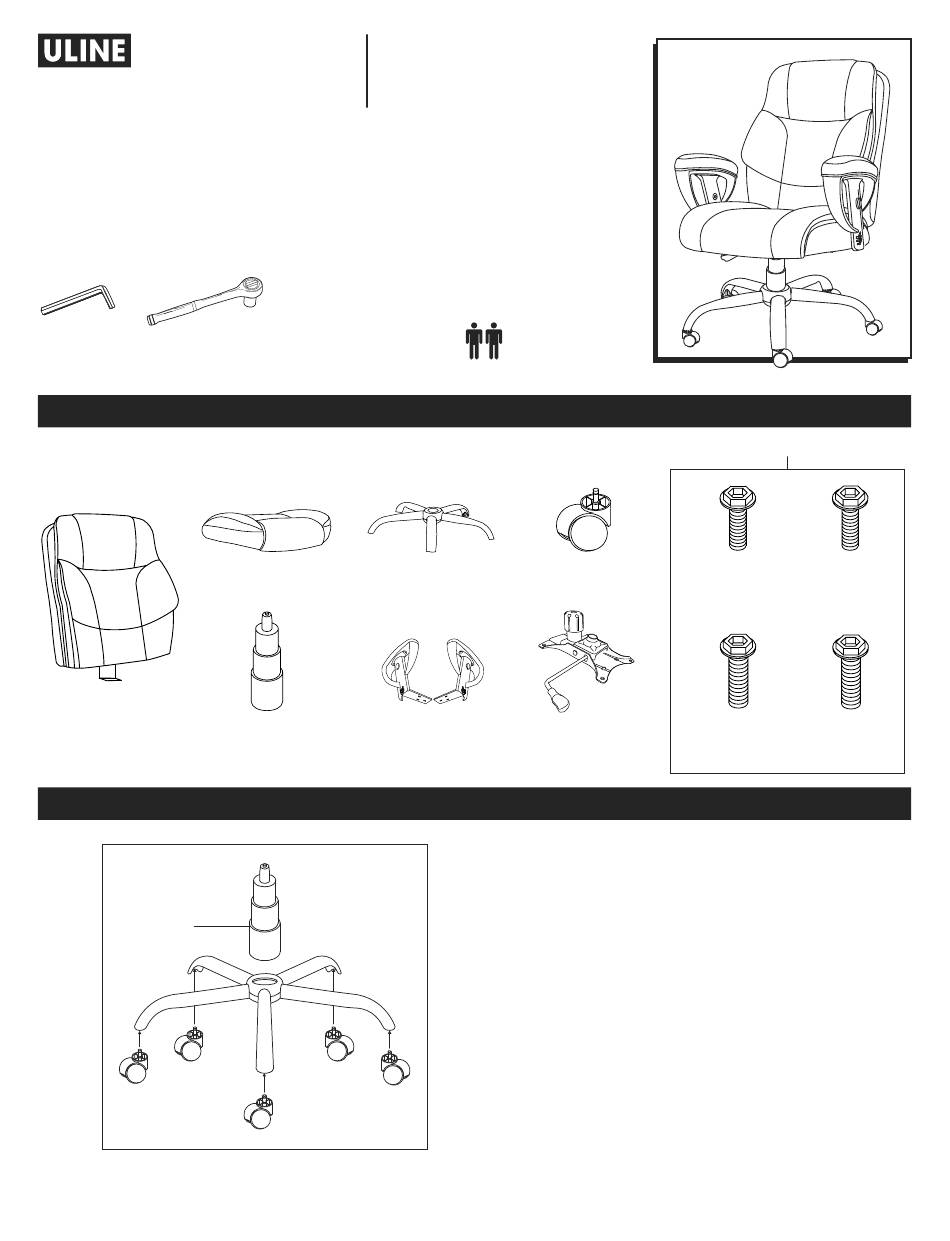

Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-5522 1-800-295-5510 uline.com BIG AND TALL LEATHER OFFICE CHAIR TOOLS NEEDED Two Person Assembly Allen Wrench 12 mm Socket Wrench Recommended (included) (optional) PARTS Hardware Kit Seat Cushion x 1...
Page 2
ASSEMBLY CONTINUED 2. Align armrest with holes on bottom of seat cushion. Figure 2 Use three 5/16 x 1/" screws (9) to attach. Repeat on opposite side. (See Figure 2) NOTE: Use Allen wrench to tighten all screws. 3. Align mechanism with holes on bottom of seat Figure 3 cushion with tension knob facing the front of seat.
ASSEMBLY CONTINUED 5. Slowly lower chair assembly onto the gas lift. Press Figure 5 down on seat cushion to secure in place. (See Figure 5) CHAIR ADJUSTMENTS 1. Seat Height Adjustment – To raise seat height, lift lever up with little to no weight on the seat. To lower seat height, lift lever up while sitting.
H-5522 800-295-5510 uline.mx SILLA GRANDE Y ALTA DE PIEL PARA OFICINA HERRAMIENTAS NECESARIAS Se Recomienda Armar Llave de Dado de 12 mm Llave Allen Entre Dos Personas (incluida) (opcional) PARTES Kit de Tornillería 1 Asiento 4 Tornillos 6 Tornillos 1 Base Estrella 5 Ruedas 5/16 x 1"...
Page 5
CONTINUACIÓN DEL ENSAMBLE 2. Alinee el descansabrazos con los orificios en la Diagrama 2 parte inferior del asiento. Use tres tornillos de 5/16 x 1¼" (9) para asegurarlo. Repita la operación con el lado opuesto. (Vea Diagrama 2) NOTA: Utilice la llave Allen para apretar todos los tornillos.
Page 6
CONTINUACIÓN DEL ENSAMBLE 5. Baje lentamente el ensamble de la silla sobre el Diagrama 5 pistón de gas. Presione el asiento para asegurarlo en su lugar. (Vea Diagrama 5) AJUSTES DE LA SILLA 1. Ajuste de la Altura del Asiento – Para aumentar la altura del asiento, levante la palanca sin o con poco peso en el asiento.
H-5522 1-800-295-5510 uline.ca CHAISE DE BUREAU EN CUIR POUR TAILLES FORTES ET ÉLANCÉES OUTILS REQUIS Montage à deux Clé à douille de 12 mm Clé Allen personnes recommandé (inclus) (optionnel) PIÈCES Matériel d'installation Siège x 1 Vis x 4 Vis x 6 Base à...
Page 8
ASSEMBLAGE SUITE 2. Alignez l'accoudoir sur les trous situés sous le siège. Figure 2 Fixez-le avec trois vis de 5/16 x 1 / po (9). Répétez la procédure de l'autre côté. (Voir Figure 2) REMARQUE : Utilisez la clé Allen pour serrer toutes les vis.
Page 9
ASSEMBLAGE SUITE 5. Abaissez lentement la chaise sur le vérin Figure 5 pneumatique. Appuyez sur le siège pour le fixer. (Voir Figure 5) RÉGLAGES DE LA CHAISE 1. Réglage de la hauteur du siège – Pour monter le siège, soulevez le levier avec peu ou sans poids sur le siège.
