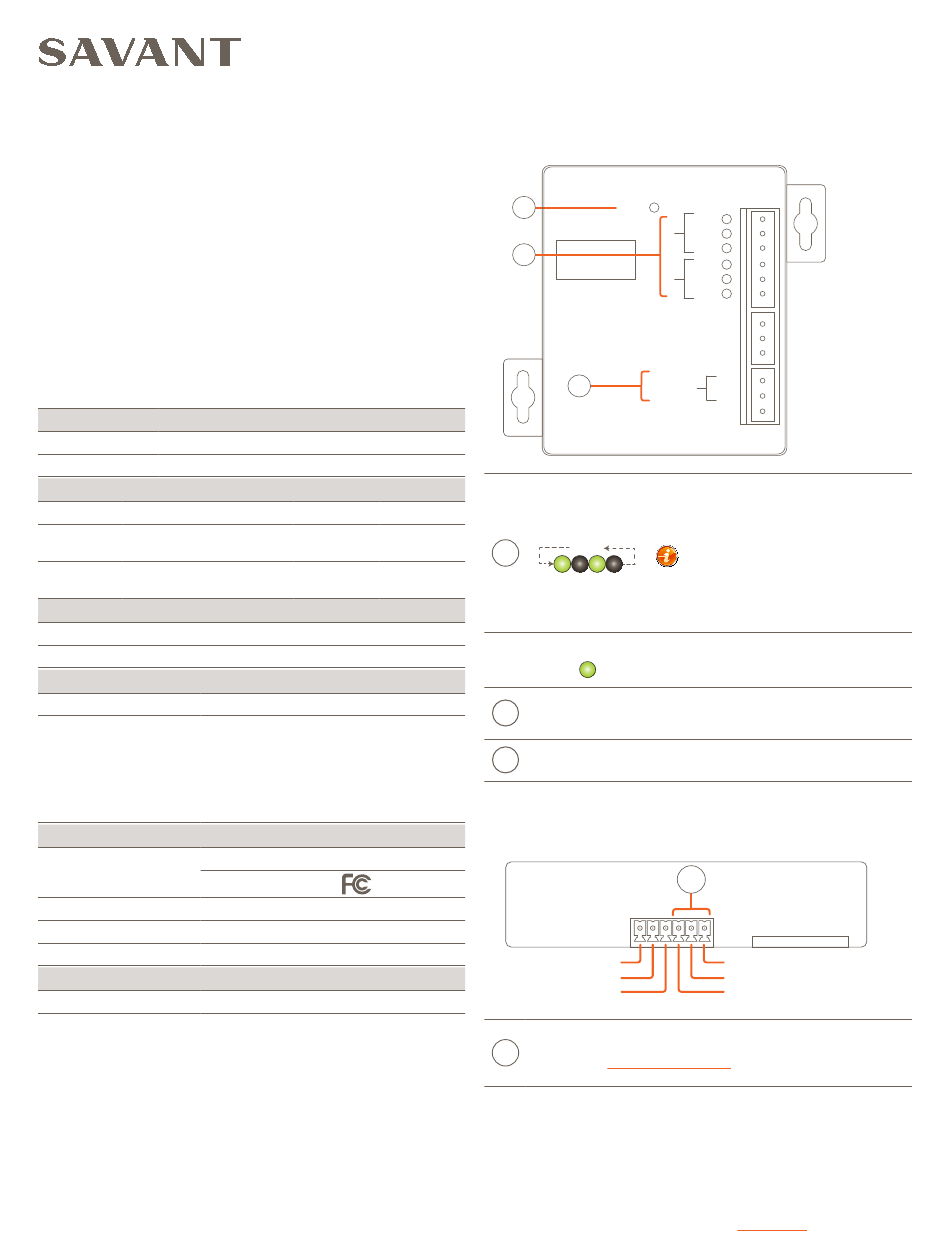

Savant CLI-1WIRE2 Quick Reference Manual

Sensor Module with Two 1-Wire Sensor Interfaces
Quick Reference Guide

Box Contents

(1) Sensor Module - (CLI-1WIRE2)
(2) 3 Position Screw Down Plug-In Terminal Block - (028-0736)
(1) 6 Position Screw Down Plug-In Terminal Block (028-0737)
(1) 6 Position Screw Down Plug-In Terminal Block (028-9352)
(1) Product and Regulatory Insert (009-1704)

Supported Sensors

(available on the Savant Store)
Temperature and Humidity 1-Wire Smart Sensor - (CLI-THFM1)

Specifications

Environmental

Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)

Dimensions and Weights

Height Width
3.77 inch 3.16 inch
CLI-1WIRE2
(9.58 cm) (8.03 cm)
6.25 inch 4.8 inch

Shipping

(15.88 cm) (12.19 cm)

Power

Input Power 24V AC (19.2 - 28.8V AC)
Max Current Draw 0.1 amps (rms)

Maximum Wiring Distances

RS-485 Up to 1000 feet (304.8 m) cumulative
#24 AWG - 20 feet (6.10 meters)
#20 AWG - 57 feet (17.37 meters)
Power #18 AWG - 90 feet (27.43 meters)
#16 AWG - 143 feet (43.59 meters)
#14 AWG - 228 feet (69.49 meters)

Regulatory

Safety and
Emissions
Contains FCC ID: 2AEHU-MESHTEK-H52
Contains IC: 20059-MESHTEK52
RoHS Compliant
Minimum Supported Release
Climate Config App Version 1.1.2
CLI-1WIRE2-00 | 009-1829-00 | 190613
Copyright 2019 Savant Systems, LLC
Depth Weight
.91 inch < 1 lbs
(2.3114 cm) (< .5 kg)
1.25 inch < 1 lbs
(3.175 cm) (< .5 kg)
FCC Part 15
1 of

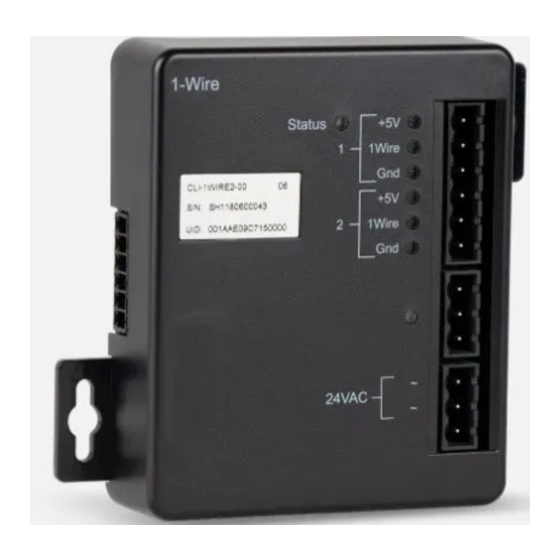

Top Panel
1-Wire
A
Status
B
CLI-1WIRE2-00
S/N: SH1180201332
UID:
001AAE09DD000065
C
Blinking Green
RS-485 communications is not estab-
lished. Once powered is applied, it can
take up to 20 seconds to establish com-
munications.
A
Repeat
1s .5s 1s .5s
Solid Green
RS-485 communication is established
and the module is communicating with
thermostat.
Smart Sensor 1-Wire Inputs - Each 1-wire input supports
B
connecting up to two 1-wire sensors (CLI-THFM1 ) for a total
of four sensors per module.
C
24V AC input - Connect 24V AC to the two
Left Side Panel
N/C
N/C
N/C
RS-485 port - As shown in the image above, the right three
pins connect to the RS-485 connections on the thermostat.
A
Refer to the Rs-485 Connections
tion on wiring.
45 Perseverance Way, Hyannis, MA 02601
2
+5V
1 1Wire
Gnd
+5V
2 1Wire
Gnd
~
24VAC
~
HELPFUL! If communications was
established and subsequently
lost, the LED will stay solid for
about 1 minute before the LED
starts blinking.
~
input ports.
A
Gnd
A (TX+)
B (TX-)
section for more informa-
Savant.com | 508.683.2500
