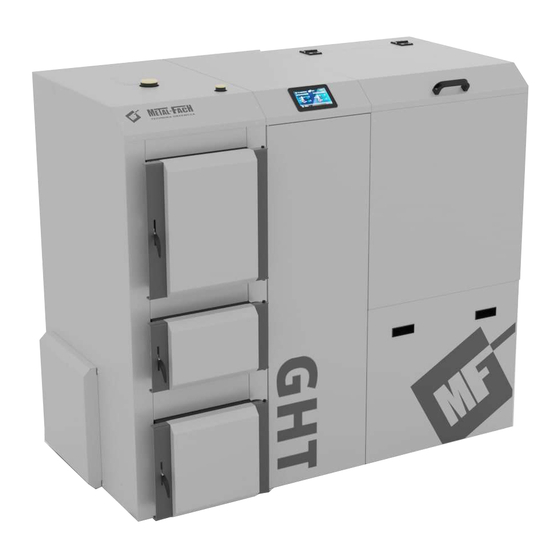

Summary of Contents for Metal-Fach GHT
- Page 1 Operation and maintenance documentation Transtlation of the original manual Issue I 05/05/2020 ENGLISH...
- Page 2 (Fireman). The user should immediately report the situation to an authorized service. ● This original User Manual is intended for users of GHT boilers of 22 and 40 kW.
-
Page 3: Table Of Contents
9. Disposal ..........................28 10. The photo index ......................... 29 Attachments: BOILER INSTALLATION CONFIRMATION ................31 DECLARATION OF CONFORMITY ..................34 WARRANTY CARD ........................36 PERIODIC REVIEW TABLE ...................... 39 WARRANTY REPAIRS ......................40 Thank you for choosing METAL-FACH Heating Technology GHT boiler. -
Page 4: Introduction
Important information related to the safety of boiler operation and use. Information relevant to the operation as recommended by the manufacturer. The manufacturer of the boiler is a company: METAL-FACH Heating Technology Jacek Kucharewicz Information and pictograms The following information pictograms have been used to mark dangerous places on the device. -
Page 5: General Information
CONFIRMED BY THE DECLARATION OF CONFORMITY AND ARE MARKED WITH "CE" MARK Biomass boilers manufactured by METAL-FACH Technika Grzewcza are characterized by high thermal efficiency (average efficiency ≥88.4%) and emission factors in accordance with PN-EN 303-5:2012 standard, and are in accordance with the EU Commission Regulation No 2015/1189 of 28 April 2015, the so-called Ecodesign, according to the marking on the nameplate placed on the casing of each boiler. -
Page 6: Conditions For Safe Operation Of Boilers
(e.g. electrostatic filter) or third order measures in the form of the participation of a METAL-FACH Heating Technician in measurement and service work may be necessary to meet the BImSchV requirements. Please contact METAL-FACH... - Page 7 13. The electrical installation may be operated by an authorised electrician. Residual risk Although METAL-FACH Technika Grzewcza takes responsibility for the design and construction in order to eliminate the danger, some risk elements during the operation of the boiler are unavoidable.
-
Page 8: Legal Conditions Of Manufacturer's Liability
When presenting the residual risk, the boiler is considered to be a machine that has been designed and manufactured according to the state of the art and in accordance with the product documentation approved by the manufacturer until production starts. Residual risk assessment When following recommendations such as: •... -
Page 9: General Characteristics Of The Boiler
Changing the fuel to one other than the one recommended by the manufacturer is not allowed and the responsibility for such action lies solely with the User. The consequences of incorrect operation of the boiler resulting from the above do not constitute grounds for considering the incorrect operation of the boiler as a physical defect of the product. -
Page 10: Basic Information On Combustion Of Wood-Based Fuel
Altereco B1 type wood chips are delivered to the customer in plastic bags weighing about 14 kg and transported on pallets (fig. 15), the packaging method protects them from excessive moisture, but does not release them from storage under a roof, in order to avoid the direct impact of adverse weather conditions that may reduce fuel quality. -
Page 11: Basic Information On Burning Wood Chips
Relationship between water content and fuel humidity The amount of water in fuels is given as either water content or fuel humidity. The water content (in %) refers to the moisture content of the fuel or the fresh matter (LSD) and the moisture content of the fuel to the completely dry matter (SS). -
Page 12: Basic Information On The Combustion Of Wood Pellets
Definition of size classes of wood chips according to EN ISO 17225-4 (a) The number in the size class refers to the maximum particle size in the main fraction. The particles must fit into a round mesh sieve (ISO 17827-1) of the size determined for that class in mm. The lowest possible property class must be given. (b) The length and area of the section should be determined only for particles in the coarse fraction. -
Page 13: Minimum Exhaust Gas Requirements
i.e. pressed into a cylindrical shape. The raw material is stored and transported in perfectly dry conditions. The plant operator must also store the pellets in a perfectly dry place. This is the only way to guarantee correct and efficient combustion. Requirements for wood pellets For combustion in the boiler, wood pellets with a diameter of 6 mm and a length of 3.15... -
Page 14: The Purpose Of The Boiler
NOTE! METAL-FACH Technika Grzewcza shall not be liable for damage caused by the use of fuel other than that recommended by the manufacturer, or for a decrease in the thermal efficiency of the boiler as a result of using the wrong fuel, thus it... -
Page 15: Construction And Technical Data Of The Boiler
3. construction and technical data of the boiler Boilers of GHT series are welded steel sheet structures. Fuel combustion takes place in the combustion chamber . Above the chamber there are ceramic catalysts (picture 14), whose task is to afterburning the gases and other volatile compounds that escape during combustion, reducing their emission outside (they help in more accurate afterburning of fuel). - Page 16 Drawing 3. basic overall dimensions of the GHT 22 kW boiler - front view. Valve Internal valve security water supply for central heating.
- Page 17 Drawing 5. Detailed dimensions of the 22 kW Drawing 6 Detailed boiler dimensions 40 kW Drawing 7. Electrical diagram of the GHT 22 kW boiler. Drawing 8. electrical diagram of GHT 40 kW boiler.
-
Page 18: Installation Of The Boiler
Both raw and supplementary water should have a hardness not exceeding =< 4°n. TECHNICAL AND OPERATIONAL DATA OF THE BOILER Table 1. GHT 22kW Nominal heat output Water capacity Fuel consumption at maximum power... -
Page 19: Boiler Transport
Table 2. GHT 40 kW Nominal heat output Water capacity Fuel consumption at maximum power kg/h Boiler weight Maximum operating temperature Chimney draught 10-17 Approximate chimney height Stack section 160x250 Working pressure Storage capacity 700 (13 bags) Thermal efficiency 88,4... -
Page 20: Installation Of The Boiler In The Boiler Room
Before setting up and connecting the boiler, it is necessary to check that all components are operational and that the boiler is fully equipped for operation. 4.3. Installation of the boiler in the boiler room The boiler doesn't need a foundation. It is placed directly on the floor. It should be exactly levelled! The strength of the floor as well as fire protection conditions must be taken into account. -
Page 21: Boiler Connection To The Chimney
"gravity bypass", enabling the use of the central heating system in the event of a possible pump failure. NOTE! It is possible to connect a GHT boiler (not applicable to boilers with output above 100kW) -
Page 22: Installation Of The Boiler In An Open System
equipped with a factory supply, control or fuel feeder system (for automatic boilers) in a closed type installation, provided that a safety valve, diaphragm vessel, control and measurement fittings (pressure gauge, thermometer, etc.) are installed, and that the requirements for boiler operation are met, in particular the recommended operating temperature of 45-75°C, maximum permitted temperature of 85°C, maximum permitted operating pressure 1.5 bar. - Page 23 Solid fuel boilers can also operate in closed heating systems. Specially adapted boilers are used for this purpose, which are equipped with devices for receiving excess heat, protecting the system against overheating. ● In this system, a closed diaphragm pressure vessel is installed on the site of the expansion vessel overflow.
-
Page 24: Operation And Use Of The Boiler
(controller manual). METAL-FACH Technika Grzewcza is not responsible for incorrect controller settings by the customer. In case of problems, please contact an authorized company service or installer. -
Page 25: Filling With Water
6.2 Filling with water Fill the system with water before lighting the fire on the plank. Water to supply boilers must meet the standards in accordance with PN-85/C-04601. In order to check if the system has been completely filled with water, unscrew the through-hole valve on the signalling pipe for a few seconds. -
Page 26: Service Activities Performed By The User
6.5.2 Service activities performed by the User ● Cleaning the boiler from ash at least once every two days especially during the heating period. ● Cleaning of the feeder as well as the burner can be carried out after burning out the embers and disconnected from the power supply boiler. -
Page 27: Identification Of Disturbances In The Correct Operation Of The Boiler
Do not drain water from the central heating system during standstill. Unless it is required for repair or assembly work. In order to prolong the life of the boiler it is recommended to leave the boiler in an open position for the time of standstill, enabling free air flow through its interior, and consequently drying. -
Page 28: Spare Parts
● remove the wrong tank fuel ● spring failure of the feed flap ● verify the spring condition of (fig. 1) the feed flap and sight glass Increase in feeder chamber cover temperature ● check the temperature level on the controller ●... -
Page 29: List Of Main Spare Parts
Electronic controller 2 years Temperature controller 2 years Automatic ignition head 2 years Burner head 2 years Chimney draught controller 2 years Blow fan of the furnace 2 years Blow fan of the igniter 2 years 8.2 List of spare parts for natural wear and tear * Name of the part Part No. -
Page 30: The Photo Index
10. photo index Picture 1: Spring of the feeding flap Photo.2: Firebox inspection flap (Wrong) Picture 3: Firebox inspection flap (GOOD) HEAT Picture 5. Fuses Photo 4: Example of a controller Picture 6. Protective plate Picture 8. Chimney flue Picture 9: Tray lid with locking Picture 7. - Page 31 Picture 14. Ceramic cartridges (catalysts) Picture 13. Ashtray door (closed-not Picture 13. Ashtray door (closed closed) properly) Photo 16: Example of a furnace Photo 18. chips fraction recommended Picture 15. 2 palletized woodchip controller Picture 17. Example of a room controller Picture 19.
- Page 32 METAL-FACH...
