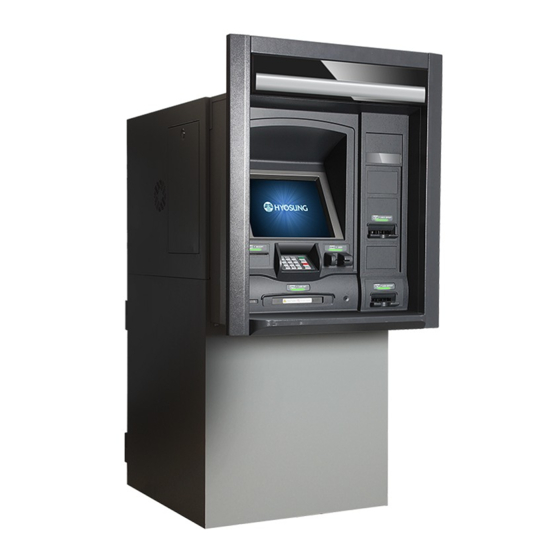

MoniMax 7600T
Installation Manual
Copyrightⓒ Nautilus Hyosung Inc. 2006 ·2007·2008 All right reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MoniMax 7600T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nautilus Hyosung MoniMax 7600T

Summary of Contents for Nautilus Hyosung MoniMax 7600T

  • Page 1 MoniMax 7600T Installation Manual Copyrightⓒ Nautilus Hyosung Inc. 2006 ·2007·2008 All right reserved...
  • Page 2 Revision Record Date Page Version Description of Change March 2008 New Publication...

  • Page 3: Table Of Contents

    1. Overview .............................. 3 2. Precautions for Safety 2.1 Common precautions for safety ..................... 4 2.2 Description of warning signs....................5 3. MoniMax 7600T Parts Glossary 3.1 Hardware dimension........................6 3.2 Part Glossary ..........................9 4. Installation Requirements and Necessary Tools 4.1 Installation condition and space ....................

  • Page 4: Overview

    MoniMax 7600T Installation Manual 1 . Overview This manual covers the following topics on Nautilus Hyosung’s MoniMax 7600T ATM. Preparing for installation Product installation information Mechanical and electrical information for installation Standard Unit: mm, kg (ISO regulations) ※ Units in this manual are expressed in both ISO and U.S. standard measurements (U.S.

  • Page 5: Precautions For Safety

    MoniMax 7600T Installation Manual 2. Precautions for safety 2.1 Common precautions for safety Noncompliance with safety precautions mentioned in this manual can result in bodily injury and/or product damage. This warning symbol is used along with appropriate warning messages. And it is also used to denote that the written text is related to safety.

  • Page 6: Description Of Warning Signs

    MoniMax 7600T Installation Manual 2.2 Description of Warning Signs Sign Description Risk Of Electric Shock • Do not remove cover. Only a maintenance engineer should open the cover. • To avoid risk of electric shock, do not touch. • Make sure to turn off the power before servicing the equipment.

  • Page 7: Monimax 7600T Parts Glossary

    MoniMax 7600T Installation Manual 3. MoniMax 7600T Part Glossary 3.1 Hardware Dimension 1) Normal Collar type Fig. 1-A Front view of Normal collar Note : All of the dimensions are in millimeters and [ ] is inch scale.
  • Page 8 MoniMax 7600T Installation Manual ) Narrow collar type Fig. 1-B Front view of Narrow collar Note : All of the dimensions are in millimeters and [ ] is inch scale.
  • Page 9 MoniMax 7600T Installation Manual 3) Side cross-sectional view Fig. 1-C Side sectional view Note : All of the dimensions are in millimeters and [ ] is inch scale.

  • Page 10: Part Glossary

    MoniMax 7600T Installation Manual 3.2 Parts Glossary The following terms will be used throughout the manual. 1) Normal Collar type 70 [2.8] ② 70 [2.8] ④ ① ③ ① ④ Contents Collar assembly for Normal type Main 7600T ATM Machine...
  • Page 11 MoniMax 7600T Installation Manual 2) Narrow Collar type 34.3 [1.3] ② 34.3 [1.3] ④ ① ③ ① ④ Contents Collar assembly for Narror type Main 7600T ATM Machine Four Cash Cassettes Rj/Rt Box, Key Set, Inkjet Head, Deomination Label, Spindle for Receipt...
  • Page 12 MoniMax 7600T Installation Manual 3) RH (Right Handle) type ⑤ ④ ① ② ③ Electronic combination lock 1 Electronic combination lock 2 Handle Side door Key case...
  • Page 13 MoniMax 7600T Installation Manual 4) LH (Left Handle) type ④ ⑤ ① ② ③ Electronic combination lock 1 Electronic combination lock 2 Handle Side door Key case...

  • Page 14: Installation Requirements And Necessary Tools

    MoniMax 7600T Installation Manual 4. Installation Requirements and Necessary Tools 4.1 Installation condition and space Following conditions should be met before installing equipment. 1) Temperature should be between 32~104°F (operating) , 23~122°F (storage). 2) Relative humidity should be between 25~86% (operating).
  • Page 15 MoniMax 7600T Installation Manual 1) RH (Right Handle) type Note : All the unit in the dimension is millimeter and [ ] is inch scale. Hyousng recommends it is more convenient for your service personnel to have enough maintenance space as described above to service this ATM machine...
  • Page 16 MoniMax 7600T Installation Manual...
  • Page 17 MoniMax 7600T Installation Manual 2) LH (Left Handle) type Note : All the unit in the dimension is millimeter and [ ] is inch scale. Hyousng recommends it is more convenient for your service personnel to have enough maintenance space as described above to service this ATM machine...
  • Page 18 MoniMax 7600T Installation Manual...

  • Page 19: Tools Required For Installation

    MoniMax 7600T Installation Manual 4.2 Tools required for installation In order to move the machine and place it in a proper location, you should seek the help of professionals trained in moving heavy equipment. Following tools are needed to install the machine.

  • Page 20: Wall Cutting Preparation

    MoniMax 7600T Installation Manual 4.3 Wall Cutting preparation The wall should be prepared according to the following guidelines before installing MoniMax 7600T. 1) The maximum thickness of wall that enables you to install this machine should not exceed 240mm (9.45 inch).
  • Page 21 MoniMax 7600T Installation Manual Customer Display & Touch Panel The external appearance after the completion of installation...

  • Page 22: Installation Procedures

    MoniMax 7600T Installation Manual 5. Installation Procedure 5.1 Parts Check Check the supplementary parts inside ATM main body box. 1) Collar Box (1EA) 2) Cash Cassette (4EA) 3) Rj/Rt box incuding Key set, Inkjet head, Lan cable, denomination label, Spindle for receipt printer...

  • Page 23: Removing Equipment From The Palette

    MoniMax 7600T Installation Manual Remove the outbox covering the ATM main body of equipment to install it. Regarding unpacking procedure of 7600ATM, please refer to Chapter 7.1 Unpacking procedure ATM appearance after unpacking...
  • Page 24 3) Lifting equipment using a lifting device. 4) Moving this ATM machine to the installation site. Precaution: MoniMax 7600T ATM machine is very heavy equipment and can cause injuries if not handled with caution. Read the following carefully. ① Firmly close the vault door and lock the door by turning the knob completely.
  • Page 25 MoniMax 7600T Installation Manual Equipment locking bracket...
  • Page 26 MoniMax 7600T Installation Manual 5) Position equipment through the opening in the wall and adjust its position. 6) Check the location of the opening in the wall to estimate whether the collar can be installed. ① Equipment should protrude from the wall by at least 22mm (0.9 inch).
  • Page 27 MoniMax 7600T Installation Manual 0mm (0.0 inch) 13 mm (0.51 inch) 10 mm (0.39 inch) 5 mm (0.20 inch)

  • Page 28: Adjusting The Height

    MoniMax 7600T Installation Manual 5.3 Adjusting the Height Adjust the height by turning the adjuster nut. 1) Lower the height as much as possible while making it as level as possible. 2) Keep the vault within 120mm (4.7 inch) from the floor since this ATM machine can fall if you turn the adjuster too much.

  • Page 29: Inserting The Collar

    MoniMax 7600T Installation Manual 5.4 Inserting the Collar 5.4.1 Unlocking the collar locking bracket 1) Turn off the power 2) Open the side door 3) Unscrew the thumb screw on the collar stop bracket inside the Front body and pull it out...
  • Page 30 MoniMax 7600T Installation Manual 5.4.3 Locking the collar stop bracket 1) Push the collar stop bracket all the way in so that it is firmly in place. 2) Close the thumb screw not to be open it .

  • Page 31: Waterproofing With Silicone

    MoniMax 7600T Installation Manual 5.5 Waterproofing with Silicone 5.5.1 Seal the space between the wall and the collar with silicon for waterproofing. 1) Seal both the top and the sides of the collar with silicone not to be absorbed with water.

  • Page 32: Setting Procedure

    MoniMax 7600T Installation Manual 6. Setting Procedure 6.1 Opening the safe door Electronic Combination Lock 1 Electronic Combination Lock 2 Handle 1) Enter the password for both locks. (Default setting value : 123456) 2) Turn both electronic locks to the 90 degree clockwise (Default setting value : 123456)

  • Page 33: Module Setting

    MoniMax 7600T Installation Manual 6.2 Module Setting [Precaution] Prior to the operation of this ATM machine, first make sure that all connectors like communication cables, power cables and data cables inside modules which is connected to cash dispenser, card reader, receipt printer, envelope depository, control electronics and so on are completely connected or not.
  • Page 34 4) Mount the supplementary parts into the each module such as cash cassette, receipt paper, journal paper, ribbon cassette, envelope box, inkjet printer head and so on. Note : Concerning how to mount or replenish these above, please refer to the MoniMax 7600T operator manual...

  • Page 35: Connecting The External Cable

    MoniMax 7600T Installation Manual 6.3 Connecting External Cables 1) This machine should be connected to a dedicated power circuit. This circuit must consist of LINE, NEUTRAL and GROUND leads connected directly to the power circuit breaker panel. This circuit cannot be shared with any other equipment.

  • Page 36: Pre-Staging Inspection

    MoniMax 7600T Installation Manual 7. Pre-staging Inspection 7.1 Unpacking Procedure 1) Check the ball position on the tilt watch sensor and cut the stripes to remove the Out Box from the ATM. The location of the ball is supposed to be at 30 degree or 40 degree. If the location of the ball is over 50 degree, the ATM could be tilted during transportation.
  • Page 37 MoniMax 7600T Installation Manual 2) Remove the upper box, PE Foam and Out box Collar Box Four Cash Cassette Boxes One Rj/Rt Box including Key set...
  • Page 38 MoniMax 7600T Installation Manual 3) Remove the four fixing Brackets from the ATM using 8mm box driver.(X 4 places) ☞ Be careful not to scratch the ATM appearance when removing fixing bracket 4) Remove the outer-vinyl and inner-vinyl which are wrapping on ATM.
  • Page 39 MoniMax 7600T Installation Manual 5) Remove EP FOAM which is inserted in each part’s door to protect the ATM.(4 places, 16ea) Removing EP FOAM: 16 places...
  • Page 40 MoniMax 7600T Installation Manual 6) Open the vault door and remove the Shock Watch Sheet and desiccant. At this time, the Shock Watch Sensor is supposed to be white. If the Shock Watch Sensor is red, it could be shocked during transportation. So, in that case, please make an inspection with care.
  • Page 41 MoniMax 7600T Installation Manual 8) Install Cassette Box (4ea) and Reject/Retract Box to the ATM. (Be careful not to drop the cassette box.)
  • Page 42 MoniMax 7600T Installation Manual 9) Remove EDU-P Base Locking Screw and cut the cable ties for fixing Envelope Box. Removing a screw Cutting Cable Ties Enhanced Rear Operator 10) Open the upper door at the back of the ATM and remove SPL ( Panel) Locking Screw.
  • Page 43 MoniMax 7600T Installation Manual Receipt Printer) 11) Remove a SPR ( Base Locking Screw and desiccant. Desiccant Removing this screw. 12) Remove EP Foam, for protecting LCD, which is inserted below the LCD. Removing EP Foam...
  • Page 44 MoniMax 7600T Installation Manual 13) Remove Vinyl from the Front LCD, the rear SPL LCD and PIN Pad. 14) Take out the Power Cables which is fixed at the side of the ATM and connect them to the outlet. 15) Confirm that each modules are all right and turn power on.

  • Page 45: Pre-Staging Check Sheet

    MoniMax 7600T Installation Manual 7.2 Pre-staging Check Sheet 1) System Inspection Sheet MX-7600T/RN MODEL Product P/N 7250000070 Product S/N Y33700 (HS-6775) H/W Rev Inspection Date . 2008 Name Result OK, NG Remark Result Remark Consumables Setting in ATM (Receipt paper, Test note, Ink...
  • Page 46 MoniMax 7600T Installation Manual 2) Appearance Inspection Sheet Check Point Result - Checking the dry pack is torn or not - Checking the shock watch is broken or not Packing - Checking the pallet is heavily damaged or not Pallets...
  • Page 47 MoniMax 7600T Installation Manual 3) Functional Inspection Sheet Module Check point Procedure Result - Entering Supervisor mode - Shutting down properly by using Standby switch Version - Printing out all device version 6.Version Info->’ 0’ Enter Information - Device Reset Test...
