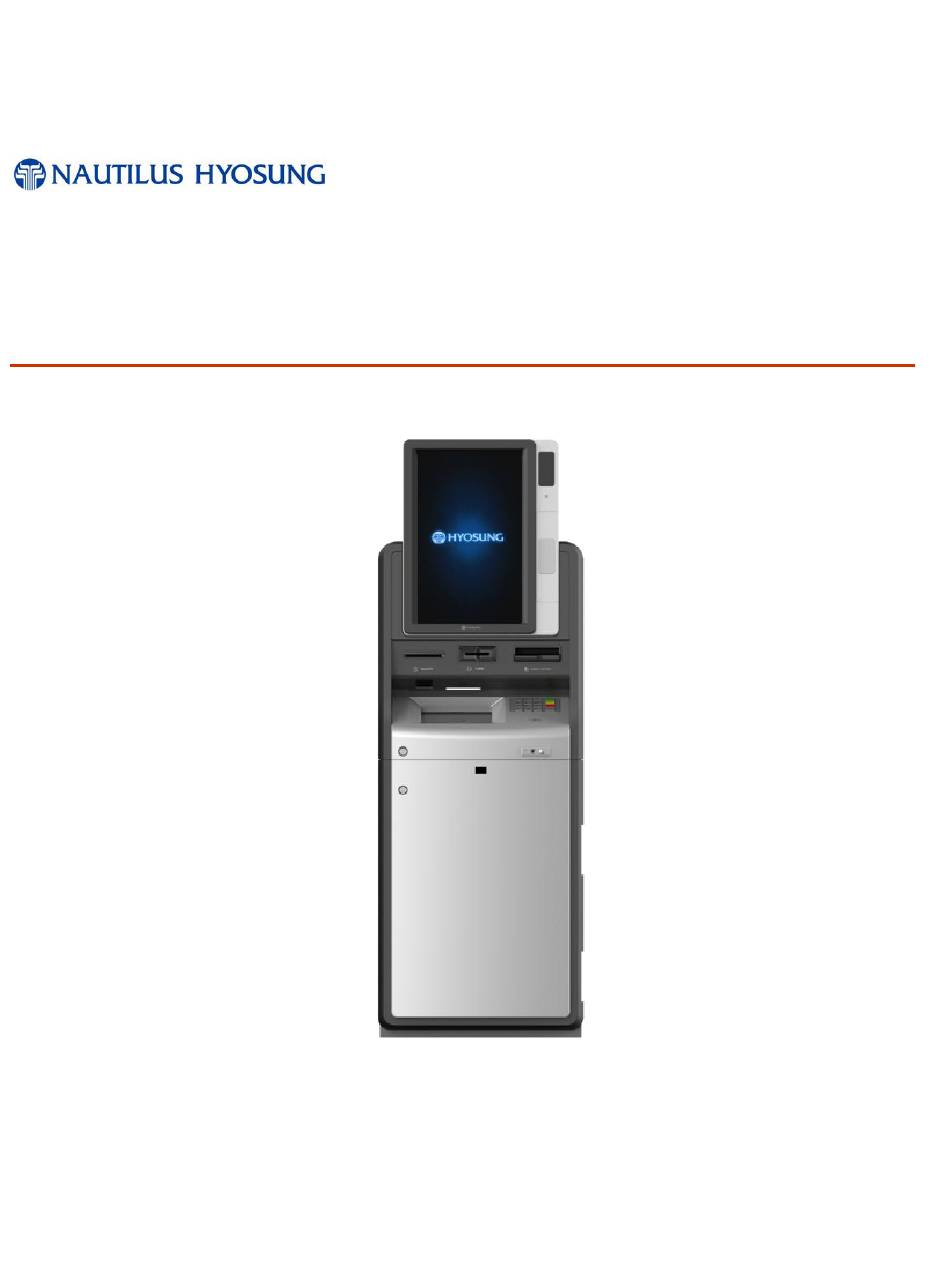

Operator Manual
MONiMAX8200QTN System
V01.00.00 (2017.09.08)
© Nautilus Hyosung Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONiMAX8200QTN and is the answer not in the manual?

Questions and answers

Summary of Contents for Nautilus Hyosung MONiMAX8200QTN

  • Page 1 Operator Manual MONiMAX8200QTN System V01.00.00 (2017.09.08) © Nautilus Hyosung Inc. All Rights Reserved.
  • Page 2 Operator Manual - MX8200QTN System Version Date Description of Change Chapter V01.00.00 2017/09/08 New Publication © Nautilus Hyosung Inc. All Rights Reserved. The content of this specification is protected by copyright laws. 2017. 09. 08 1st Release © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 3: Table Of Contents

    Bill Conditions ............................... 5-4 Acceptable condition ········································································································ 5-4 Unacceptable condition ····································································································· 5-5 How to open and close the lower unit ......................5-9 How to replenish the Recycle Cassette (RC) with bills ................5-11 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 4 How to replace the Cartridge ........................6-13 How to replace the Felt ..........................6-14 How to remove the check from Stack Bin ....................6-15 How to remove Jam ............................ 6-16 Careful for the damage ..........................6-18 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 5: Chapter1. Preface

    This manual details how the customers replenish the notes and paper and how they remove the jam at the MX8200QTN. Audience ► Customers and staffs of Nautilus Hyosung who use and operate the MX8200QTN in each branches of bank. Support Information ►...
  • Page 6: Terminologies

    Bill Recycling Machine (Bill Recycling Module, Bill Recycler) Bill Checker Body Module-Down (Lower Body of the Machine) Body Module-Up (Upper Body of the Machine) Customer Service Module Deposit Cassette Recycle Cassette Reject Cassette Tape Escrow Utility Cassette © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 7 On Screen Display Board Power Supply Encryption PIN Pad Panel Control Board Printer (mainly Receipt Printer) Switch Sensor and Indications Unit Service Provider Slip Printer (Receipt Printer) Text Terminal Unit (OPL or SPL) © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 8: Safety Precautions

    4. The equipment is to be secured to the building structure before operation 5. A security container shall be permitted to optionally be provided with a secondary lock, but improper use of the secondary lock feature will reduce the security level of the ATM. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 9 ▪ If the above-mentioned abnormalities occur, immediately turn off the power, unplug the equipment and contact the service center. ▪ If you ignore these symptoms, the equipment may catch on fire or cause electric shock. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 10: Related Document

    ▪ Service Manual • VDM Manual • Error Code Manual • Quick Reference Guide For the contact of maintenance staffs of Nautilus Hyosung Inc., see the E-mail addresses and telephone numbers provided separately. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 11: Chapter2. Introduction

    A bank customer and a teller can easily interact on a touch screen, just like talking, through Nautilus Hyosung’s intuitive and easy UI. Allows easy and quick installation and maintenance. <Note!> The figures/photos/diagrams in this manual are for well understanding therefore they may be different from real machines. © Nautilus Hyosung Inc. All Rights Reserved.
  • Page 12: The Exterior Overview

    The customer selects transactions and requests information at the fascia. Customer Display (with touch screen) Check Deposit (CSM50) Card Reader Slot EPP (Pin-Pad) Receipt Printer Slot Contactless Card Reader (CCR) Earphone Jack Cash (Bill Recycling Machine) © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 13: Basic Features

    USB 1.1(Main), USB 2.0(BC) BCU53 (BRM50) Sutter type Automatic Shutter Functional Architecture 4 Recycle / 1 RJC / 1 Utility CST locking Common key Dispense/Deposit capacity 300 bills per Transaction Dispense/Deposit method Bundle © Nautilus Hyosung Inc. All Rights Reserved.
  • Page 14 Canceled Support deal Maintenance Batch test Support function Program down Support After command load start Logging Support Media Remain detect Support Stack Full detect Support Detect in Door open Support the Box © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 15 Video Power /w Pig Tail for Anti-Skimming Device Sankyo Anti-Skimming Video Webcam None (Cable Harnessing Only) Option Banking Microphone None (Cable Harnessing Only) Option Device Speaker System Speaker, 8W Additional Audio guidance Sound Card On-Board © Nautilus Hyosung Inc. All Rights Reserved.
  • Page 16 Distance : 30 ~ 360 Dimension Dimension (H X W X D) 1,557*530*1,039 & Safety Door Open Direction Left to Right Swing Normal Swing Environment Install Method Anchor Weight 506Kg(1,115 Ibs) Battery System Battery Heater None © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 17: Devices Of Mx8200Qtn

    USB HUB used to communicate with several devices such as a cash dispenser, card reader, receipt printer and EPP. ►Basic Specification © Nautilus Hyosung Inc. All Rights Reserved.
  • Page 18: Customer Display & Pin-Pad

    The customer touch screen is used with the customer display. The customer selects functions or enters information by touching the screen. Customer Display (with touch screen) (Encryption PIN Pad) ►Basic Specification © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 19: Teller Display (Supervisor Operation)

    Operator Manual Chapter2. Introduction Teller Display (Supervisor Operation) ►Basic Specification © Nautilus Hyosung Inc. All Rights Reserved.
  • Page 20: Bill Recycler (Brm50, Bill Recycling Machine)

    This considerably lengthens the replenishment or emptying cycles on cash-in/cash-out systems and, at the same time, the cash holding per system can be reduced. <BMU: Upper Body of BRM> <BMD: Lower Body of BRM> 2-10 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 21 Operator Manual Chapter2. Introduction ► Basic Specification © Nautilus Hyosung Inc. All Rights Reserved. 2-11...
  • Page 22: Check Deposit Module (Csm50)

    Chapter2. Introduction Operator Manual Check Deposit Module (CSM50) ▶ The consumer can deposit a check through the CSM slot. 2-12 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 23 Operator Manual Chapter2. Introduction ► Basic Specification © Nautilus Hyosung Inc. All Rights Reserved. 2-13...
  • Page 24: Card Reader

    ► For ATMs with motorized card readers, the customer inserts an ATM card in the card entry slot to begin transactions. The card reader automatically pulls the card into ATM and returns the card after the transaction. ►Basic Specification 2-14 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 25: Contactless Card Reader (Ccr)

    ▶ The contactless card reader is designed to support contactless transactions. It is composed of a compact controller module and an antenna module. Contactless Card Reader (controller module & antenna module) ►Basic Specification © Nautilus Hyosung Inc. All Rights Reserved. 2-15...
  • Page 26: Barcode Reader

    ► This barcode reader is an automatic identification device applying the optical instrument that captures a image, decodes the barcode segment, makes them dataficaton and transmits them to the high rank device ►Basic Specification 2-16 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 27: Receipt Printer (Spr60)

    ATM number and location, and other desired information. After the customer uses the ATM, a printed record of the transaction information is presented through the appropriate printer entrance. ►Basic Specification © Nautilus Hyosung Inc. All Rights Reserved. 2-17...
  • Page 28: Power Supply

    ► The power supply unit converts AC power to DC power and provides the voltage to various modules within the system. The power supply unit allows the user to turn on/off the system, enter power-failure mode, and perform other sequences. ►Basic Specification 2-18 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 29: Chapter3. For The Beginning Operator

    Chapter3. For the beginning operator Chapter3. For the beginning operator Opening the upper fascia and accessing the devices in the upper body of MX8200QTN ► Opening the upper fascia 1. Open the upper fascia using key. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 30 1. Pull out the Receipt Printer, Card Reader and Check Deposit Module (CSM50) by pressing the button and pulling the handle towards you. 2. Receipt Printer, Card Reader and Check Deposit Module (CSM50) Receipt Printer Check Deposit Module Card Reader © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 31 Operator Manual Chapter3. For the beginning operator 3. Control Electronic (CE, PC, Main Controller) Control Electronic (CE, PC) Power Supply © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 32: Opening The Security Door And Accessing The Device (Brm)

    3. Turn the security door handle and then pull the security door to open. Cencon Lock Handle Exterior Door Exterior Door Key BMU (Body Module-Up, Upper Body of BRM) Door BMD (Body Module- Down, Lower Body of BRM) © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 33 1. Open the upper fascia & the exterior door of the security door using key. 2. Unlock the locking device (Cencon lock) and open the security door. 3. Pull the BMU in the arrow direction by pulling down the Pin A and pushing down the lever B. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 34 3. To release the lock from system, push down the lever A as shown in the picture below. Then, pull the lower unit pressing lever A until the lower unit is completely taken out. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 35: Switching Power On/Off

    Do NOT operate Main Switch on power supply when you would like to turn off the power. It may cause damage to operate system or destabilize control electronics in ATM. Main Switch Power Switch © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 36: Power Supply Status

    <System Off> procedure starts, and only [AC IN] LED is turned on. ▪ In case power failure occurs during normal system operation, the system will enter <Power Failure Mode> and only [DC OUT] will be turned off. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 37: Security Locking Device - Cencon Lock

    Left (Counter Clockwise). The purpose is both to give the lock additional power and to ensure the lock bolt is fully extended. CW = Clockwise; CCW = Counter Clockwise © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 38 7. To test that the bolt is securely closed, turn the dial back to the right and ensure the bolt remains extended. Try this several times until you are comfortable with the operation of the lock. 3-10 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 39 The best thing to do in analyzing the lock level is to write down the entire string and then pick out the portions of it that are significant to you, or if you are experiencing a problem with the lock, report the entire string to the Tech Support group. © Nautilus Hyosung, Inc. All Rights Reserved. 3-11...
  • Page 40 10. EnF  Enter New Combination  Cnf Select and enter the new combination. “CnF” (confirm new Factory combination) will be displayed 11. Cnf  Enter New Combination  POC 3-12 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 41 15. OPr  Retract Bolt Turn the Dial to the right (CW) to retract the bolt. 16. Close Door 17. Extend Bolt Turn the Dial to the left (CCW) to extend the bolt. © Nautilus Hyosung, Inc. All Rights Reserved. 3-13...
  • Page 42: Chapter4. Receipt Printer (Spr60)

    Chapter4. Receipt Printer (SPR60) Introduction ► Information in this section is subject to change without notice. Nautilus Hyosung reserves the right to improve products as new technology, components, software, and hardware become available. If users need further data about these products, please feel free to contact Nautilus or your local dealer.
  • Page 43: Summary

    - The top cover of printer can be opened, which is convenient for maintenance; - The top cover of Presenter module can be opened, which is convenient for maintenance; - Paper width can be adjusted linearly, paper width stopper can be locked; © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 44 - Single USB interface or single serial interface is optional; - Mark identification and checkout; - Lower mark sensor for non-thermal side is adjustable; - Semi-auto paper loading; - Firmware can be updated on-line. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 45: Paper Specification

    80-100 um ► Recommended Paper: 1. Recommended continuous paper: Paper type Manufacturer FD200 OJI Paper CO., LTD. FD210 OJI Paper CO., LTD. ADP78 OJI Paper CO., LTD. PD150R OJI Paper CO., LTD. <Recommended paper> © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 46 Only one mark sensor is mounted on the non-thermal side when the printer is delivered from the factory (default position is on the non-thermal side of paper path) and the mark sensor position is continuously adjustable. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 47 4. Do not rub the paper surface with a nail or hard metal. Otherwise it may discolor; 5. When the temperature goes up to 70℃, paper will discolor. So please be careful to the effect of temperature, humidity and sunlight in environment. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 48: Structure And Functions

    The controlling parts include circuit board and corresponding adjustment buttons and interfaces. 1. Exterior of print unit and controlling parts The print unit consists of print mechanism and cut mechanism, referring to the figure below: <Print unit and controlling parts> © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 49 Indicate whether the power is on or not and it is always on when the printer is turned on. Heating: The print head and the motor gives out heat while using, please do not touch it just after operation. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 50 3. Presenter top cover: After pressing the snap-fit, the cover can be opened for clearing Presenter jammed paper. 4. Paper outlet mouth. 5. Snap-fit for fixing the top cover. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 51: Install And Load The Paper Roll

    When the paper sensor detects paper, the platen rollers will start rotation to complete the semi- automatic paper loading. Caution: Before loading paper, cut the paper head trim according to the figure below: <Paper head> 4-10 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 52 If the angle between paper center line and the printer center line is≤4°, it can guarantee that the paper jamming malfunction will not happen. <Paper loading> © Nautilus Hyosung, Inc. All Rights Reserved. 4-11...
  • Page 53: Clear The Jammed Paper In The Cutter

    3. Check whether there is wastepaper under the cutter blade and print head. If so, please take it out; 4. When confirming there is no wastepaper, close the top cover; Caution: Turn off the power before removing the jammed paper. 4-12 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 54: Clear The Jammed Paper In The Presenter

    1. Press the snap-fit on Pre upper path as shown in the following figure and apply force upwardly to remove the Presenter top cover; <Clean the jammed paper in the Presenter> 2. Take out the jammed paper and install the Pre top cover to the printer. © Nautilus Hyosung, Inc. All Rights Reserved. 4-13...
  • Page 55: Troubleshooting And Maintenance

    Chapter4. Receipt Printer (SPR60) Operator Manual Troubleshooting and maintenance ► If errors occur in the printer, consult the troubleshooting table below. If still can’t settle the trouble, please contact with Nautilus Hyosung or the distributor. Errors and settlement ► Error index Error LED...
  • Page 56: Solution For Common Errors

    Paper jams. Remove jammed paper. <Problems during printing> To adjust print darkness, contact with our distributors or Nautilus Hyosung. If paper jams in cutter, please remove the jammed paper firstly, and then press CUT button to reset the cutter. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 57 <Other problems> <Note!> Paper near end alarm acts only as a prompt for users, not an error status. Therefore when this alarm is given, printing task can still be sent. 4-16 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 58: Self-Test Page

    1 second while turning on the printer. The printer will start to print a self-test page. (Take 203DPI/USB interface model for an example, and the self-test page is shown as follows). © Nautilus Hyosung, Inc. All Rights Reserved. 4-17...
  • Page 59 Chapter4. Receipt Printer (SPR60) Operator Manual 4-18 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 60 Operator Manual Chapter4. Receipt Printer (SPR60) ► Explanation of self-test page: © Nautilus Hyosung, Inc. All Rights Reserved. 4-19...
  • Page 61 ► The idea of recycling is to make the cash that is paid in during deposit transactions available again for dispensing. This considerably lengthens the replenishment or emptying cycles on cash-in/cash- out systems and, at the same time, the cash holding per system can be reduced. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 62: Chapter5. Bill Recycler (Brm50, Bill Recycling Machine)

    Reject Cassette 1 During Stack 330m 800 bills* (RJC) Multipurpose During Stack 65mm 300 bills* Cassette (UTC)  It is the reference value when the thickness of the used bill is 0.1 mm. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 63: Specification Of External Appearance

    3 Kg (except bill weight) Width : 218 ± 2 (mm) Dimension Length : 178 ± 2 (mm) Utility (UTC) Cassette Height : 96 ± 2 (mm) Weight 1 Kg (except bill weight) © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 64: Bill Conditions

    2. Bill has sufficient life or sizing to be handled easily 3. Bill which can be manually held straightly when one end is held by a hand and the bill is slightly curved vertically. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 65: Unacceptable Condition

    Chapter5. Bill Recycler (BRM50, Bill Recycling Machine) Unacceptable condition ▶ 1. Bill with serious wrinkles, torn or broken section wherein paper fiber is broken and separation begins. ▪ Wrinkle Wrinkle ▪ Torn Torn ▪ Broken section Broken Section © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 66 4. Bill ragged and cannot be held straightly when one end is supported by a hand 20mm (0.79inch) 35mm (1.38inch) When the bill is held by 20mm (0.79inch) and the straightness of the bill is 35mm (1.38inch) or less, it cannot be used © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 67 5. Bill with cellophane tape, scotch tape, etc Tape 6. Bill with folds Fold 7. Gradually curved bill (bills tied by hand seal, etc) Band seal 8. Bill with folded lines Case 1 Case 2 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 68 Chapter5. Bill Recycler (BRM50, Bill Recycling Machine) Operator Manual Case 3 <Note!> Bill distortion should not exceed 10 mm (0.39inch). © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 69: How To Open And Close The Lower Unit

    Then, pull the lower unit pressing lever A until the lower unit is completely taken out. 2. Lift up the Mid Transport Path pressing its handle B until it fixes. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 70 2 steps, so you have to close it once again pressing the lever C. 2. Push the lower unit into the system until it locks into its position with a click as shown in pictured below. 5-10 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 71: How To Replenish The Recycle Cassette (Rc) With Bills

    1. Take out the lower unit from system. (Refer to “Lower Unit Opening.”) 2. Separate the cassette from the set guide holding the handle D. 3. Place the cassette on the flat surface. Turn the key clockwise and open the door. © Nautilus Hyosung, Inc. All Rights Reserved. 5-11...
  • Page 72 Chapter5. Bill Recycler (BRM50, Bill Recycling Machine) Operator Manual 4. Press the green lever E and pull the Push-Plate to the end in the arrow direction as the picture below. 5-12 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 73 Roller and insert it inside the guide. 6. Replenish the cassette with the bill to the position of the label and push the Push- Plate to the end in the arrow direction pressing the green lever E. © Nautilus Hyosung, Inc. All Rights Reserved. 5-13...
  • Page 74 Fan the notes so that the notes are not sticking together. b. Remove all notes with holes or notes that are torn. c. Unfold the folded notes. d. Place the notes correctly. 5-14 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 75 8. Close the door with the key. After closing the door, remove the key from the cassette. 9. Fold the holder of the cassette and mount the cassette into the set guide. 10. Mount the lower unit into the system. © Nautilus Hyosung, Inc. All Rights Reserved. 5-15...
  • Page 76: How To Remove The Bills From Reject Cassette

    1. Separate the lower unit from system. 2. Separate the Reject Cassette from the set guide holding the handle A. 3. Put the Reject Cassette on the flat surface and open the door by turning the key clockwise. 5-16 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 77 Reject Cassette until the space is created enough to remove the bills. Then remove the bills from the Reject Cassette. 5. Close the door of the Reject Cassette with the key. After closing the door, remove the key from the reject cassette. © Nautilus Hyosung, Inc. All Rights Reserved. 5-17...
  • Page 78 Chapter5. Bill Recycler (BRM50, Bill Recycling Machine) Operator Manual 6. After closing the door, mount the Reject Cassette into the set guide. 7. Mount the lower unit into system. 5-18 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 79: How To Open And Close The Upper Body Of The Module

    1. Pull the upper unit in the arrow direction by pulling down the Pin A and pushing down the lever B forward. ▶Close the upper body of BRM as follows 1. Push the upper unit into the system until it is locked. © Nautilus Hyosung, Inc. All Rights Reserved. 5-19...
  • Page 80: How To Open And Close The Customer Service Module (Csm)

    1. Lift up the Customer Service Module holding the handle A and fix it in the lock B. ► Closing Customer Service Module 1. Hold the handle A with one hand and pull the safety lock B in the arrow direction with another hand to release the lock. 5-20 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 81 2. Slowly push the Customer Service Module in the arrow direction to completely close it. When it closed completely, press A to fix. At this time, it is closed through the 2 steps, so you have to close it pressing Lock B. © Nautilus Hyosung, Inc. All Rights Reserved. 5-21...
  • Page 82: How To Open And Close The Temporary Stacker (Tsk)

    1. Hold the handle B with one hand and push the safety lock C in the arrow direction with another hand to release the lock. Then slowly push the Temporary Stack in the arrow direction to completely close it. 5-22 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 83 Chapter5. Bill Recycler (BRM50, Bill Recycling Machine) ► Caution take your hands off the handle until the upper unit is completely closed because the safety lock is released! And also, do hold the other places except the handle! © Nautilus Hyosung, Inc. All Rights Reserved. 5-23...
  • Page 84: How To Remove The Bills From Utility Cassette (Utc)

    ► This section describes how to remove the bills from utility cassette. 1. Turn the Lever A clockwise and separate the Utility Cassette. 2. Place the Utility Cassette on the flat surface, Then turn the key clockwise and open the door. 5-24 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 85 3. Remove the bills from the Utility Cassette. After removing the bills, close the door and lock it completely with the key. Remove the key after locking. 5. After closing the door, mount the cassette into BRM50 as shown in picture below. © Nautilus Hyosung, Inc. All Rights Reserved. 5-25...
  • Page 86: How To Remove The Jam

    ► Case 1: Removing jam from the Customer Service Module 1. Press the green knob A and turn the screw B counterclockwise using (-) driver or coin to open the outer shutter. 5-26 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 87 3. In case that the jam occurs in the Stack section, move the Push-Plate in the arrow direction by turning the green knob D clockwise for the jammed bill to be shown. © Nautilus Hyosung, Inc. All Rights Reserved. 5-27...
  • Page 88 5. In case that the jam occurs in the separation section, turn the green Knob D counterclockwise and move the Push-Plate (See “3.”) 6. Turn the knob F counterclockwise pressing the Front-Plate with one hand and remove the jammed bill. 5-28 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 89 8. Open the customer service module to remove the jammed bill on the transport path. (Refer to “Opening Customer Service Module”.) 9. Unfasten the Hook on the both side of the customer service module and separate the lower Guide G. (Refer to the picture below) © Nautilus Hyosung, Inc. All Rights Reserved. 5-29...
  • Page 90 10. Remove the bill caught in the gap between the guides. Then move the lower Guide to its original position to be hooked. 11. Close the customer service module. (Refer to “Closing Customer Service Module”) 5-30 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 91 1. Open the upper unit. (Refer to “How to open and close the upper body of module”) 2. Open the customer service module and remove the jammed bill from the lower side. (Refer to “Opening Customer Service Module”) © Nautilus Hyosung, Inc. All Rights Reserved. 5-31...
  • Page 92 3. In case that the jam occurs in the Gate section, remove the jammed bill. 4. After removing the jammed bill, close the customer service module and upper unit. (Refer to “How to open and close the upper body of module” and “Closing Customer Service Module”) 5-32 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 93 ▶ Case 3: Removing jam from BC (Bill Checker) 1. Open the customer service module and temporary stacker. (Refer to “Opening Customer Service Module” and “Opening Temporary Stacker”). 2. Unlock the green Lever A and lift up BC. © Nautilus Hyosung, Inc. All Rights Reserved. 5-33...
  • Page 94 3. Continue to hold the lever and remove the jammed bill inside the BC 4. After removing the jammed bill, press the BC completely to lock 5. Close the Temporary Stacker and Customer Service Module. (Refer to “Closing Customer Service Module” and “Closing Temporary Stacker”) 5-34 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 95 2. Remove the bill from TOP Transport Path. 3. Lift the knob A and remove the jammed bill 4. Close the Customer Service Module and Temporary Stacker. (Refer to “Closing Customer Service Module” and “Closing Temporary Stacker”) © Nautilus Hyosung, Inc. All Rights Reserved. 5-35...
  • Page 96 2. Lift the handle A and open the door. Continue to hold the door so that it shouldn’t be closed. 3. To make the space for removing the jammed bill in the Temporary Stacker, turn the knob B to move the Push-Plate in the arrow direction. 5-36 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 97 Roller in the arrow direction as the picture below. 6. After removing bill, close the Customer Service Module and Temporary Stacker. (Refer to “Closing Customer Service Module” and “Closing Temporary Stacker”) © Nautilus Hyosung, Inc. All Rights Reserved. 5-37...
  • Page 98 1. Separate the lower unit from system. (Refer to “How to open and close the lower unit”) 2. Turn the green knob A counterclockwise until the bill on the mid transport path appears. At this time, remove the jammed bill. 5-38 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 99 3. Turn the green knob A clockwise until the jammed bill occurred during entering into the cassette shows and then remove the jammed bill as shown in picture below. 4. Mount the lower unit into system. (Refer to “How to open and close the lower unit”) © Nautilus Hyosung, Inc. All Rights Reserved. 5-39...
  • Page 100 4. Return the Push-Plate to its original position and close the cassette door. Then mount it into the set guide. (Refer to “How to replenish the Recycle Cassette (RC) with bills”) 5. Mount the lower unit into the system. (Refer to “How to open and close the lower unit”) 5-40 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 101 4. Close the reject cassette door and mount the reject cassette into the set guide. (Refer to “How to remove the bills from reject cassette”) 5. Mount the lower unit into the system. © Nautilus Hyosung, Inc. All Rights Reserved. 5-41...
  • Page 102 3. Turn the Gear A in the arrow direction and remove the jammed bill. 4. Close the Utility Cassette Door and mount it. (Refer to “How to remove the bills from Utility Cassette”) 5-42 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 103: Chapter6. Check Deposit Module (Csm50)

    Stack Bin. 6. MB(Main Body) : Main Transport Path and Frame Section 7. PRT(Printer) : Printing on check 8. SB(Stack Bin) : Receive and store the check in the Box by the single-sheet. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 104: Device Specification

    - 508mm/s ±5% Recognition Rate of OCR - More than 98% - Storage Size : 61.5mm (2.42inch) (Thickness: 0.203, Storage Capacity about 200 sheets of checks can be set) Maximum Deposit Up to 200sheets © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 105: Check Conditions

    2. Check has sufficient life or sizing to be handled easily 3. Check which can be manually held straightly when one end is held by a hand and the bill is slightly curved vertically © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 106 Chapter6. Check Deposit Module (CSM50) Operator Manual ▶ Unacceptable condition 1. Bill having serious wrinkles, torn or broken section wherein paper fiber is broken and separation begins.  Wrinkle  Torn  Broken section © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 107 Operator Manual Chapter6. Check Deposit Module (CSM50)  Check with print damage 2. Check having adequate life or sizing, but stained seriously 3. Check with holes (Perforated check) © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 108 Chapter6. Check Deposit Module (CSM50) Operator Manual 4. Check ragged and cannot be held straightly when one end is supported by a hand 5. Check with cellophane tape, scotch tape, etc 6. Check with folds © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 109 Operator Manual Chapter6. Check Deposit Module (CSM50) 7. Gradually curved check (checks tied by hand seal, etc) 8. Check with folded lines <Note!> Check distortion should not exceed 10 mm (0.39inch). © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 110: Switch Specification

    1. Used to pull out the media when the media is wound around TE by the error of other section. 2. When you press the switch, the media moves, TE->Stack Bin 3. S/W Operation (Green)  Holding the lever with right hand, Sustainable Push for 3 seconds © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 111: How To Access Csm50

    Chapter6. Check Deposit Module (CSM50) How to access CSM50 1. Open the upper fascia using key. 2. Pull out the Check Deposit Module (CSM50) by pressing the button and pulling the handle towards you. © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 112: How To Open & Close Each Module

    ► Put the Lever and pull it counterclockwise to release the lock. Then continually lift it counterclockwise. Opening main transport section ► Pull the lever with left hand, hold the front (A) of stack bin and lift it with right hand. 6-10 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 113: Closing Main Transport Section

    ► Put the Lever and pull it counterclockwise to release the lock. Then continually lift it clockwise. Opening rear section of main transport ► If you press the lever (C) upward, the transport path is automatically opened by the strength of spring. © Nautilus Hyosung, Inc. All Rights Reserved. 6-11...
  • Page 114: Opening Main Rj Transport Section

    ► Holding the shaft (D), pull it forward and then lower it. Opening PS Printer ► Put the Lever and pull it counterclockwise to release the lock. Then continually lift it counterclockwise. 6-12 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 115: How To Replace The Cartridge

    How to replace the Cartridge ► Replace the cartridge as follows 1. Pull the Knob forward. 2. Turn the Knob clockwise and pull it forward. 3. Push down the Knob and take out the Cartridge. © Nautilus Hyosung, Inc. All Rights Reserved. 6-13...
  • Page 116: How To Replace The Felt

    How to replace the Felt ► Replace the felt as follows, 1. Unfasten the screw of the left/Up and disassemble the cover. 2. Hold the Felt with pliers. 3. Disassemble the Felt 6-14 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 117: How To Remove The Check From Stack Bin

    ► Remove the check from the stack bin as follows, 1. Insert the key in the lock and turn the key clockwise. (Lock Release) 2. Hold the door handle and lift it up. Then take out the check. © Nautilus Hyosung, Inc. All Rights Reserved. 6-15...
  • Page 118: How To Remove Jam

    1. Open the separation section of Bundle and remove the jammed check. ► How to remove jam from Main transport section 1. Open the Main transport section and remove the jammed check. 6-16 © Nautilus Hyosung, Inc. All Rights Reserved.
  • Page 119 1. Open the Main RJ transport section and remove the jammed check. ► How to remove jam from PS Printer transport section 1. Open the PS Printer transport section and remove the jammed check. © Nautilus Hyosung, Inc. All Rights Reserved. 6-17...
  • Page 120: Careful For The Damage

    Chapter6. Check Deposit Module (CSM50) Operator Manual Careful for the damage ► Be careful the shock when closing each module again after opening them. (Electromagnetic parts can be damaged by the shock.) 6-18 © Nautilus Hyosung, Inc. All Rights Reserved.

Table of Contents

Save PDF
