Nautilus Hyosung MONiMAX7800D Operator's Manual

Hide thumbs Also See for MONiMAX7800D:
Table of Contents

Advertisement

Quick Links

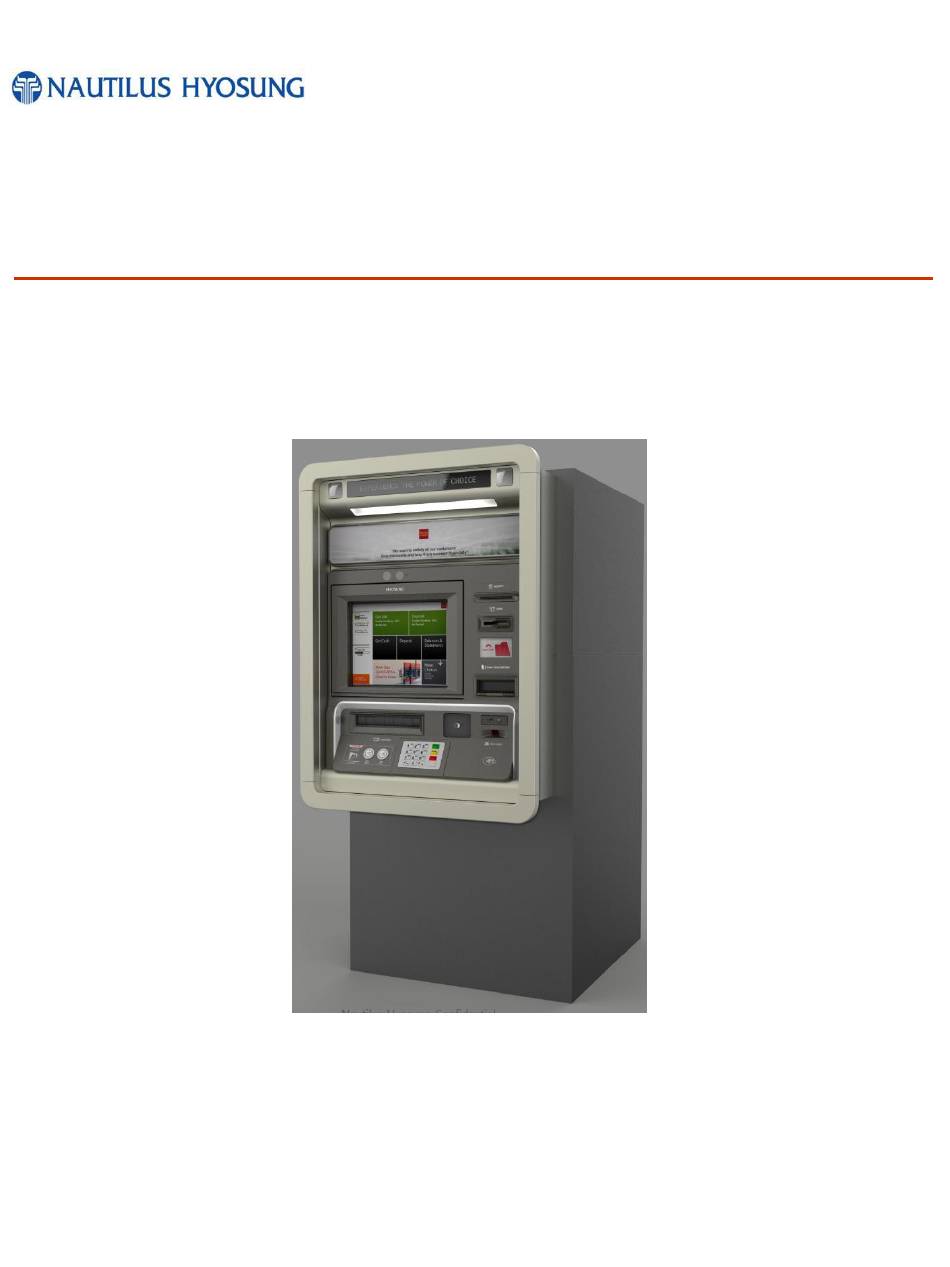

Operator Manual
MONiMAX7800D System
V01.00.00 (2015. 09.30)
© 2015 Nautilus Hyosung Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONiMAX7800D and is the answer not in the manual?

Questions and answers

Related Manuals for Nautilus Hyosung MONiMAX7800D

Summary of Contents for Nautilus Hyosung MONiMAX7800D

  • Page 1 Operator Manual MONiMAX7800D System V01.00.00 (2015. 09.30) © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 2 Version Date Description of Change Chapter V01.00.00 2015/09/30 New Publication © 2015 Nautilus Hyosung All Rights Reserved. The content of this specification is protected by copyright laws. 2015. 9. 30. 1st Release © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 3: Table Of Contents

    Remove jam from B4 Transport Section ·············································································· 4-18 Remove jam from Escrow ································································································ 4-19 Remove jam from RT/A6 Cassette ···················································································· 4-21 Remove jam from Cassette ······························································································ 4-23 How to change PRT Maintenance Module ....................4-25 © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 4 How to load the receipt paper ........................6-3 How to clear jamming in receipt printer ......................6-5 Chapter7. Card Reader ........................7-1 Overview ............................... 7-1 How to Clear Card Reader Jams ......................... 7-1 Notes ............................Notes-1 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 5: Chapter1. Preface

    This manual details how the customers replenish the notes and paper and how they remove the jam at the MX7800D. Audience ▶ Customers and staffs of Nautilus Hyosung who use and operate the MX7800D in each branches of bank. Support Information ▶...

  • Page 6: Conventions

    Cash & Check In Module Contactless Card Reader Cash Dispenser Unit Control Electronics Earphone Jack Voice Converter for Visually Disabled Persons (ADA) Europay, Mastercard, Visa Elementary Program Encryption PIN Pad Escrow Escrow Module © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 7 Recognition Module REJECT Reject Module RT/A6 Retract & A6 Cassette Switch Separator Control Module Sensor and Indications Unit Service Provider Slip Printer (Receipt Printer) Text Terminal Unit (OPL or SPL) Vacuum Fluorescent Display © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 8: Safety Precautions (English)

    ▪ Do not touch the equipment when it is running. ▪ The equipment can get extremely hot and may cause a burn. ▪ Make sure to close the cover before running the equipment. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 9 TYPE. DISPOSED OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS 3. FOR PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AN SHALL BE EASILY ACCESSIBLE 4. THE EQUIPMENT IS TO BE SECURED TO THE BUILDING STRUCTURE BEFORE OPERATION © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 10: Précautions Pour La Sécurité (French)

    • Ne pas retirer le couvercle. Seul le technicien d'entretien est autorisé à ouvrir le couvercle. • Ne pas toucher. Vous pouvez avoir un choc électrique. • Assurez-vous d'éteindre l'appareil lors de l'entretien de l'équipement. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 11 2. RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACEE PAR UN TYPE INCORRECT. DISPOSER POUR UTILISATION DES BATTRIES SELON LES INSTRUCTIONS 3. POUR LES APPAREILS RACCORDES, LA PRISE DOIT ETRE INSTALLEE PRES D’EQUIPEMENT POUR ÊTRE FACILEMENT ACCESSIBLE © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 12: Related Document

    ► The related documents are listed as follows. If needed, please contact staffs of our technical support team and maintenance team. ▪ Installation Manual ▪ Service Manual For the contact of maintenance staffs of Nautilus Hyosung, see the E-mail addresses and telephone numbers provided separately. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 13: Chapter2. Introduction

    Allows tellers to calculate and close amount on hand faster than the existing manual calculation. A bank customer and a teller can easily interact on a touch screen, just like talking, through Nautilus Hyosung’s intuitive and easy UI. Allows easy and quick installation and maintenance. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 14: The Exterior View

    The customer selects transactions and requests information at the fascia. Receipt Printer Slot Card Reader Customer Slot Display CCIM (Cash /Check Deposit) Cash Dispenser (Cash OUT) Earphone Jack Tilt Button (High/Low EPP (PIN Pad) Vehicle Button) © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 15: The Interior View

    Power Main Switch Supply Power Switch Receipt Printer (Teller Display) Card Reader Customer Display and the associated electronic boards) CCIM (Cash & CDU (Cash Check In Dispenser) Module) Seismic & Heat Alarm © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 16: Basic Features

    Supervisor Operation (SPL, Teller Display) 15” TFT LCD (1024 X 768) Type Brightness 250cd/m² Input Method Res Touch Screen MCU Guide Display Type 4.3” LCD Option Cash Dispenser Sutter type Automatic Shutter © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 17 Support Reject Capacity 50 EA 1mm / Card Card Return Available for Power Failure Via System Battery Read And Write Hi-Co Support Anti-Skimming With Anti-Skimming Receipt Printer Printing Type Thermal Line Printing © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 18 Voice I/F3 cover/plug) Coin Coin Hopper None Option Hopper 4EA Barcode Barcode Reader None Option 2D Bar code Reader RF Module RF, NFC NFC (VivoTech) VISA wave, Discover Zip Master Paypal, American Expr © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 19 Heater 1EA <Note!> Your MX7800D may not contain all the devices described in this section. Some devices are optional and some devices cannot be used in combination with other devices. (mutually exclusive combinations). © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 20: Devices Of Mx7800D

    Basic Specification of PIN Pad ▪ PCI 3.0 EPP(Polycarbonate Button) Basic Specification of SPL (Teller Display) ▪ Type: 15” TFT LCD(1024 X 768) ▪ Brightness: 250cd/m² ▪ Input Method: Res Touch Screen © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 21: Card Reader

    ▪ IC card: Support ▪ Reject Capacity: 50 EA (1mm / Card) ▪ Card Return: Available for Power Failure (Via System Battery) ▪ Read And Write Hi-Co: Support ▪ Anti-Skimming: With Anti-Skimming © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 22: Control Electronics (Core Processor, Pc)

    ▪ USB Ports: 16 Ports(USB3.0 : 4, USB2.0 : 5) + 7Port USB2.0 HUB ▪ VGA: GT520 VGA Card (OPL : DVI, SPL : VGA) On-Board VGA (4.3” LCD : VGA) ▪ LAN: 10/100/1000Mbps On-Board ▪ Status Display LED: HDD / PWR LED 2-10 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 23: Power Supply

    ▶ The power supply unit converts AC power to DC power and provides the voltage to various modules within the system. The power supply unit allows the user to turn on/off the system, enter power-failure mode, and perform other sequences. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 2-11...

  • Page 24: Cash & Check In Module (Ccim)

    - Deposit Reject: 75 Mixed Notes and Checks /1 transaction • Image scanning: Double side scanning (200 dpi) • MICR: CMC-7, E13-B • Endorsement Print: Double side printing, Ink jet • Shutter Type: Automatic Shutter 2-12 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 25: Cash Dispenser Unit (Cdu)

    ▪ Reject Type: Note by Note Reject (300 bills Max)* ▪ Retract: Bundle Retract (100 bills Max)* (* Reject / Retract BOX) ▪ Number of Near-End Sensing: 500 Notes Max (100 to 500, 5 Step) © 2015 Nautilus Hyosung Inc. All Rights Reserved. 2-13...

  • Page 26: Receipt Printer (Spr)

    After the customer uses the ATM, a printed record of the transaction information is presented through the appropriate printer entrance. Basic Specification of Receipt Printer ▪ Thermal Line Printing Type ▪ Setting roll paper semi-automatically Basic Specification of Paper ▪ Thermal Roll Paper used 2-14 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 27: Seismic Sensor And Heat Detector

    Heat detector is thermistor based design to provide temperature sensing that quickly, accurately, and consistently identifies when fixed temperature are exceeded. And also it can detect rate-of-rise by comparing two thermistor responses. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 2-15...

  • Page 28: Chapter3. For The Beginning Operator

    Opening and Closing the Exterior Door ► Open the rear door of upper section using key. ► To close the door, push in the door bracket (1). Then close the door and lock to secure it. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 29: Accessing The Atm Servicing Screen When The Hood Is In The Open Position

    Accessing the ATM Servicing Screen when the Hood is in the open Position ► To open, press the orange button (1) and pull the handle of (2) toward you. ► To close, swing the panel back in the original, closed position (4) © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 30: Opening And Closing The Vault Door

    Chapter3. For the beginning operator Opening and Closing the Vault Door ► To open the vault door, enter the combination on the Kaba Mas lock (1). Then turn the vault door handle (2) to open. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 31: Switching Power On/Off

    1. The system turning-on process is as follows 2. Open the rear door. 3. Press the standby switch to “ON” side (1) (Main power switch should be “ON” (2)) 4. The system will be turn on automatically © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 32: Switching Power Off

    3. The operating system will shut down then power will turn off. WARNING: Do NOT operate Main Switch when you would like to turn off the power. It may cause damage to operate system or destabilize control electronics in ATM. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 33: Power Supply Status

    <System Off> procedure starts and only [AC IN] LED is turned on. ▪ In case power failure occurs during normal system operation, the system will enter <Power Failure Mode> and only [DC OUT] will be turned off. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 34: Opening/Closing The Security Enclosure (Security Door)

    CW = Clockwise; CCW = Counter Clockwise 2. Enter the factory combination of 50-25-50 by sequentially pressing those six buttons. The LCD will display the entered number. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 35 4. Turn the dial right (CW) until it stops. The lock’s bolt is now retracted and the lock is open. 5. Turn the handle to the left and open the security door. 7. Turn the dial a minimum of one complete rotation to the left (CCW) to extent the bolt. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 36 The best thing to do in analyzing the lock level is to write down the entire string and then pick out the portions of it that are significant to you, or if you are experiencing a problem with the lock, report the entire string to the Tech Support group. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 37 Enter the current shelved mode combination, “EnF” (Enter new Factory combination) will be displayed. 10. EnF  Enter New Combination  Cnf Select and enter the new combination. “CnF” (confirm new Factory combination) will be displayed 3-10 © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 38 15. OPr  Retract Bolt Turn the Dial to the right (CW) to retract the bolt. 16. Close Door 17. Extend Bolt Turn the Dial to the left (CCW) to extend the bolt. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 3-11...

  • Page 39: Chapter4. Cash & Check In Module (Ccim)

    The cash and check deposited together is separated by sheets on the separation section. In case of the transaction cancellation, cash and check in reject section is ejected to the customer in a lump by the command of higher rank. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 40 Cash and check received are stored in the cassette by sheets. The cassettes can be mounted or demounted from the unit with the key. And also cassette’s door can be opened using the key. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 41: Basic Specification Of Cash & Check In Module

    20.0 mm (0.79inch) Retract (Max.50 with New Notes) RT/A6 Cassette 7.0 mm (0.28inch) (Max.10 with New Notes)  It is the reference value when the thickness of bill used is 0.1mm (0.0039inch). © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 42: Specification Of External Appearance

    Width: 274.0 ± 2 mm (10.79 ± 0.08inch) Dimensions Length: 169.0 ± 2 mm (6.65 ± 0.08inch) RT/A6 Height: 62.0 ± 2mm (2.44 ± 0.08inch) Cassette 1.0Kg (2.20 lb) Weight (except Cash & Check weight) © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 43: Cash & Check Conditions

    Operator Manual Chapter4. Cash & Check In Module (CCIM) Cash & Check Conditions ▶ Please refer to “Bill Conditions” in the chapter5. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 44: How To Remove Jam From Each Section

    BOTTOM Module includes CASH CASSETTE Module and CHECK CASSETTE Module. Zone Abbreviation Description ① BUNDLE Bulk Note Separation Module ② Separator Control Module ③ Bill Checker ④ Alignment Module ⑤ RECOG Recognition Module © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 45 B4 GUIDE B4 Guide of Body Module1 ⑫ ESCROW Escrow Module ⑬ RT/A6 Retract & A6 Cassette ⑭ CASSETTE1 Cash Cassette ⑮ CASSETTE2 Check Cassette ► LED Lighting of Unit Transport Path © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 46: Remove Jam From Bundle Module

    While holding Bundle door and pressing Bill-press, Remove bills and remained substance Once you open SCM using L2, Remove bills and remained substance Close SCM using L2 (Caution; Risk of pinching hand) © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 47: Remove Jam From The First Transport Path

    Path pushing the lever L2 in the arrow direction as shown in the picture. Once you open SCM using L2, Remove bills and remained substance Close SCM using L2 (Caution; Risk of pinching hand) © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 48: Remove Jam From Bc

    L3 in the arrow direction as shown in the picture. Once you open BC using L3, Remove bills and remained substance Close BC using L3 (Caution; Risk of pinching hand) 4-10 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 49: Remove Jam From Alg

    3. After checking if the jammed Note is removed, completely close the ALG section. Open ALG using L4. Remove bills and remained substance Open BM2 using L7. While opening guide, Remove bills and remained substance Close ALG and BM2 (Caution; Risk of pinching hand) © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-11...

  • Page 50: Remove Jam From Recog Transport Section

    3. After checking if the jammed Note is removed, completely close the Recog Transport Section. Open Recog using L5 Remove bills and remained substance Close Recog using L5 (Caution; Risk of pinching hand) 4-12 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 51: Remove Jam From The B2 Upper Transport Path Of Bm2

    3. After checking if the jammed Note is removed, completely close Zone ⑥ as shown in the picture. Once you open BM2 using L6, Remove bills and remained substance rotating KNOB03 three or four times Close BM2 using L6 © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-13...

  • Page 52: Remove Jam From B2 Reject Transport Section

    4. If it is necessary to remove the inside jam of REJECT Once you open BM2 using L7, Check bills and remained substance Remove bills and remained substance. Close BM2 (Caution; Risk of pinching hand) 4-14 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 53: Remove Jam From B3 Transport Section

    Once you open BM2 using L7, Check bills and remained substance Open guide using L8. Remove bills and remained substance Close guide using L8. Close BM2 (Caution; Risk of pinching hand) © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-15...

  • Page 54: Remove Jam From Reject Section

    3. After checking if the jammed Note is removed, completely close the door. Once you open RJ cover, Check bills and remained substance While holding RJ door, Remove it rotating KNOB06 three or four times 4-16 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 55: Remove Jam From B3 Escrow Transport Section

    3. After checking if the jammed Note is removed, completely close Zone ⑩ as shown in the picture. Open BM3 using L9 Remove bills and remained substance rotating KNOB05 three or four times Close BM3 using KNOB08 (Caution; Risk of pinching hand) © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-17...

  • Page 56: Remove Jam From B4 Transport Section

    3. After checking if the jammed Note is removed, completely close Zone ⑪ as shown in the picture. Open BM3 using L9 Remove bills and remained substance Close BM3 using KNOB08 (Caution; Risk of pinching hand) 4-18 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 57: Remove Jam From Escrow

    If necessary, repeat it to end. Open BM3 using L9 Remove bills and remained substance rotating KNOB05 three or four times Close BM3 using KNOB08 (Caution; Risk of pinching hand) © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-19...
  • Page 58 Take off RT using KNOB Open door using RT KNOB. Once you open RT guide, Remove bills and remained substance Once you close RT door, Add on RT Lock RT door using KNOB 4-20 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 59: Remove Jam From Rt/A6 Cassette

    4. After removing jam, close the door and turn the knob to the left. 5. Then mount the RT/A6 Cassette. Open BM3 using L9 Remove bills and remained substance Take off RT using KNOB © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-21...
  • Page 60 Once you open RT guide, Remove bills and remained substance Once you close RT door, Add on RT Lock RT door using KNOB Close BM3 using KNOB08 (Caution; Risk of pinching hand) 4-22 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 61: Remove Jam From Cassette

    4. To mount the Cassette, turn the knob to the left and remove it. Take off Cassette using KNOB Once you check bills and remained substance in display, Remove it Open Cassette door using KNOB © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-23...
  • Page 62 Chapter4. Cash & Check In Module (CCIM) Operator Manual While pushing Cassette lever, Pull down Push-plate Remove bills and remained substance Once you close Cassette door, Lock Cassette door using KNOB Add on Cassette 4-24 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 63: How To Change Prt Maintenance Module

    ※ After replacing Ink Cartridge, you have to reset "PRT Cartridge Count". And you may need to replace Ink Head Cleaner Felt if necessary Installing Ink Cartridge © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-25...

  • Page 64: How To Reset Prt Cartridge Count

    3. Press the green button on PRT capping module installed BM3 for 3 seconds as shows the picture (Pressing the green button). 4. Push down DIP Switch 1 DIP Switch 1 Pressing the green button 4-26 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 65: How To Replace Ink Head Cleaner Felt

    3. After replacing the new one by removing the tape, assemble the felt unit in the reverse process Dissembling the Felt Unit Replacing Ink Head Cleaner Felt © 2015 Nautilus Hyosung Inc. All Rights Reserved. 4-27...

  • Page 66: Chapter5. Cash Dispenser

    2. Bill has sufficient life or sizing to be handled easily 3. Bill which can be manually held straightly when one end is held by a hand and the bill is slightly curved vertically. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 67: Unacceptable Condition

    Operator Manual Unacceptable condition ▶ 1. Bill with serious wrinkles, torn or broken section wherein paper fiber is broken and separation begins. ▪ Wrinkle Wrinkle ▪ Torn Torn ▪ Broken section Broken Section © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 68 4. Bill ragged and cannot be held straightly when one end is supported by a hand 20mm (0.79inch) 35mm (1.38inch) When the bill is held by 20mm (0.79inch) and the straightness of the bill is 35mm (1.38inch) or less, it cannot be used © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 69 Chapter5. Cash Dispenser Operator Manual 5. Bill with cellophane tape, scotch tape, etc Tape 6. Bill with folds Fold 7. Gradually curved bill (bills tied by hand seal, etc) Band seal © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 70 Operator Manual Chapter5. Cash Dispenser 8. Bill with folded lines Case 1 Case 2 Case 3 <Note!> Bill distortion should not exceed 10 mm (0.39inch). © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 71: How To Replenish The Cash Cassette

    2. Place the cash cassette on a flat level platform and turn the green lever clockwise to unlock a cassette cover. Then lift up the cassette cover. <Note!> Completely open the cassette cover as below picture when replenishing a cash cassette. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 72 1) Fan the bills so that the bills are not sticking together. 2) Remove all bills with holes or bills that are torn. 3) Unfold the folded bills. 4) Place the bills correctly. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 73 7. Holding a cassette handle with one hand and supporting the cassette from the bottom with the other hand, place the cassette carefully on the set guide of the CDU and push it completely until it is locked in place. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 74: How To Empty The Reject/Retract Box

    1. Push the lever (A) and holding a Reject/Retract Box handle (B) with the other hand pull out slightly, and support the Reject/Retract Box from bottom with the hand pushed the lever (A), and pull out to the end of the cassette. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 75 4. Use the reverse order of 1)~3) to put Reject/Retract Box together into cash dispenser again. The Reject/Retract Box must be fully inserted. Otherwise, it will happen problems and the error code will display at monitor promptly. 5-10 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 76: How To Clear Jamming In Cash Dispenser

    Any branch personnel should not attempt to remove any jams without first powering down the ATM. 2. Undock the CDU and slide out completely. Then perform the following steps for each case to clear the obstruction. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-11...

  • Page 77: Remove Jam From The Upper Horizontal Transport Path

    1. Pull the lever with both hands while pressing it inward and then remove the bill. 2. Pull the lever with both hands while pressing it inward (see the picture of 1)) and lift up E part as the below picture. Then remove the jammed bill. 5-12 © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 78 3. Put down the E part and press the D part in the direction of arrow until it fixes. CAUTION: DO NOT put down the E part after first closing the D part. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-13...

  • Page 79: Remove Jam From The Vertical Transport Path

    1. Pull the green lever of the bottom with lifting it up and open the part. Then remove the bill. 2. Press the lever with hand as the below picture until the F part fixes. 5-14 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 80: Remove Jam From The Carriage

    1. Rotate the carriage by turning the knob (G) and remove the jammed bill. 2. After removing the jammed bill, turn the knob ( ) and return the carriage to the original position. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-15...

  • Page 81: Remove Jam From The Transport Path Of The Main Body

    2. Lift up the carriage with hand and move it to the throat. 3. Turn the knob (G) and move the jammed bill to the location to clear it easily. Then remove the jammed bill. 5-16 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 82: Remove Jam From The Transport Path Of Rj/Rt Box

    Remove jam from the transport path of RJ/RT box ▶ Remove jam from the transport path of RJ/RT box 1. Demount the Reject/Retract Box. (Refer to “How to empty the Reject/Retract Box.”) 2. Remove the jammed bills. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-17...

  • Page 83: Remove Jam From The Separation Part

    Remove jam from the separation part ▶ Remove jam from the separation part 1. Demount the cassette. (Refer to “How to replenish the Cash Cassette.”) 2. Remove the jammed bill as shown in below picture 5-18 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 84: Remove Jam From The Transport Path Of Reject

    2. If turning the Knob (H) counterclockwise, the jammed bill will move in the direction of the Transport Path. 3. If turning the Knob (H) clockwise, the jammed bill will move in the direction of the RJ/RT Box. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-19...

  • Page 85: How To Reset Main Board

    Chapter5. Cash Dispenser Operator Manual How to Reset Main Board ▶ How to Reset Main Board 1. Press the hole in the red circle with a stick and reset. 5-20 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 86: How To Set The Cassette For Each Denomination

    Push Plate and take it out with the other hand. Also take out the Push Plate on the other side in the same way. 3. Completely take out the Push Plate and gently place it inside the box. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-21...
  • Page 87 5. After taking out the Hook Part, push the Guide in the direction of yellow arrow and take it out. 6. Remove current 6 LOWER NOTE SPACER as shown in below. Press HOOK in the green arrow and pull up the Spacer. 5-22 © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 88 Recommended spacer for note size 8. For the desired denomination size, mount the Guide matching it with the white line. Press it until clicking sounds. (Mount the remaining guide in the same way.) © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-23...
  • Page 89 Operator Manual 9. Vertically insert two kinds of Shaft and turn the hand holding the Push Plate. 10. Then check whether A Shaft matches the white arrow. (The other side is same.) 5-24 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 90: Cassette Cover Guide Setting For The Vertical Size Of Each Denomination

    2. Also unfasten the Hook on the other side in the arrow direction and completely take out the Guide pulling it in the C direction. 3. Remove 6 Upper note SPACER. Then lift up HOOK and pull out Spacer from guide © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-25...
  • Page 91 However, be sure to push it after matching the height of the other side of the Guide. 6. After also matching the other side of the Guide with the height of the desired bill size, push it with both hands until the Hook is caught. 5-26 © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 92: Change Note Index

    1. After change, Change the denomination label 2. After adjust cassette have to change assigned denomination value in Supervisor mode. <Note!> To assign new denomination in supervisor mode, please contact software develops part or Technical Support Center. © 2015 Nautilus Hyosung Inc. All Rights Reserved. 5-27...

  • Page 93: Chapter6. Receipt Printer

    No. of Print Lines on 1print=167mm (6.57inch) ) Valid Printing Width Max. 158mm (6.22inch) Chinese, English/Numbers (Alphanumeric), Latin, Type of Printer Letter Japanese, Korean, Arabic, Russian, Greek, Hebrew, Coptic Paper Type Inside Printing Thermal © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 94: Paper Handling Precautions

    8. Make sure the paper is rolled evenly. 9. Miscellaneous: If the paper comes in contact with carbon copy paper or if the paper surface is scratched with a metallic object, de-coloring may occur. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 95: How To Load The Receipt Paper

    4. Have receipt paper go down the white tension bar as shown in the picture and then pull it forward. 5. Push the receipt paper inside the supporting bracket, as shown in the picture. Then it will be set automatically if turning on the power © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 96 1. Refer to diagram stickers placed on either side of the center section of the thermal printer. 2. A test receipt will print. Remove the test receipt from the printer after it finishes printing. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 97: How To Clear Jamming In Receipt Printer

    3. Search for jammed paper and carefully remove it. Rotate the green wheel clockwise or counterclockwise to assist in removing jammed paper 4. Push the green lever counterclockwise to lock it back in place. Listen for a click. © 2015 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 98 Chapter6. Receipt Printer Operator Manual 5. Reinsert the paper back into printer. Run diagnostics if necessary. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 99: Chapter7. Card Reader

    2. If necessary, open the shutter and retrieve the card by pressing and holding the plunger button (2) as shown. Then turn the wheel clockwise to force the card from the reader. © 2015 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 100: Notes

    Operator Manual Notes Notes © 2015 Nautilus Hyosung Inc. All Rights Reserved. Notes-1...
