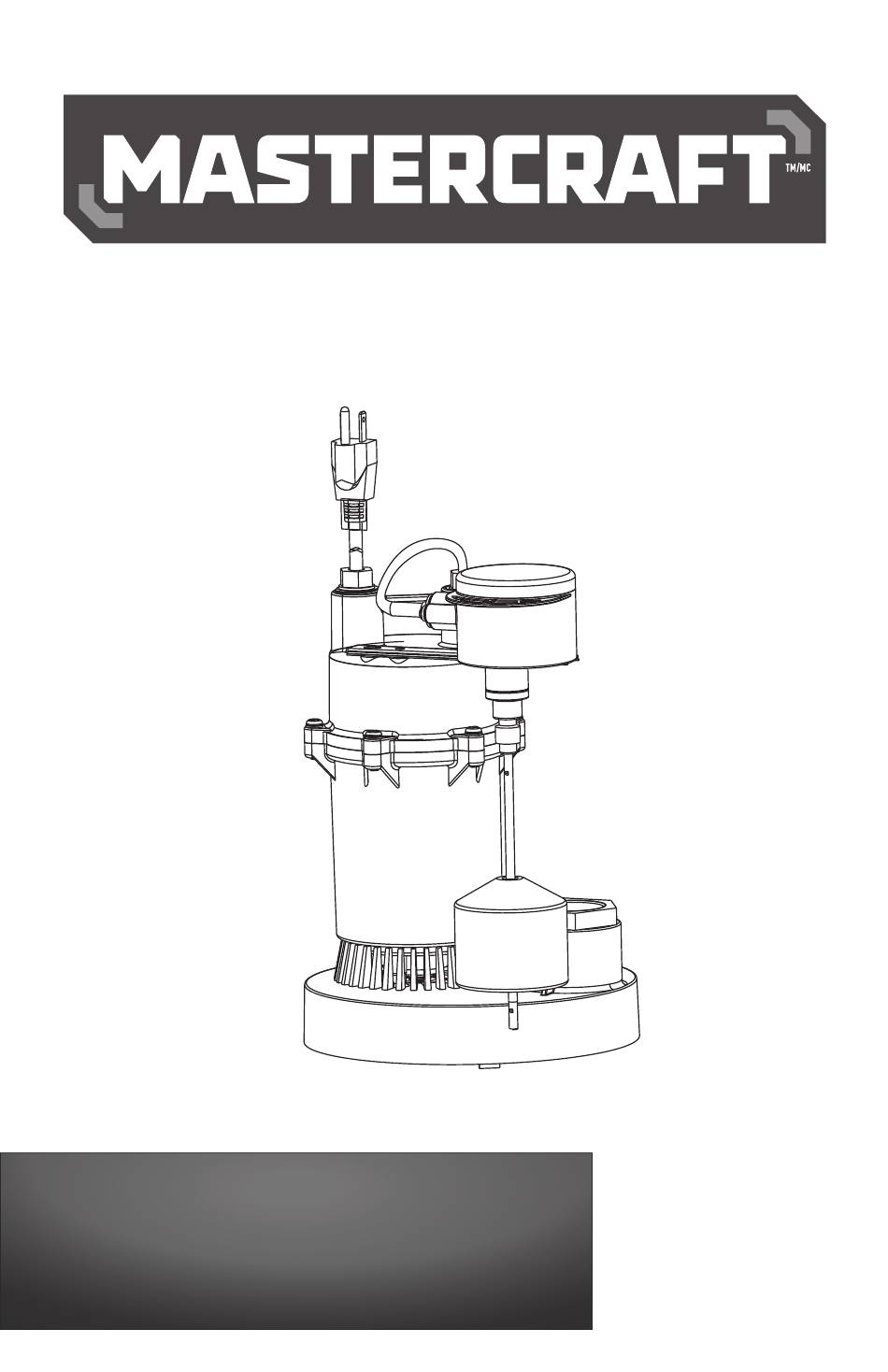

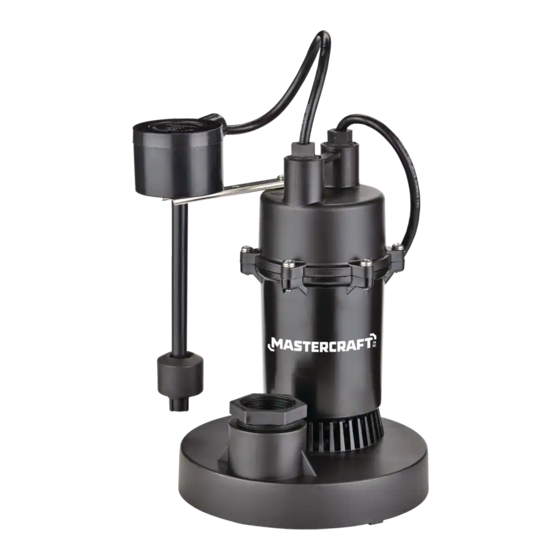

- Page 1 Submersible SUMP PUMP Model No. 062-3535-2 IMPORTANT: INSTRUCTION Please read this manual carefully before running this MANUAL submersible sump pump and save it for reference.
- Page 3 TABLE OF CONTENTS Quick Start Guide Technical Specifications Safety Guidelines Key Parts Diagram Assembly Preparation Assembly Instructions Operating Instructions Maintenance Troubleshooting Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions.
- Page 4 062-3535-2 | contact us 1-800-689-9928 SUMP REQUIREMENTS Pit must be covered. It is usually 10" (25.4 cm) in diameter and 14" (35.6 cm) deep. Install on a hard surface: brick, cement, or concrete block; 10" (25.4 cm) diameter not sand, clay, or gravel.
- Page 5 COMPLETING THE PLUMBING Finish installing the necessary plumbing. Follow the glue manufacturer’s instructions for curing time. PLUGGING IN THE PUMP Plug the pump into a 15 A circuit. The circuit should be GFCI protected and dedicated to the sump pump. VERIFYING OPERATION Check the pump’s operation by filling the sump with water until the pump...
- Page 6 062-3535-2 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Liquid temperature range 32 to 95°F (0 to 35°C) Plastic r e l Solids handling 1/4” (6.3 mm) spherical Discharge size 1 1/2" (3.8 cm) female national pipe thread (FNPT) or 1 1/4" (3.2 cm) FNPT (with adaptor)
- Page 7 PERFORMANCE CHART Lift in feet/ 0’ 5’ 10’ 15’ 20’ 25’ metres (0 m) (1.5 m) (3 m) (4.6 m) (6 m) (7.6 m) U.S. gallons/ 3600 3400 3000 2500 1900 1000 litres per hour (13,627) (12,870) (11,356) (9,463) (7,192) (3,785) *Friction loss in piping not included in measurement.
- Page 8 • Mastercraft Canada is not responsible for losses, injury, or death resulting from a failure to observe these safety precautions, or the misuse or abuse of pumps or equipment.
- Page 9 UNPACKING • Upon receiving the pump, it should be inspected for damage or shortages. If damage has occurred, file a claim immediately with the carrier that delivered the pump. If the manual is removed from the packaging, do not lose or misplace. STORAGE •...
- Page 10 062-3535-2 | contact us 1-800-689-9928 SAFETY GUIDELINES WIRE SIZE • Consult a qualified electrician for proper wire size. PRE-OPERATION: CHECK VOLTAGE AND PHASE • Before operating pump, check to make sure that the voltage and phase information stamped on the pump’s identification plate matches the available power.
- Page 11 PARTS LIST Description Qty. Description Qty. Power cord 1 1/4" (3.2 cm) adaptor Carry handle Pump outlet Motor cap Float switch Motor housing...
- Page 12 062-3535-2 | contact us 1-800-689-9928 APPLICATION • This submersible sump pump is designed for home sump applications. Use this pump only for pumping water. • This unit is not designed as a waterfall or fountain pump, or for applications involving salt water or brine.
- Page 13 INSTALLATION • Install the pump in sump pit with minimum diameter of 10" (25.4 cm). The sump depth should be 14" (35.6 cm). Construct the sump pit of tile, concrete, steel or plastic. Check local codes for approved materials and for proper installation.
- Page 14 062-3535-2 | contact us 1-800-689-9928 OPERATION • The shaft seal depends on water for lubrication. Do not operate the pump unless it is submerged in water as the seal may be damaged if allowed to run dry. • The motor is equipped with an automatic reset thermal protector. If temperature in the motor should rise unduly, the switch will cut off all power before damage can be done to the motor.
- Page 15 MAINTENANCE Do Not When the power is disconnected, inspect Do not disassemble the motor housing. the pump suction screen and remove all This motor has NO repairable internal debris, then plug the pump back into the parts. grounded (GFCI) outlet. Do not lift up the pump by the power cord.
- Page 16 062-3535-2 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Causes Corrective Action The pump does not The fuse is blown. Replace the fuse. start or run. The breaker is tripped. Reset the breaker. The plug is disconnected. Secure the plug.
- Page 17 This Mastercraft product is guaranteed for a period of one (1) year from the date of original retail purchase, against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
