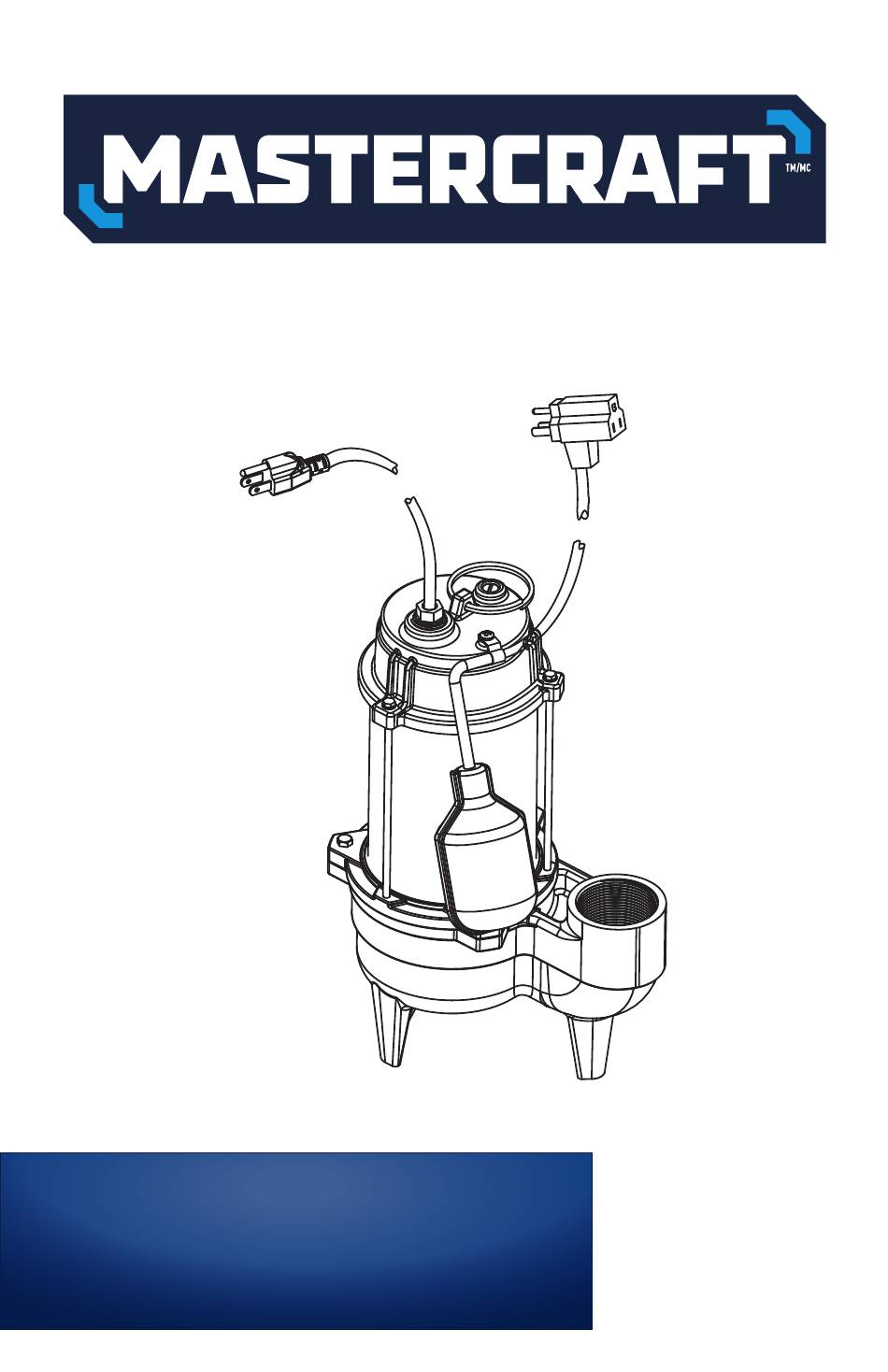

- Page 1 062-3429-6 Submersible SEWAGE PUMP IMPORTANT: INSTRUCTION Please read this manual carefully before running MANUAL this pump and save it for reference.
- Page 2 062-3429-6 | contact us 1-800-689-9928...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Installation Instructions Operation Key Parts Diagram Troubleshooting Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. -
Page 4: Technical Specifications
062-3429-6 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Model Number 062-3429-6 Voltage 115 V / 60 Hz Horsepower 1/2 HP Amps 9.5 A Max. Head 27' (8.2 m) Max. Flow 6000 U.S. GPH (22,713 L/h) Discharge Size 2" (5.1 cm) -
Page 5: Safety
SAFETY WARNING • Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not use in the presence of flammable or explosive vapours. Using this pump with or near flammable liquids can cause explosion or fire, resulting in serious personal injury and/or property damage. - Page 6 062-3429-6 | contact us 1-800-689-9928 • Once the thermal protector detects that the pump has cooled to a safe temperature, it will allow the pump to operate normally. If the pump is plugged in, it may restart unexpectedly.
-
Page 7: Installation Instructions
INSTALLATION PREPARATION Estimated Assembly Time (new installation): 30 minutes (or longer if installing new sump pit). Materials Required for Assembly (not included): Thread-sealant Tape, 2” (5 cm) Check valve, 2” (5 cm) Elbow, 2” (5 cm) Union, 2” (5 cm) Nipple Pipe, 2” (5 cm) Gate Valve Tools Required for Assembly (not included): Wrench, Cross-head Screwdriver Connecting a discharge pipe to... -
Page 8: Operation
062-3429-6 | contact us 1-800-689-9928 Connecting power. Plug the pump power cord plug into the piggy-back switch plug outlet. Plug the switch plug into a 115 V GFCI power outlet. Allow pump to operate through several on-off cycles. -
Page 9: Key Parts Diagram
KEY PARTS DIAGRAM PARTS LIST Description Description Head cover Impeller Piggy-back float switch Pump body Motor house... -
Page 10: Troubleshooting
062-3429-6 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Cause Corrective Action Pump does not 1. Blown fuse. 1. Replace fuse. start or run. 2. Tripped breaker. 2. Reset breaker. 3. Plug disconnected. 3. Secure plug. 4. Corroded plug. -
Page 11: Warranty
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE PUMP YOURSELF. DOING SO COULD VOID THE WARRANTY AND CAUSE DAMAGE OR PERSONAL INJURY. This Mastercraft product carries a three (3) year LIMITED warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
