Summary of Contents for MasterCraft 062-3422-0

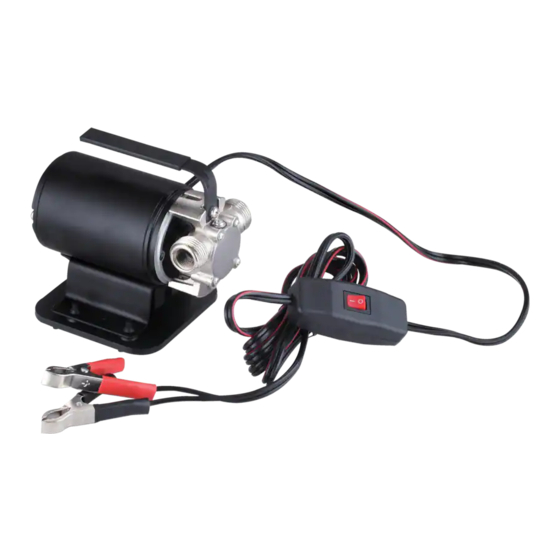

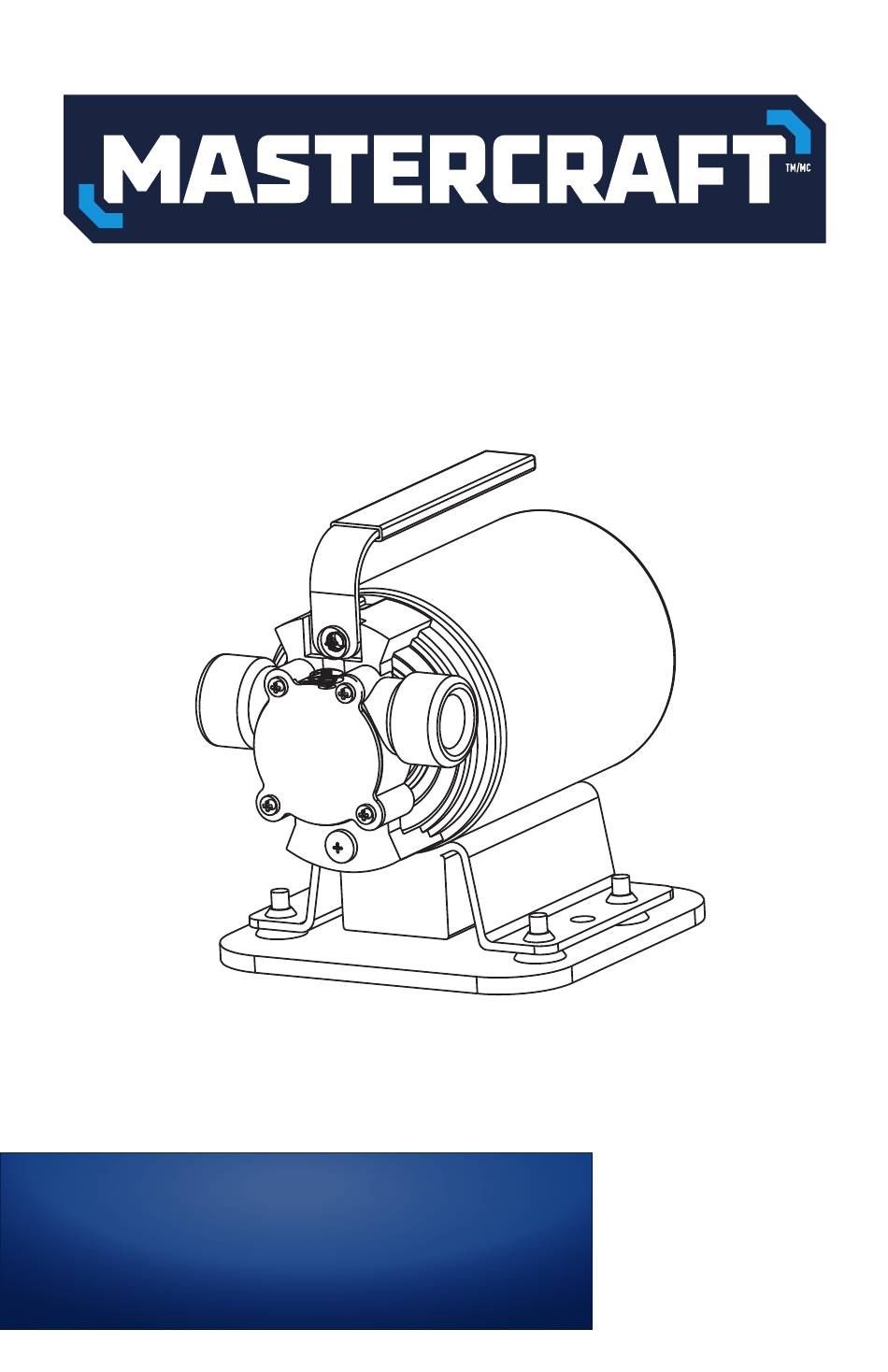

- Page 1 062-3422-0 Non-submersible UTILITY TRANSFER PUMP IMPORTANT: INSTRUCTION Please read this manual carefully before running MANUAL this pump and save it for reference.
- Page 2 062-3422-0 | contact us 1-800-689-9928...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Installation Instructions Key Parts Diagram Troubleshooting Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. -
Page 4: Technical Specifications
062-3422-0 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Model Number 062-3422-0 Voltage 12 V / DC Horsepower 1/10 HP Amps 15 A Max. Head 46' (14 m) Max. Flow 384 U.S. GPH (1454 L/h) Discharge Size 3/4" (1.9 cm) Power Cord Length 11.8' (3.6 m) -
Page 5: Safety
SAFETY WARNING • This pump is not submersible! Do not stand in water while this pump is plugged in, and do not get the motor wet as it could cause electrocution, which could lead to serious injury or death. • Always make sure the pump is unplugged as soon as the water level reaches 1/8"... - Page 6 062-3422-0 | contact us 1-800-689-9928 ADDITIONAL SAFETY PRECAUTIONS 1. Know the pump applications, limitations, and potential hazards. 2. Make certain the electrical power source is adequate for the requirements of the pump. 3. ALWAYS disconnect the power to the pump and drain all water from the system before servicing.
-
Page 7: Installation Instructions
INSTALLATION PREPARATION Estimated Assembly Time (new installation): 5 minutes Materials Required for Assembly (not included): Garden Hose (50'/15.2 m max. length) Do not suspend the pump by the discharge hose or power cord. • Keep the pump suction strainer clear. •... - Page 8 062-3422-0 | contact us 1-800-689-9928 Thread a 5/8" (15.9 mm) or larger garden hose (sold separately, 50'/15.2 m max. length) onto the discharge outlet of the pump (A). NOTICE: Make sure the end of the outlet hose is not under water. If the outlet is under water, the pump may not work.
-
Page 9: Key Parts Diagram
KEY PARTS DIAGRAM PARTS LIST Description Description Screw Shaft Impeller cover Battery terminal clamps O-ring Power switch Impeller Suction strainer Pump body Suction hose... -
Page 10: Troubleshooting
062-3422-0 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Cause Corrective Action The pump 1. The cord set is loose. 1. Reconnect the cable. stops without 2. The fuse is blown. 2. Replace the fuse. warning. 3. The battery has no charge. -
Page 11: Warranty
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE PUMP YOURSELF. DOING SO COULD VOID THE WARRANTY AND CAUSE DAMAGE OR PERSONAL INJURY. This Mastercraft product carries a three (3) year LIMITED warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
