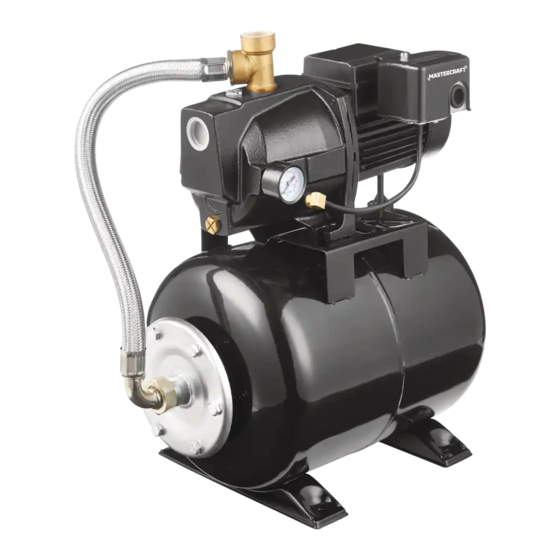

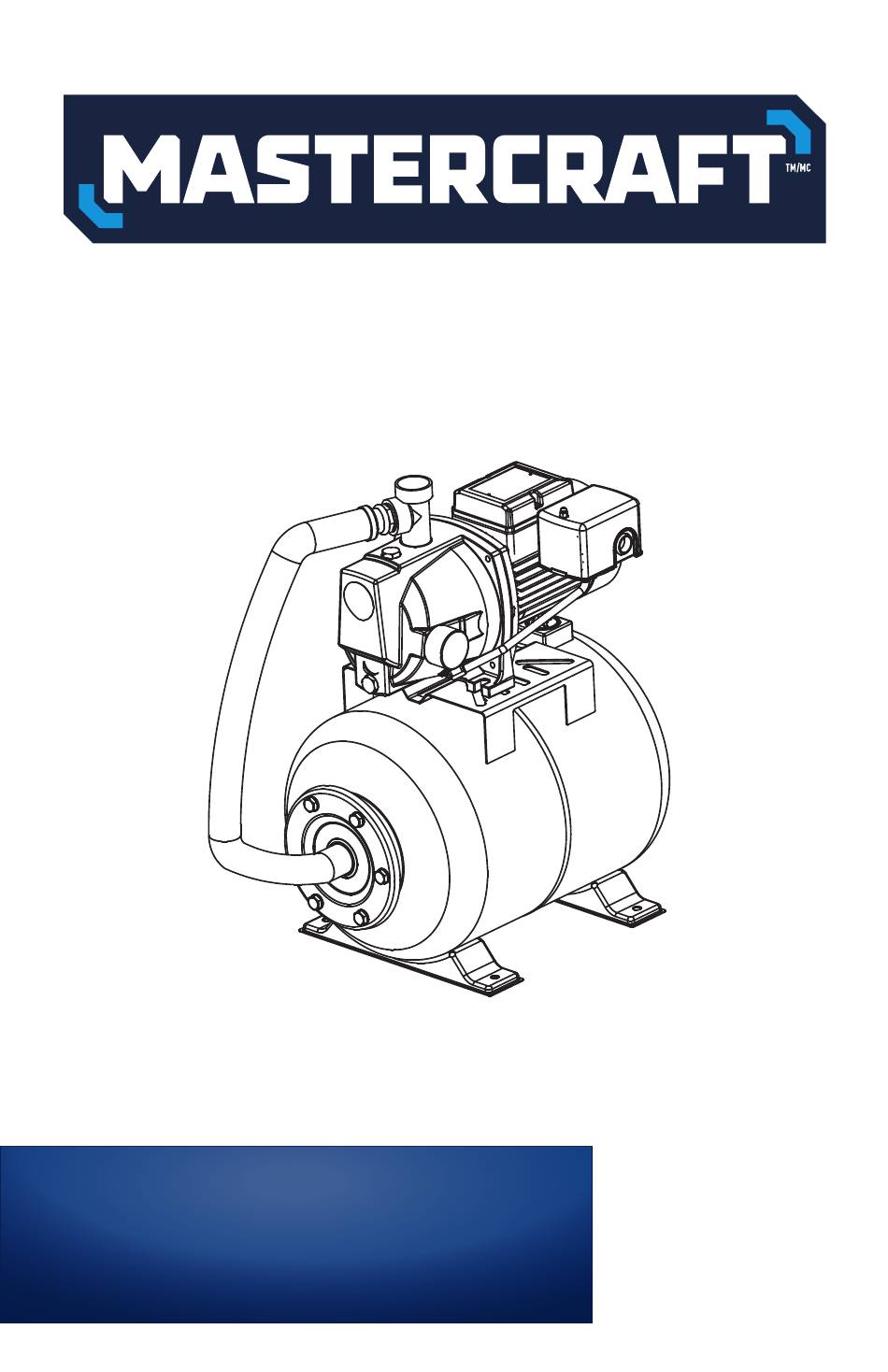

- Page 1 062-3415-8 SHALLOW WELL JET PUMP with 6 U.S. Gallon (22 L) Tank IMPORTANT: INSTRUCTION Please read this manual carefully before running MANUAL this pump and save it for reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Installation Preparation Installation Instructions Troubleshooting Key Parts Diagram Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. -
Page 4: Technical Specifications
062-3415-8 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Model number 062-3415-8 Voltage 115/230 V~60 Hz Horsepower 1/2 HP Amps 6.6/3.3 A Maximum head height 147’ (44.8 m) Maximum flow 319 U.S. GPH (1207 L/h) Discharge size 1" (2.5 cm) national pipe thread (NPT) PERFORMANCE 5’... -
Page 5: Safety
SAFETY • This pump is meant to be used where the vertical lift of water is less than 25' (7.6 m). If the well is deeper than that, you need to purchase a deep well convertible jet pump. • Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not use in the presence of flammable or explosive vapours. - Page 6 062-3415-8 | contact us 1-800-689-9928 ADDITIONAL SAFETY PRECAUTIONS 1. Know the pump applications, limitations, and potential hazards. 2. Make certain the electrical power source is adequate for the requirements of the pump. 3. ALWAYS disconnect the power to the pump before servicing.
-
Page 7: Installation Preparation
INSTALLATION PREPARATION Before beginning assembly of the product, make sure all parts are present. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Installation Time (new installation): 30–60 minutes Tools Required for Assembly (not included): Wrench, Pliers, Cross-head Screwdriver, Thread Tape, PVC Purple Primer, and PVC Cement Accessories Required for Assembly (not included):... - Page 8 062-3415-8 | contact us 1-800-689-9928 LOCATION OF THE PUMP Decide on the area for the pump installation. Select a pump location with adequate space for future pump maintenance. It can be located in the basement or utility room of the house, at the well, or between the house and the well.
-
Page 9: Installation Instructions
SHALLOW WELL INSTALLATION INSTRUCTIONS Wrap thread tape (not included) around threads of a 1 1/4" (3.2 cm) male PVC adaptor (not included). Thread adaptor into a 1 1/4" (3.2 cm) foot valve. Hand tighten, then tighten 1/2 turn with a pipe wrench. Subtract 5' (1.5 m) from the depth of the well. - Page 10 062-3415-8 | contact us 1-800-689-9928 Using PVC purple primer and PVC cement, attach a 1 1/4" (3.2 cm) PVC elbow (not included) onto the rigid PVC pipe extending from the well seal. Wrap thread tape around the threads of a male PVC adaptor (not included).
- Page 11 Air pressure in the tank must be 2 PSI lower than the "cut-in" of the pressure switch. NOTE: The pump (A) has a 30/50 PSI pressure switch, which means the "cut-in" is 30 PSI; therefore, the tank needs to be set to 28 PSI. To check the pressure in the tank, use a tire pressure gauge.
- Page 12 062-3415-8 | contact us 1-800-689-9928 PRESSURE SWITCH INSTALLATION INSTRUCTIONS To complete the installation, you must connect the power source to the pressure switch. The pressure switch allows for automatic operation; the pump starts when pressure drops to the “cut-in”...
-
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Pump does 1. Power off. 1. Turn power on or call power company. not start or 2. Blown fuse or tripped breaker. 2. Replace fuse or reset circuit breaker. run. 3. Faulty pressure switch. 3. -
Page 14: Key Parts Diagram
062-3415-8 | contact us 1-800-689-9928 KEY PARTS DIAGRAM PARTS LIST Description Pump body Interval channel Drain cover Impeller Motor Mechanical seal O-ring... -
Page 15: Warranty
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE PUMP YOURSELF. DOING SO COULD VOID THE WARRANTY AND CAUSE DAMAGE OR PERSONAL INJURY. This Mastercraft product carries a three (3) year LIMITED warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
