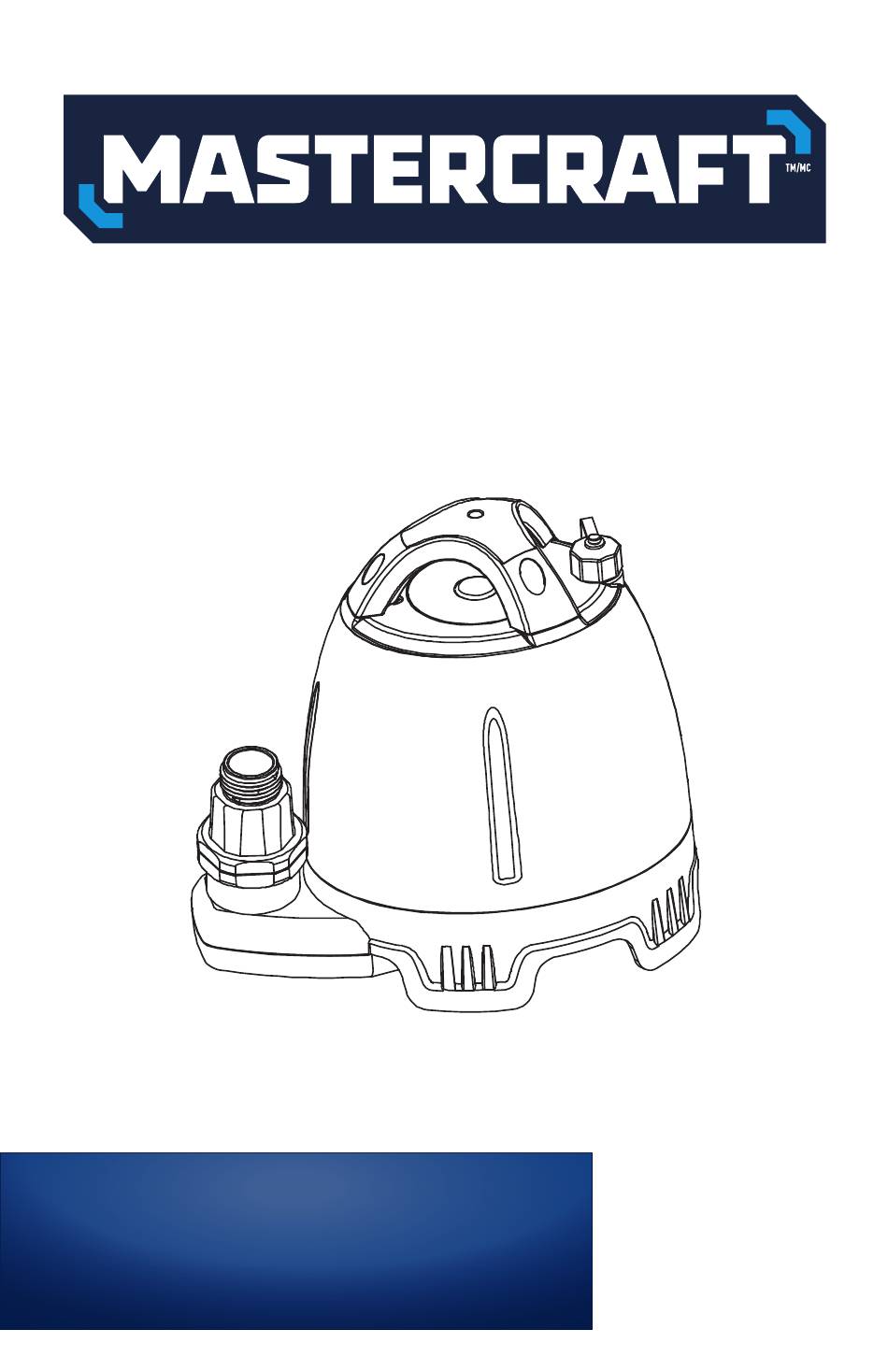

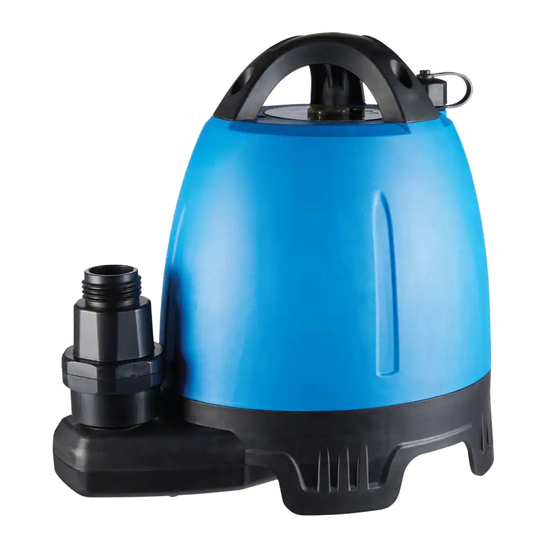

- Page 1 062-3406-0 Submersible UTILITY PUMP IMPORTANT: INSTRUCTION Please read this manual carefully before running MANUAL this pump and save it for reference.
- Page 2 062-3406-0 | contact us 1-800-689-9928...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Installation Preparation Installation Instructions Operating Instructions Key Parts Diagram Troubleshooting Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. -
Page 4: Technical Specifications
062-3406-0 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Model number 062-3406-0 Voltage 18 V Battery Ah 5 Ah 1/6 HP Power 10 A Max. head 30' (9.1 m) Max. flow 1452 U.S. GPH (4596 L/h) Discharge size 1" (2.5 cm) Charging cable length 6' (1.8 m) -
Page 5: Safety
SAFETY WARNING • This pump must be monitored frequently (at least once a month, possibly more frequently if used in water that is full of debris). If the pump becomes clogged with debris (leaves, sticks, mud, etc.), excess pressure could cause the motor seal to weaken, and water could come in contact with the electric motor. - Page 6 062-3406-0 | contact us 1-800-689-9928 • Keep the product and its handle dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean your product. Following this rule will reduce the risk of loss of control and deterioration of the enclosure plastic.
- Page 7 8. Check that all hose connections are tight to minimize leaks. 9. Never let the pump run without water as this will damage the seal and overheat the pump. 10. Periodically inspect the pump and system components to be sure the pump inlets are free of mud, sand, and debris.
-
Page 8: Installation Preparation
062-3406-0 | contact us 1-800-689-9928 INSTALLATION PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product. -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Attach a 3/4" (1.9 cm) standard garden hose (A) (not included) to the adaptor (B) (included) on the pump (C). NOTE: The standard size of fittings and hoses to use with this pump is 1 in. However, by using adaptors, larger fittings and hoses can be used, which can increase flow rates. -
Page 10: Operating Instructions
062-3406-0 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS • To start the pump, set the ON/OFF switch (B) to the ON position. Press the switch. NOTE: The pump has internal protection functions built in to it. The LED (A) will flash indicating the error function. - Page 11 Model Action Charging 3 Lights flashing While charging, lights will flash then turn to solid one by one as the power level reaches 30%, 60% Battery level 1 light—30% and 100%. 2 lights—60% 3 lights—100% Pump running dry. Turn off pump. Relocate intake Dysfunction 1 LED flashes filter to deeper water.
-
Page 12: Key Parts Diagram
062-3406-0 | contact us 1-800-689-9928 KEY PARTS DIAGRAM PARTS LIST Description Handle Power indicator light ON/OFF switch Pump outlet Pump base Charging port Rope hole Adaptor... -
Page 13: Troubleshooting
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE PUMP YOURSELF. DOING SO COULD VOID THE WARRANTY AND CAUSE DAMAGE OR PERSONAL INJURY. This Mastercraft product carries a three (3) year LIMITED warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
