Summary of Contents for MasterCraft 062-3424-6

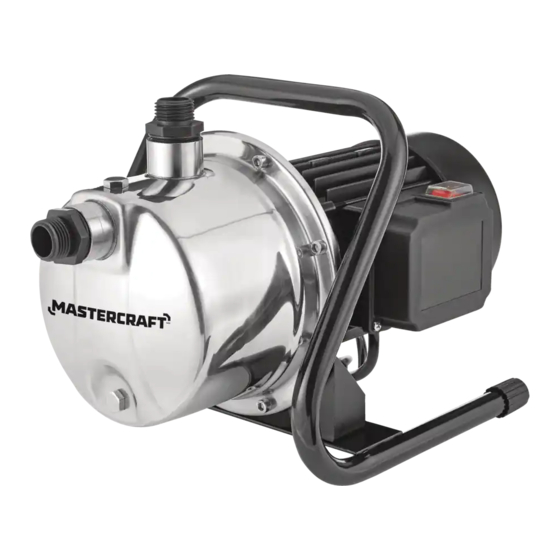

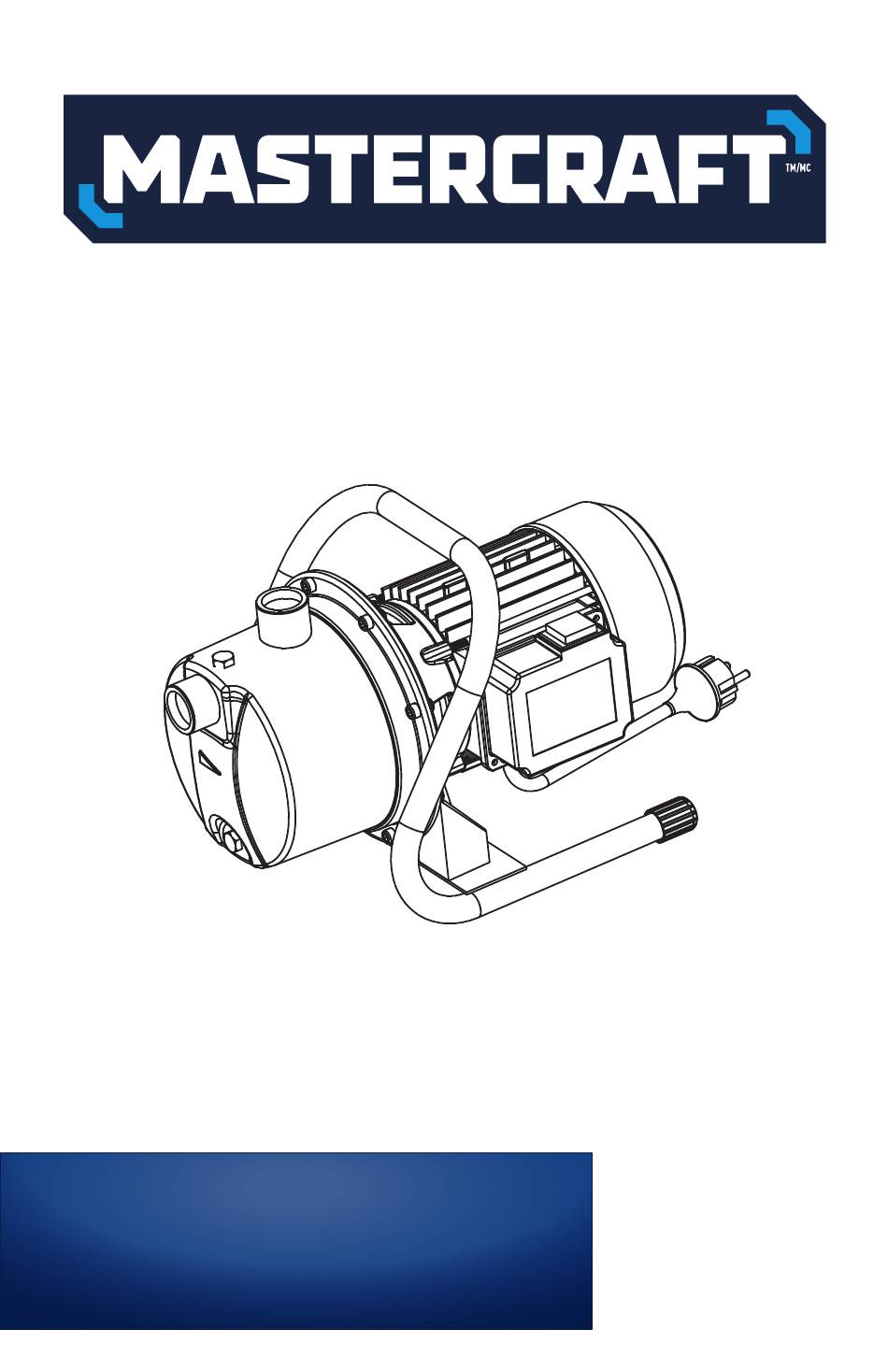

- Page 1 062-3424-6 Stainless Steel IRRIGATION JET PUMP IMPORTANT: INSTRUCTION Please read this manual carefully before running MANUAL this pump and save it for reference.
- Page 2 062-3424-6 | contact us 1-800-689-9928...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Installation Instructions Operating Instructions Parts List Troubleshooting Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. -
Page 4: Technical Specifications
062-3424-6 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Model Number 062-3424-6 Voltage 115 V / 60 Hz Horsepower 3/4 HP Amps 6.5 A Max. Head 108' (32.9 m) Max. Flow 800 U.S. GPH (3028 L/h) Discharge Size 1" (2.5 cm) Power Cord Length 7' (2.13 m) -
Page 5: Safety
SAFETY Please read and understand this entire manual before attempting to assemble operates or install the product. If you have any questions regarding the product, please call customer service at 1-800-689-9928. WARNING • Running the pump without sufficient water will damage the pump and void the pump's warranty. - Page 6 062-3424-6 | contact us 1-800-689-9928 ADDITIONAL SAFETY PRECAUTIONS 1. Know the pump applications, limitations, and potential hazards. 2. Make certain the electrical power source is adequate for the requirements of the pump. 3. ALWAYS disconnect the power to the pump and drain all water from the system before servicing.
-
Page 7: Installation Instructions
INSTALLATION PREPARATION Estimated Assembly Time: 5 minutes Materials Required for Assembly (sold separately): 3/4" (1.9 cm) foot valve, 1" (2.5 cm) discharge tee, 100# pressure gauge, thread tape, 3/4" (1.9 cm) standard garden hose (for discharge), and 3/4" (1.9 cm) heavy-duty garden hose (for suction). - Page 8 062-3424-6 | contact us 1-800-689-9928 Positioning the Pump a. Place the pump as close as possible to the water source, keeping the vertical distance from the water to the pump as small as possible (max. lift is 25' (7.6 m)).
- Page 9 Installing the Pump a. Connect a 3/4" (1.9 cm) heavy-duty garden hose (sold separately) to the pump inlet (1). The inlet connection can also be used with 1" (2.5 cm) PVC pipe (Note: If you are using a PVC pipe, you will need a 1" (2.5 cm) male NPT X slip adaptor.) b.
-
Page 10: Operating Instructions
062-3424-6 | contact us 1-800-689-9928 Priming the Pump: NOTE: • The pump must be filled with water before operation. Running the pump dry will cause damage to the shaft seal and will void the warranty. • Add thread tape on the discharge tee cap a. - Page 11 Storing the Pump: a. Protect against flooding and excessive moisture by storing in a dry place. Draining the Pump for Winter: a. Disconnect the suction (1) and discharge (2) lines from the pump (A). b. Remove the water drain plug (3) from the pump (A).
-
Page 12: Parts List
062-3424-6 | contact us 1-800-689-9928 PARTS LIST 36 37 24 25 26 19 20 21 22 14 15 16 17 18... - Page 13 PARTS LIST Description Qty. Description Qty. Bolt Rotor Spring washer Stator Washer Connecting terminal Pump support Line 0.12 Bracket for pump support Capacitor Screw Screw Dust cover Cord clip Pump body Screw O-ring Terminal box Screw Sealing ring O-ring Sealing washer Injector Terminal nut Diffuser...
-
Page 14: Troubleshooting
062-3424-6 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Cause Corrective Action The pump will 1. There is a blown fuse or 1. If blown, replace with a proper sized not start or tripped circuit breaker in your fuse or reset the breaker. -
Page 15: Warranty
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE PUMP YOURSELF. DOING SO COULD VOID THE WARRANTY AND CAUSE DAMAGE OR PERSONAL INJURY. This Mastercraft product carries a three (3) year LIMITED warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
