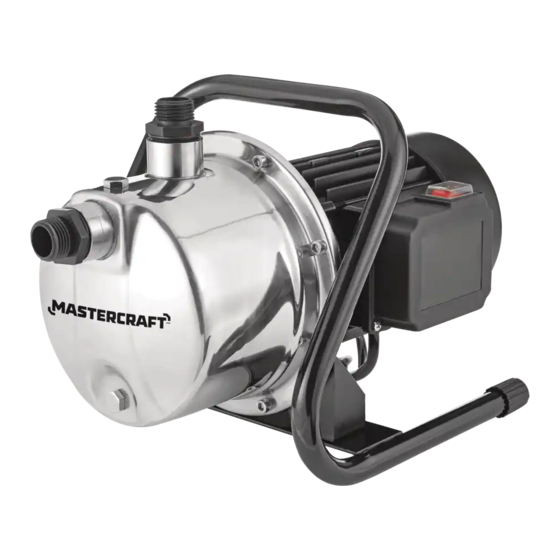

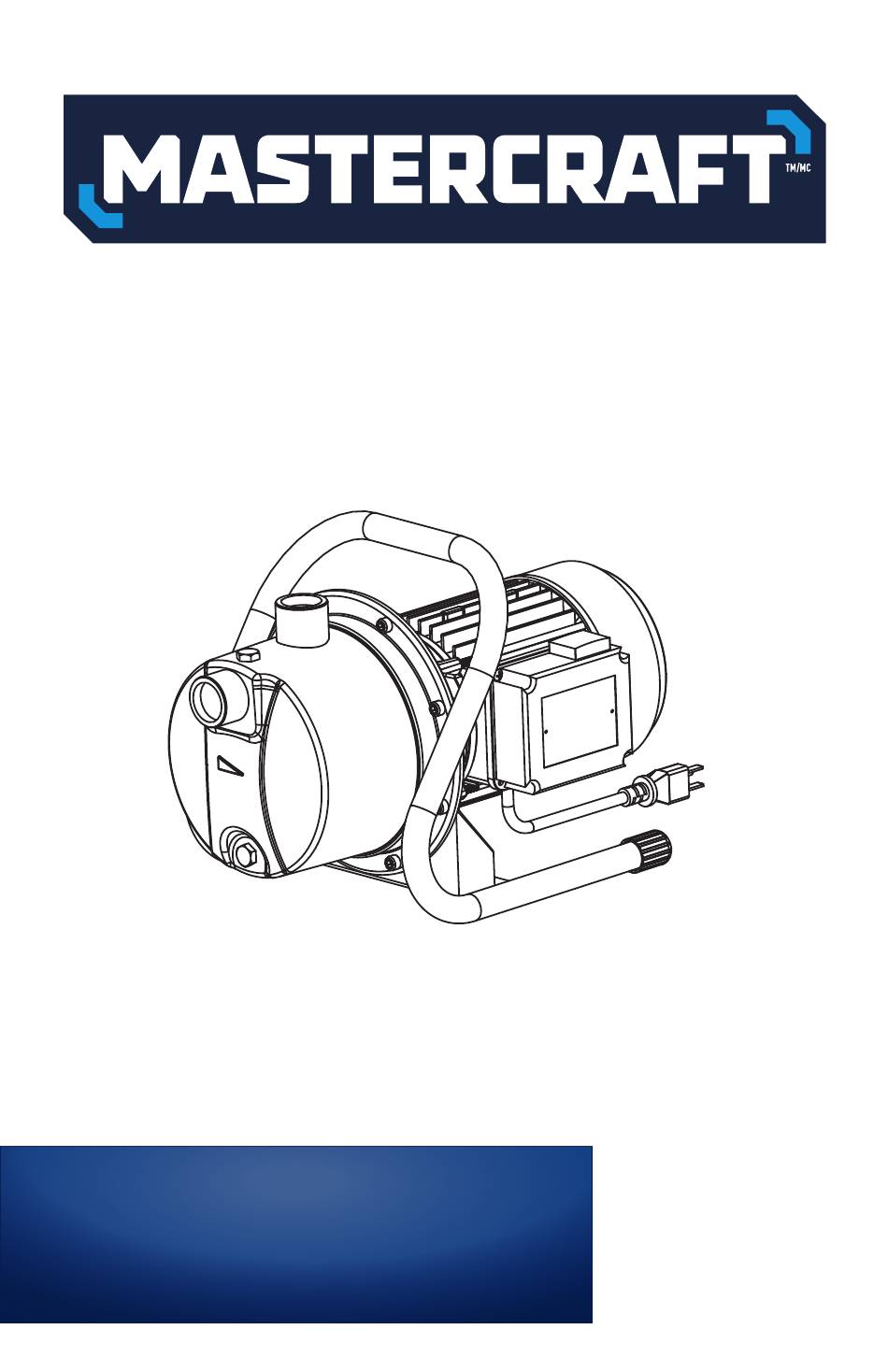

- Page 1 062-3413-2 Stainless Steel IRRIGATION AND LAWN SPRINKLER PUMP IMPORTANT: INSTRUCTION Please read this manual carefully before running MANUAL this pump and save it for reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Installation Instructions Operation Instructions Troubleshooting Key Parts Diagram Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. -
Page 4: Technical Specifications
062-3413-2 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Model number 062-3413-2 Voltage 115 V/60 Hz Horsepower 1 1/2 HP Amps 10 A Maximum head height 165' (50 m) Maximum flow 1200 U.S. GPH (4542 L/h) Discharge size 1" (2.5 cm) female national pipe thread (FNPT), ¾"... -
Page 5: Safety
SAFETY Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-800-689-9928. WARNING • Running the pump without sufficient water will damage the pump and void the pump's warranty. - Page 6 062-3413-2 | contact us 1-800-689-9928 ADDITIONAL SAFETY PRECAUTIONS 1. Know the pump applications, limitations, and potential hazards. 2. Make certain the electrical power source is adequate for the requirements of the pump. 3. ALWAYS disconnect the power to the pump and drain all water from the system before servicing.
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Estimated Assembly Time: 5 minutes Materials Required for Assembly (sold separately): 3/4" (1.9 cm) foot valve, 1" (2.5 cm) discharge tee, 100# pressure gauge, thread tape, 3/4" (1.9 cm) standard garden hose (for discharge), 3/4" (1.9 cm) heavy-duty garden hose (for suction). Positioning the Pump a. - Page 8 062-3413-2 | contact us 1-800-689-9928 Positioning the Hose Adaptors a. Wrap threads of discharge tee (sold separately) with thread tape. b. Thread a 1" (2.5 cm) discharge tee (2) into the outlet of the pump. c. Thread hose adaptors (B) into pump outlet and into the discharge tee (2).
-
Page 9: Operation Instructions
OPERATION INSTRUCTIONS Priming the Pump: Note: • The pump must be filled with water before operation. Running the pump dry will cause damage to the shaft seal and will void the warranty. • Add thread tape on the discharge tee cap (2). - Page 10 062-3413-2 | contact us 1-800-689-9928 Running the Pump Plug the power cord into a GFCI-protected electrical outlet and press the power switch to the On position. If the pump does not pump water within 2 minutes, turn the pump (A) off.
-
Page 11: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action The pump 1. There is a blown fuse or tripped 1. If blown, replace with a proper sized will not circuit breaker in your home's fuse or reset the breaker. start or run breaker/fuse box. 2. -
Page 12: Key Parts Diagram
062-3413-2 | contact us 1-800-689-9928 KEY PARTS DIAGRAM 36 37 18 19 16 17 14 15 12 13 PART LIST Description Description Quantity Quantity Bolt M8*4 Pump support Spring washer 8 Terminal box Washer 8 Power switch Pump support... -
Page 13: Warranty
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE PUMP YOURSELF. DOING SO COULD VOID THE WARRANTY AND CAUSE DAMAGE OR PERSONAL INJURY. This Mastercraft product carries a three (3) year LIMITED warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
