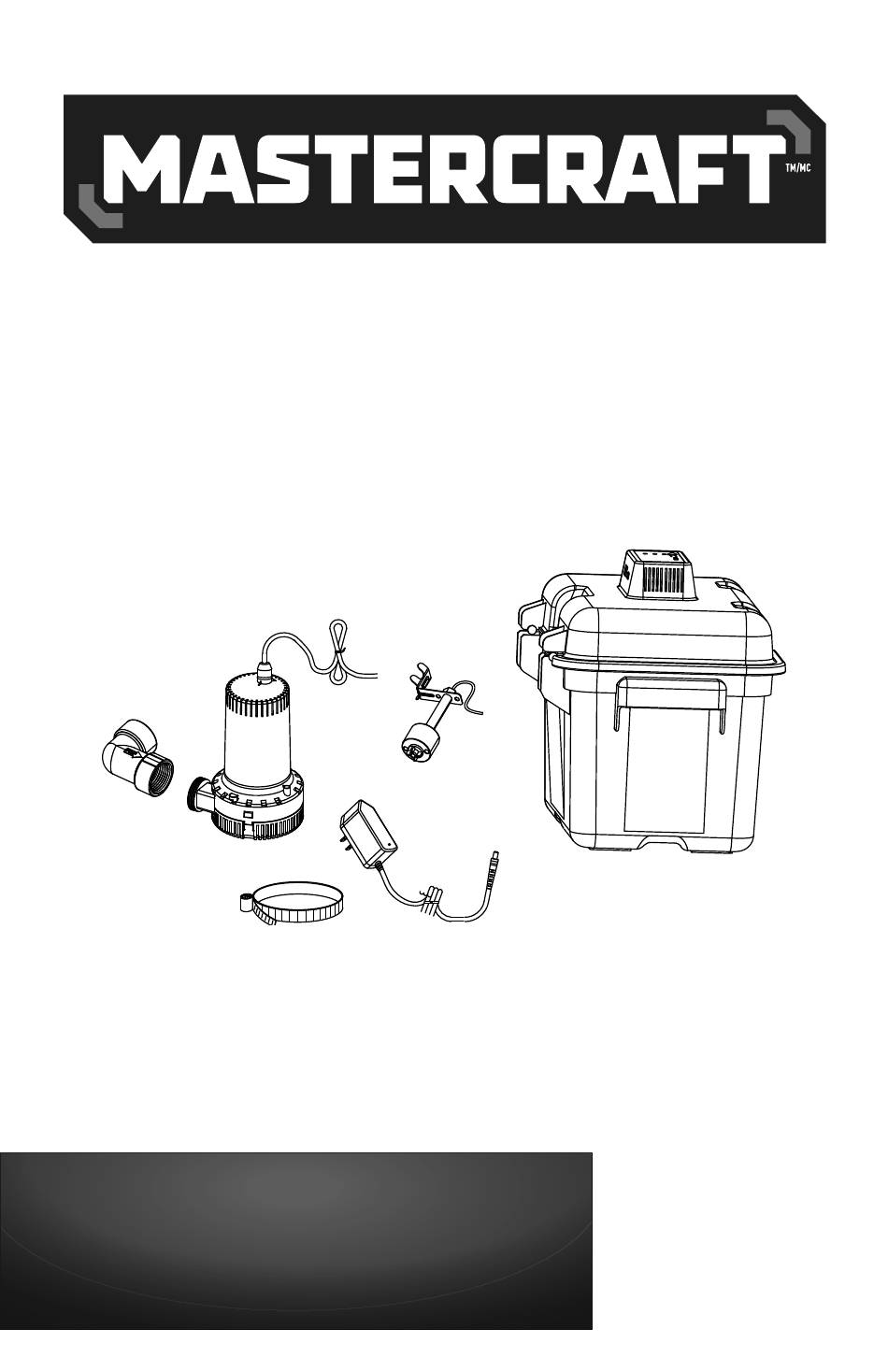

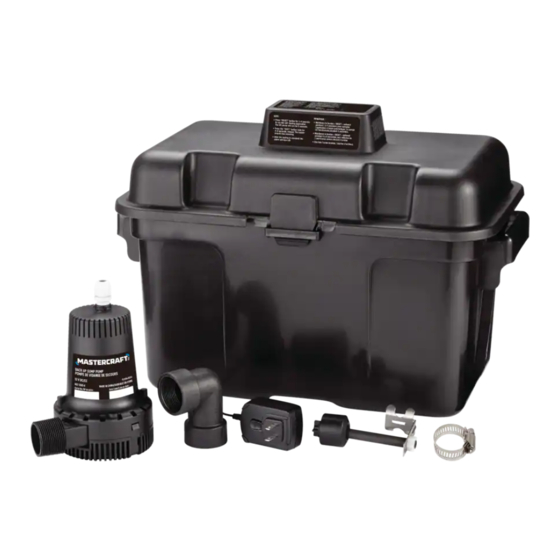

- Page 1 BACK UP SUMP PUMP Model No. 062-3503-8 IMPORTANT: INSTRUCTION Please read this manual carefully before running this MANUAL back up sump pump and save it for reference.
- Page 2 headline bars headline bars continuation tabs notes continuation tabs warnings notes warnings...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Quick Start Guide Technical Specifications Safety Guidelines Key Parts Diagram Assembly Instructions Operating Instructions Troubleshooting Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. -
Page 4: Quick Start Guide
062-3503-8 | contact us 1-800-689-9928 Try to assemble the primary (no glue). Wrap the thread of the check valve with non-stick tape and thread the check valve to the pump outlet. Then connect the check valve and the tee with rubber hose. - Page 5 Place the battery (sold separately) into the control box. Connect the leads from controller: Red+ to battery Red+; Black- to battery Black-. Note: Be sure the battery box ventilation holes are unobstructed. Battery control box must be set up in a well-ventilated area.
-
Page 6: Technical Specifications
062-3503-8 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Temperature 32 to 77°F (0 to 25°C) Impeller Plastic Solids handling 1/4” (6.3 mm) spherical Discharge size 1 1/4” (3.2 cm) male national pipe thread (MNPT), continuation tabs continuation tabs 1 1/4”... - Page 7 PERFORMANCE CHART Lift in feet/ 0’ 5’ 10’ 15’ metres (0 m) (1.5 m) (3 m) (4.6 m) U.S. gallons/ 2000 1500 1000 litres per hour (7 571) (5 678) (3 785) (1 514) *Friction loss in piping not included in measurement. DIMENSIONS 19 1/2"...
-
Page 8: Safety Guidelines
• Mastercraft Canada is not responsible for losses, injury, or death resulting from a failure to observe these safety precautions, or the misuse or abuse of pumps or equipment. - Page 9 UNPACKING • Upon receiving the pump, it should be inspected for damage or shortages. If damage has occurred, file a claim immediately with the carrier that delivered the pump. If the manual is removed from the packaging, do not lose or misplace. STORAGE •...
- Page 10 062-3503-8 | contact us 1-800-689-9928 SAFETY GUIDELINES WIRE SIZE • Consult a qualified electrician for proper wire size. PRE-OPERATION: CHECK VOLTAGE AND PHASE continuation tabs continuation tabs • Before operating pump, check to make sure that the voltage and phase information stamped on the pump’s identification plate matches the available power.
-
Page 11: Key Parts Diagram
PARTS LIST Description Qty. Description Qty. Elbow Control box Float switch Transformer Backup pump Hose clamp... -
Page 12: Assembly Instructions
062-3503-8 | contact us 1-800-689-9928 APPLICATION • The battery back-up sump pump is not a substitute for your primary sump pump. It is designed to temporarily back up your primary sump pump when the main sump pump fails or during a power outage. - Page 13 INSTALLATION • Verify that the existing primary sump pump is in good working order. If the primary pump is questionable, replace with the same or a higher HP pump. It is better for the primary pump to have a vertical float switch or electrical switch. A tethered float switch takes more sump pit space and might interfere with the backup DC pump.
- Page 14 062-3503-8 | contact us 1-800-689-9928 10. Hook the DC pump switch clamp over the switch mounting bracket. Adjust the switch assembly location along the discharge pipe so that the DC pump float lower point is above the primary pump “ON”...
-
Page 15: Operating Instructions
OPERATION 1. To verify primary pump operation, fill the sump pit with enough water to trigger operation. The primary sump pump will start, pump out the water then stop. 2. Unplug the primary pump power cord plug from the power supply outlet. 3. - Page 16 062-3503-8 | contact us 1-800-689-9928 CARE AND MAINTENANCE To prevent serious injury from accidental operation, unplug the pump from its electrical outlet before performing any inspection, maintenance, or cleaning procedures. To prevent serious injury from pump failure, do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.
-
Page 17: Troubleshooting
TROUBLESHOOTING GUIDE CHECKLIST Do not disassemble the motor housing. This pump has NO repairable internal parts, and disassembly may cause an oil leak or dangerous electrical wiring conditions. DO NOT lift up the pump by power cord Problem Possible Causes Corrective Action Pump will not start Wire connection issues. -
Page 18: Warranty
062-3503-8 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of three (3) years from the date of original retail purchase, against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
