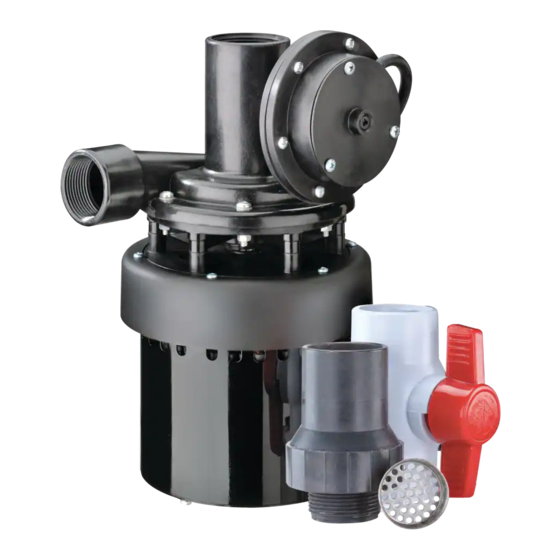

- Page 1 AUTOMATIC UTILITY SINK PUMP Model No. 062-3420-4 IMPORTANT: INSTRUCTION Please read this manual carefully before running this MANUAL utility sink pump and save it for reference.
- Page 2 headline bars headline bars continuation tabs notes continuation tabs warnings notes warnings...
- Page 3 TABLE OF CONTENTS Quick Start Guide Technical Specifications Safety Guidelines Key Parts Diagram Assembly Preparation Assembly Instructions Operating Instructions Maintenance Troubleshooting Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions.
- Page 4 062-3420-4 | contact us 1-800-689-9928 INLET PLUMBING Connect the pump to the sink tail pipe using 1 1/2” (3.8 cm) pipe. Sink tail pipe 1 1/2" (3.8 cm) 1 1/4" (3.2 cm) NPT continuation tabs...
- Page 5 POWER ON GFCI AFTER the pump is completely Outlet installed, plug the switch into the GFCI- protected, properly grounded outlet. Switch Cord Plug the pump into the back of the switch’s plug. Pump Cord TEST PUMP GFCI Fill the sink with water and adjust the Outlet flow using the included ball valve.
- Page 6 062-3420-4 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Liquid temperature range 32 to 77°F (0 to 25°C) Impeller Plastic Discharge size 1 1/4” (3.2 cm) Female NPT Seal Mechanical seal continuation tabs continuation tabs Cord length 8’...
- Page 7 PERFORMANCE CHART Lift in feet/ 0’ 5’ 10’ 15’ metres (0 m) (1.5 m) (3 m) (4.6 m) U.S. gallons/ 1300 litres per hour (4,921) (3,598) (2,083) *Friction loss in piping not included in measurement. DIMENSIONS 7 9/32" (18.5 cm) 1 1/2"...
- Page 8 • Mastercraft Canada is not responsible for losses, injury, or death resulting from a failure to observe these safety precautions, or the misuse or abuse of pumps or equipment.
- Page 9 UNPACKING • Upon receiving the pump, it should be inspected for damage or shortages. If damage has occurred, file a claim immediately with the carrier that delivered the pump. If the manual is removed from the packaging, do not lose or misplace. STORAGE •...
- Page 10 062-3420-4 | contact us 1-800-689-9928 SAFETY GUIDELINES WIRE SIZE • Consult a qualified electrician for proper wire size. PRE-OPERATION: CHECK VOLTAGE AND PHASE • Before operating pump, check to make sure that the voltage and phase information...
- Page 11 PARTS LIST Description Qty. Description Qty. 1 1/4” (3.2 cm) Diaphragm Switch 1 NPT x 1 1/4” (3.2 Pump cm) Slip Check 1 1/4” (3.2 cm) Valve NPT Ball Valve Sink Drain Screen...
- Page 12 062-3420-4 | contact us 1-800-689-9928 APPLICATION • This pump is designed to be used with a sink where a gravity drain line is not available. Attach the pump to the drain tail piece; the pump will start when water begins to drain. Uses include basement laundry sinks, wet bars and utility sinks.
- Page 13 INSTALLATION Fittings Supplied: Qty. A. Sink Drain Screen B. 1 1/4” (3.2 cm) NPT x 1 1/4” (3.2 cm) Slip Check Valve 1 C. 1 1/4” (3.2 cm) NPT Ball Valve Purchase Separately: Qty. 1. 1 1/2” (3.8 cm) NPT x 1 1/2” (3.8 cm) Slip Female Adaptor 2.
- Page 14 062-3420-4 | contact us 1-800-689-9928 6. Measure the 1 1/2” (3.8 cm) PVC pipe (Part No. 2) against the drain and the pump and trim the pipe to fit. 7. Do a trial assembly (dry—no glue) of the pump onto the drain pipe. Swing the pump until it accurately faces the discharge piping, and then mark the pump and the inlet pipe/adaptor assembly so that you can accurately install the pump in Step 8.
- Page 15 PLUG IN THE PUMP GFCI Outlet AFTER the pump is completely installed, plug the switch into a GFCI-protected, properly grounded outlet. Plug the pump into the back of the switch’s plug. ADJUSTING THE FLOW The drain pump can pump up to 21 gallons per minute (GPM)/ 79.5 litres per minute (LPM). Normal sink drains allow only 5 to 6 GPM (19 to 22.7 LPM) to flow.
- Page 16 062-3420-4 | contact us 1-800-689-9928 TO CLEAR A JAMMED IMPELLER • Unplug the pump. • Close the discharge ball valve (C). • Bail out the sink as much as possible. • Disconnect the union (Part No. 5), unscrew the pump from the sink tail piece, lower the pump to the floor, and slide it out from under the sink (see Figure 3).
- Page 17 TROUBLESHOOTING Problem Possible Causes Corrective Action Pump does not run 1. The pump is unplugged. 1. Plug in the pump. when water flows in 2. There is no power to the outlet. 2. Check the fuse/breaker. from the sink. 3. The pump impeller is jammed. 3.
- Page 18 062-3420-4 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of one (1) year from the date of original retail purchase, against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
