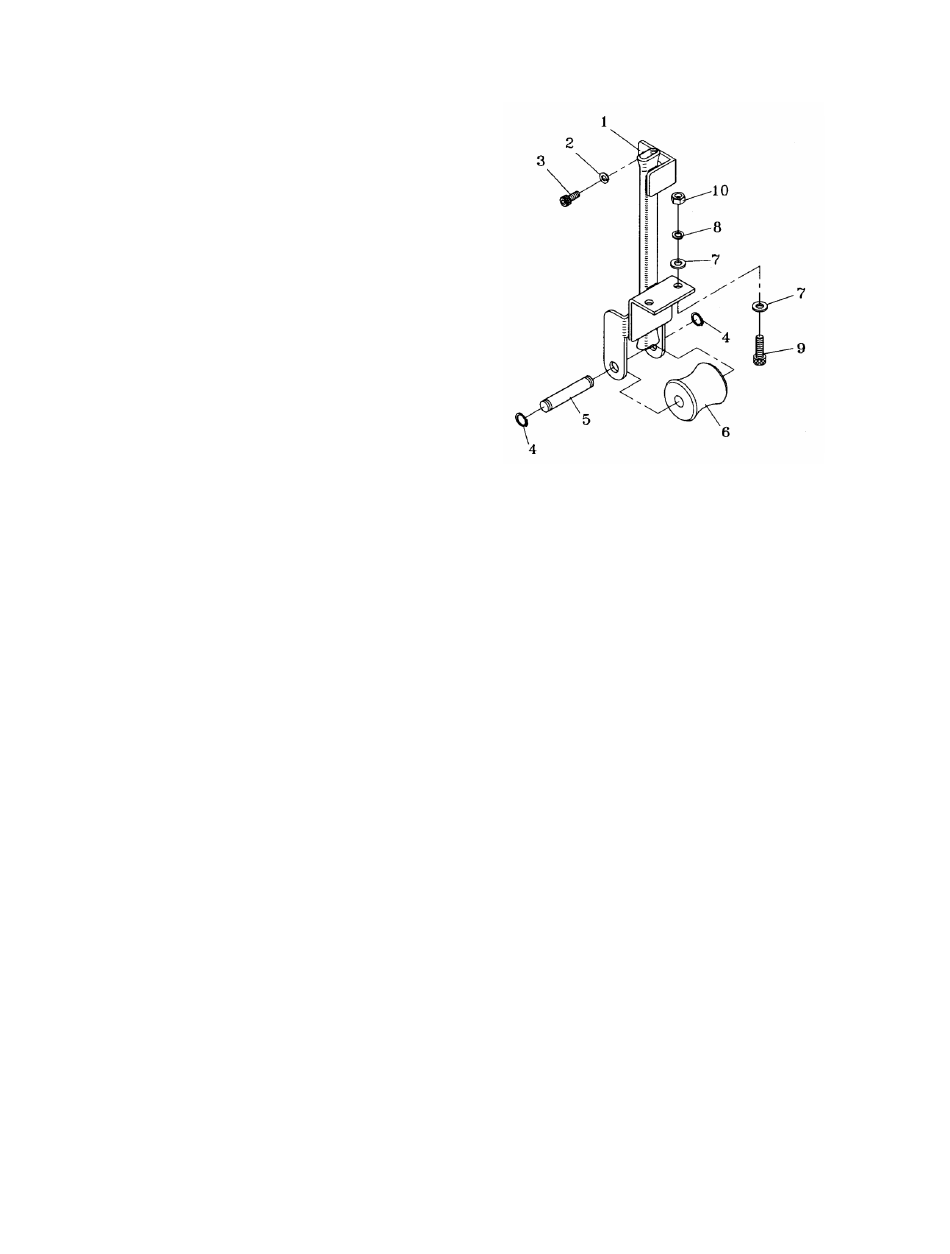

FEED SHOOTER ASSEMBLY
KEY
QTY
PART NO.
1
1
500628
2
2
500500
3
2
500512
4
2
500629
5
1
500630
6
1
500631
7
4
500632
8
2
500508
9
2
500495
10
2
500633
DESCRIPTION
Feed Shooter
SW,M5
HBS, M5x16
Ring, S10
Shaft
Roller
PW,M6
SW,M6
HBS, M6x16
HN,M6
25
12/14/10
