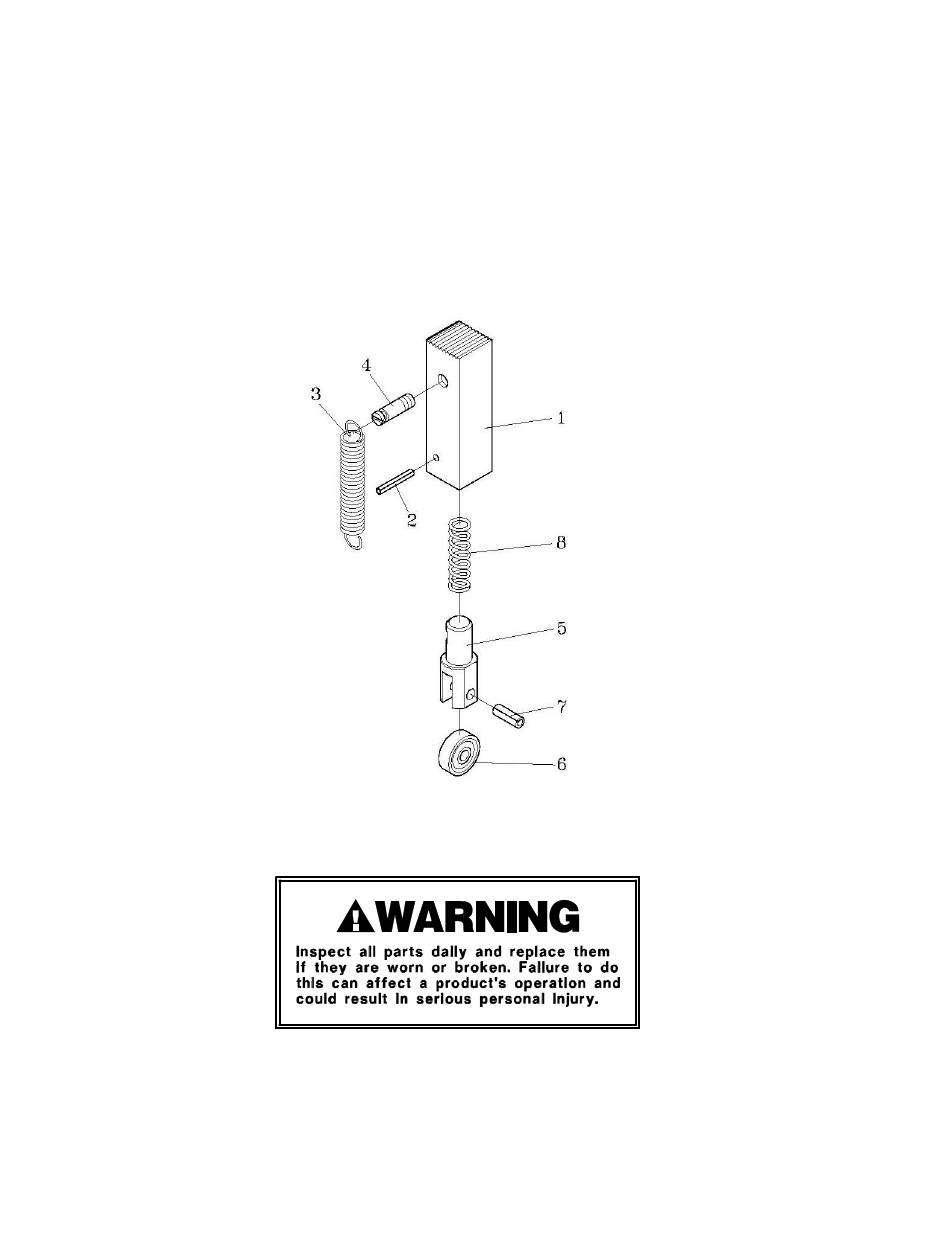

PRESS BAR ASSEMBLY
KEY
QTY
PART NO.
1
1
500584
2
1
500575
3
1
500576
4
1
500577
5
1
430129
6
1
500579
7
1
500580
8
1
500581
DESCRIPTION
Press Bar
Spring Pin, 3x18
Return Spring
Spring Hook
Plunger
Bearing, 635ZZ
Spring Pin, 5x14
Spring
21
