Signode TABLE-TYER Operation, Parts And Safety Manual page 13

MACHINE OPERATION
START-UP AND OPERATING SEQUENCE
1. Put strap on the strap reel and thread the strap.
2. Turn main switch QS1 to ON. The heating element reaches the working temperature in
approximately 1 minute.
3. Use potentiometer R3 to adjust the strap length.
4. Place the strap around the package to be strapped and insert the strap into the strapping head
until it stops.
5. The strapping and welding sequence should complete.
6. At end of strapping sequence the strap end is fed automatically.
7. R4 adjusts the strap tension.

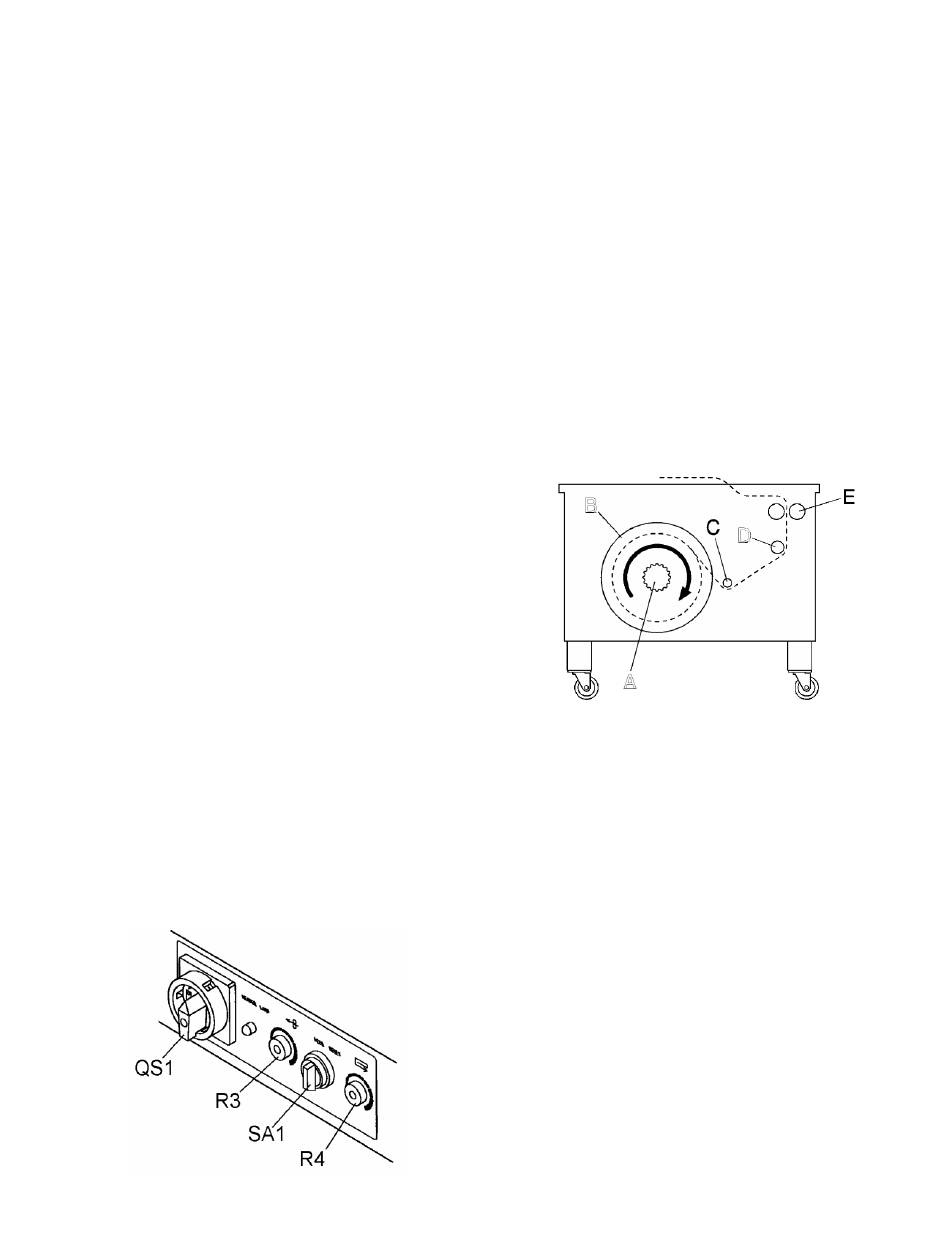

THREADING STRAP
1. Turn reel nut handle (A) left and remove it.
2. Remove the cover of the reel (B) and install the
strap reel.
3. Make sure that the payoff rotation matches
directional arrows when unrolling.
4. Put the reel cover back on and tighten reel nut
handle (A) to the right.
5. Remove all adhesive strips or other adhesive
material.
6. Unroll about 1.5 m strap and make sure that it is
not twisted.
7. Thread the strap in direction of arrow over (C) to
roller (D). Continue to thread strap into rollers (E).
8. Turn left button SA1 (strap feed) until the length
you need.
