Kramer DIP-31M Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

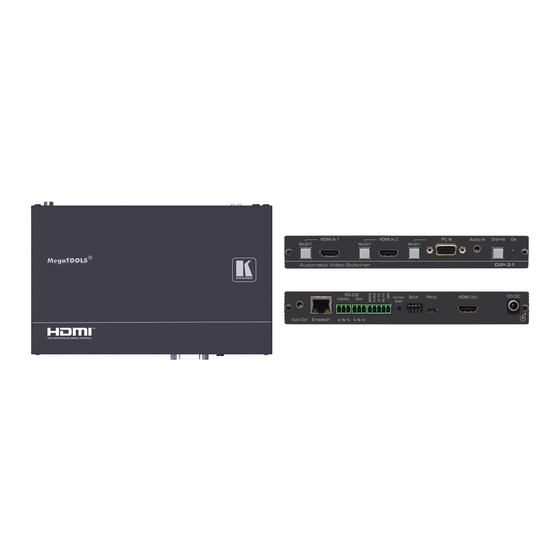

DIP-31M Automatic Video Switcher
1 Power supply (12V DC)

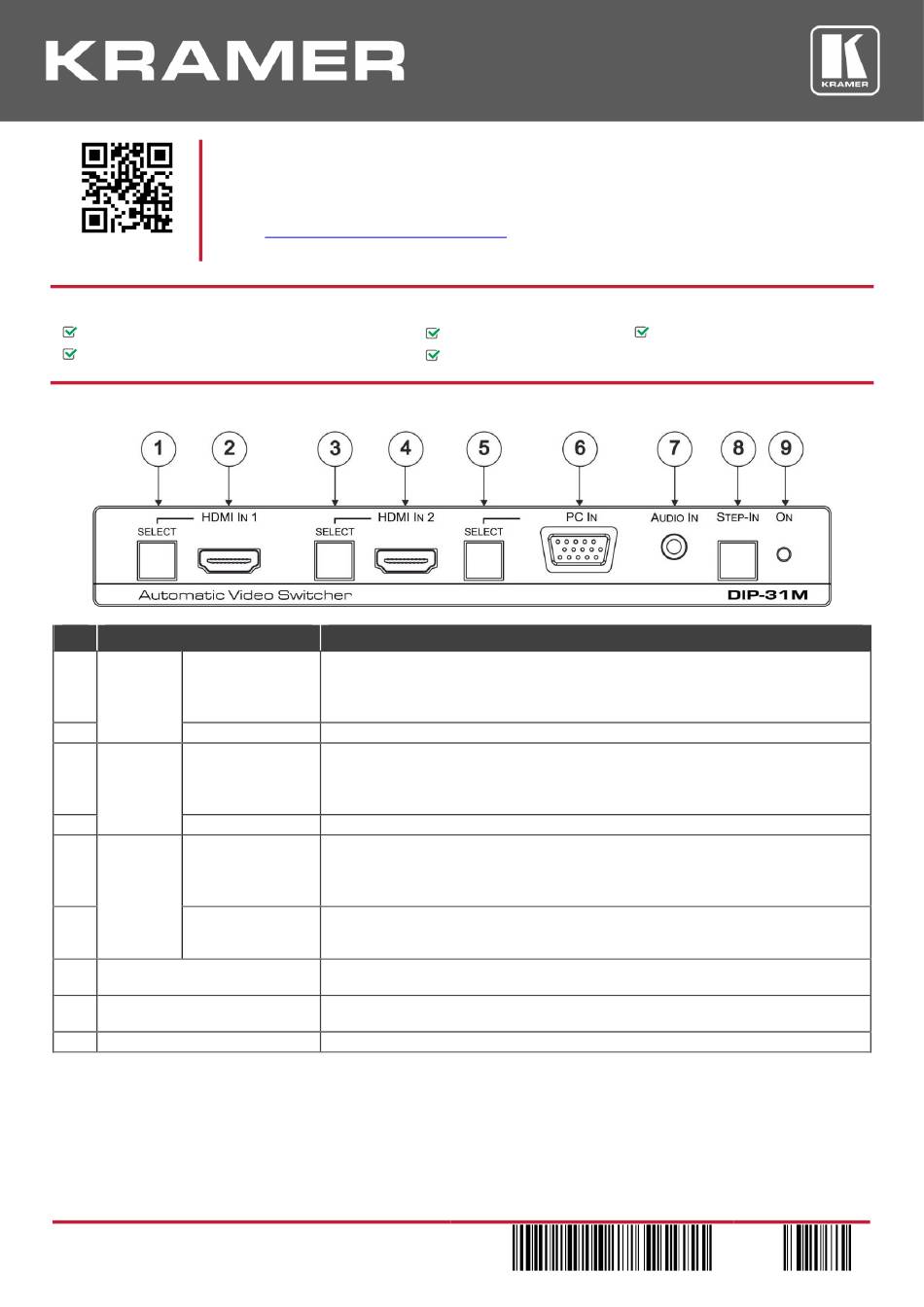

Step 2: Get to know your DIP-31M

# Feature
1 SELECT Button
HDMI IN 1
2 HDMI 1 Connector
3 SELECT Button
HDMI IN 2
4 HDMI 2 Connector
5 SELECT Button
PC IN
6 PC Graphics
15-pin HD
Connector
7 AUDIO IN 3.5mm Mini Jack
8 STEP-IN Button
9 ON LED
DIP-31M Quick Start
DIP-31M Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/DIP-31M
upgrades are available.
Function
Press to select the HDMI IN 1 input. When HDMI IN 1 is selected, the button lights
and indicates the selected audio (see Step 5):
Red – External audio from the analog Audio IN is selected
Green – Embedded audio from HDMI IN 1 is selected
Connects to the first HDMI source
Press to select the HDMI IN 2 input. When HDMI IN 2 is selected, the button lights
and indicates the selected audio (see Step 5):
Red – External audio from the analog Audio IN is selected
Green – Embedded audio from HDMI IN 2 is selected
Connects to the second HDMI source
Press to select the VGA input. When PC IN is selected, the button lights and indicates
the selected audio (see Step 5):
Red – External audio from the analog Audio IN is selected
Green – No audio is selected
Connects to the VGA source, (for example, a laptop)
Connects to the unbalanced, stereo audio source, (for example, the audio output of
the laptop)
Press to take control of the input that this device is connected to on a compatible
switcher
Lights green when the device is powered on
DIP-31M for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
4 Rubber feet
P/N: 2 9 0 0 - 3 0 1 0 7 6 QS
1 Quick start guide
Rev: 2
