Step 1: Check what's in the box
DIP-22
Automatic Video Switcher
1 Power adapter and cord
Step 2: Get to know your DIP-22
#
Feature
1
DP++ IN SELECT Button
2
DP++ Connector
3
HDMI™ IN SELECT Button
4
HDMI IN Connector
5
PC IN SELECT Button
6
PC IN 15-pin HD Connector
7
AUDIO IN 3.5mm Mini Jack
8
STEP-IN Button
9
ON LED
#
Feature
10 AUDIO OUT 3.5mm Mini Jack
11 ETHERNET RJ-45 Connector
12 CONTROL (G, Rx, Tx)Terminal
Block Connectors
DIP-22 Quick Start

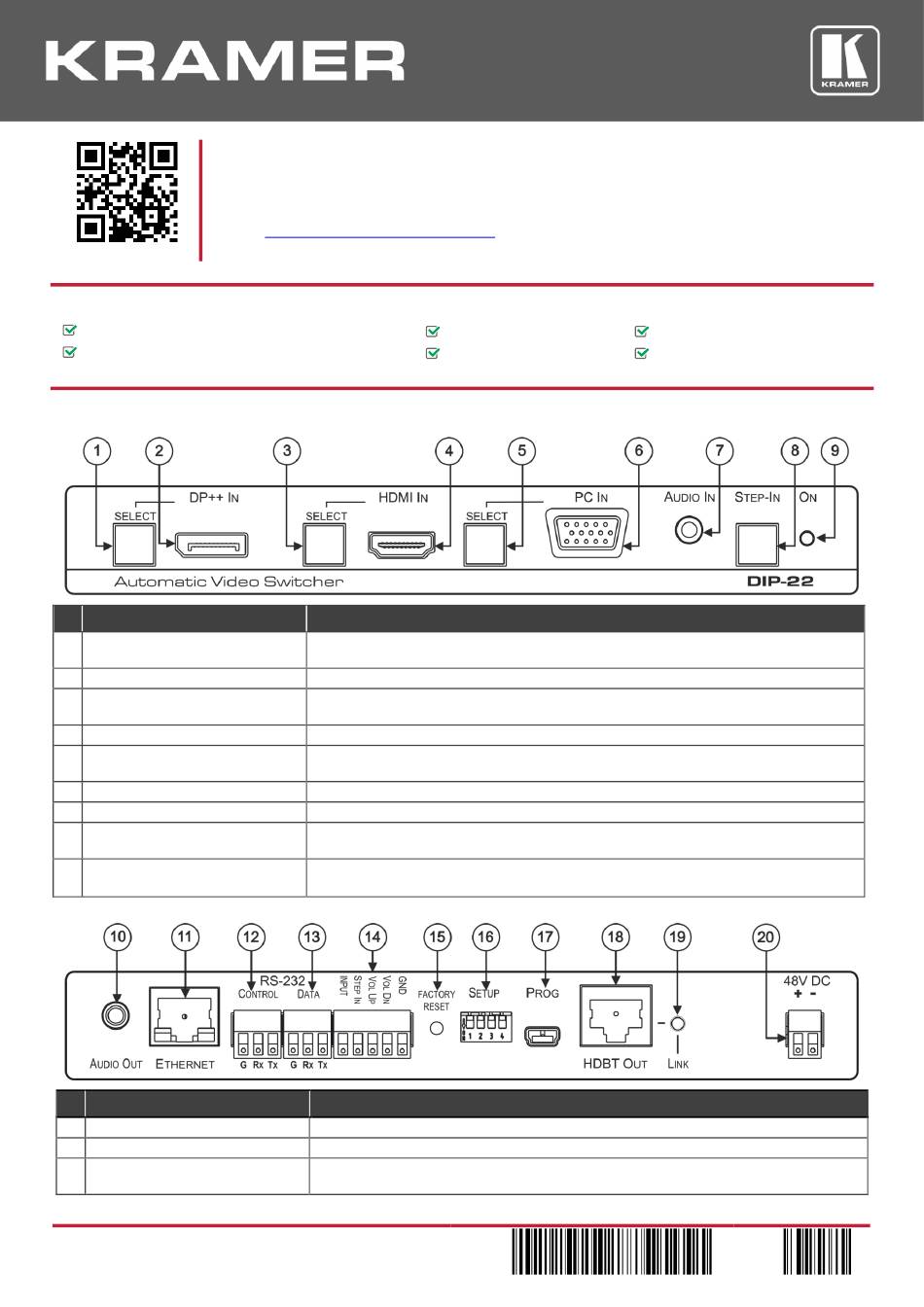

DIP-22 Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/DIP-22
upgrades are available.
Function
Press to select the DP++ input. Button lights red when analog audio is selected and
green when embedded audio is selected.
Connect to a DisplayPort source.
Press to select the HDMI input. Button lights red when analog audio is selected and
green when embedded audio is selected.
Connect to an HDMI source.
Press to select the PC graphics input. Button lights red when analog audio is selected
and green when embedded audio from the HDMI IN/DP++ IN is selected.
Connect to a computer graphics source.
Connect to an unbalanced stereo audio source.
Press to take control of the input that this device is connected to on a compatible
switcher.
Lights green when DIP-22 is powered via power adapter or PoE over HDBaseT.
Lights red when DIP-22 provides PoE over HDBaseT to a compatible PoE acceptor.
Function
Connect to an unbalanced, stereo audio acceptor.
Connect to a PC via a LAN to control DIP-22.
Connect to the PC or to a serial remote controller to control DIP-22.
DIP-22
for the first time.
to download the latest user manual and check if firmware
1 Bracket set
4 Rubber feet
P/N: 2 9 0 0 - 3 0 1 0 3 8 QS
1 Quick start guide
Rev: 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer DIP-22
Summary of Contents for Kramer DIP-22
- Page 1 Press to take control of the input that this device is connected to on a compatible STEP-IN Button switcher. ON LED Lights green when DIP-22 is powered via power adapter or PoE over HDBaseT. Lights red when DIP-22 provides PoE over HDBaseT to a compatible PoE acceptor. Feature Function 10 AUDIO OUT 3.5mm Mini Jack...
- Page 2 • Maximum mounting height for the device is 2 meters. Step 4: Connect inputs and outputs Always switch OFF the power on each device before connecting it to your DIP-22. To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/DIP-22.
- Page 3 Step 6: Operate DIP-22 Operate DIP-22 via: • Front panel SELECT buttons and STEP-IN button. • Contact closure switches. • Remotely, by RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller. • Embedded web pages via the Ethernet (including Maestro for configuring single-trigger room element automation scenarios).
- Page 4 Max. Actions Scenario configuration follows a simple 4-step process: Configure the ports – Define and configure a DIP-22 communication port to control remote devices: ▪ RS-232 and Ethernet – Select and enter the details of the controlled device to control it.
