Kramer DIP-31M User Manual
Automatic video switcher with maestro - full room automation and personalization
Hide thumbs
Also See for DIP-31M:
- User manual (104 pages) ,
- Quick start manual (4 pages) ,
- Quick start manual (4 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kramer DIP-31M
Summary of Contents for Kramer DIP-31M
- Page 1 USER MANUAL MODEL: DIP-31M Automatic Video Switcher With Maestro - Full Room Automation and Personalization P/N: 2900-300749 Rev 1 www.kramerAV.com...
- Page 2 Configuring the DIP-31M Setting the Audio and Video Configuration DIP-switch Using Auto Switching Delays Using the Step-in Feature Operating the DIP-31M Remotely Using the Web Pages Accessing DIP-31M Web Pages Selecting Input Signals Setting Device Configurations Creating Automatic Room Controls...
- Page 3 Default EDID 12.1 HDMI 12.2 PC-UXGA Protocol 3000 13.1 Understanding Protocol 3000 13.2 Kramer Protocol 3000 Syntax 13.3 Protocol 3000 Commands DIP-31M - Contents...
- Page 4 Figure 19: Creating a Command Figure 20: Entering a Command Database Figure 21: Connecting to a Command Database Figure 22: Find Command on Kramer Network Server Window Figure 23: Device-Specific Commands Available in the Database Figure 24: Adding a Command from the Database...
- Page 5 Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer DIP-31M Automatic Video Switcher which are part of the Kramer Audio Distribution System and are ideal for: Display systems requiring simple, automatic input selection.
- Page 6 Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
- Page 7 Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling/.

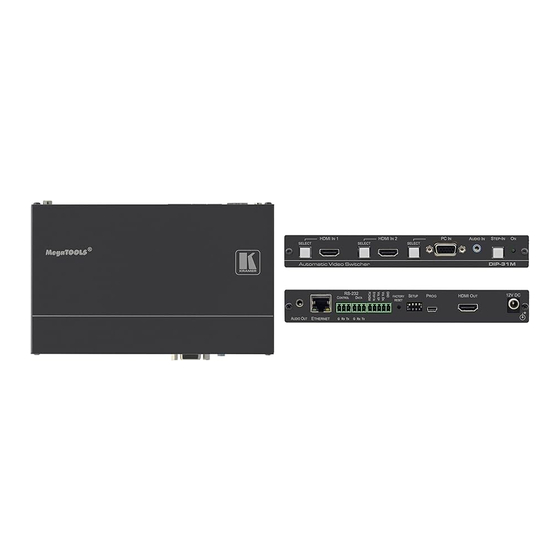

- Page 8 Overview DIP-31M is an automatic switcher for 4K HDMI, VGA, Ethernet, data and unbalanced audio signals. The unit supports resolutions up to 4K@60Hz (4:2:0) and various modes of input selection and transmits the signal via HDMI cable to a compatible receiver (for example, VS−62H or when connecting directly to a display/projector).
- Page 9 (via Wake-on-LAN) and turning on and off lights, projectors, displays, video sources, and HVAC. Integrated with Kramer’s dynamic database of device drivers, there is no end to the types of actions Maestro can perform. Maestro enables automated control over a variety of port types: RS-232, Ethernet, GPIO, relay, and IR.
- Page 10 (for example, the audio output of the laptop) Step-In Button Press to take control of the input that this device is connected to on a compatible switcher ON LED Lights green when the device is powered on DIP-31M - Defining the DIP-31M Automatic Video Switcher...
