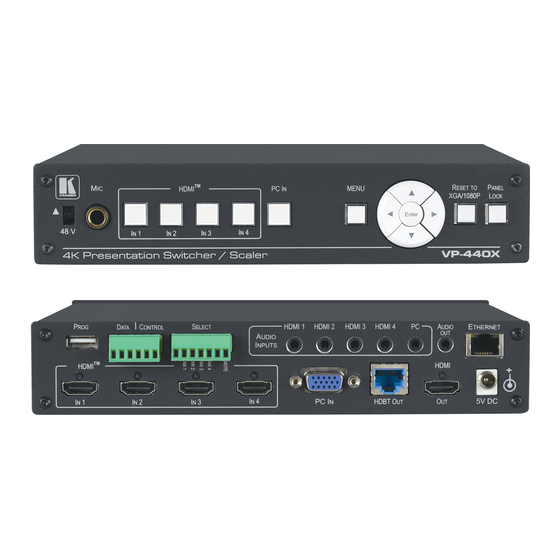

Kramer VP-440X User Manual

4k presentation switcher / scaler
Hide thumbs Also See for VP-440X:
Table of Contents

Advertisement

Quick Links

USER MANUAL
MODEL:
VP-440X
4K Presentation Switcher / Scaler
P/N: 2900-301382 Rev 1
www.kramerAV.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-440X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer VP-440X

Summary of Contents for Kramer VP-440X

  • Page 1 USER MANUAL MODEL: VP-440X 4K Presentation Switcher / Scaler P/N: 2900-301382 Rev 1 www.kramerAV.com...

  • Page 2: Table Of Contents

    Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining VP-440X 4K Presentation Switcher / Scaler Mounting VP-440X Connecting VP-440X Connecting to VP-440X via RS-232 Wiring RJ-45 Connectors Operating and Controlling VP-440X Using Front Panel Buttons Connecting the Remote Control Switches...

  • Page 3: Introduction

    Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we...

  • Page 4: Overview

    European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling.

  • Page 5: Typical Applications

    • Educational – classrooms, lecture theatres where 18G 4K support is required. • Projection systems in conference rooms, boardrooms, hotels and churches requiring a 4K presentation switcher / scaler. • Home theatre up-scaling. VP-440X – Introduction...
  • Page 6 Kramer Electronics Ltd. Controlling your VP-440X Control your VP-440X directly via the front panel push buttons (with on-screen menus), or: • By RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller. • Via the Ethernet using built-in user-friendly webpages.

  • Page 7: Defining Vp-440X 4K Presentation Switcher / Scaler

    Kramer Electronics Ltd. Defining VP-440X 4K Presentation Switcher / Scaler This section defines VP-440X. Figure 1: VP-440X 4K Presentation Switcher / Scaler Front Panel Feature Function 48 V () Slide Switch Slide up (48V) to select a condenser type microphone; slide down to select a dynamic type microphone (we recommend that you slide down if a microphone is not connected to the VP-440X).
  • Page 8 Kramer Electronics Ltd. Figure 2: VP-440X 4K Presentation Switcher / Scaler Rear Panel Feature Function HDMI™ IN Connectors Connect to an HDMI source (from 1 to 4). PROG USB Type A Use to upgrade the firmware. Connector DATA (Tx, Rx, GND)

  • Page 9: Mounting Vp-440X

    Kramer Electronics Ltd. Mounting VP-440X This section provides instructions for mounting VP-440X. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F).

  • Page 10: Connecting Vp-440X

    Kramer Electronics Ltd. Connecting VP-440X Always switch off the power to each device before connecting it to your VP-440X. After connecting your VP-440X, connect its power and then switch on the power to each device. Figure 3: Connecting to the VP-440X Rear Panel...

  • Page 11: Connecting To Vp-440X Via Rs-232

    Kramer Electronics Ltd. Connecting to VP-440X via RS-232 You can connect to the VP-440X via an RS-232 connection using, for example, a PC. VP-440X features two RS-232 3-pin terminal block connectors: • – to control CONTROL VP-440X (for example, via a connected PC) or for VP-440X to control an external device (for example, the projector on the HDMI output).

  • Page 12: Operating And Controlling Vp-440X

    Momentarily connect to G to select the HDMI 2 input. HDMI 3 Momentarily connect to G to select the HDMI 3 input. HDMI 4 Momentarily connect to G to select the HDMI 4 input. VP-440X – Operating and Controlling VP-440X...

  • Page 13: Using The Osd Menu

    Locking Front Panel Buttons on page 18. • Defining CEC on page 18. • Viewing Device Information on page 19. • Performing a Reset on page 19. • Updating the Firmware on page 19. VP-440X – Operating and Controlling VP-440X...
  • Page 14 To set the input source: 1. On the front panel press MENU. The menu appears. 2. Click Input and select the Source: ▪ HDMI 1 (default), HDMI 2, HDMI 3, HDMI 4. ▪ An input signal is selected. VP-440X – Operating and Controlling VP-440X...
  • Page 15 Select Embedded, Analog, or Automatic (default). Embedded selects the embedded HDMI audio source; Analog HDMI 2 selects the analog audio corresponding to the input; and HDMI 3 Automatic (default) selects the embedded audio when an HDMI HDMI 4 VP-440X – Operating and Controlling VP-440X...
  • Page 16 HDMI and HDBT outputs and are not processed by the DSP circuitry. Select ByPass for compressed audio sources, for example, sources with Dolby or DTS encoding. Audio parameters are defined. Talkover Mode Figure 4: Talkover Mode VP-440X – Operating and Controlling VP-440X...
  • Page 17 3. Click Advanced and select EDID Manage. 4. Select an HDMI input and then select File. The external EDID file (as stored via the EDID embedded page) is stored. An external EDID file is sent to a selected input. VP-440X – Operating and Controlling VP-440X...
  • Page 18 Leave outputs active always. Slow Disable outputs after ~ 2 minutes of no input detection. Fast Disable outputs after ~ 10 seconds of no input detection. Immediate Disable outputs immediately. Sleep mode is defined. VP-440X – Operating and Controlling VP-440X...
  • Page 19 Default Gateway Enter TCP port # (5000, by default). TCP Port Enter UDP port # (50000, by default). UDP Port View the current IP address. View the MAC address. MAC ADDRESS Network parameters are defined. VP-440X – Operating and Controlling VP-440X...
  • Page 20 Connecting the Remote Control Switches on page 10): 1. On the front panel press MENU. The menu appears. 2. Click Advanced and select Remote Pin. 3. Select the REMOTE configuration: ▪ Momentary Contact (toggle on/off). VP-440X – Operating and Controlling VP-440X...
  • Page 21 5. On the front panel press MENU. The menu appears. 6. Click FW Update and select On. 7. Wait for completion of firmware update. Firmware upgrade is complete when an image appears on the display. VP-440X – Operating and Controlling VP-440X...

  • Page 22: Operating Via Ethernet

    Connecting Ethernet Port Directly to a PC You can connect the Ethernet port of the VP-440X directly to the Ethernet port on your PC using a crossover cable with RJ-45 connectors. This type of connection is recommended for identifying the VP-440X with the factory configured default IP address.
  • Page 23 6. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department. VP-440X – Operating and Controlling VP-440X...
  • Page 24 8. Click Close. Connecting Ethernet Port via a Network Hub or Switch You can connect the Ethernet port of the VP-440X to the Ethernet port on a network hub or using a straight-through cable with RJ-45 connectors. Configuring Ethernet Port You can set the Ethernet parameters via the embedded webpages.

  • Page 25: Using Embedded Webpages

    The following operating systems and Web browsers are supported: Operating Systems Versions Windows 7 Firefox Chrome Safari Windows 10 Edge Firefox Chrome Safari Safari Some features might not be supported by some mobile device operating systems. VP-440X – Using Embedded Webpages...
  • Page 26 Kramer Electronics Ltd. To browse the VP-440X webpages: 1. Open your Internet browser. 2. Type the IP number of the device in the Address bar of your browser. For example, the default IP number: The controller application page appears. Figure 9: Embedded Webpage with Navigation List on Left 3.

  • Page 27: Loading And Saving Configurations

    1. In the navigation pane click Switching. The Switching page opens (Figure 2. Click Upload. An Explorer window opens. 3. Select the required file and click Open. The device is configured according to the saved preset. VP-440X – Using Embedded Webpages...

  • Page 28: Entering Standby Mode

    Switching page. To configure video input settings: 1. In the Navigation pane click Switching. The Switching page appears. Figure 11: Switching Page VP-440X – Using Embedded Webpages...

  • Page 29: Switching An Input To The Outputs

    (Figure 11). 2. In the Video Switching area, click an input button. The input button turns green, the corresponding input button LED on the front panel lights. The selected input is switched to the outputs. VP-440X – Using Embedded Webpages...

  • Page 30: Freezing / Blanking Video Outputs

    1. In the Navigation pane click Switching. The Switching page appears (Figure 11). 2. Use the slider controls in the Volume area of the webpage (or enter the volume level). 3. Click to mute the output. The microphone and/or output volume is adjusted. VP-440X – Using Embedded Webpages...

  • Page 31: Viewing Device Settings

    PROG USB port (see Upgrading Firmware on page 47). To upgrade the VP-440X firmware: 1. In the Navigation pane click Device Settings. The Device Settings page appears (see Figure 14). 2. Next to Firmware Update, click Choose File.
  • Page 32 Figure 16: Device Settings Page – New Firmware Update Complete 7. Make sure that the new version appears on the lower left side of the webpage. Figure 17: Current Firmware Information Display The new firmware is uploaded to the device. VP-440X – Using Embedded Webpages...

  • Page 33: Configuring Network Settings

    The current webpage session is disconnected. To access the webpages, reload with the new setting. 4. Click Soft Factory Reset to restart the unit. IP address values and User/Password settings do not return to their factory default parameters. Network settings are defined. VP-440X – Using Embedded Webpages...

  • Page 34: Configuring Video Output Settings

    HDMI outputs via the Output Settings webpage. To configure video output settings: 1. Click Output Settings on the Navigation List. The Output Settings page appears. ▪ For HDMI inputs: Figure 19: The Output Settings Page – HDMI IN is the Input VP-440X – Using Embedded Webpages...
  • Page 35 3. In the Size drop-down box and select the video size on the display: ▪ Over Scan ▪ Best Fit (default) ▪ Full ▪ Pan Scan ▪ Letter Box ▪ Under 2 ▪ Under 1 ▪ Follow In VP-440X – Using Embedded Webpages...

  • Page 36: Configuring Hdcp Per Input/Output

    3. In the On Input area, click ON or OFF for each of the four inputs to turn on or off supporting HDCP encryption for that input. HDCP is configured. VP-440X – Using Embedded Webpages...

  • Page 37: Managing Edid

    2. Under Read from, click the required EDID source or click Browse to use an EDID configuration File. 3. Under Copy to, check the inputs to copy the selected EDID to. The Copy button is enabled. VP-440X – Using Embedded Webpages...
  • Page 38 Kramer Electronics Ltd. 4. Click Copy. The selected EDID is copied to the selected inputs and the Copy EDID Results message appears. Figure 23: The EDID Page –The Copy EDID Results 5. Click Close. EDID is copied. VP-440X – Using Embedded Webpages...

  • Page 39: Adjusting Audio Input Settings

    HDMI (for example, for a DVI input signal).  Analog – the analog audio input is selected.  Embedded – the embedded audio in the HDMI signal is selected. Audio settings are defined. VP-440X – Using Embedded Webpages...

  • Page 40: Adjusting Microphone Settings

    Audio settings are defined. Setting Equalizer To adjust equalizer 1. Click Audio on the Navigation List. The Audio page appears (see Figure 24). 2. In the Equalizer area, use the slider to select equalizer frequencies. EQ is adjusted. VP-440X – Using Embedded Webpages...

  • Page 41: Setting Auto Sync Off

    Auto Sync off option details. 1. Click Advanced on the Navigation List. The Advanced page appears. Figure 25: The Advanced Page 2. Set Auto Sync off to Off, Fast, Slow or Immediate. Auto Sync Off is set. VP-440X – Using Embedded Webpages...

  • Page 42: Configuring Automatic Switching Settings

    1. Click Advanced on the Navigation List (see Figure 25). The Advanced page appears. 2. Open the Lock Mode drop-down box and select: ▪ ▪ Menu Only ▪ All & Save ▪ Menu Only & Save Lock mode is defined. VP-440X – Using Embedded Webpages...

  • Page 43: Controlling Via The Rs-232 Terminal Block Connectors

    RS-232 port on the HDBT receiver: • Connect to the Rx and Tx pins on the DATA RS-232 port on VP-440X. Doing this establishes a hardware link to the receiver’s Tx and Rx signals. Use the RS-232 CONTROL port to perform the following actions: •...
  • Page 44 Kramer Electronics Ltd. VP-440X Control of a Device via RS-232 To set up VP-440X to control an external device via RS-232: 1. Connect the CONTROL RS-232 port on the VP-440X to the RS-232 port of an external device (for example, a display connected to HDMI OUT).
  • Page 45 For RS-232 control of an external device on the receiver side (for example, the display at the HDBT receiver), set up as above, connect the CONTROL RS-232 port to the DATA RS-232 port and connect Rx and Tx on the receiver to the display. VP-440X – Using Embedded Webpages...

  • Page 46: Password Protecting Webpage Access

    1. Click Authentication on the Navigation List. The Authentication page appears. 2. Check Authenticate Web Pages access to indicate that you want the webpages to lock. 3. Enter a User Name (Admin, by default). 4. Enter a password (Admin, by default). VP-440X – Using Embedded Webpages...
  • Page 47 2. Uncheck Authenticate Web Pages access to indicate that you do not want the webpages to lock. 3. Click the Set changes button below, and you will see the small white key disappear from the upper right corner. Authentication is removed. VP-440X – Using Embedded Webpages...

  • Page 48: Viewing Device Information

    Kramer Electronics Ltd. Viewing Device Information In the Navigation page, open the About page to view the webpage version and Kramer Electronics details. Figure 33: About Page VP-440X – Using Embedded Webpages...

  • Page 49: Upgrading Firmware

    Kramer Electronics Ltd. Upgrading Firmware Upgrade the firmware via any of the following options: • Updating the Firmware on page 19. • Upgrading Firmware on page 29. VP-440X – Upgrading Firmware...

  • Page 50: Technical Specifications

    300 to 115200 baud Control RS-232 Baud Rate 115200 Extension Line Compliance HDBaseT 1.0 When using Kramer HDBaseT cables: Up to 40m (130ft) At 4K@60Hz (4:2:0) Up to 70m (230ft) At full HD (1080p @60Hz 24bpp) Controls Rear Panel Input-select remote contact closures...
  • Page 51 1.6kg (3.5lbs) approx. Accessories Included Power adapter cord Optional For optimum range and performance use the recommended USB, Ethernet, serial and IR Kramer cables available at www.kramerav.com/product/VP-440X Specifications are subject to change without notice at www.kramerav.com VP-440X – Technical Specifications...

  • Page 52: Default Communication Parameters

    Press the Reset to XGA/720p Button while plugging the power to reset the machine Input Resolution Support Resolution/Refresh Rate HDMI 480I/576I 480P/576P 720P@(60/50) 1080I@(60/50) 1080P@(60/50) 1080P@(24/25/30) 640x480@(60/67/72/75/85) 800x600@(56/60/72/75) 1024x768@(60/70/75) 1280x1024@(60/75) 1280X960@60 1280X720@60 1920X1080@60 1600X1200@60 1280x768@60 1280x800@60 1360x768@60 1366x768@60 1400x1050@60 1600X900@60 RB 1680x1050@60 1920x1200@60 RB 2560x1400@60 RB 2560X1600@60 RB VP-440X – Technical Specifications...

  • Page 53: Output Resolution Support

    56. Default EDID 1080P Monitor Model name....VP-440X Manufacturer..... KMR Plug and Play ID..KMR031D Serial number.... 49 Manufacture date..2016, ISO week 19 ------------------------- EDID revision.... 1.3 Input signal type..Digital Color bit depth..Undefined VP-440X – Technical Specifications...
  • Page 54 720 x 576i at 50Hz - Doublescan (4:3, 16:15) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) 1920 x 1080p at 25Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) VP-440X – Technical Specifications...
  • Page 55 Modeline...."1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync Standard timings supported 640 x 480p at 60Hz - IBM VGA 640 x 480p at 72Hz - VESA 640 x 480p at 75Hz - VESA VP-440X – Technical Specifications...
  • Page 56 Supports 48bpp... Yes Supports 36bpp... Yes Supports 30bpp... Yes Supports YCbCr 4:4:4..Yes Supports dual-link DVI... No Maximum TMDS clock..300MHz Data payload..... 20008001020304 Report information Date generated... 23/07/2019 Software revision..2.41.0.818 Operating system..6.2.9200.2 Raw data VP-440X – Technical Specifications...
  • Page 57 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) VP-440X – Technical Specifications...
  • Page 58 1920 x 1080p at 60Hz - VESA STD 640 x 480p at 85Hz - VESA STD 800 x 600p at 85Hz - VESA STD 1024 x 768p at 85Hz - VESA STD 1280 x 1024p at 85Hz - VESA STD VP-440X – Technical Specifications...
  • Page 59 Supports 30bpp... No Supports YCbCr 4:4:4..No Supports dual-link DVI... No Maximum TMDS clock..35MHz Report information Date generated... 23/07/2019 Software revision..2.41.0.818 Operating system..6.2.9200.2 Raw data 00,FF,FF,FF,FF,FF,FF,00,2D,B2,0D,06,31,00,00,00,06,1C,01,03,80,24,24,8C,C2,90,20,9C,54,50,8F,26, 21,52,56,2F,CF,00,A9,40,81,80,90,40,D1,C0,31,59,45,59,61,59,81,99,08,E8,00,30,F2,70,5A,80,B0,58, 8A,00,BA,88,21,00,00,1E,02,3A,80,18,71,38,2D,40,58,2C,45,00,BA,88,21,00,00,1E,00,00,00,FC,00,56, 50,2D,34,34,30,58,0A,20,20,20,20,20,00,00,00,FD,00,17,3D,0F,88,3C,00,0A,20,20,20,20,20,20,01,F9, 02,03,3B,F0,52,10,1F,04,13,05,14,02,11,06,15,22,21,20,5D,5E,5F,60,61,23,09,07,07,83,01,00,00,6E, 03,0C,00,10,00,78,3C,20,00,80,01,02,03,04,67,D8,5D,C4,01,78,80,07,E4,0F,00,00,03,9A,29,A0,D0,51, 84,22,30,50,98,36,00,10,0A,00,00,00,1C,66,21,56,AA,51,00,1E,30,46,8F,33,00,10,09,00,00,00,1E,28, 3C,80,A0,70,B0,23,40,30,20,36,00,10,0A,00,00,00,1A,00,00,00,00,00,00,00,00,00,00,00,00,00,00,E0 VP-440X – Technical Specifications...

  • Page 60: Protocol 3000

    (<…>) and must be separated by a period (.). The command framing varies according to how you interface with the VP-440X. The following figure displays how the # command is framed using terminal communication software (such as Hercules): VP-440X –...

  • Page 61: Protocol 3000 Commands

    Get device build date. COMMAND Get the device build date: #BUILD-DATE?<CR> #BUILD-DATE?<CR> YYYY = Year MM = Month FEEDBACK DD = Day ~nn@BUILD-DATEdate, time<CR><LF> – Format: hh:mm:ss where time hh = hours mm = minutes ss = seconds VP-440X – Protocol 3000...
  • Page 62 #FACTORY<CR> FEEDBACK This command deletes ~nn@FACTORYok<CR><LF> all user data from the device. The deletion can take some time. Your device may require powering off and powering on for the changes to take effect. VP-440X – Protocol 3000...
  • Page 63 In NT-52N, this ~nn@LOCK-FPlock/unlock<CR><LF> command includes the PortNumber (1-2) parameter. – 1 io_index LOUDNESS Set audio loudness. COMMAND Set audio loudness: – On/Off enabled #LOUDNESSio_index, enabled<CR> #LOUDNESS1,1<CR> 0 – Off FEEDBACK 1 – On ~nn@LOUDNESSio_index, enabled<CR><LF> VP-440X – Protocol 3000...
  • Page 64 Reset machine (DNS) COMMAND Reset the machine name (S/N #NAME-RST<CR> name to factory default. last digits are 0102): #NAME- FEEDBACK Factory default of RSTkramer_0102<CR> ~nn@NAME-RSTok<CR><LF> machine (DNS) name is “KRAMER_” + 4 last digits of device serial number. VP-440X – Protocol 3000...
  • Page 65 Get subnet mask. COMMAND Get the subnet mask: #NET-MASK?<CR> #NET-MASK?<CR> FEEDBACK ~nn@NET-MASKnet_mask<CR><LF> – XX.XX where X is a version PROT-VER? Get device protocol COMMAND Get the device protocol version: version. #PROT-VER?<CR> #PROT-VER?<CR> decimal digit FEEDBACK ~nn@PROT-VER3000:version<CR><LF> VP-440X – Protocol 3000...
  • Page 66 – 1 TLK? Get audio talkover mode COMMAND Get audio talkover mode status: – Talkover mode talkover_mode status. #TLK?io_index<CR> #TLK?1<CR> 0 – Off FEEDBACK 1 – Mixer ~nn@TLKio_index, talkover_mode<CR><LF> 2 – Talkover 3 – Mic only VP-440X – Protocol 3000...
  • Page 67 205=1360x768 define them using the 206=1280x720 DEF-RES command. 207=1280x800 208=1280x1024 209=1440x900 210=1400x1050 211=1680x1050 212=1600x1200 213=1920x1080 214=1920x1200 215=2560x1600 216=2560x1440 217=480p 218=576p 219=720p50 220=720p60 221=1080p24 222=1080p25 223=1080p30 224=1080p50 225=1080p60 226=4k24 227=4k25 (HDMI only) 228=4k30 (HDMI only) 229=4k50 230=4k60 VP-440X – Protocol 3000...
  • Page 68 Get video on output status. COMMAND Get video on output status: #VMUTE?out_index<CR> #VMUTE?1<CR> the specific output: 1. Video mute parameter flag – Video Mute FEEDBACK 2 (blank picture) is not 0 – Off ~nn@VMUTEout_index, flag<CR><LF> supported. 1 – On VP-440X – Protocol 3000...

  • Page 69: Result And Error Codes

    (Reserved) ERR_RESERVED_8 (Reserved) ERR_RESERVED_9 (Reserved) ERR_RESERVED_10 (Reserved) ERR_RESERVED_11 (Reserved) ERR_RESERVED_12 (Reserved) ERR_EDID_CORRUPTED EDID corrupted ERR_NON_LISTED Device specific errors File has the same CRC – not changed ERR_SAME_CRC ERR_WRONG_MODE Wrong operation mode ERR_NOT_CONFIGURED Device/chip was not initialized VP-440X – Protocol 3000...
  • Page 70 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this produc t is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
  • Page 71 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found. We welcome your questions, comments, and feedback.
