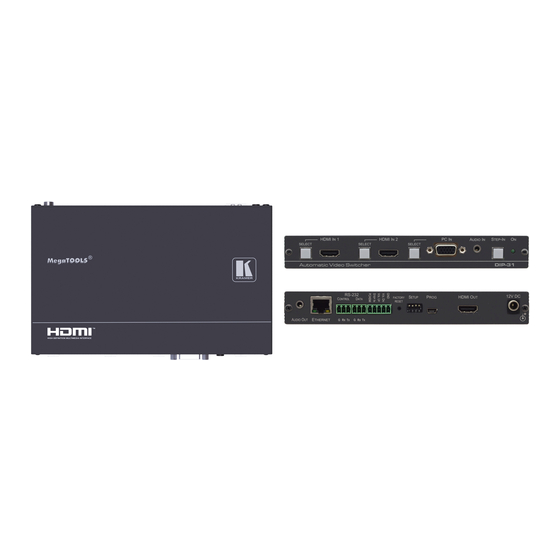

Kramer DIP-31M User Manual

Automatic video switcher with maestro - full room automation and personalization
Hide thumbs Also See for DIP-31M:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
MODEL:
DIP-31M
Automatic Video Switcher
With Maestro - Full Room Automation and
Personalization
P/N: 2900-300749 Rev 4
www.KramerAV.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIP-31M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer DIP-31M

Summary of Contents for Kramer DIP-31M

  • Page 1 USER MANUAL MODEL: DIP-31M Automatic Video Switcher With Maestro - Full Room Automation and Personalization P/N: 2900-300749 Rev 4 www.KramerAV.com...

  • Page 2: Table Of Contents

    Configuring the DIP-31M Setting the Audio and Video Configuration DIP-switch Using Auto Switching Delays Using the Step-in Feature Operating the DIP-31M Remotely Using the Web Pages Accessing DIP-31M Web Pages Selecting Input Signals Setting Device Configurations Creating Automatic Room Controls...
  • Page 3 12.1 HDMI 12.2 PC-UXGA Protocol 3000 13.1 Understanding Protocol 3000 13.2 Kramer Protocol 3000 Syntax 13.3 Protocol 3000 Commands DIP-31M - Contents...
  • Page 4 Figure 19: Creating a Command Figure 20: Entering a Command Database Figure 21: Connecting to a Command Database Figure 22: Find Command on Kramer Network Server Window Figure 23: Device-Specific Commands Available in the Database Figure 24: Adding a Command from the Database...

  • Page 5: Introduction

    Digital Signage; GROUP 13: Audio; GROUP 14: Collaboration; and GROUP 15: KM & KVM Switches. Congratulations on purchasing your Kramer DIP-31M Automatic Video Switcher which are part of the Kramer Audio Distribution System and are ideal for: • Small–mid-sized meeting rooms with minimal user intervention •...

  • Page 6: Getting Started

    Achieving the Best Performance To achieve the best performance: • Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).

  • Page 7: Recycling Kramer Products

    Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling/.

  • Page 8: Overview

    Overview DIP-31M is an automatic switcher for 4K HDMI, VGA, Ethernet, data and unbalanced audio signals. The unit supports resolutions up to 4K@60Hz (4:2:0) and various modes of input selection and transmits the signal via HDMI cable to a compatible receiver (for example, VS−62H or when connecting directly to a display/projector).

  • Page 9: About Maestro

    (via Wake-on-LAN) and turning on and off lights, projectors, displays, video sources, and HVAC. Integrated with Kramer’s dynamic database of device drivers, there is no end to the types of actions Maestro can perform. Maestro enables automated control over a variety of port types: RS-232, Ethernet, GPIO, relay, and IR.

  • Page 10: Defining The Dip-31M Automatic Video Switcher

    (for example, the audio output of the laptop) Step-In Button Press to take control of the input that this device is connected to on a compatible switcher ON LED Lights green when the device is powered on DIP-31M - Defining the DIP-31M Automatic Video Switcher...

  • Page 11: Figure 2: Dip-31M Rear Panel

    PROG Mini USB Connector Connect to a PC to perform a firmware upgrade (see Section 9.8) HDMI OUT Connector Connect to a compatible HDMI display 12V DC Connector Connect to the supplied power adapter DIP-31M – Defining the DIP-31M Automatic Video Switcher...

  • Page 12: Connecting The Dip-31M Automatic Video Switcher

    Switcher Always switch off the power to each device before connecting it to your DIP-31M. After connecting your DIP-31M, connect the power to each of them and then switch on the power to each device. Figure 3: Connecting the DIP-31M...
  • Page 13 5.1). 9. Connect the Vol Up/Vol Down 3-pin terminal block to remote, contact- closure, volume control switches. 10. Connect the power adapter to the DIP-31M and to the mains power, (not shown in Figure DIP-31M - Connecting the DIP-31M Automatic Video Switcher...

  • Page 14: Connecting The Remote Control Switches

    Connecting the Remote Control Switches You can connect remote, momentary contact-closure switches to the terminal block on the rear panel of the DIP-31M to control the device. Figure 4 illustrates the connections from the terminal block to the contact-closure switches.

  • Page 15: Wiring The Rj-45 Connectors

    This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors. Figure 5: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown DIP-31M - Connecting the DIP-31M Automatic Video Switcher...

  • Page 16: Principles Of Operation

    In auto mode, the switching selection is performed based on either last connected or priority input. In last connected mode, if the signal on the current input is lost, the DIP-31M automatically selects the last connected input, (the delay depending on the configurable signal-lost timeout).

  • Page 17: Signal Loss And Unplugged Cable Timeouts

    Auto Analog Analog audio HDMI Auto Analog audio HDMI Auto No audio When there is an audio signal but no video signal, the output is a black video pattern together with the analog audio signal. DIP-31M - Principles of Operation...

  • Page 18: Vga Phase Shift

    Each long press steps the phase shift up one step, starting from 0 and going to 31. When set to 31, another long press steps the shift to 0. • Using the Web pages, (see Section • Protocol 3000 commands over RS-232 (see Section 13). DIP-31M - Principles of Operation...

  • Page 19: Operating The Dip-31M

    Operating the DIP-31M The DIP-31M can be operated using any of the following methods: • Front panel buttons. • Remote contact-closure switch, (see Section 5.1). • Web pages, (see Section • Protocol 3000 commands, (see Section 13). Locking the EDID...

  • Page 20: Controlling Analog Audio Output Volume

    The analog audio output volume can be controlled using the Web pages, (see Section 9.3) or via the remote, contact-closure switches connected to pins 3 and 4 of the Remote terminal block, (see Section 5.1). The volume is adjustable from -83dB to +24dB. DIP-31M - Operating the DIP-31M...

  • Page 21: Configuring The Dip-31M

    Embedded HDMI  analog Audio In (high to low priority) Off (up) On (down) Automatic—Priority selection. Analog Audio In  embedded HDMI (high to low priority) On (down) Off (up) Embedded HDMI On (down) On (down) Analog Audio In DIP-31M - Configuring the DIP-31M...

  • Page 22: Using Auto Switching Delays

    Using Auto Switching Delays When the DIP-31M is configured for auto switching, the delay before a new input is automatically selected can be changed as shown in the table below. (For the delay settings on the Web page, see Section 9.4.) The following auto switching timeouts...

  • Page 23: Operating The Dip-31M Remotely Using The Web Pages

    Operating the DIP-31M Remotely Using the Web Pages The DIP-31M can be operated remotely using the embedded Web pages. Web pages are accessed using a Web browser and an Ethernet connection. Before attempting to connect: • Ensure that your browser is supported (see Section 11.1).

  • Page 24: Accessing Dip-31M Web Pages

    2. Type the IP number of the device (see Section 11.1) in the address bar of your browser. The default IP address of the DIP-31M is 192.168.1.39 If authentication is enabled, the following window appears (Figure and you must enter the valid username (Admin) and password (Admin) to access the Web pages.

  • Page 25: Figure 8: Opening Web Page

    • To hide the left-hand side page panel, click the Hide button ◄. • To lock the page, click To toggle in and out of full screen mode, click • DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...

  • Page 26: Selecting Input Signals

    Click and slide up and down to increase or decrease the audio output volume (-83dB to +24dB) Click to mute or unmute the output audio Mute/Unmute Button Setting Device Configurations DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...

  • Page 27: Figure 10: Device Settings Page

    The Device Settings page enables you to identify your DIP-31M: • Set the unit name and view the model type, firmware version, serial number and MAC address. • Edit IP settings, (for example, enable DHCP, set IP, mask and gateway addresses and set UDP or TCP ports).
  • Page 28 (see Section 9.3.2) 9.3.1 Loading and Saving Configurations The DIP-31M enables loading and saving device setting configurations. This is especially useful when setting up multiple DIP-31M devices. To load a configuration: 1. Click Load. The File Upload browser window appears.

  • Page 29: Creating Automatic Room Controls

    A progress message is displayed. Upon completion, a success message is displayed. 3. Click OK. Creating Automatic Room Controls The DIP-31M Control Settings page (powered by Maestro) enables you to configure single-trigger room element automation scenarios. The following table provides examples of room automation scenarios: Trigger...

  • Page 30: Figure 11: Control Settings Page

    The Control Settings page is divided into five sections: Ports, Commands, Actions, Editor and Triggers. Clicking Ports, Commands, Actions, or Triggers enables you to configure that section in the Editor section. DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...
  • Page 31 Click to enable operation of the trigger Click to disable operation of the trigger For a full explanation of how to use Maestro to create automated room control, see Section DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...

  • Page 32: Setting Video And Audio Parameters

    Indicates the current audio selection: Embedded or analog Indicator HDCP Support (on HDMI Select HDCP support for HDMI 1 and HDMI 2: input) Buttons Disabled—HDCP encrypted content is not passed Enabled—HDCP support is dictated by the display DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...

  • Page 33: Setting Authentication

    Enter the new password, (up to 15 printable ASCII New Password box characters) Retype New Password Retype the new password CHANGE button Click CHANGE to save the new authentication details DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...

  • Page 34: Managing Edid

    When the status of an EDID changes on the device (caused by outputs being exchanged), the display is not updated automatically. In the browser, click Refresh to update the display. DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...
  • Page 35 Note: An input must be connected to the device to read the EDID from a connected output. If a video signal is not detected on the input, the output is disabled and the EDID cannot be read. DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...

  • Page 36: Upgrading The Firmware

    The firmware file name is displayed in the Firmware Upgrade page. 4. Click Start Upgrade. The firmware file is loaded and a progress bar is displayed. Do not interrupt the process or the DIP-31M may be damaged. 5. When the process is complete reboot the device. The firmware is upgraded.

  • Page 37: About Us

    About Us The About Us page displays details of the Web version and Kramer contact information. Figure 16: About Us Page DIP-31M - Operating the DIP-31M Remotely Using the Web Pages...

  • Page 38: Using Maestro To Create Single-Trigger Control

    To see an example scenario that shows the whole process, see Section 10.6. 10.1 Configuring Ports The first step in defining a trigger-based room element automation scenario is to configure the ports used to control specific room devices, such as a projector. DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 39: Figure 17: Configuring An Rs-232 Port

    3. Define properties by clicking the drop-down boxes and selecting or inserting the correct values: For RS-232 select baud rate, stop bits, parity and data bits (Figure 17).  For Ethernet select Type TCP/UDP, IP address and port number  (Figure 18). DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 40: Figure 18: Configuring An Ethernet Port

    To edit a port: 1. In the Ports section, click a port. The port information is displayed in the Editor (Figure 18). 2. Edit the port information as necessary and click Save All. DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 41: Creating Commands

    To create a command: 1. In the Commands section, click A new command opens in the Editor. Figure 19: Creating a Command 2. Name the command using an easily recognizable name such as, Input_HDMI_1. DIP-31M - Using Maestro to Create Single-Trigger Control...
  • Page 42 Enter Protocol 3000 commands (see Section 13) or device-specific commands from other manufacturers. Choose from a wide selection of prepared Kramer and non-Kramer commands from the database (see Section 10.3). 4. Optionally, test the new command: Specify the port to which the command is sent (choose from the drop-down box) and click Test.

  • Page 43: Using A Command Database

    Find K-Config on the DIP-31M webpage: www.kramerav.com/il/product/dip-31m#Tab_Resources 10.3.1 Connecting to a Command Database To connect to a command database: 1. In the Editor section, click The following screen appears: Figure 20: Entering a Command Database DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 44: Figure 21: Connecting To A Command Database

    When the server is found, the database automatically connects and the DB status indicator lights green. If a server is not found, the status indicator does not light green. Try another address or click Close. 3. Click Close. DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 45: Figure 22: Find Command On Kramer Network Server Window

    To select commands from the database: 1. In the Editor section, click Search on DB. The Find Command on Kramer Network Server window appears: Figure 22: Find Command on Kramer Network Server Window 2. Click each drop-down box and select from the list of a vendors, types, models and revisions –...

  • Page 46: Figure 23: Device-Specific Commands Available In The Database

    When all search parameters are complete, a list of available commands appears: Figure 23: Device-Specific Commands Available in the Database 3. Double-click a command. The command appears in the Commands and Editor sections: Figure 24: Adding a Command from the Database DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 47: Figure 25: Free Searching In The Database

    Search Limit field. 3. Click Search. The search results are displayed: Figure 25: Free Searching in the Database 4. Double-click a command to select it or click Clear and enter new search criteria. DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 48: Figure 26: Adding A Wake On Lan Command

    3. Enter the MAC address of the device that receives the WOL command. 4. Select the port that connects to the device. 5. Click Save All. The new WOL command is created. DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 49: Creating Actions

    A new action is opened in the Editor: Figure 27: Dragging a Command to an Action 2. In the Editor section, name the action using an easily recognizable name such as, Mute_Audio. DIP-31M - Using Maestro to Create Single-Trigger Control...
  • Page 50 3. Drag individual commands from the Commands section to the Macro box. You can change the order of the commands by dragging them up or down in the box: DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 51: Figure 28: Adding A Delay

    4. Optionally, click and set the delay time between commands (from 0 to 999 seconds): Figure 28: Adding a Delay DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 52: Figure 29: Testing An Action Command

    5. Optionally, test the new command: Specify the port to which the command is sent (choose from the drop-down box) and click Test.. Figure 29: Testing an Action Command 6. Click Save All. The new action is created. DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 53: Setting A Trigger

    After the "delay power off" timeout period has expired (default 900 seconds) following no input activity Step In When a Step-in master makes this device the active input Power On When the the device is powered on DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 54: Figure 30: Setting A Trigger

    When the trigger is disabled, none of the specified actions take place, even if the trigger becomes active. 4. Click Save All. The trigger is defined. DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 55: Configuration Example

    Close the room shades. • Turn the projector on. • Turn the room lights off. To accomplish this, the customer has installed the following Kramer equipment in the meeting room: • DIP-31M – Automatic Video Switcher controls the room •...

  • Page 56: Figure 31: Example Room Control Scenario

    Figure 31 illustrates the room setup and connections. Figure 31: Example Room Control Scenario DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 57: Figure 32: Configuring The Lights Ethernet Port

    192.168.1.1:5000) that operates two relays to control the screen and blinds. • The Ethernet port named Lights connects to a Kramer RB-6 (IP address: 192.168.1.5:5000) that powers the lights on port 4. Figure 32: Configuring the Lights Ethernet Port...

  • Page 58: Figure 33: Screen Down Command In Protocol 3000

    The Projector and Lights commands were taken from the database. Note: To use the command database, make sure the correct version of database is installed. To connect, enter the IP of the host computer (see Section 10.3.1). DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 59: Figure 34: Barco Projector Command List

    Power : On is the default command name that turns on a Barco projector. The device-specific command was selected from the command database. Figure 34: Barco Projector Command List Double-click the command to add it to the list. DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 60: Figure 35: Projector On Command

    Note the device name in the lower-right corner of the Editor window. Figure 35: Projector On Command DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 61: Figure 36: Rb-6 Command List

    As shown in Figure 31, the lighting system is connected to output 4. Figure 36: RB-6 Command List Here, the command name Out_4_OFF was changed to Lights Off. Figure 37: Lights Off Command DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 62: Figure 38: Adding A Delay To The Action Command List

    To enter a delay between commands, click the clock icon and adjust the delay time. • Commands and ports can be changed by selecting a different item in the drop-down boxes of the command. Figure 38: Adding a Delay to the Action Command List DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 63: Figure 39: Specifying A Trigger For The Action

    Click a trigger from the trigger list. • Select the Action to run from the drop-down box in the Editor. • Enable or disable the trigger in the status box. Figure 39: Specifying a Trigger for the Action DIP-31M - Using Maestro to Create Single-Trigger Control...

  • Page 64: Technical Specifications

    34.5cm x 16.5cm x 5.2cm (13.6” x 6.5” x 2.0”) W, D, H Shipping weight 1.03kg (2.3lbs) approx. Environmental Complies with appropriate requirements of RoHs and WEEE regulatory compliance Included accessories Power adapter Warranty 7 years parts and labor DIP-31M - Technical Specifications...

  • Page 65: Default Ip Parameters

    85Hz; 75Hz; 70Hz; 60Hz 1152x864p 75Hz 1280x768p 60Hz 1280x800p 60Hz 1280x960 60Hz 1280x1024p 75Hz; 60Hz 1360x768p 60Hz 1366x768 60Hz; 50Hz 1400x1050p 60Hz 1440x900p 60Hz 1600x900p 60Hz 1600x1200p 60Hz 1680x1050p 60Hz 1920x1080p 50Hz; 60Hz; 30Hz; 24Hz; 1920x1080i 50Hz; 60Hz; DIP-31M - Technical Specifications...

  • Page 66: Supported Vga Resolutions

    640x480p 60Hz 720x480p 60Hz 800x600p 60Hz 848x480p 60Hz 1024x768p 60Hz 1152x864 75Hz 1280x720p 60Hz; 50Hz 1280x768 60Hz 1280x800 60Hz 1280x960p 60Hz 1280x1024p 60Hz 1360x768 60Hz; 1366x768 60Hz; 50Hz 1400x1050 60Hz 1440x900 60Hz 1920x1080p 60Hz 1920x1200 60Hz DIP-31M - Technical Specifications...

  • Page 67: Default Edid

    Default EDID Each input on the DIP-31M is loaded with a factory default EDID. 12.1 HDMI Monitor Model name....DIP-31 Manufacturer..... KMR Plug and Play ID..KMR1200 Serial number.... n/a Manufacture date..2015, ISO week 255 Filter driver.... None ------------------------- EDID revision.... 1.3 Input signal type..
  • Page 68 Front left/right center.. No Rear left/right center... No Rear LFE....No Report information Date generated... 09/08/2015 Software revision..2.60.0.972 Data source....File Operating system..6.1.7601.2.Service Pack 1 Raw data 00,FF,FF,FF,FF,FF,FF,00,2D,B2,00,12,00,00,00,00,FF,19,01,03,80,34,20,78,EA,B3,25,AC,51,30,B4,26, 10,50,54,FF,FF,80,81,8F,81,99,A9,40,61,59,45,59,31,59,71,4A,81,40,01,1D,00,72,51,D0,1E,20,6E,28, 55,00,07,44,21,00,00,1E,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,00,00,00,FC,00,41, 56,53,2D,33,32,20,20,20,20,20,20,20,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,01,B7, 02,03,1B,F1,23,09,07,07,48,10,05,84,03,02,07,16,01,65,03,0C,00,10,00,83,01,00,00,02,3A,80,18,71, 38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01, 1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21, 00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,47 DIP-31M - Default EDID...
  • Page 69 1024 x 768p at 85Hz - VESA STD 800 x 600p at 85Hz - VESA STD 640 x 480p at 85Hz - VESA STD 1152 x 864p at 70Hz - VESA STD 1280 x 960p at 60Hz - VESA STD DIP-31M - Default EDID...
  • Page 70 Front left/right center.. No Rear left/right center... No Rear LFE....No Report information Date generated... 09/08/2015 Software revision..2.60.0.972 Data source....File Operating system..6.1.7601.2.Service Pack 1 Raw data 00,FF,FF,FF,FF,FF,FF,00,2D,B2,00,12,00,00,00,00,FF,19,01,03,6E,34,20,78,EE,B3,25,AC,51,30,B4,26, 10,50,54,FF,FF,80,81,8F,81,99,A9,40,61,59,45,59,31,59,71,4A,81,40,01,1D,00,72,51,D0,1E,20,6E,28, 55,00,07,44,21,00,00,1E,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,00,00,00,FC,00,41, 56,53,2D,33,32,20,20,20,20,20,20,20,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,C6, 02,03,1B,F1,23,09,07,07,48,10,05,84,03,02,07,16,01,65,03,0C,00,10,00,83,01,00,00,02,3A,80,18,71, 38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01, 1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21, 00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,47 DIP-31M - Default EDID...
  • Page 71 Protocol 3000 The DIP-31M can be operated using Kramer Protocol 3000 serial commands. Command framing varies according to how you interface with the DIP-31M. For example, a basic video input switching command that routes a layer 1 video signal to HDMI out 1 from HDMI input 2 (ROUTE 1,1,2), is entered as follows: •...
  • Page 72 You can enter commands directly using terminal communication software (e.g., Hercules) by connecting a PC to the serial or Ethernet port on the DIP-31M. To enter CR press the Enter key (LF is also sent but is ignored by the command parser).
  • Page 73 Spaces between parameters or command terms are ignored. Commands in the string do not execute until the closing character is entered. A separate response is sent for every command in the chain. DIP-31M - Protocol 3000...
  • Page 74 13.2 Kramer Protocol 3000 Syntax The Kramer Protocol 3000 syntax uses the following delimiters: • CR = Carriage return (ASCII 13 = 0x0D) • LF = Line feed (ASCII 10 = 0x0A) SP = Space (ASCII 32 = 0x20) •...
  • Page 75 Get HDCP signal status (system) NAME Set/get machine (DNS) name (system – Ethernet) NAME-RST Reset machine (DNS) name to factory default (system – Ethernet) PRIORITY Set/get priority for all channels (system) SIGNAL Get input signal lock status (system) DIP-31M - Protocol 3000...
  • Page 76 ~nn@BUILD-DATESPdateSPtimeCR LF Parameters date – Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time – Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds Response Triggers Notes Example “#BUILD-DATE?”,0x0D DIP-31M - Protocol 3000...
  • Page 77 1. Multi-line: ~nn@Device available protocol 3000 commands:CR LFcommand,SP command...CR LF 2. Multi-line: ~nn@HELPSPcommand:CR LFdescriptionCR LFUSAGE:usageCR LF Parameters COMMAND_NAME – name of a specific command Response Triggers Notes To get help for a specific command use: HELPSPCOMMAND_NAMECR LF Example “#HELP”,0x0D DIP-31M - Protocol 3000...
  • Page 78 Syntax Set: #PROT-VER?CR Get: Get device protocol version Response ~nn@PROT-VERSP3000:versionCR LF Parameters version - XX.XX where X is a decimal digit Response Triggers Notes Example “#PROT-VER?”,0x0D 13.3.1.7 RESET Functions Permission Transparency RESET Set: Administrator Public Get: DIP-31M - Protocol 3000...
  • Page 79 This device has a 14 digit serial number, only the last 11 digits are displayed Example “#SN?”,0x0D 13.3.1.9 VERSION Functions Permission Transparency Set: VERSION? Get: End User Public Description Syntax Set: #VERSION?CR Get: Get firmware version number Response DIP-31M - Protocol 3000...
  • Page 80 – for video layer: 1 (HDMI Out), for audio layer: 1 (Audio Out) mode – 0 (manual), 1 (priority switch), 2 (last connected switch) Response Triggers Notes Example Get the input audio switch mode for HDMI Out: “#AV-SW-MODE? 1,1”,0x0D DIP-31M - Protocol 3000...
  • Page 81 The timeout for the disable 5V on video output if no input signal detected (4) event overlaps with the timeouts for all other events (0, 2, 5, 6). This does not apply to VGA input. Example Set the auto switching timeout to 5 seconds in the event of video signal lost: “#AV-SW-TIMEOUT 0,5”,0x0D DIP-31M - Protocol 3000...
  • Page 82 After every change in output HPD status from Off to On (1) After every change in output HPD status form Off to On and all parameters (new EDID, etc.) are stable and valid (2) Notes Example Get the output HPD status of HDMI Out: “#DISPLAY? 1”,0x0D DIP-31M - Protocol 3000...
  • Page 83 – Major FPGA version number for current firmware minor_ver – Minor FPGA version number for current firmware Response Triggers Notes FPGA – field programmable gate array Example Get the FPGA version number for the current firmware: “#FPGA-VER? 1”,0x0D DIP-31M - Protocol 3000...
  • Page 84 (device button, device menu or other) or if the HDCP mode changed Notes Set HDCP working mode on the device input: HDCP not supported - HDCP Off HDCP support changes following detected sink - MIRROR OUTPUT Example Disable HDCP mode on HDMI In 2: “#HDCP-MOD 2,0”,0x0D DIP-31M - Protocol 3000...
  • Page 85 Input stage (0) – get the HDCP signal status of the source device connected to the specified input Example Get the HDCP input signal status of the source device connected to HDMI In 1: “#HDCP-STAT? 0,1”,0x0D DIP-31M - Protocol 3000...
  • Page 86 Reset machine (DNS) name to #NAME-RSTCR Set: factory default Get: Response ~nn@NAME-RSTSPOKCR LF Parameters Response Triggers Notes Factory default of machine (DNS) name is “KRAMER_” Example Reset the DNS name of the device to the factory default: “#NAME-RST”,0x0D DIP-31M - Protocol 3000...
  • Page 87 PRIORITY2 - priority of Audio In: 1 (highest priority), 2 (second priority) Response Triggers Notes The number of PRIORITY parameters differs according to the selected layer 1 is the highest priority Example Set the video input priority of PC In as the highest priority: “#PRIORITY 1,2,3,1”,0x0D DIP-31M - Protocol 3000...
  • Page 88 After execution, a response is sent to the com port from which the Get was received A response is sent after every change in input signal status from On to Off or from Off to On Notes Example Get the input signal lock status of HDMI In 2: “#SIGNAL? 2”,0x0D DIP-31M - Protocol 3000...
  • Page 89 Set the protocol permission level to Admin (when the password defined in the PASS command is 33333): “#LOGIN Admin,33333”,0x0D 13.3.2.2 LOGOUT Functions Permission Transparency LOGOUT Set: Not Secure Public Get: Description Syntax #LOGOUTCR Set: Cancel current permission level Get: Response DIP-31M - Protocol 3000...
  • Page 90 Set: Administrator Public SECUR? Get: Not Secure Public Description Syntax #SECURSPsecurity_modeCR Set: Start/stop security #SECUR?CR Get: Get current security state Response ~nn@SECURSPsecurity_modeCR LF Parameters security_mode – 1 (On / enable security), 0 (Off / disable security) DIP-31M - Protocol 3000...
  • Page 91 The get command identifies input switching on Step-in clients The set command is for remote input switching on Step-in clients (essentially via by the Web) Example Set the remote input switching of video to HDMI Out from HDMI In 2: “#ROUTE 1,1,2”,0x0D DIP-31M - Protocol 3000...
  • Page 92 – input number: 3 (PC In) value – phase number in LSB units: 1-30, ++ (increase current value), -- (decrease current value) Response Triggers Notes Example Increase the current value of the ADC (VGA) sampling phase: “#VGA-PHASE 3,++”,0x0D DIP-31M - Protocol 3000...
  • Page 93 Set / Get: ~nn@VMUTESPoutput_id,flagCR LF Parameters output_id – 1 (HDMI Out) flag – 0 (disable video on output), 1 (enable video on output), 2 (blank video) Response Triggers Notes Example Disable the video output on HDMI Out: “#VMUTE 3,0”,0x0D DIP-31M - Protocol 3000...
  • Page 94 A response is sent to the com port from which the get command was received After execution, a response is sent to all com ports if AUD-EMB was set by any other external control device (button press, device menu and similar) Notes Example “#AUD-EMB? 1,1”,0x0D DIP-31M - Protocol 3000...
  • Page 95 – audio parameter percentage: 0-100 (percent value), ++ (increase current value by 1 percent), -- decrease current value by 1 percent Response Triggers Notes All values are in percentages A minus sign precedes negative values Example Set the volume of the Audio Out (1) output to 75%: “#AUD-LVL 1,1,75”,0x0D DIP-31M - Protocol 3000...
  • Page 96 Set audio mute #MUTE?SPchannelCR Get: Get audio mute Response ~nn@MUTESPchannel, mute_modeCR LF Parameters channel – audio output number: 1 (Audio Out) mute_mode – 0 (Off), 1 (On) Response Triggers Notes Example Mute the Audio Out output: “#MUTE 1,1”,0x0D DIP-31M - Protocol 3000...
  • Page 97 If the port number you enter is already in use, an error is returned The port number must be within the following range: 0-(2^16-1) Example Set the Ethernet port protocol for TCP to port 12457: “#ETH-PORT TCP,12457”,0x0D DIP-31M Protocol 3000...
  • Page 98 To connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the NAME command. You can also get an assigned IP by direct connection to USB or RS-232 protocol port if available Consult your network administrator for correct settings Example Enable DHCP mode, if available: “#NET-DHCP 1”,0x0D DIP-31M - Protocol 3000...
  • Page 99 #NET-IP?CR Get: Get IP address Response ~nn@NET-IPSPip_addressCR LF Parameters ip_address – IP address, in the following format: xxx.xxx.xxx.xxx Response Triggers Notes Consult your network administrator for correct settings Example Set the IP address to 192.168.1.39: “#NET-IP 192.168.001.039”,0x0D DIP-31M Protocol 3000...
  • Page 100 ~nn@NET-MASKSPnet_maskCR LF Parameters net_mask - format: xxx.xxx.xxx.xxx Response Triggers The subnet mask limits the Ethernet connection within the local network Consult your network administrator for correct settings Notes Example Set the subnet mask to 255.255.0.0: “#NET-MASK 255.255.000.000”,0x0D DIP-31M - Protocol 3000...
  • Page 101 13.3.7 EDID Handling Commands Additional EDID data functions can be performed via the DIP-31 web pages or a compatible EDID management application, such as Kramer EDID Designer (see www.kramerav.com/product/EDID%20Designer). Command Description CPEDID Copy EDID data from the output to the input EEPROM...
  • Page 102 – 1 (HDMI In 1), 2 (HDMI In 2), 3 (PC In), lock_mode – 0 (Off: unlocks EDID), 1 (On: locks EDID) Response Triggers Notes Example Lock the last read EDID from the HDMI In 2 input: “#LOCK-EDID 2,1”,0x0D DIP-31M - Protocol 3000...
