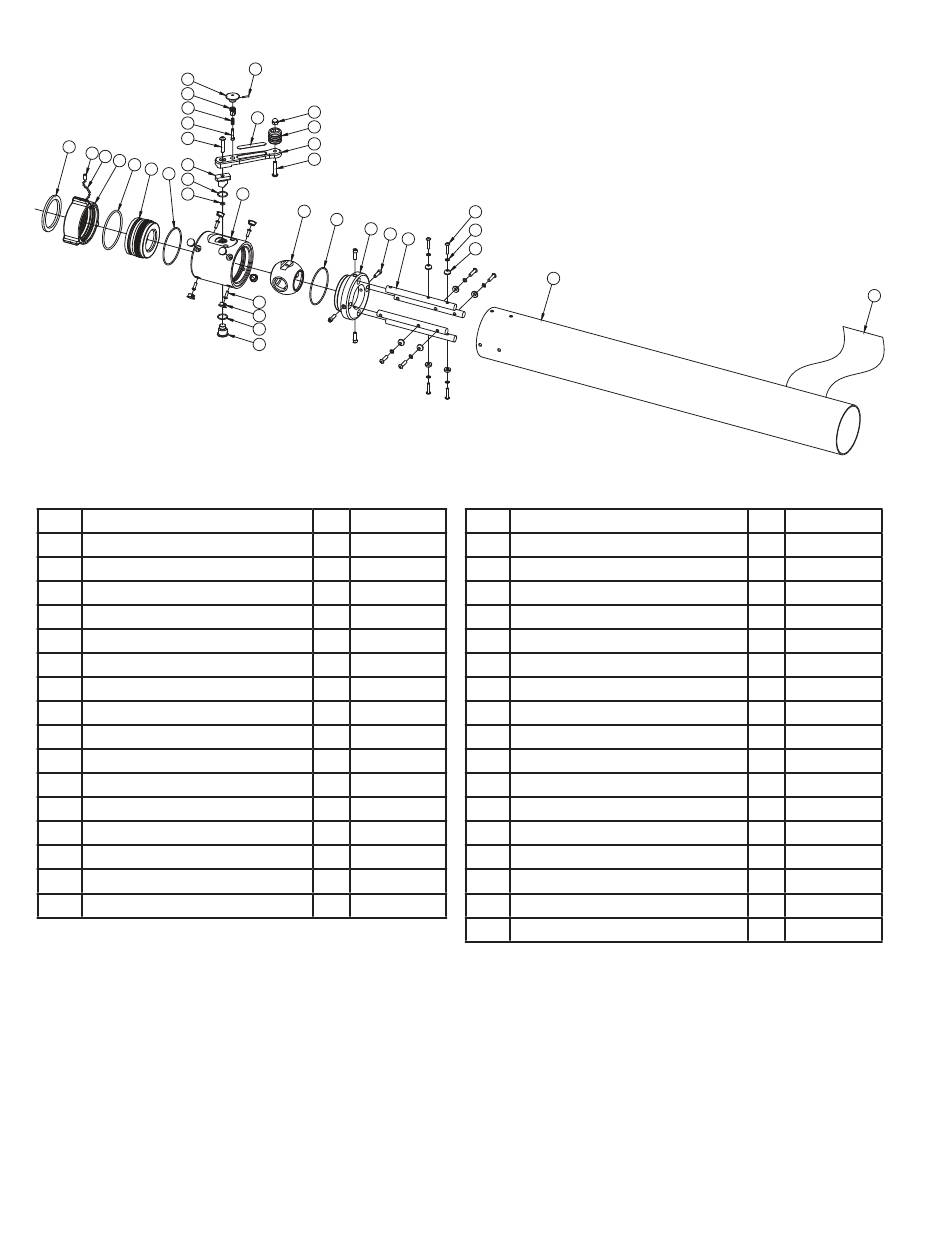

9.0 EXPLODED VIEW AND PARTS LIST

8
9
10
11
12
1
2 3
4
5 13
6
7
14
15
ITEM DESCRIPTION
1 GASKET - 3.5" HOSE COUPLING
2 5/16-24 X 5/8 SOCKET SET SCREW
3 1/4" SS BALL
4 COUPLING 3.5"NH ROCKERLUG
5 O-RING-348
6 FOAM TUBE BACK RING
7 O-RING-244
8 PULL KNOB
9 PULL PIN HOUSING
10 PULL PIN SPRING
11 PULL PIN
12 3/8-16 X 1-3/4 BUTTON HEAD SCREW
13 TRUNNION
14 O-RING-120
15 O-RING-012
16 1/8 X 3/4 HDP SPIROL PIN
©Copyright Task Force Tips LLC 2011-2019
16
18
17
19
20
12
21
25
7
26
27
28
22
23
14
24
QTY PART #
1 V3190
1 VT31-24SS625
54 V2125
1 MS687N
1 VO-348
1 FX570
2 VO-244
1 XX341
1 FX575
1 X345
1 XX340
2 VT37-16BH1.7
1 FX550
2 VO-120
1 VO-012
1 VP125X750H
29
30
31
32
ITEM DESCRIPTION
17 FOAM TUBE HANDLE LABEL
18 3/8-16 ACORN NUT
19 SINGLE HANDLE TOP
20 HANDLE
21 FOAM TUBE NOZZLE BODY
22 1/4-28 X 3/4 BUTTON HEAD SCREW
23 DOMEPLUG
24 LOWER TRUNNION
25 SELECTOR BALL
26 FRONT RING FOAM TUBE NOZZLE
27 5/16-18 X 1 SOCKET HEAD SCREW
28 STANCHION
29 5/16-18 X 1-1/4 BUTTON HEAD SCREW
30 WASHER
31 SPACER
32 EXPANSION TUBE
33 FOAM TUBE BARREL LABEL
6
33
QTY PART #
1 FX585
1 VT37-16AC
1 XXL625
1 FX535
1 FX530
4 VT25-28BH750
8 VM4122
1 FX545
1 FX560
1 FX525
4 VT31-18SH1.0
4 FX520
8 VT31-18BH1.2
8 VW500X325-48
8 FX510
1 FX505
1 FX580
LIF-100 October 10, 2019 Rev01
