Installation - Power Supply Connection
GENERAL
• Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations.

POWER SUPPLY CONNECTION

For connection to the power supply refer to
the following:

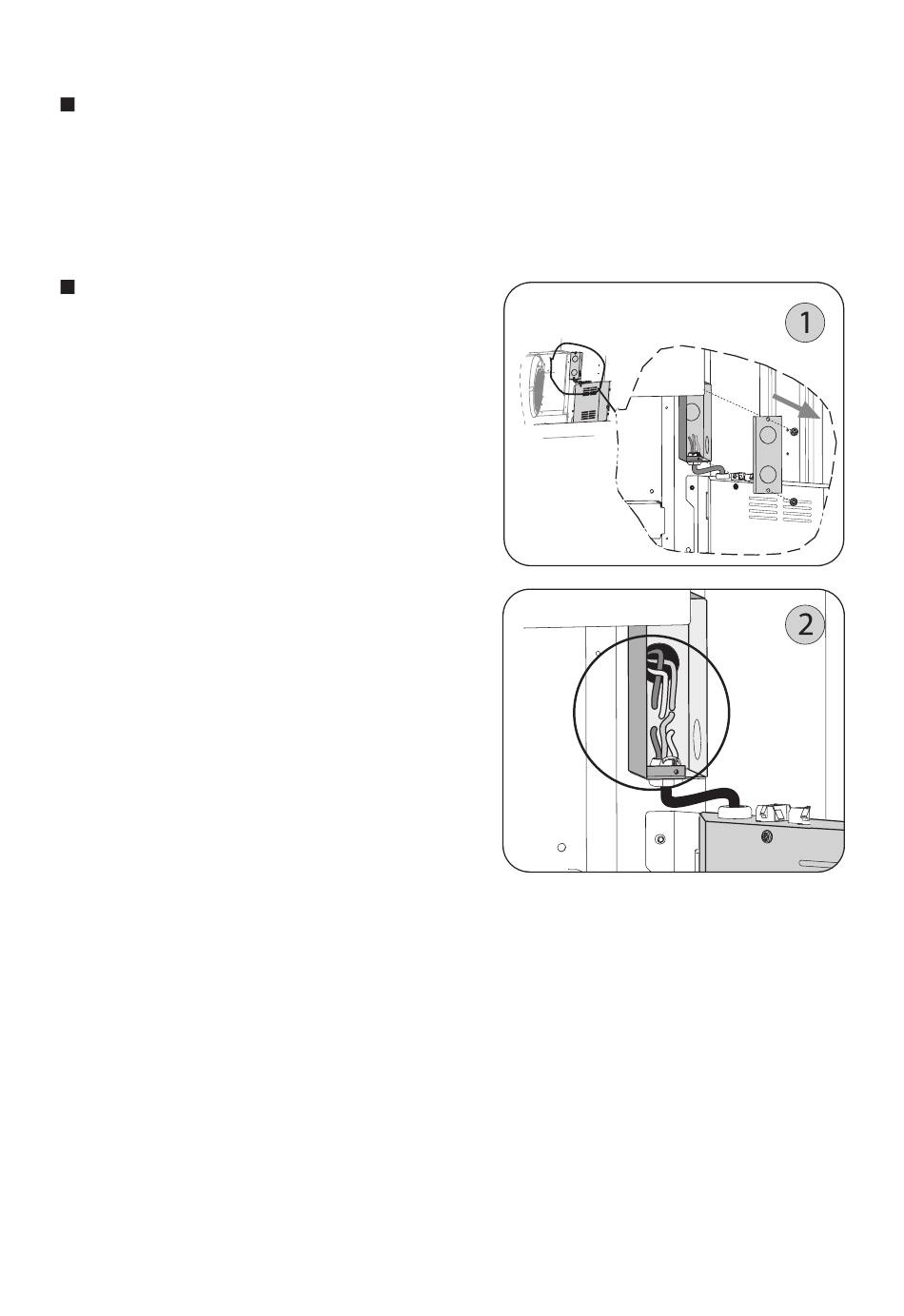

1. Remove the power supply cover by un-
doing the (2) screws Fig. 1.
2. Connect the wires of the hood to those
of the power supply as described. Fig. 2 :
BLACK = L line
WHITE = N neutral
GREEN / YELLOW = G ground
- A double-pole switch properly rated must
be installed to provide the range hood po-
wer supply disconnection.
- Connect the electrical conduit to the Field
Wiring Compartment using listed conduit
fittings.
- Carry out the power supplly connection in
accordance with the national electric code,
ANSI/NFPA 70-1999.
3. Insert the wires into the box, then close
the box cover, securing it using the screws
that were previously removed.
- 19 -
