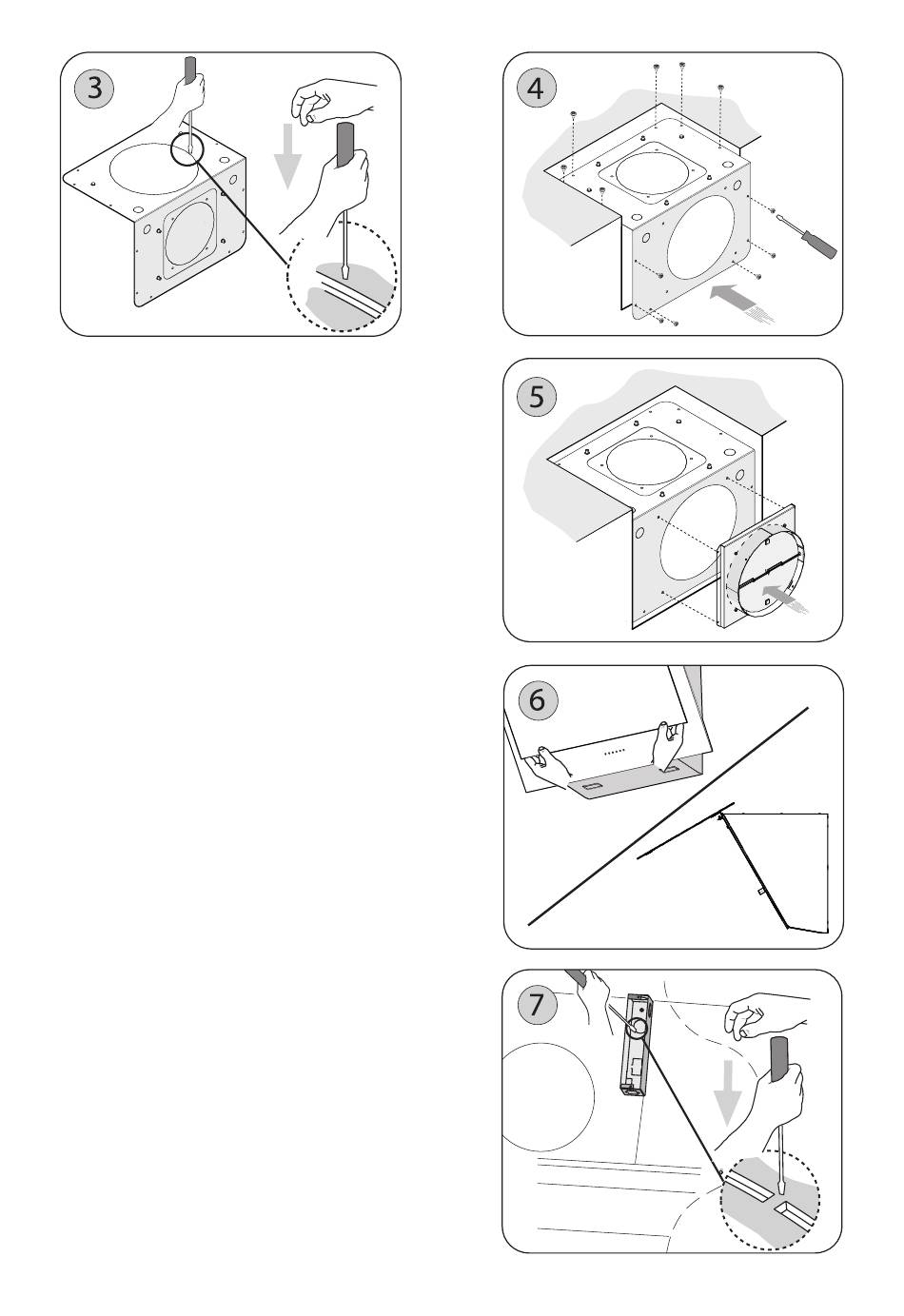

5. Install the flange and fix it to the blower
plate with the (4) screws. Fig. 5
6. Put the top cover back on.
7. Open the front panel, Fig.6
NOTE! Open the front panel while holding
it by its external sides, as shown in Fig.7,
and keep at a suitable distance to avoid
impacting it.
8. With the aid of a slotted screwdriver, bre-
ak the grommet of circular hole through
which the wires pass. Fig. 7
9. Insert the female connector in the ter-
minal box already attached to the hood.
Fig. 8A
Pass the wires of the remote motor throu-
gh the terminal box hole and connect
them to the connector wires. Fig. 8B
Note: Carry out the power supplly con-
nection in accordance with the national
electric code, ANSI/NFPA 70-1999.
