Installation - Internal Blower

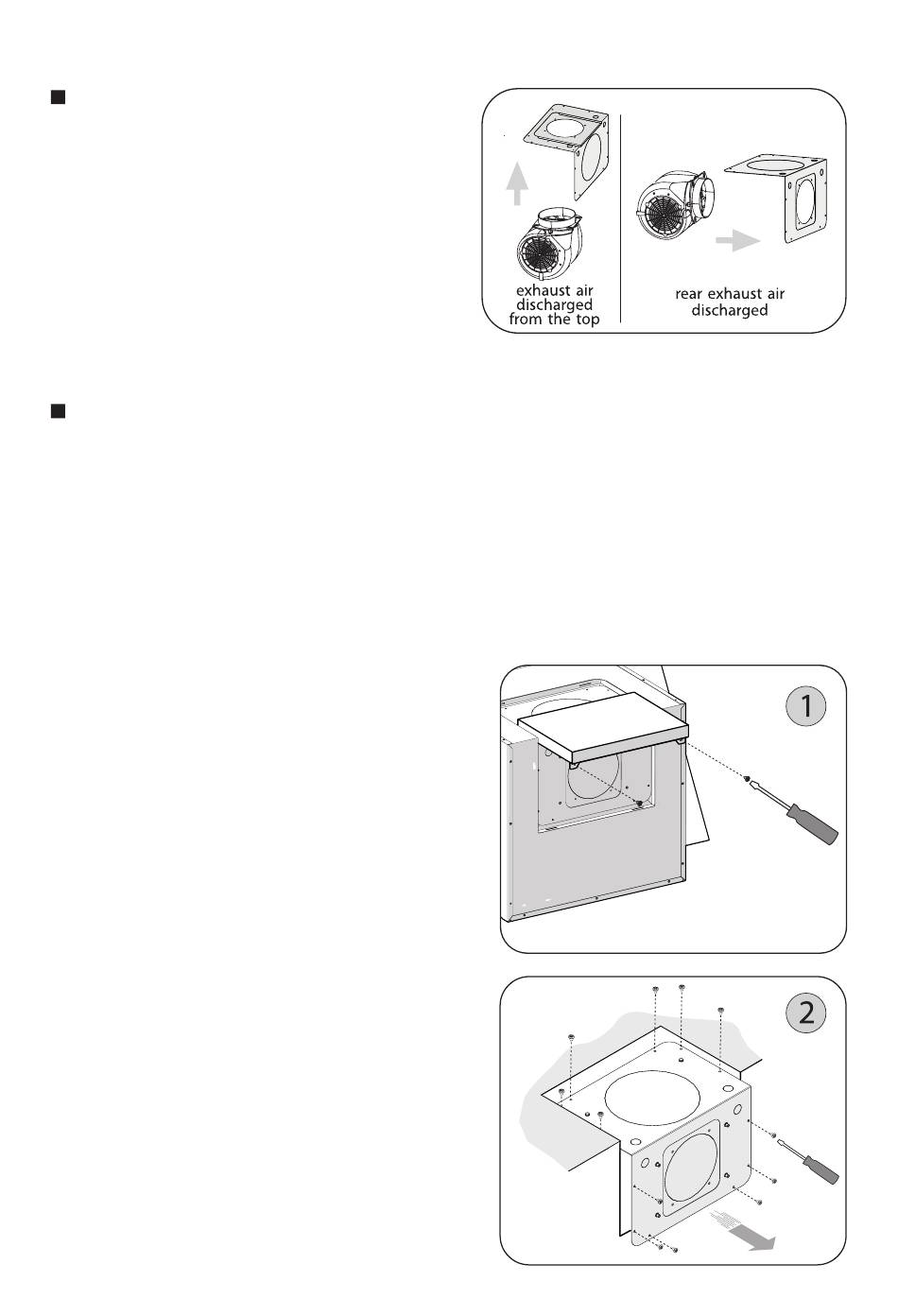

NOTE! The device in this version (with
internal suction blower) is equipped for
rear discharge of exhaust air. However,
if required, it is possible to have the
exhaust air discharged from the top.
This can be accomplished by carrying
out the steps indicated in the follow-
ing paragraphs; upon reaching step 9,
the motor plate must not be rotated.
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of fire and electric shock, install this rangehood
only with internal blower models CBI-290A or CBI-600A.
For external and in-line blower preparation please turn to page 14.
1. Remove the (2) screws securing the top
cover. See Fig.1
2. Remove the 6" round metal knockout
plate from the blower plate by using a
flat head screwdriver. See Fig.2
3. Remove the (6) screws securing the blo-
wer plate to the blower housing and re-
move blower plate. See Fig.3
4. Install internal blower into blower plate
and secure using (4) screws included
with the blower. See Fig.4
- 11 -
