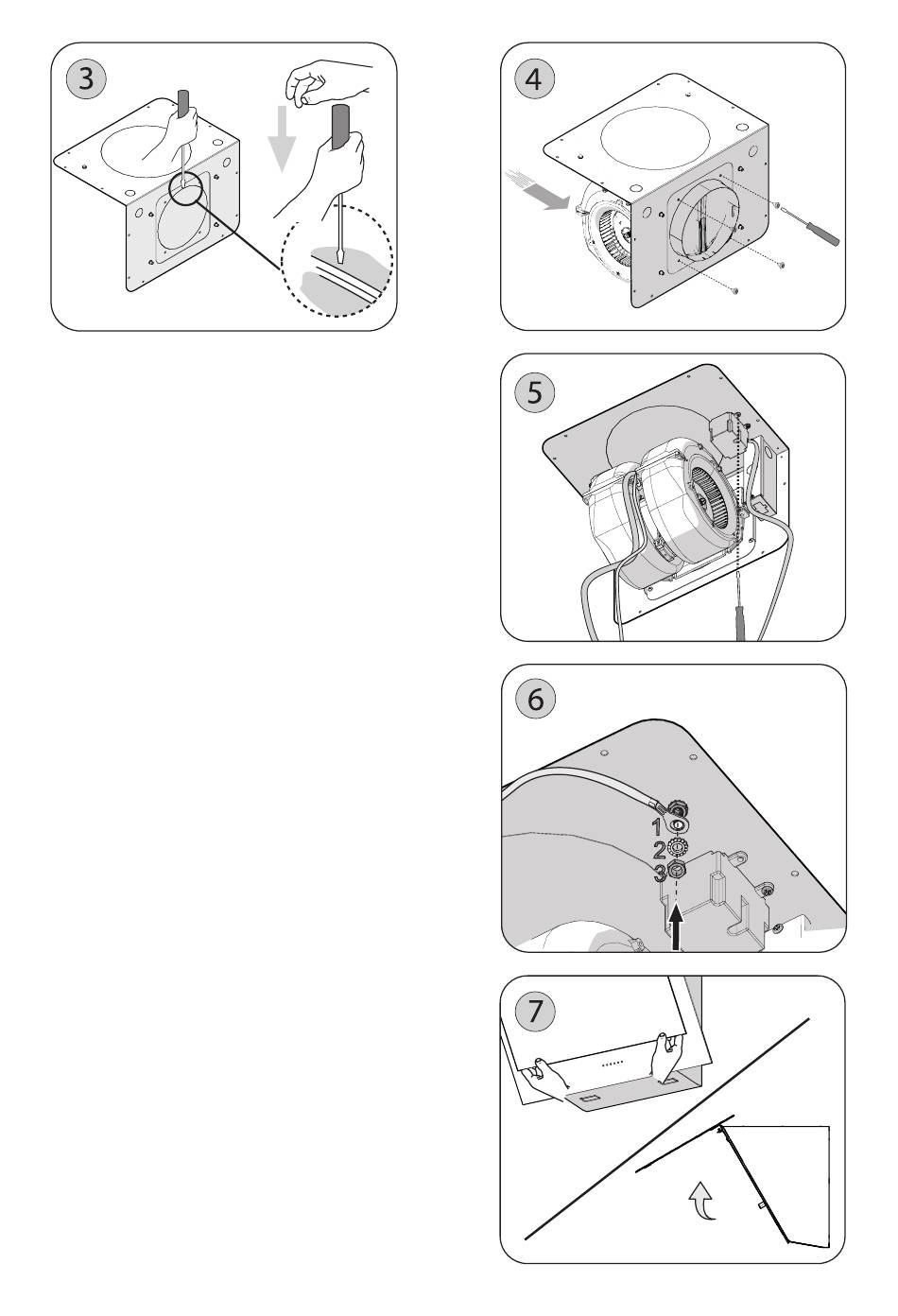

5. Secure capacitor box connected to the
provided cable to the blower plate using
(2) screws included with the blower. See
Fig.5
6. Secure Green/Yellow ground wire con-
nected to the cable to the provided ca-
pacitor to blower plate. Fig.6
7. Open the front panel, Fig.7
NOTE! Open the front panel while holding
it by its external sides, as shown in Fig.7,
and keep at a suitable distance to avoid
impacting it.
8. Attach the 6 pin male molex connector
from blower wire to the 6 pin female mo-
lex connector located inside the blower
housing. See Fig.8
9. Install the blower and plate on the inside
of the blower housing: carry out the in-
structions at step 2 in reverse order then
use the screws provided to complete in-
stallation. (Tot. 12). Fig.9
