Installation - Power Supply Connection
GENERAL
• Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations.

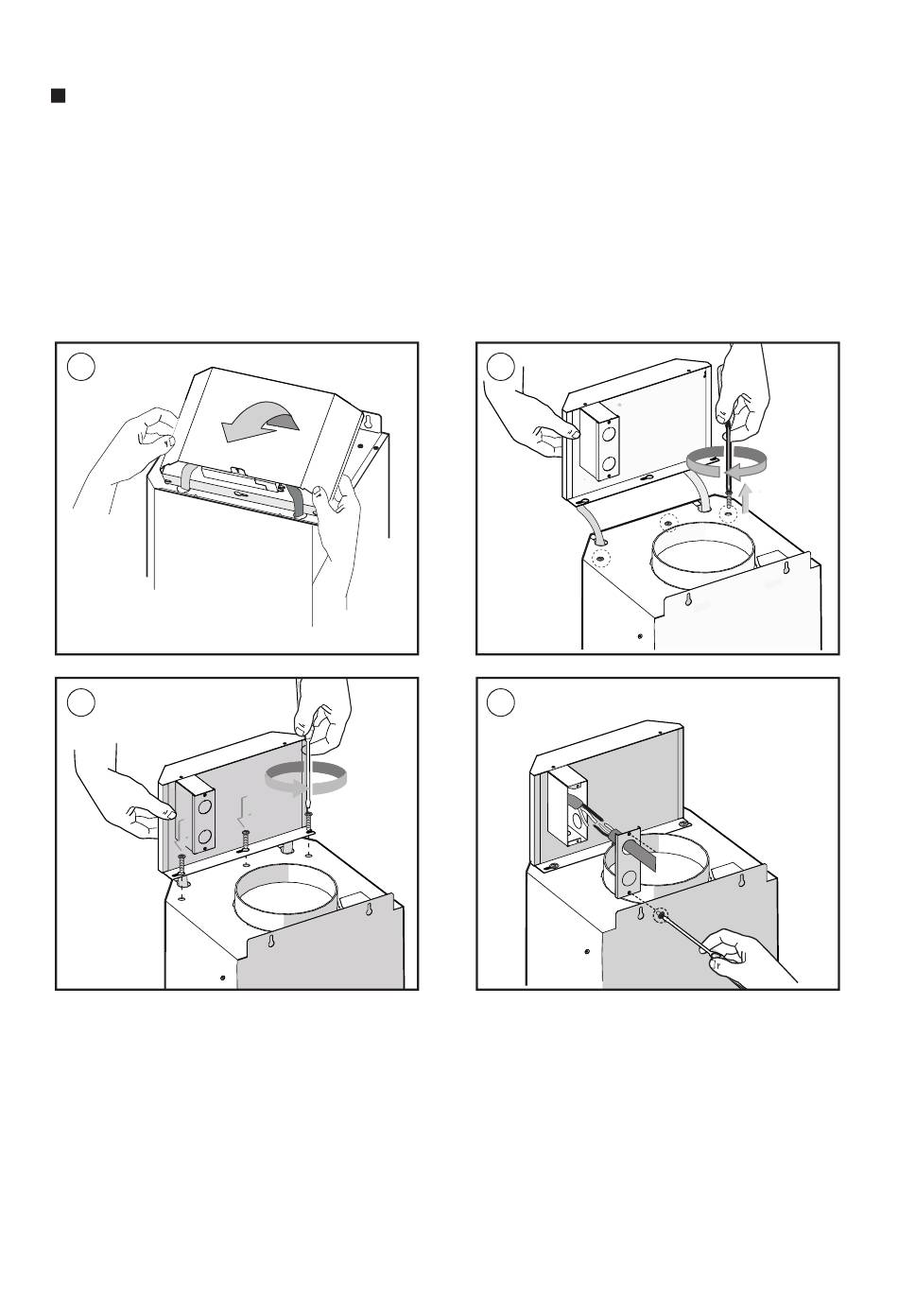

A. Lift the electrical plant box.
B. Remove the 3 fixed screws.
C. Position the electrical box so it is in the line with the holes of the previously removed
screws and tighten.
A
C
D 1. Route the power cord to the junction box.
2. Using listed conduit fittings and connectors, connect the power supply to the box and
each line to the appropriate wire following this color convention:
BLACK = HOT LEG
WHITE = NEUTRAL
GREEN/YELLOW = GROUND
Polarity must be observed. Unit must be properly grounded. Use a double throw disconnect
switch.
3. Replace the box cover. Replace the Anti-grease flters.
All wiring must be in compliance with national electrical code, ANSI/NFPA 70-1999 and
all local codes and regulations.
B
D
