Hood Specification - Zephyr APEX DAP-M90AMBX Installation Instructions Manual

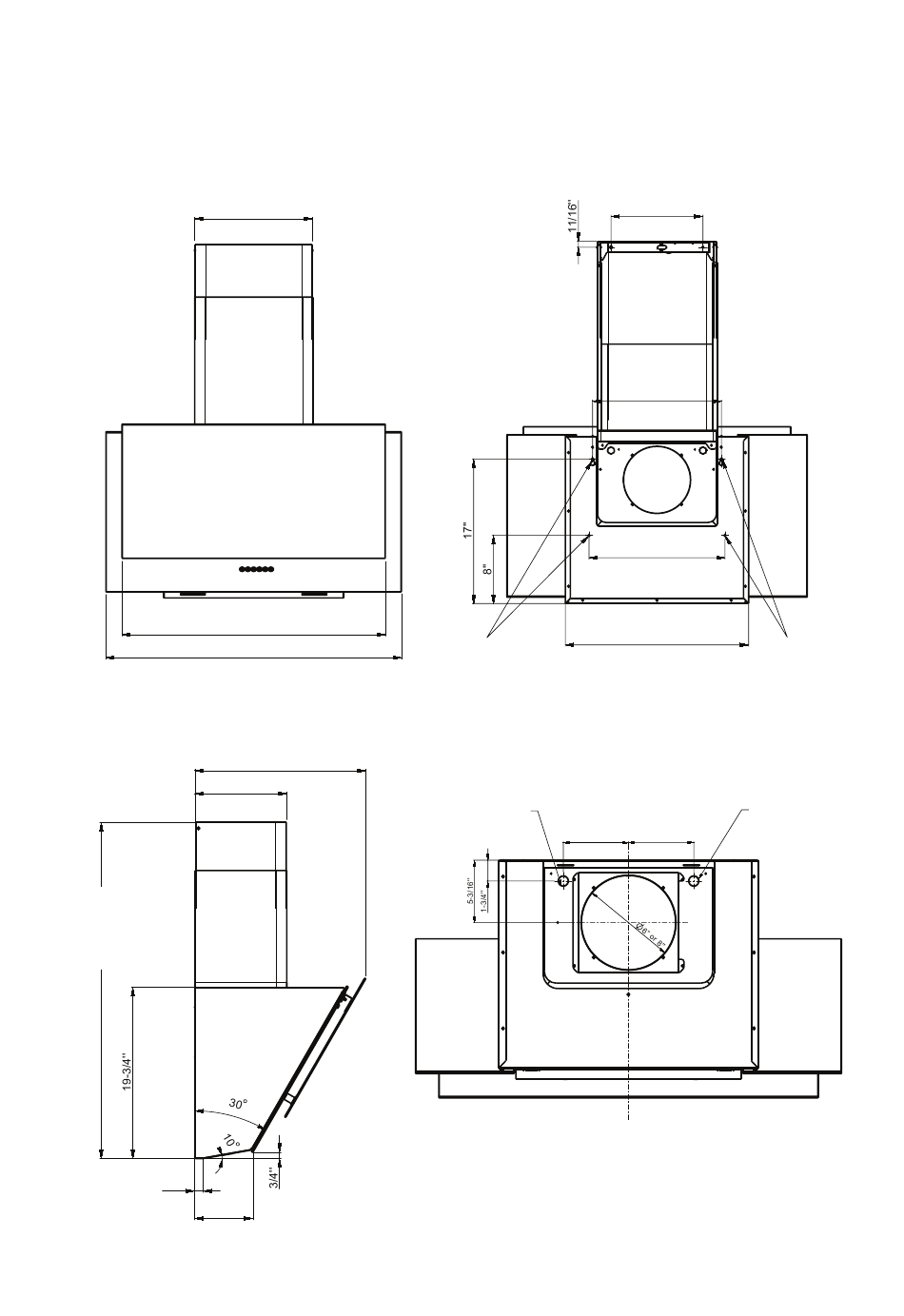

Hood Specifications
front of hood
Optional
Duct Cover
side of hood
10-9/16''
Z1C-00MExx
(optional duct cover)
Optional
min. ducted - 50"
Duct Cover
max. - 60"
1''
6-3/4''
14-1/16''
31-1/2''
35-3/8''
19-13/16''
back of hood
Holes for
wall installation
top of hood
ELEC. KO
5-7/16''
- 10 -
10-13/16''
Optional
Duct Cover
15-3/16''
16''
21-9/16''
Holes for
wall installation
REMOTE BLOWER KO
5-7/16''
